  • 320 Roll to Roll Type Intermittent Offset Printing Machine in China Label Offset Printer, Sticker Printing machine
320 Roll to Roll Type Intermittent Offset Printing Machine in China Label Offset Printer, Sticker Printing machine
320 Roll to Roll Type Intermittent Offset Printing Machine in China Label Offset Printer, Sticker Printing machine
320 Roll to Roll Type Intermittent Offset Printing Machine in China Label Offset Printer, Sticker Printing machine
320 Roll to Roll Type Intermittent Offset Printing Machine in China Label Offset Printer, Sticker Printing machine
320 Roll to Roll Type Intermittent Offset Printing Machine in China Label Offset Printer, Sticker Printing machine
320 Roll to Roll Type Intermittent Offset Printing Machine in China Label Offset Printer, Sticker Printing machine
320 Roll to Roll Type Intermittent Offset Printing Machine in China Label Offset Printer, Sticker Printing machine

320 Roll to Roll Type Intermittent Offset Printing Machine in China Label Offset Printer, Sticker Printing machine

Share on (1600637131439):


Price:$100,000.00

Quantity:


Product Overview

Description

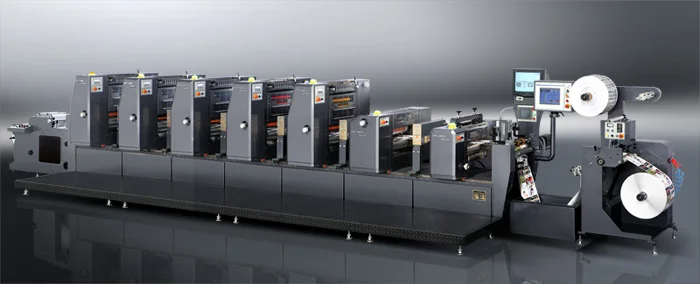

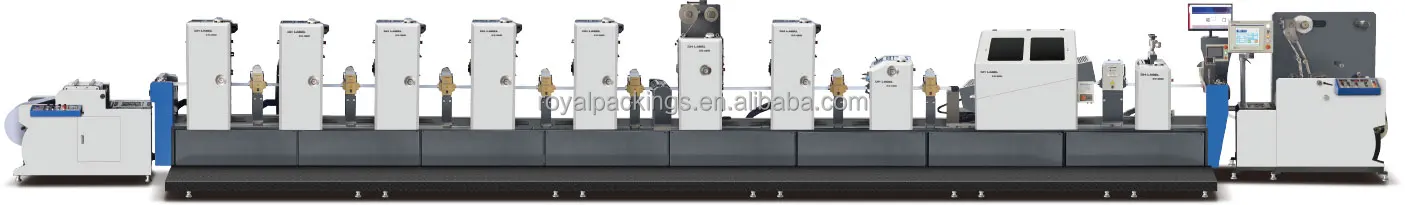

RYX-320 Intermittent Label offset printing machine is a perfect design for various labels with its PS plate high printing quality, offset printing machine is roll to roll printing, it is an ideal choice for the high-grade adhesive labels.



Intermittent Label Offset Printing Machine adopts latest servo control system which can ensure the material nip steady and accuracy. It can free from the printing roller change.
The operation of this machine is faster, convenient and simple. PS plate intermittent printing hits the high level label demands
from short run to long run. It’s the best choice for printing highest quality labels with lowest production cost.




Model
RYX-320
Printing speed
50-180 t/Min
Printing color
2-6colors
Max. printing length
350mm
Max. web width
320mm
Max. printing width
300mm
Max. unwinding diameter
600mm
Max. rewinding diameter
600mm
Power supply
3 phase 380v
Total power
33.6kw (without uv power )
Main machine size (L x W x H)
8850mm x 1600mm x 1850mm
Main Machine weight
About 9.5t

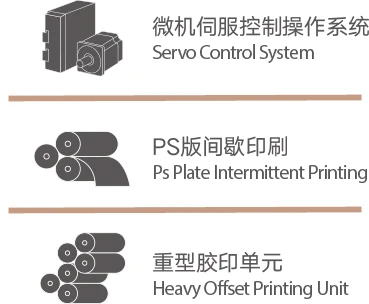

Heavy Offset Printing Unit
Printing unit: adopting high quality and heavy offset printing unit. Assembled with 19 pieces of ink rollers,4pcs of Form Rollers and 4pieces of Water rollers (alchohol dampening system), has nice inking system which can largely avoid gear mark and ghost
image.
Shaftless Driving System
Every printing unit run by an independent servo motor, 15 sets of servo motors in total for whole machine (6color) to ensure the exact color registration during high speed operation. The vertical and horizontal motions of every printing unit are all controlled by independent motor .
Video Inspecting System
By video still system, the machine can regulate vertical & horizontal registering without stopping, it improves the printing quality and increases the producing capacity.


Touch Screen Control System
Touch LCD screen, faster CPU, 12inch operating display, independent touch screen in each printing unit, powerful human-computer dialogue system, multi-guide inspecting display interface, instant alarm signal, makes operation much easier and more efficient.
Second Pass Register Sensor
Super large printing area of 300x350mm, the max repeat length can go up to 350mm and the max running speed can be 63m/min. By high-precision photocells, the machine ensures multi-register print on both side, make the possibility of label variety.
