Product Overview
Description
Product Description

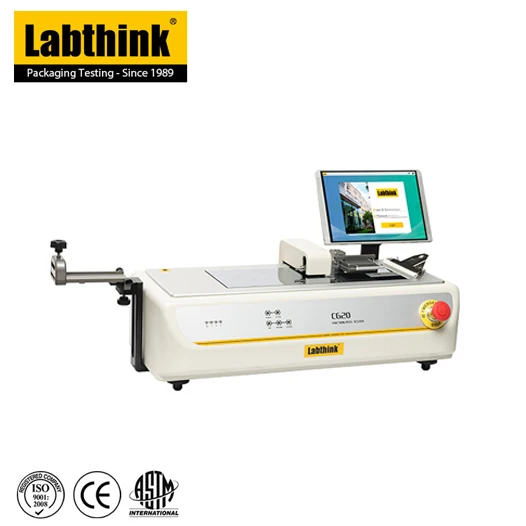

C620H Friction / Peel Tester can be used to test coefficient of static and kinetic friction of plastic films, sheets, foils, paper, cardboard, woven bags, fabric (fabric style test), metal-plastic composite strip/belt for communication cable, convey belt and textile, as well as peel strength test of adhesive laminated products, medical adhesive bandage, release paper and protection films.
Features
Two test modes are available i.e. coefficient of friction and peel test
Innovative automatic lifting of sled ensures accurate still time of the sled and guarantees the high repeatability of coefficient of friction test results
The sliding plane and the sled are treated by degaussing and remanence detection which effectively reduce the system errors
Wide range and high-precision of automatic temperature control system to support tests at different temperatures
Force measuring system is supplied by global well-known supplier, the testing accuracy is higher than 0.5%FS, with better repeatability, multiple test ranges for choice
Standards
ISO 8295, ISO 8510-2, ASTM D1894, ASTM D4917, ASTM D3330, TAPPI T816, TAPPI T549, GB 10006,GB/T 2790,GB/T 2791,GB/T 2792
Applications
Plastic Films and Sheets
Coefficient of static and dynamic friction tests of plastic films and sheets
Paper and Paperboard
Coefficient of static and dynamic friction tests of paper and paperboard
Textiles, Non-woven Fabrics and Woven Bags
Coefficient of static and dynamic friction tests of textiles, non-woven fabrics and woven bags
Rubber
Coefficient of static and dynamic friction tests of rubber products
Aluminum Foils and Aluminum Foil Composite Films
Coefficient of static and dynamic friction tests of aluminum foils, aluminum foil composite films and other metal products
Printing Matters
Coefficient of static and dynamic friction tests of printing matters
Specifications | |
Test Range | 0 ~ 5 N (standard) 0 ~ 10 N, 0 ~ 30 N, 0 ~ 50N, 0 ~ 100N (optional) |
Force Accuracy | Displayed Value ±0.5% (10%FS-100%FS) ±0.05%FS (0%-10% of the load cell range) |
Force Resolution | 0.001 N |
Test Speed | 0 ~ 500 mm/min (Any integer within this range can be set) |
Speed Accuracy | Displayed Value ±0.5% (1%~100% of maximum speed) |
Stroke | 10 ~ 300 mm |
Displacement Resolution | 0.01 mm |
Test Temperature | Room Temperature ~ 100°C |
Temperature Variation | ±0.2°C |
Temperature Accuracy | ±2°C (Single point calibration, within effective area of the test platform |
Test Platform | 400mm×150mm |
Specimen Thickness | ≤ 2 mm |
