Product Overview
Description
Product Description

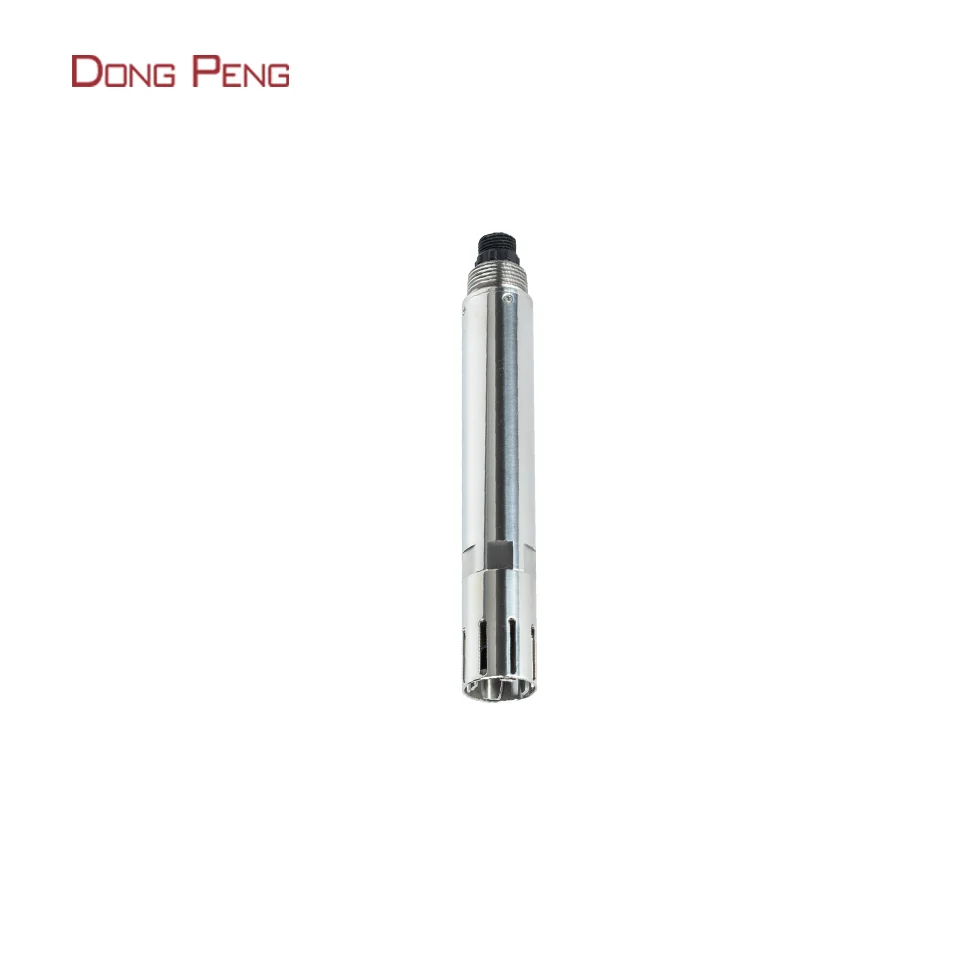

NHN-406 online ammonia nitrogen sensor
NHN-406 integrated on-line ammonia nitrogen sensor is made of ammonium ion selective electrode based on PVC membrane. It is used to test the content of ammonium ion in water. With temperature compensation, it ensures that the test is fast, simple, accurate and economical. This user manual details the technical parameters, operation and maintenance, communication protocol, etc. of the ammonia nitrogen sensor.
NHN-406 integrated on-line ammonia nitrogen sensor is made of ammonium ion selective electrode based on PVC membrane. It is used to test the content of ammonium ion in water. With temperature compensation, it ensures that the test is fast, simple, accurate and economical. This user manual details the technical parameters, operation and maintenance, communication protocol, etc. of the ammonia nitrogen sensor.
1. Signal output: RS-485 bus, modbus/rtu protocol, easy to connect to PLC, DCS, industrial control
computer, general controller, paperless recording instrument or touch screen and other third-party equipment.
computer, general controller, paperless recording instrument or touch screen and other third-party equipment.
2.For the patented ammonium ion electrode, the internal reference solution exudes from the microporous salt bridge very slowly under the pressure of
at least 100KPA (1bar). Such a reference system is very stable, and the electrode life is longer than that of ordinary industrial electrodes.
at least 100KPA (1bar). Such a reference system is very stable, and the electrode life is longer than that of ordinary industrial electrodes.
3. easy to install: 3/4npt pipe thread, easy to sink or install in pipes and tanks.
4. IP68 protection grade.
Model | NHN-406 | ||
Range and resolving power | 0～100.00mg/L | 0.01mg/L | |
0～1000.0mg/L | 0.1mg/L | ||
Accuracy | ± 10% or ± 1mg/l, ± 0.5 ℃ | ||
Storage temperature | - 5～40℃ | ||
Working conditions | 0～40℃，＜0.1MPa | ||
PH range of medium | 4～10pH | ||
Temperature compensation | Automatic temperature compensation (PT1000) | ||
Power supply | 12～24VDC | ||
Signal output | RS-485(Modbus/RTU) 、4-20mA | ||
Shell material | POM and 316L stainless steel | ||
Installation method | 3/4npt pipe thread, immersion installation | ||
Cable length | 5m, other lengths can be customized | ||
Calibration method | Two point calibration | ||
Power waste | 0.2W@12V | ||
Degree of protection | IP68 | ||
FAQ
1. Q: Where is your company located? Could I visit your factory?
A: Our company is located in Zhaoyuan, Shandong province, China. Sincerely invite you to visit our factory.
2. Q: How can I get some samples? Is it free?
A: Welcome to contact us by e-mail or Alibaba for your requirements. We can provide sample service.
3. Q: How does your factory do regarding QC?
A: Quality is priority. We always consider quality as the most important thing during the whole production process. Our factory has gained ISO9001.
4. Q: What is your after-sale service? How about the warranty?
A: We offer guarantee on our product for 12 months and we have the special after-sales service team.
5.Q: Can you offer OEM or design services?
A: Yes, We design and manufacture our products by ourselves.
We can make OEM according to your requirements, including packing, logo print etc.
6. Q: What about your delivery time? And how do you delivery the goods?
A: Once getting your prepayment, the production will be started immediately.
It is about 5-7 working days since payment and we usually deliver by DHL, UPS, FedEx or TNT, Airline and sea shipping also optional. For urgent orders, please contact us to inquire about the stock situation.
7. Q: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.15%.
Secondly, during the guarantee period, we will send new parts with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
A: Our company is located in Zhaoyuan, Shandong province, China. Sincerely invite you to visit our factory.
2. Q: How can I get some samples? Is it free?
A: Welcome to contact us by e-mail or Alibaba for your requirements. We can provide sample service.
3. Q: How does your factory do regarding QC?
A: Quality is priority. We always consider quality as the most important thing during the whole production process. Our factory has gained ISO9001.
4. Q: What is your after-sale service? How about the warranty?
A: We offer guarantee on our product for 12 months and we have the special after-sales service team.
5.Q: Can you offer OEM or design services?
A: Yes, We design and manufacture our products by ourselves.
We can make OEM according to your requirements, including packing, logo print etc.
6. Q: What about your delivery time? And how do you delivery the goods?
A: Once getting your prepayment, the production will be started immediately.
It is about 5-7 working days since payment and we usually deliver by DHL, UPS, FedEx or TNT, Airline and sea shipping also optional. For urgent orders, please contact us to inquire about the stock situation.
7. Q: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.15%.
Secondly, during the guarantee period, we will send new parts with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
