Low Cost Price Industrial Water Air Gas Liquid Pressure Sensor
- Category: >>>
- Supplier: Hunan Tecnk Electronic Co. Ltd.
Share on (1600637247476):
Product Overview
Description
Product Description
Application of Low Cost Price Industrial Water Air Gas Liquid Pressure Sensor
Mechanical engineering Industry
Industrial automation measuring
Hydraulic and level measurement
Gas tank pressure monitoring
Industrial test and control
Other industrial applications
Special Feature of Low Cost Price Industrial Water Air Gas Liquid Pressure Sensor
Widely pressure range from 0~10bar~16bar~25bar~40bar~60bar~160bar~250bar~
350bar~400bar~600bar~700bar~800bar~1000bar
Various electrical connectors available: can be OEM custom various parameters
Various industrial standard signal output:4~20Ma,0~10V,0~5V,1~5V,0.5~4.5V optional
Wide temperature range: -40 ~ 125℃, autocorrection temperature drift
Moisture-proof design: Stable performance in very humid environment
Harsh working environment without delay: Response time ≤1ms
Compact dimension design
Description ofLow Cost Price Industrial Water Air Gas Liquid Pressure Sensor
PPM-T222H Series standard pressure transmitter adopts Classical diaphragm technology. It designed with widely pressure range, compound output signals optional. It is suitable for both civil and industrial use. Multiply construct available, it can make sure the batch requirement of the client, we also can supply the special design.

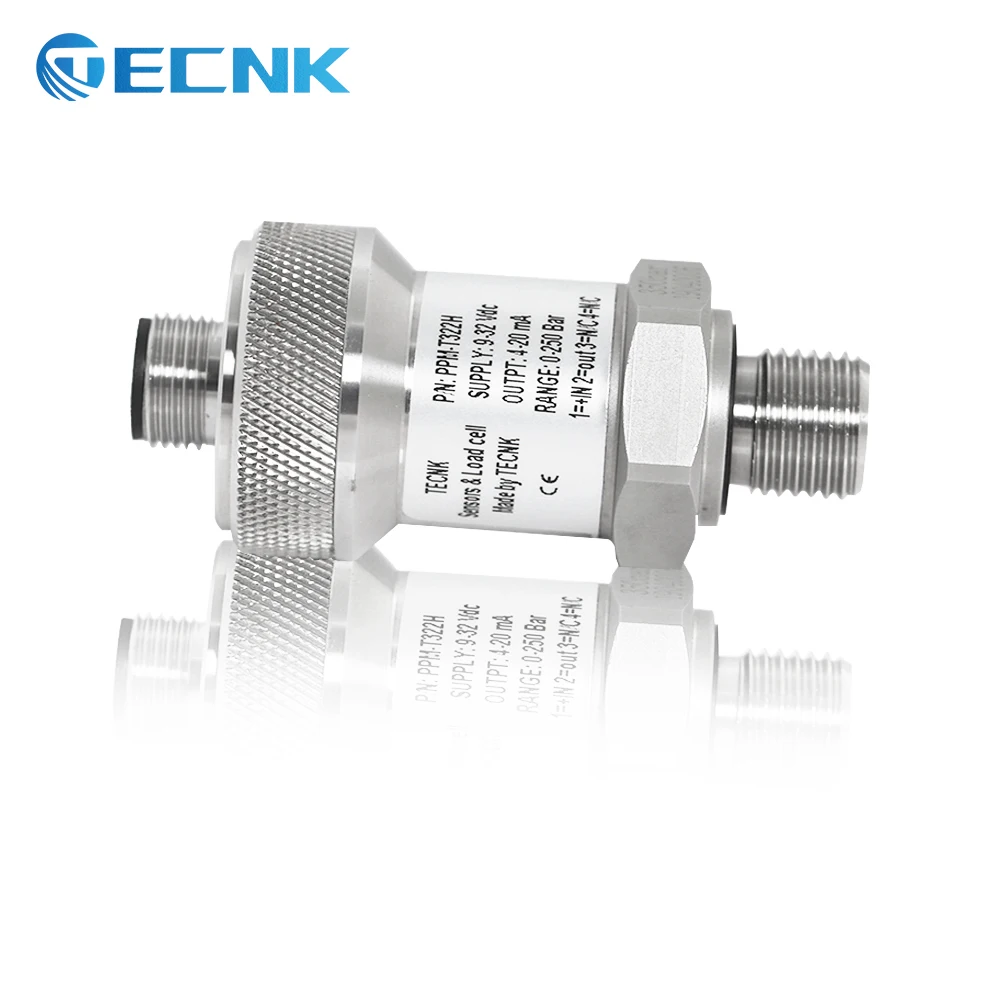

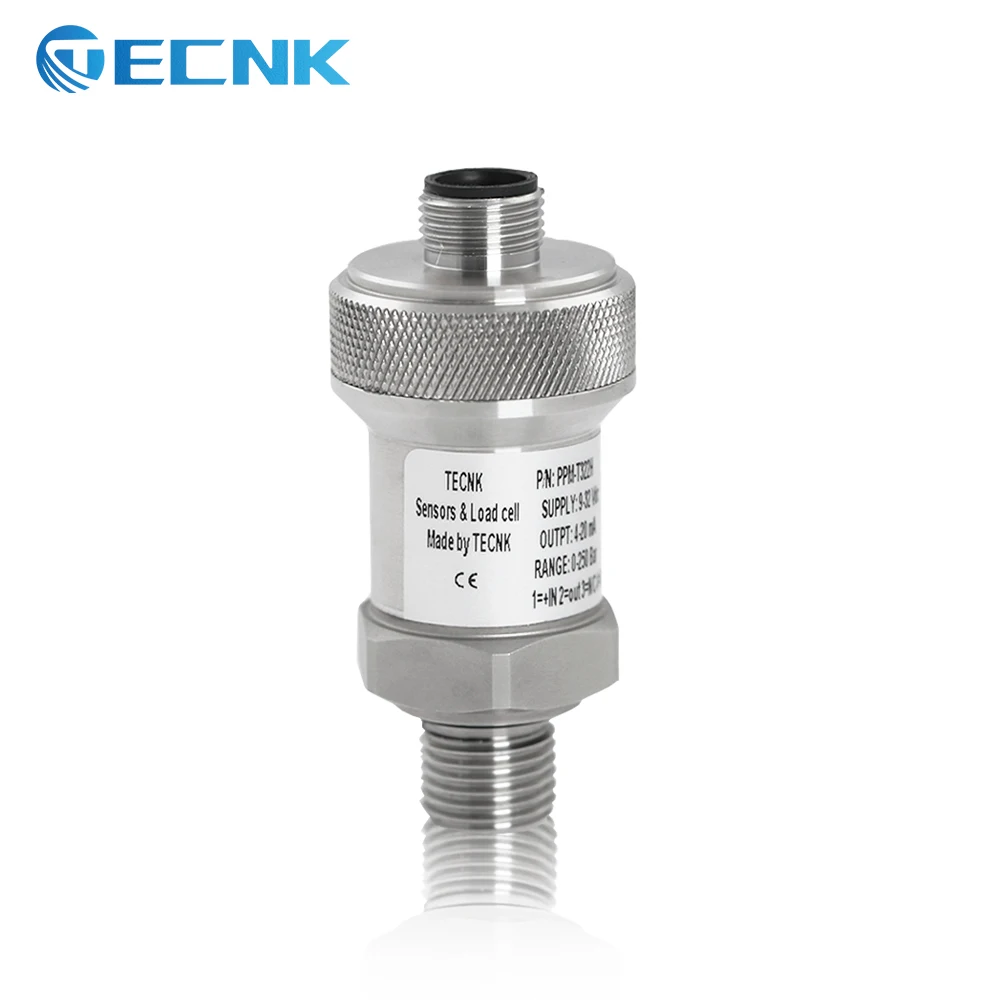

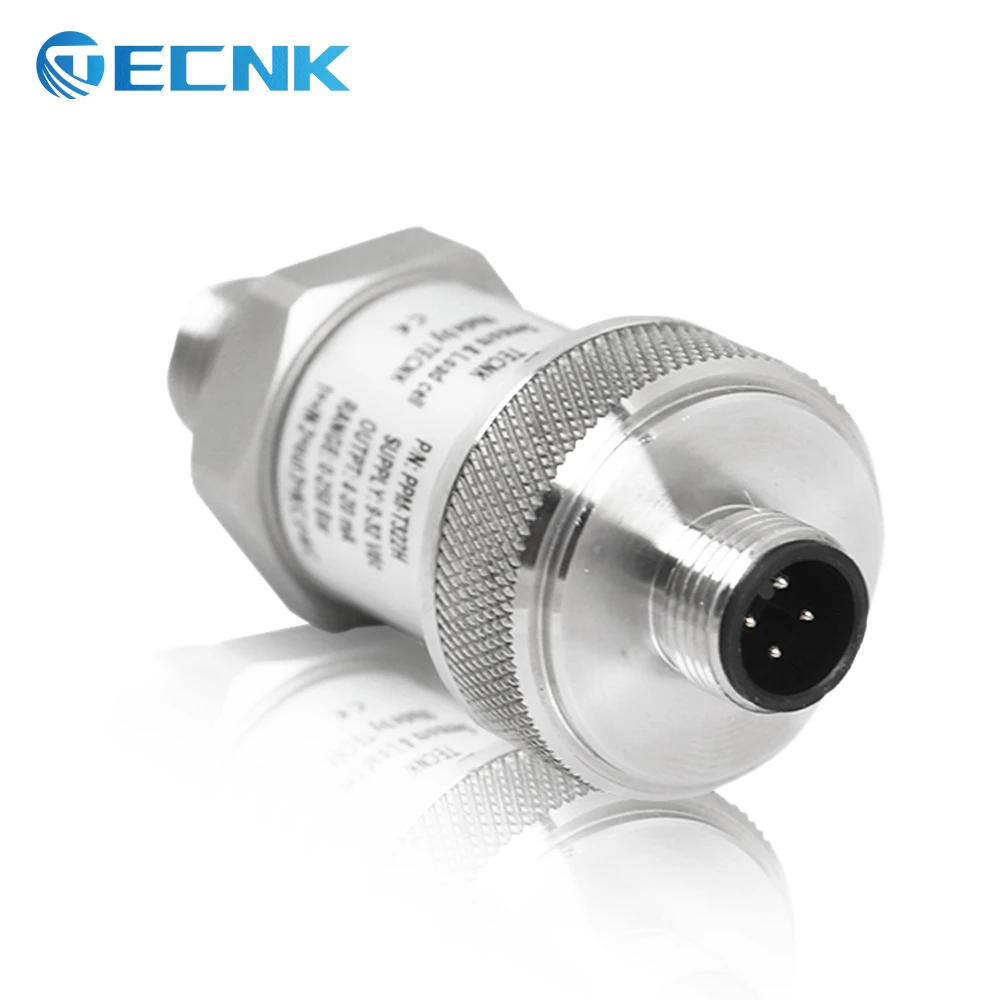

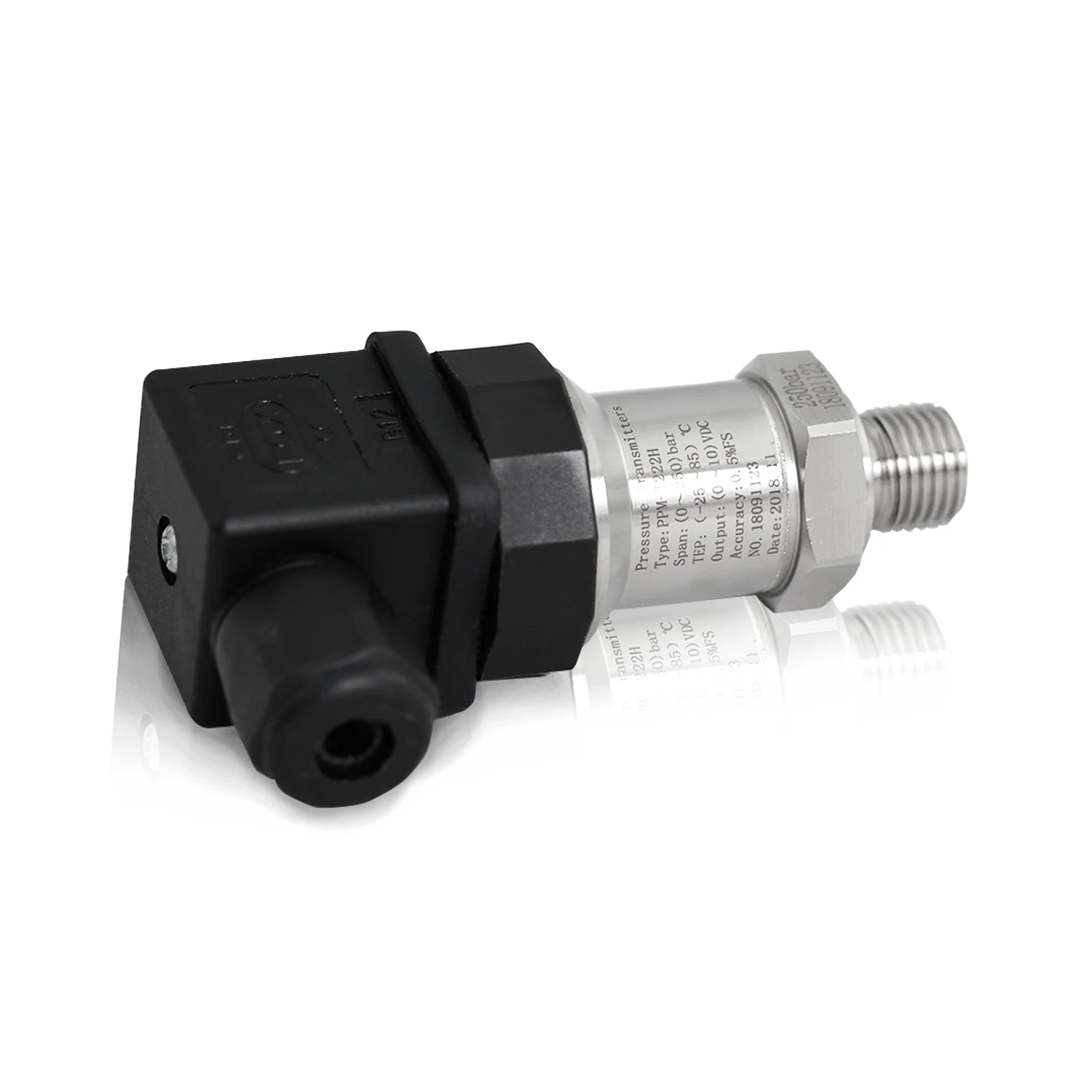

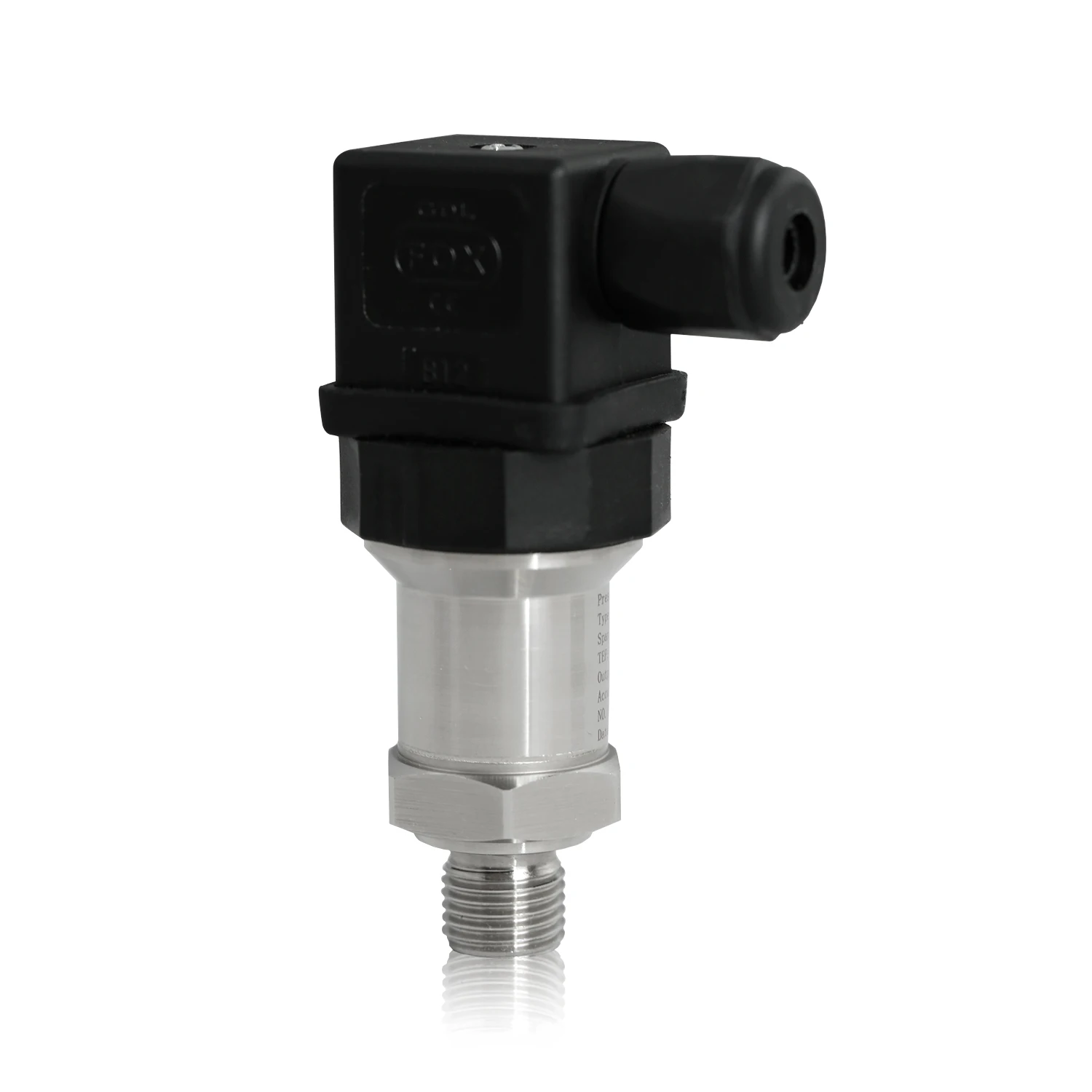

PPM-T222H Pressure Transmitter
1. Measuring range from 0-250Bar .
2. Output signal : 0.5-4.5V
3. Process connection: G1/4
4. Power Supply: 5Vdc
5. Accuracy: 0.5%FS
Remarks: The price is based on the above specification .
For this model other specification please contact us .
Other pressure range etc specification such as this model are list as follows:
Specifications
| Measuring medium | Gas, liquid |
| Pressure type | Gauge pressure(G), Sealed pressure(S) |
| Pressure range | 0~160bar,250bar,400bar,600bar,700bar,1000bar |
| Power supply | 9-32VDC |
| Output signal | 4~20mA ,0~10VDC,0~5VDC |
| Nonlinearity | ≤0.2 |
| Non-repeatability | ≤0.2% FS |
| Accuracy | 0.5%FS |
| Long-term stability | 0.25%FS/year |
| Medium temp | -40~+85℃ |
| Operation temp | -40~+85℃ |
| Zero temp. drift | ≤0.03%FS/℃ |
| FS temp. drift | ≤0.03%FS/℃ |
| Response time | ≤1ms(10%~90%) |
| Insulation resistance | ≥1000 MΩ/100V |
| Overpressure | 150%FS (1.5 times FS) |
| Damage pressure | 500%FS (5 times FS) |
| Vibration resistance | 5~1000Hz |
| Shock resistance | 50g, 20ms |
| Process connections | G1/4, M14×1.5, or other process connections on request |
| Materials | Wetted parts: 17-4PH, non-wetted parts: stainless steel 304 |
| Ingress protection | IP67 |
| Electrical connections | Circular connector M12 x 1,L-connector DIN43650 |

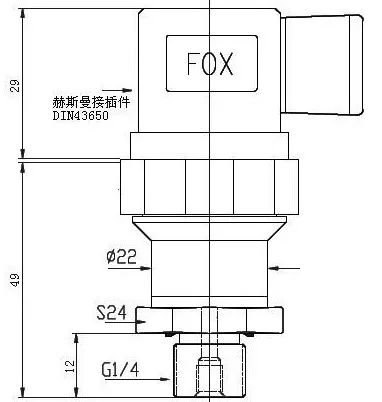

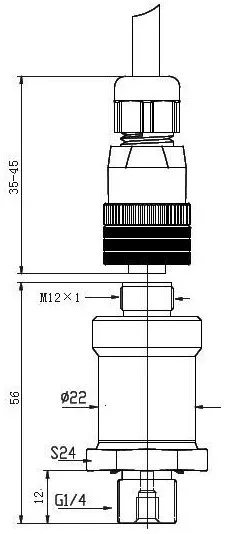

Dimensions in mm

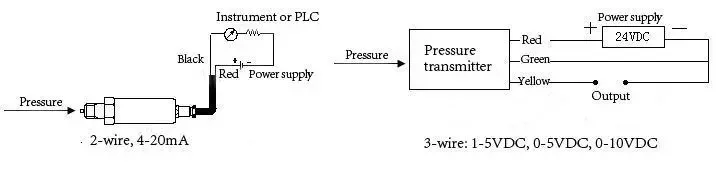

Wiring diagram

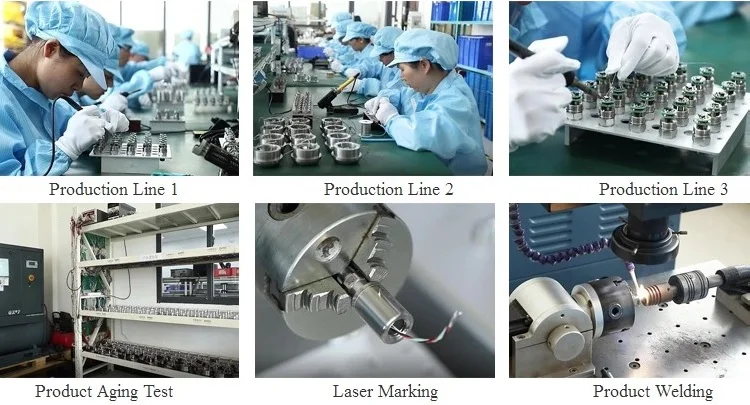

Company Information
Application
Chemical-industry Energy-industry Hydraulic control system
Machine-engineering Oil-Gas Water treatment
FAQ
Q: How long will you give me the reply?
A: we will contact you as soon as we can.
Q:Could I visit your factory?
A: Sincerely welcome you to visit our factory.
Q: Do you provide samples ?
A: Yes, we have materials in stock to help you to get the samples as soon as we can.
Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you .
Q: What is the warranty for your product ?
A: Warranty: 1 years, and lifetime maintenance online after-service.
Our Services
1, MOQ: One sample order is acceptable.
2, Price term : EXW, FOB Changsha.
3, Payment: Western union, Paypal for samples order; T/T 30% deposit, 70% T/T before shipment for order.
4, Packing: Standard export packing, including instructions and certificate.
5, Leading time : 5-10days for samples, 10-30 days for mass production.
6, OEM/ODM is available.
7, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
8, Warranty: One year free repair for quality warranty, and lifetime free online after-service.
