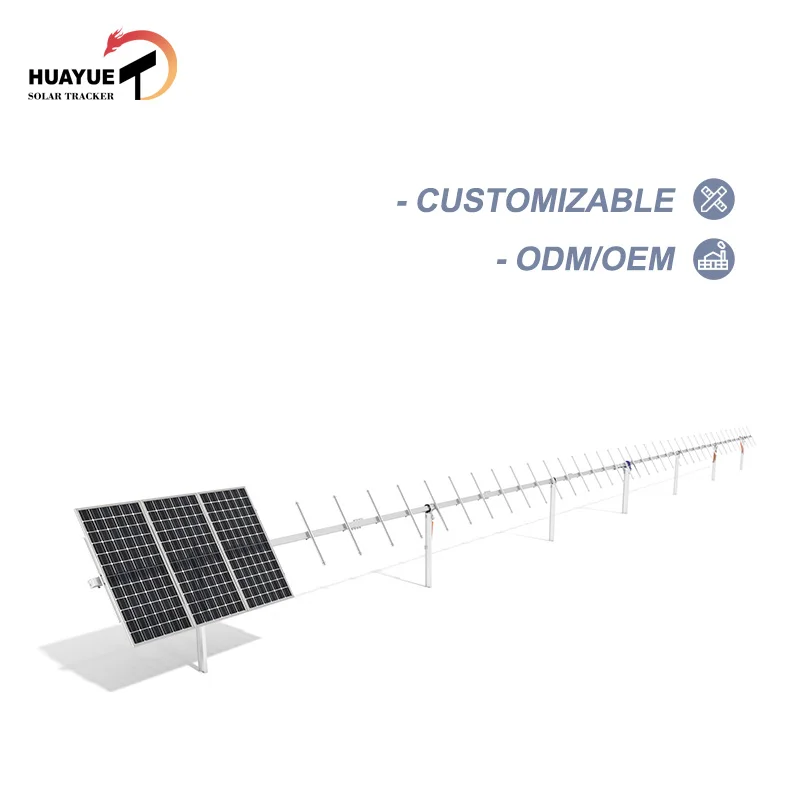

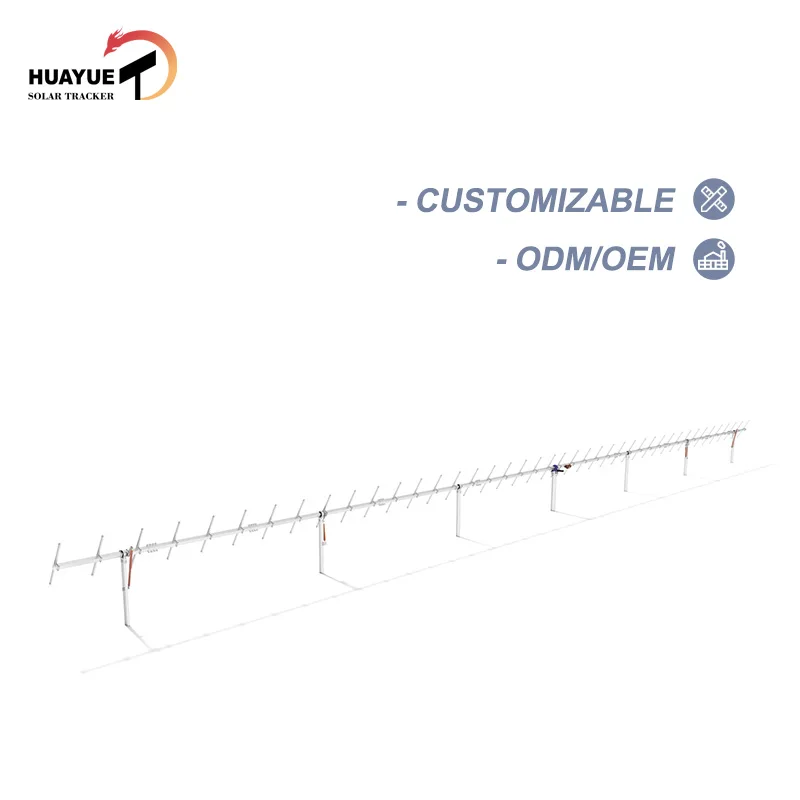

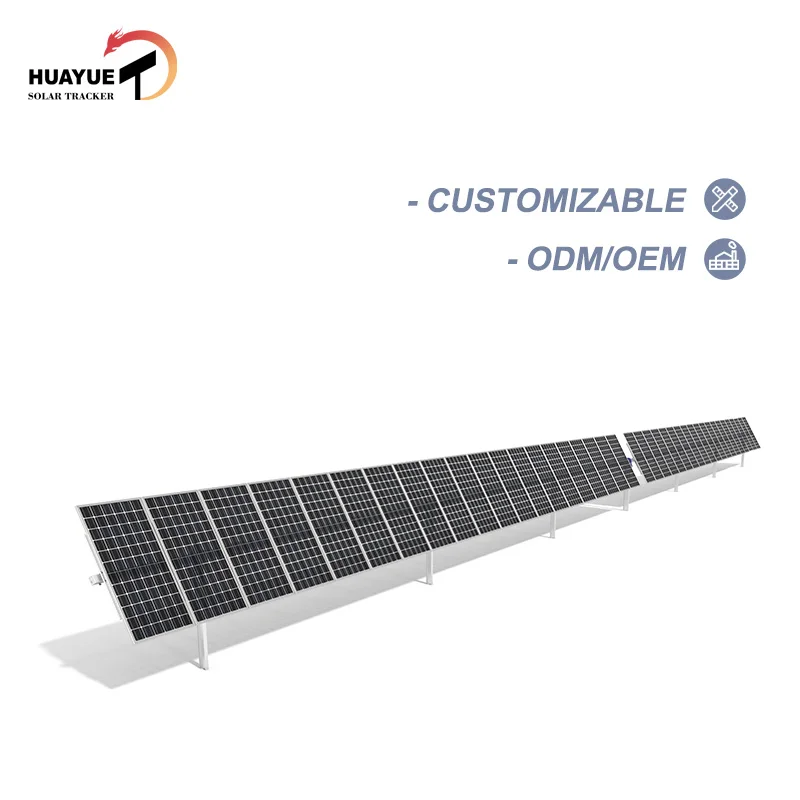

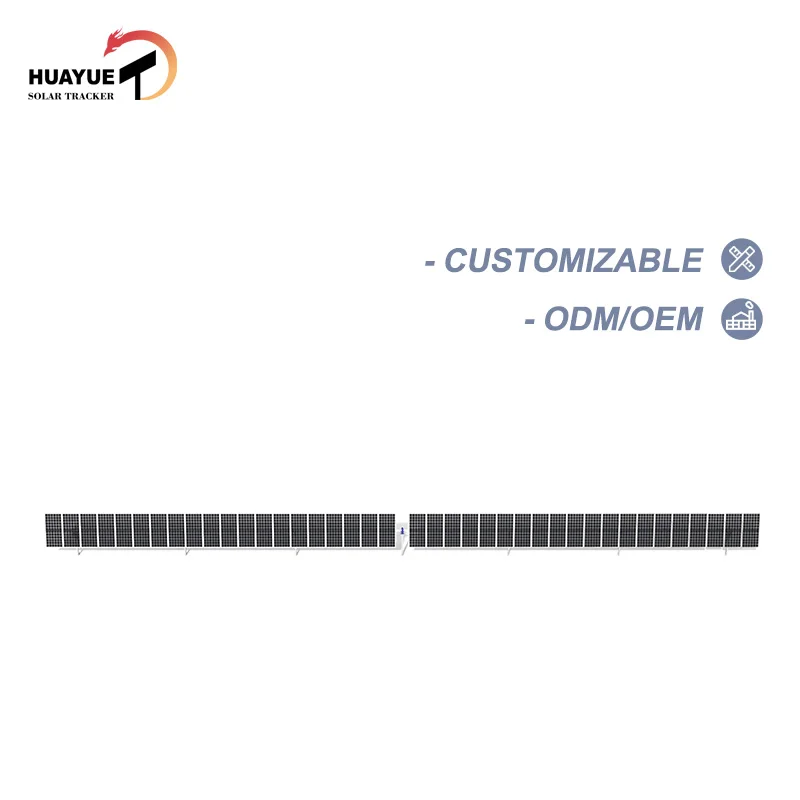

Huayue solar tracker HYP 1 26PV 156 IR SD AC slew drives solar tracking sun tracker 1 axis solar tracker
- Category: >>>
- Supplier: Shandong Huayue New Energy Co. Ltd.
Share on (1600637290895):
Product Overview
Description
| Parameters | ||||||
Solar Panel Type | Fully compatible | Galvanized Thickness | >85um | |||
System Weight | ≈1600kg/sets | Ground Clearance | 400mm | |||
Grid-like Frame Area (m²) | ≈156m² | Bracket Material | Hot-dip galvanized steel | |||

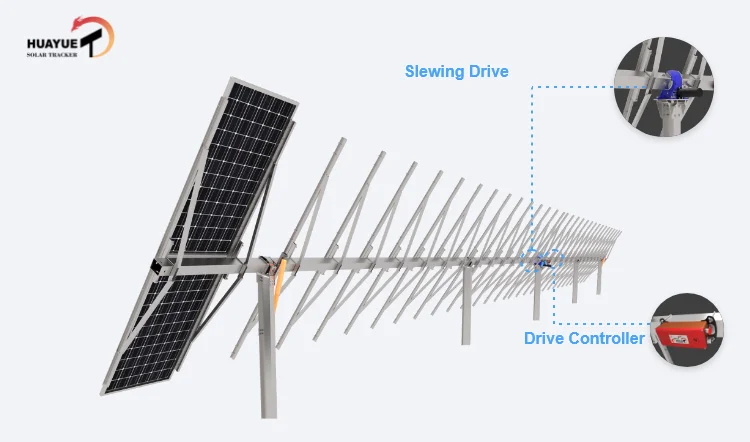

Protection Wind Speed | 17 m/s | Drive Device | Slewing drive | |||
Tracking Accuracy (°) | ≤1° | Power Supply | Self-powered / External power supply | |||
| Control Algorithm | Astronomical algorithm + position sensor closed-loop control | |||||
Working Temperature (℃) | Conventional default configuration -30ºC~+70ºC Special customized configuration -50ºC~+85ºC | |||||
Our solar trackers can be suitable for most solar panels in the market
All fasteners in the solar tracking system are 304 stainless steel,
which improves structure strength and corrosion resistance
Automatic snow removal and rainy day self-cleaning function
We have an exclusive APP, users can connect to Wireless Communication Module to operate on the APP
Users have more setting permissions,
Including: tracking angle range, wind speed threshold, etc.
Double protection of software and hardware, let your choice more assured
The bifacial double glass module brings greater value to customers
Shandong Huayue New Energy Co., Ltd.
is located in Tai'an City, Shandong Province, China. It is a supplier specializing in the design, development and production of solar trackers. We are user-centered, adhering to the concept of continuous innovation in design and operation, committed to providing innovative technology and cost-effective solutions to create value for customers, providing economic and safe solutions and quality products for global solar photovoltaic power plants. |
|
Q: How long is your delivery time?
A: Generally solar tracker is 5-10 working days if the goods are in stock, or it is 20-35 working days if the goods are not in stock,
A: Generally solar tracker is 5-10 working days if the goods are in stock, or it is 20-35 working days if the goods are not in stock,
it is according to quantity.
Q: Does any country support T/T,L/C,D/A,D/P,Western Union,Money Gram?
A: Our method of payment varies according to different countries and regions.Normally, we accept payment by T/T.
Q: Does any country support T/T,L/C,D/A,D/P,Western Union,Money Gram?
A: Our method of payment varies according to different countries and regions.Normally, we accept payment by T/T.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below.
