High Brightness DC12V 5M Tape Outdoor Waterproof Addressable WS2815B
- Category: >>>
- Supplier: Shenzhen Soya LED Technology Ltd.
Share on (1600637387174):
Product Overview
Description
High Brightness DC12V 5M Tape Outdoor Waterproof Addressable WS2815Bsable
Product Description
WS2815 LED Strip SPEC.
Light source:5050 RGB LED
LED Qty.:60 pcs per meter
Wave length(NM):R 650nm,G 520nm,B 460nm
The gray level:256
Color:full color(24-bit)
View angle:120°
Voltage:DC12V
Power:14watts/m
Waterproof:IP66 silicone tube or neon tube
FPCB:white or black
Strip size:5000*10*2mm
Life span:>50000hrs
Package:
1pcs 16ft ws2815 led strip
Note:
DC12V power required for WS2815 led strip
power and controller is not included
Product features
12v ws2812b/ws2815 led strip 60 leds/m 10mm pcb width individual addressable :
| Item No. | 12v ws2812b/ws2815 led strip 60 leds/m 10mm pcb width individual addressable |
| LED quantity | 60LEDs/m |
| LED type | ws2815 |
| Wattage | 14 watts |
| Pixel pitch | every 16.66mm cuttable |
| PCB width | 10mm |
| Working volatage | DC12V |
| PCB color | Black and White |
| Light color | Multi-color, digital RGB,Every LED individual Control |
| Connector | 4pin JST-SM connector |
| Controller | Artnet/ Arduino/ AVR/Raspberry pi/T1000s/DMX512/DMX decoder |
About this item:
WS2815 LED Strip is an updated version of the 5v ws2813/ws2812b led strip.

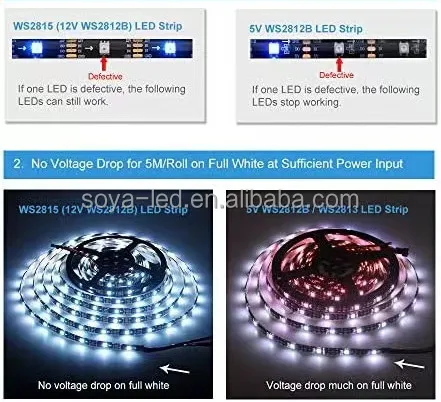

For the 5m led strip ,even if all the LEDs are turned on full white,12v version has no voltage drop.You do not need to inject power as frequently as the 5v version.

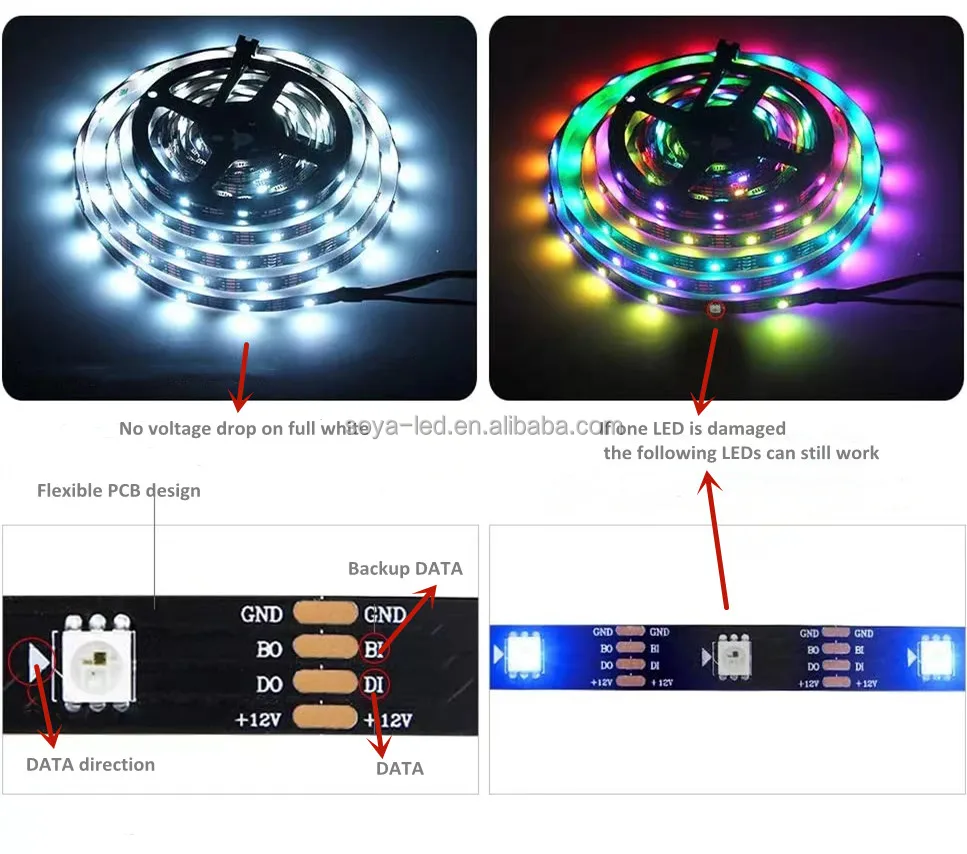

Designed with one data wire and one backup data wire.
Signal break-point continuous transmission,if one LED is damaged,the following LEDs can still work.

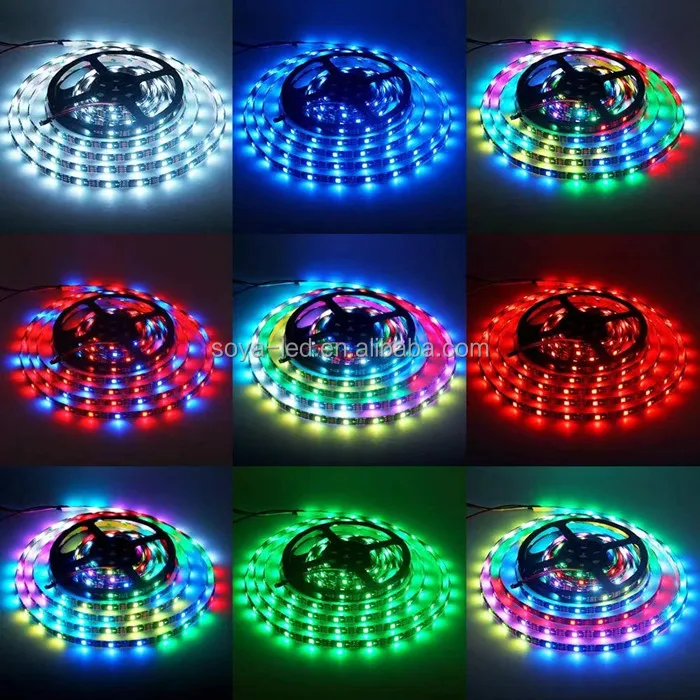

Each pixel can have its own color and brightness.You can control it individually and sent them to any color or animation you want.256 brightness display and 24-bit color display.

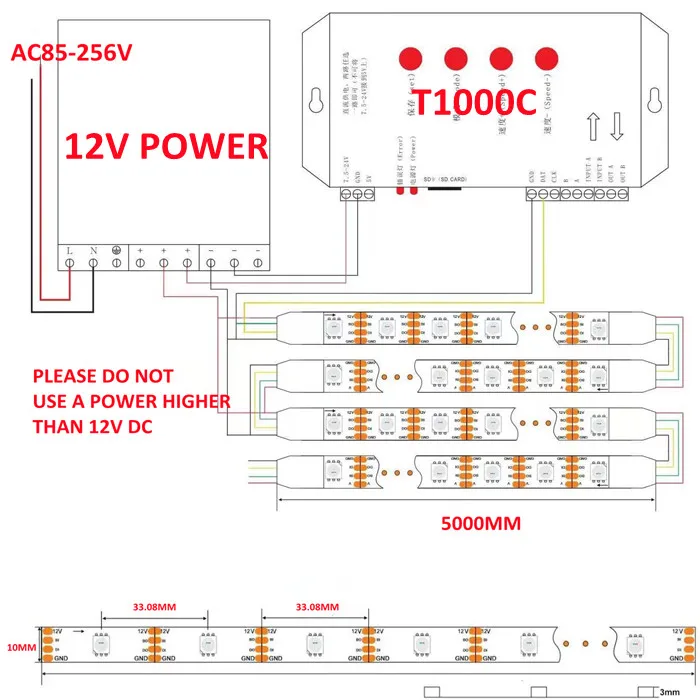

It can be programmed with K1000C T1000S etc.It can also be controlled by SPE105E SP108E pre programmed app controllers and SP107E colorful x 2 sound -activated music controllers.

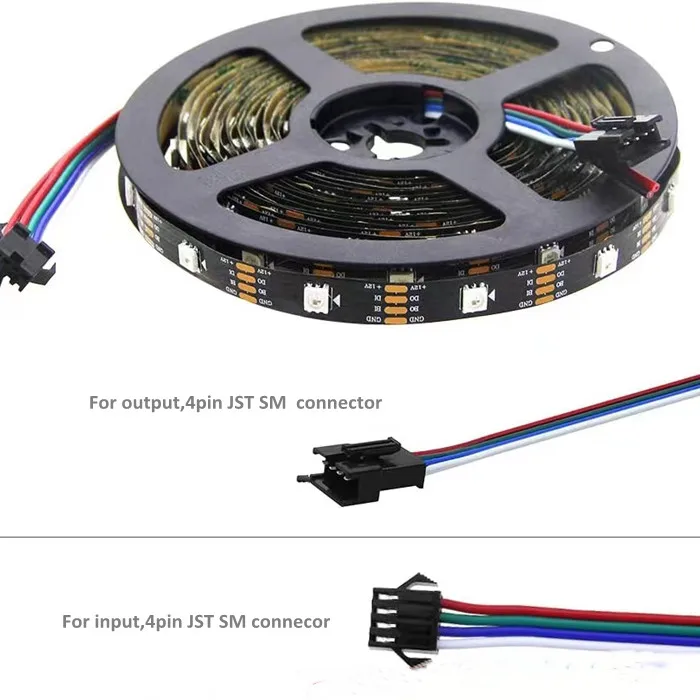

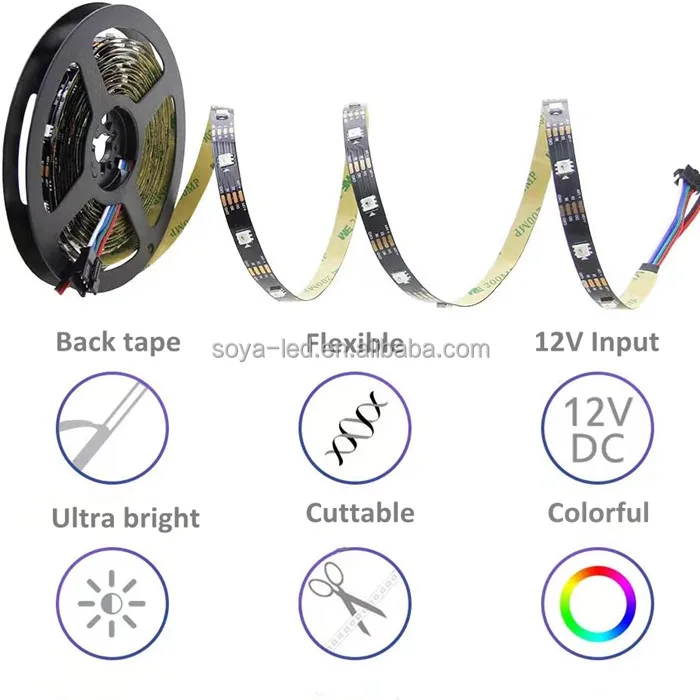

Designed with 4pin JST SM connectors and separate power/ground wires on both ends for easy hooking up and injecting power.Self-adhesive tape on the back for easy installation on a dry and flat sueface.
