Refrigerating Systems HT 450C TRUCK REFRIGERATION UNITS for any size trucks
- Category: >>>
- Supplier: Zhengzhou Huabon Thermo Co. Ltd.
Share on (1600637428352):
Product Overview
Description
Products Description

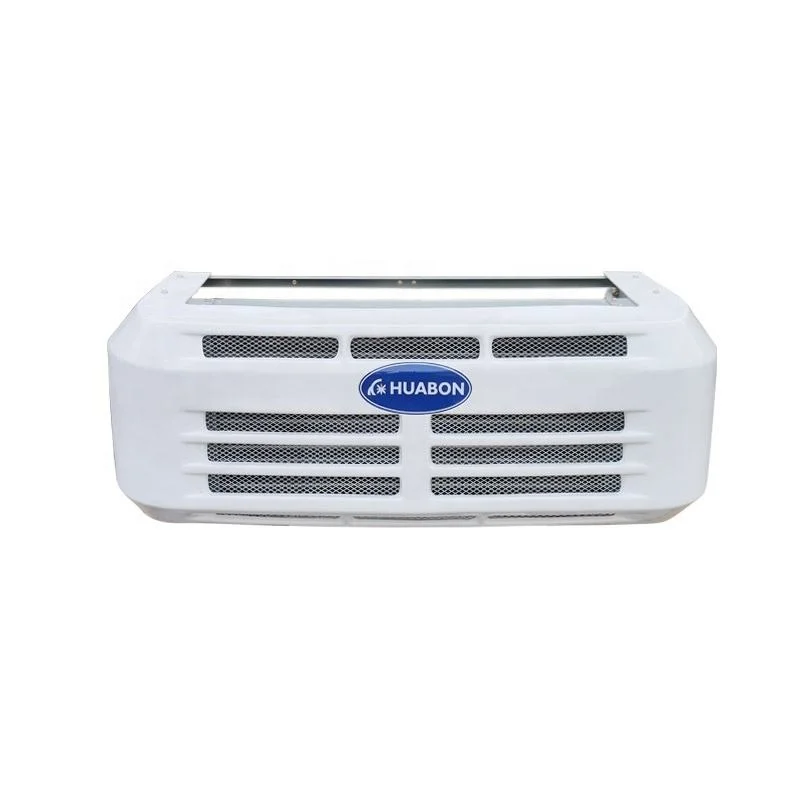

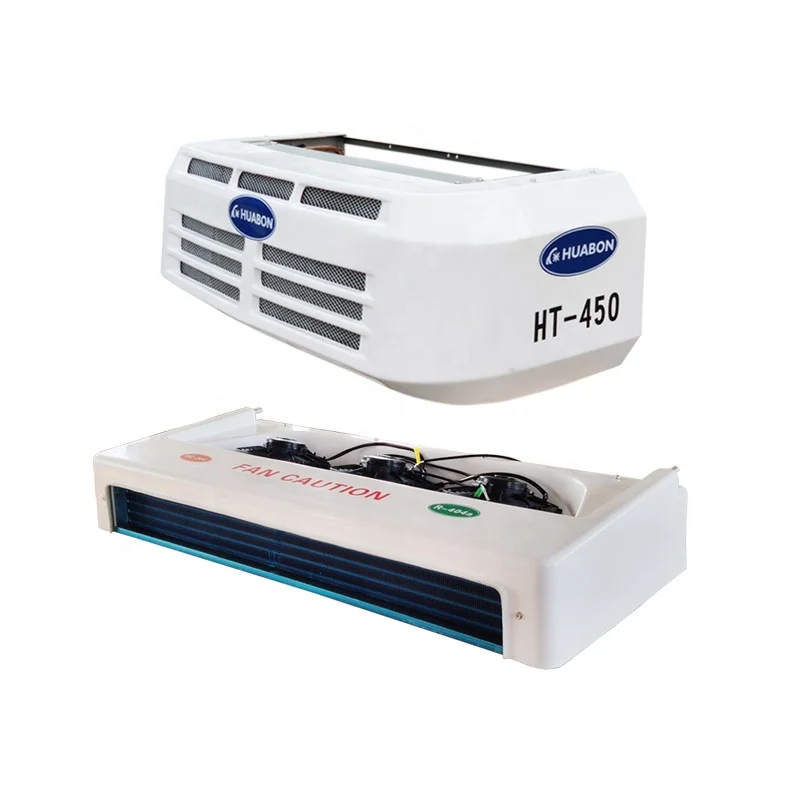

HT-450C Cooper Tube Front Mounted Truck Refrigeration Unit
HT-450C truck refrigeration units, copper tubes & aluminum fins condenser and evaporator coils, with good heat dissipation; slim ceiling evaporator with 3 pieces fans, maximum load space and high airflow volume.
Product Details

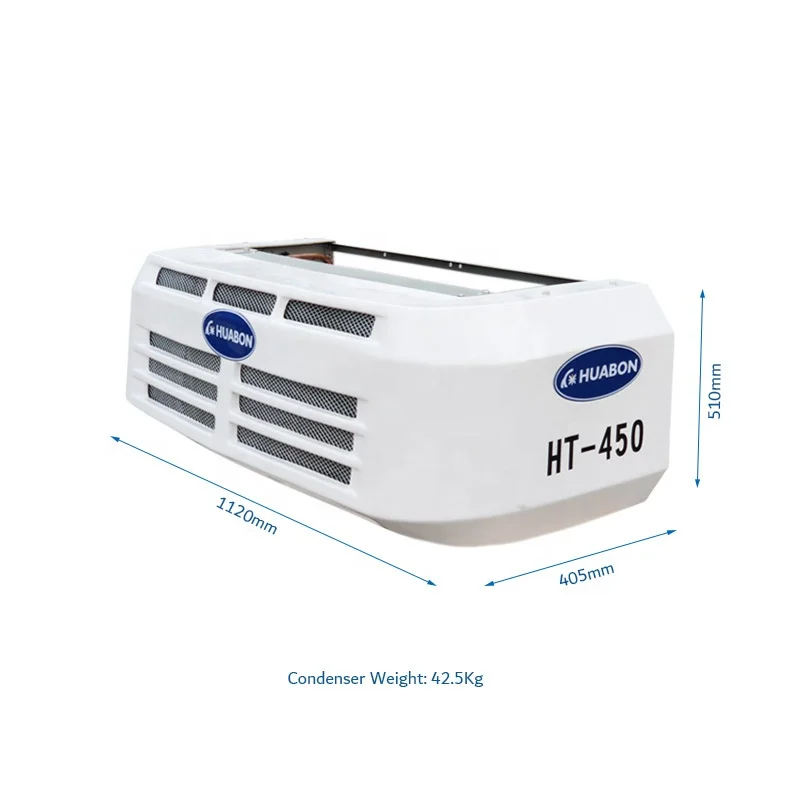

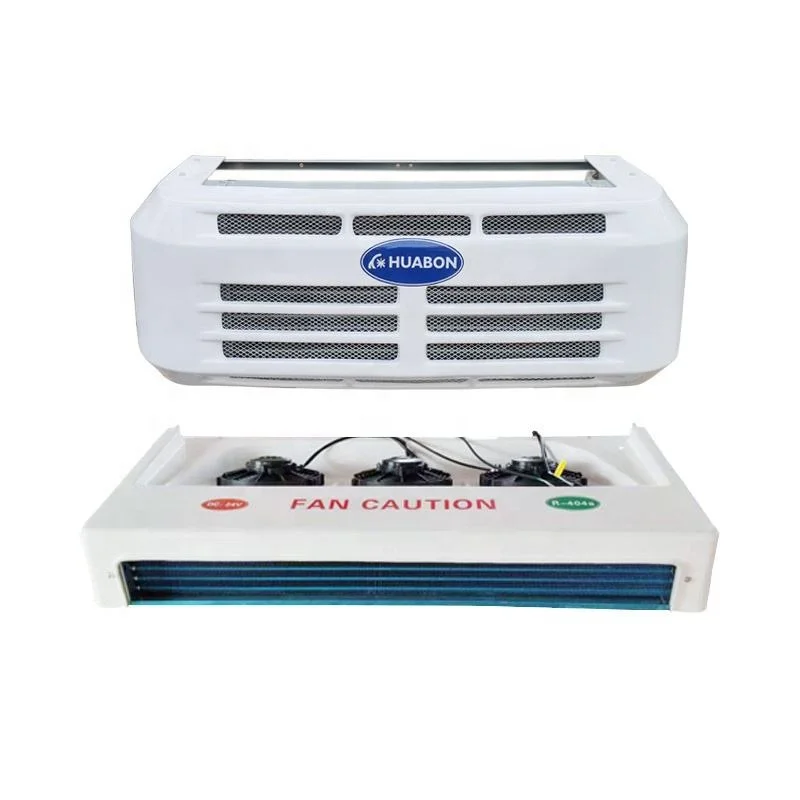

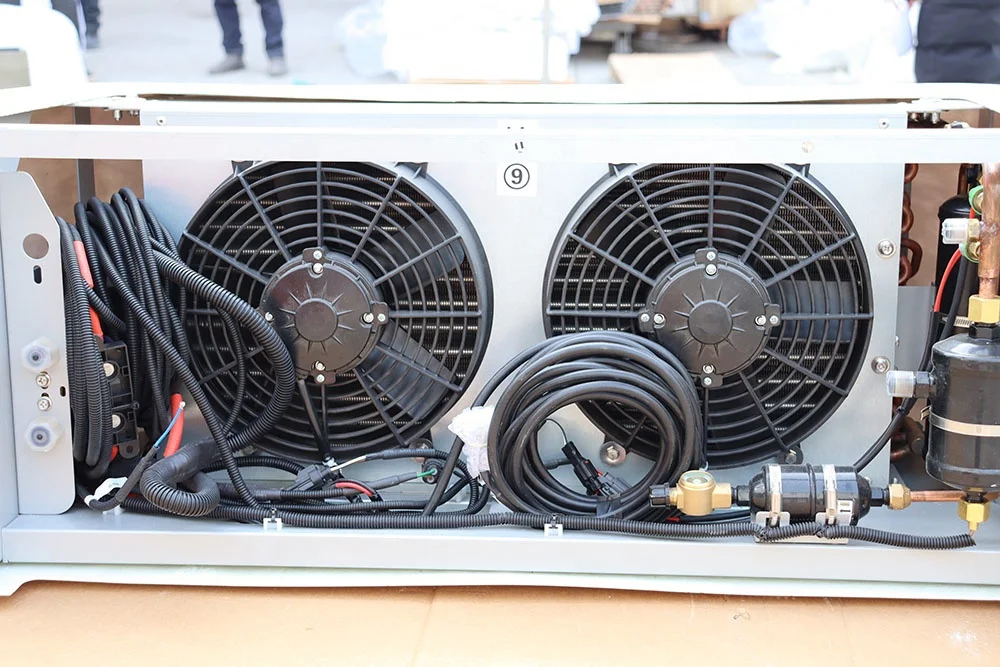

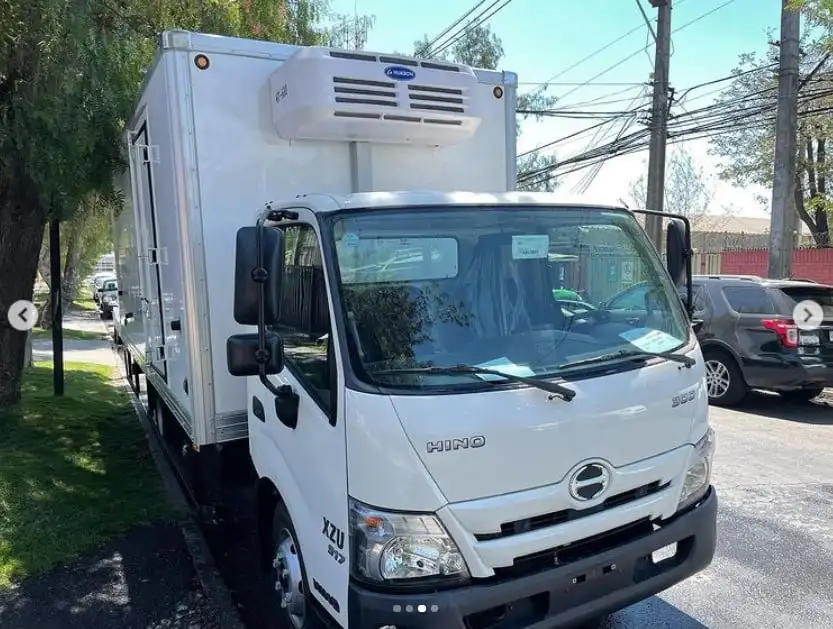

Nose/Front Mounted Copper Condenser
► Nose-mounted condenser:
Applicable for all kinds of medium size refrigerated trucks
► Copper tube condenser:
Better heat dissipation, high reliability, low failure rate inn extremely hot,cold and salty air

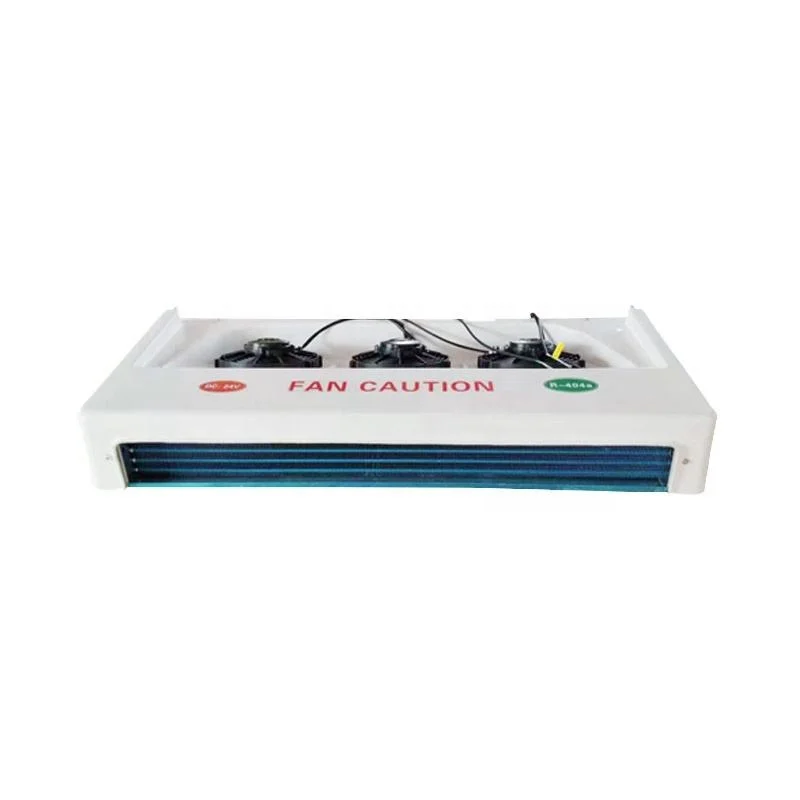

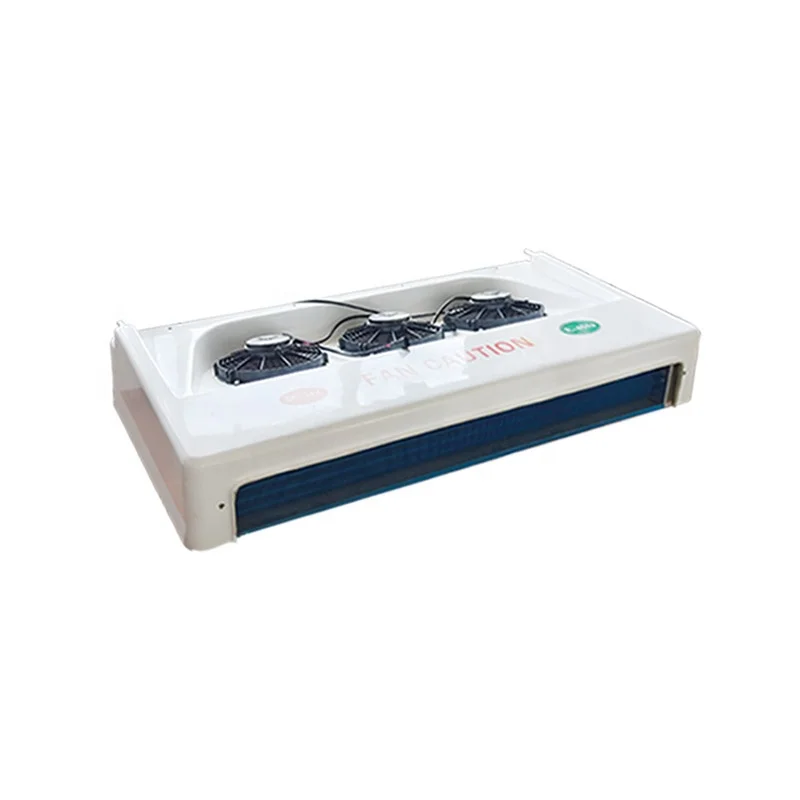

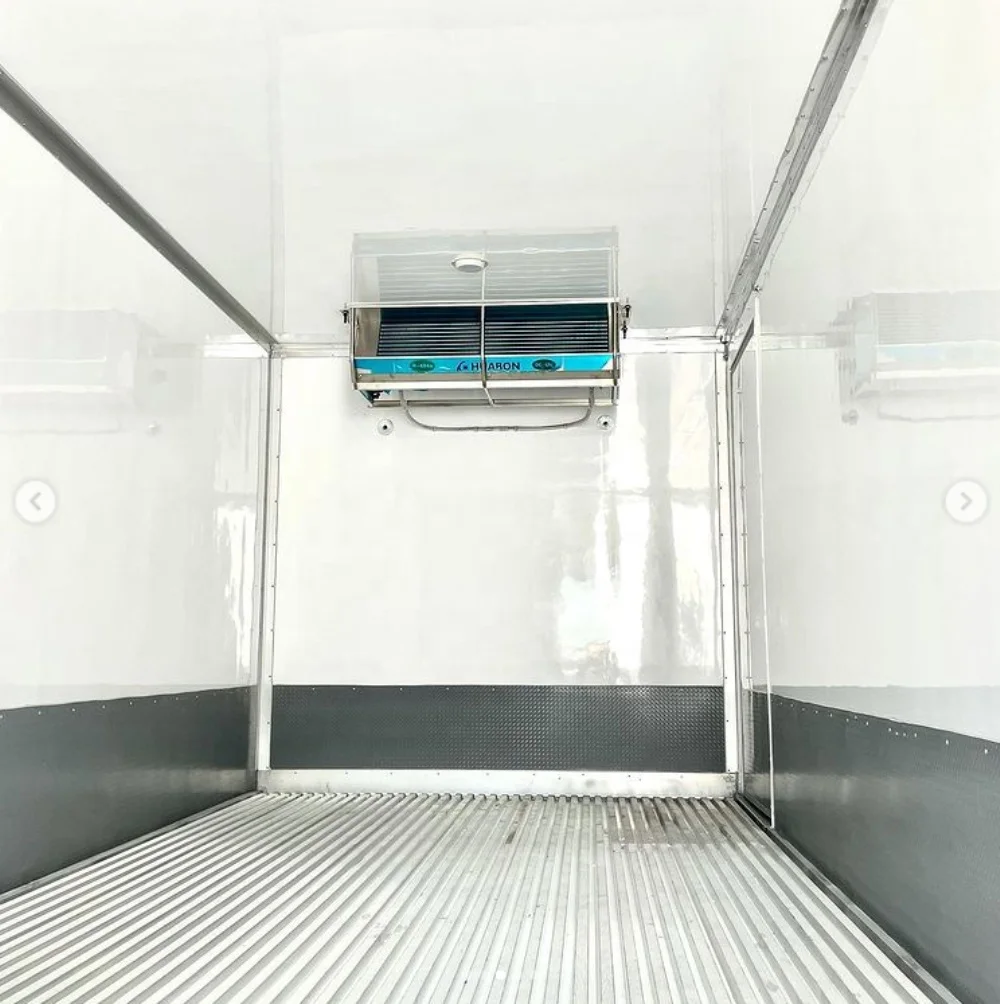

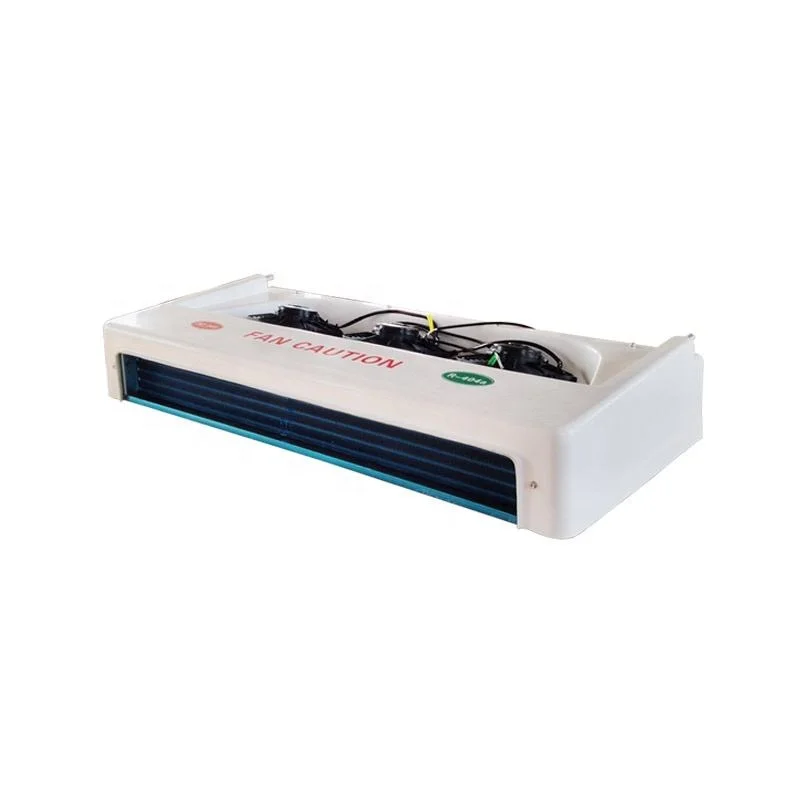

Ultra-slim Evporator
►3 fans evaporator：
Big air flow volume and quick cooling

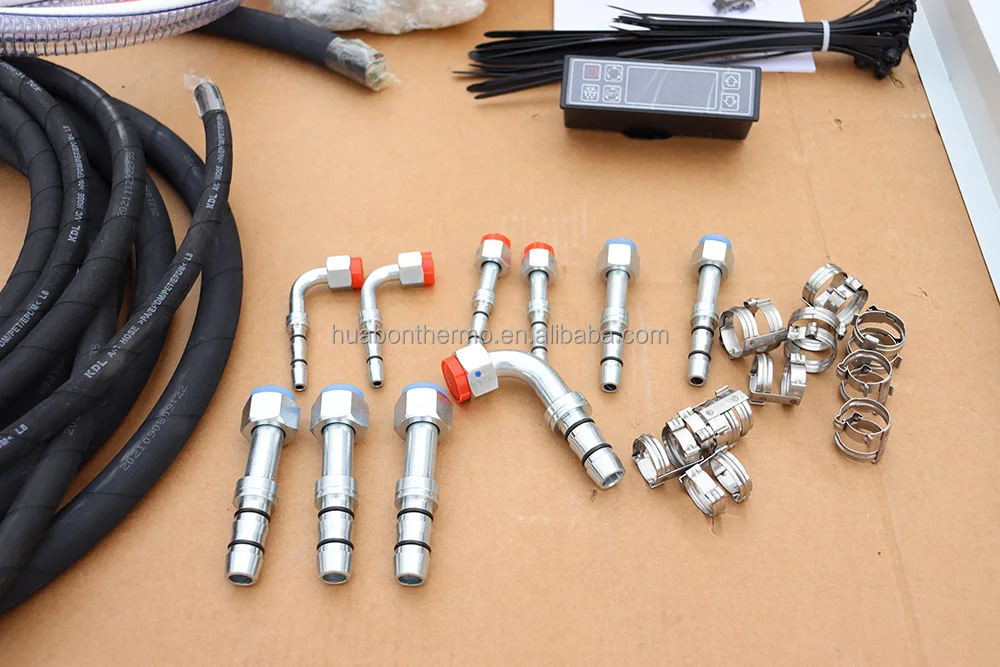

Installation Accessories
► Digital and multi-functional control panel, double screen display, precise temperature control and simple operation, with
e-diagnostics and fault alarming.
e-diagnostics and fault alarming.
Specification
Model | HT-450C | ||||
Cooling Capacity | 0°C/38°C | 5300W | 18084btu | ||
-18°C/38°C | 2950W | 10065btu | |||
Voltage | DC12V/24V | ||||
Defrosting | Hot gas defrosting | ||||
Evaporator Airflow Volume | 2600m³/h | ||||
Refrigerant and volume | R404a/2.1kg | ||||
Compressor | TM16,163cc/r | ||||
Condenser | Coils | Copper tube and fin | |||
No. of fan | 2Pcs | ||||
Dimensions | 1120*405*510mm | ||||
Weight | 42.5kg | ||||
Evaporator | Coils | Copper tube and fin | |||
No. of fan | 3Pcs | ||||
Dimensions | 1280*610*220mm | ||||
Weight | 25.5kg | ||||
Recommended Vehicle Box Volume | 20-30m³ | ||||
Installation
Quick and easy installation, simple maintenance, saving operation cost.
Packing & Delivery

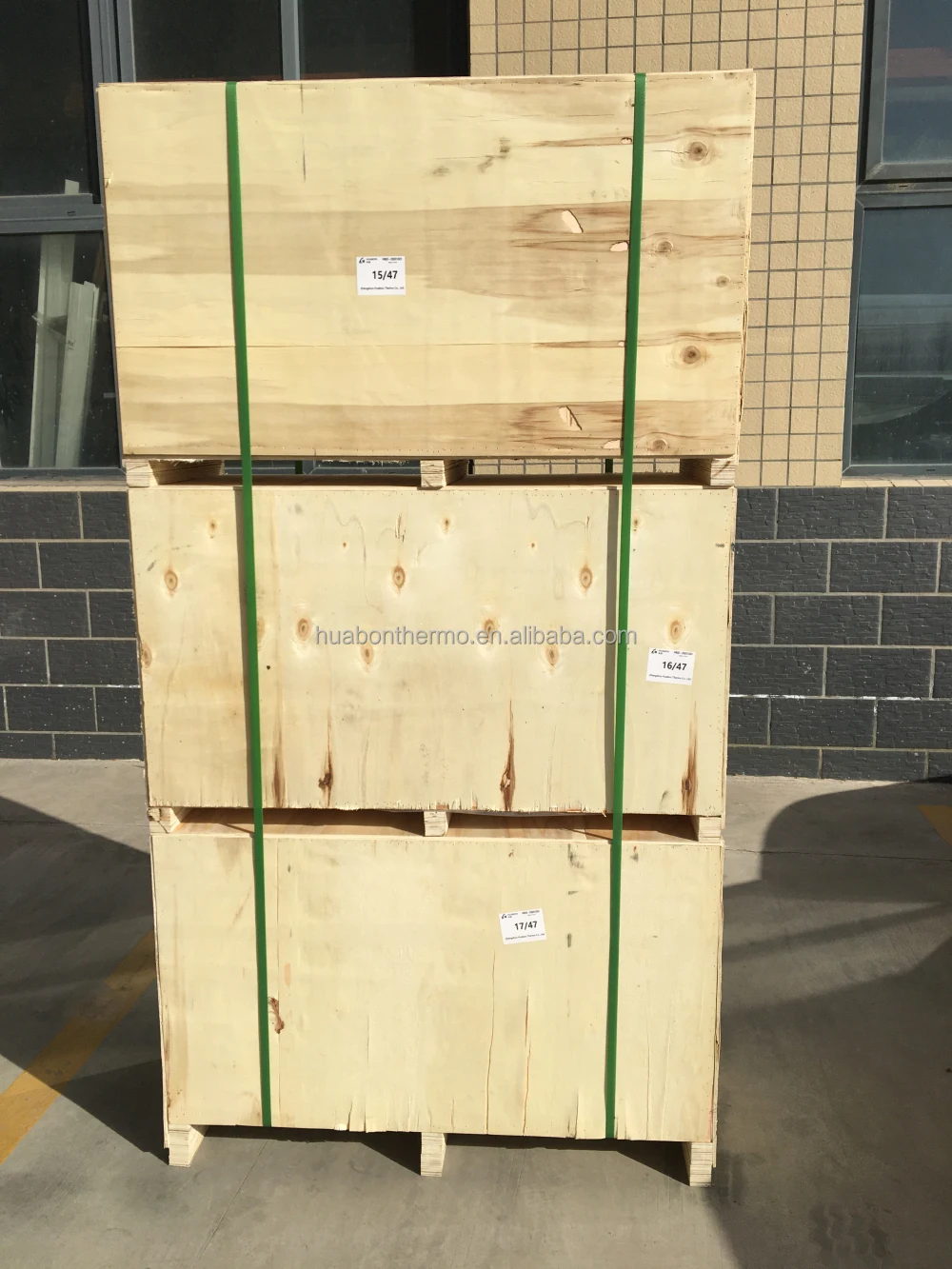

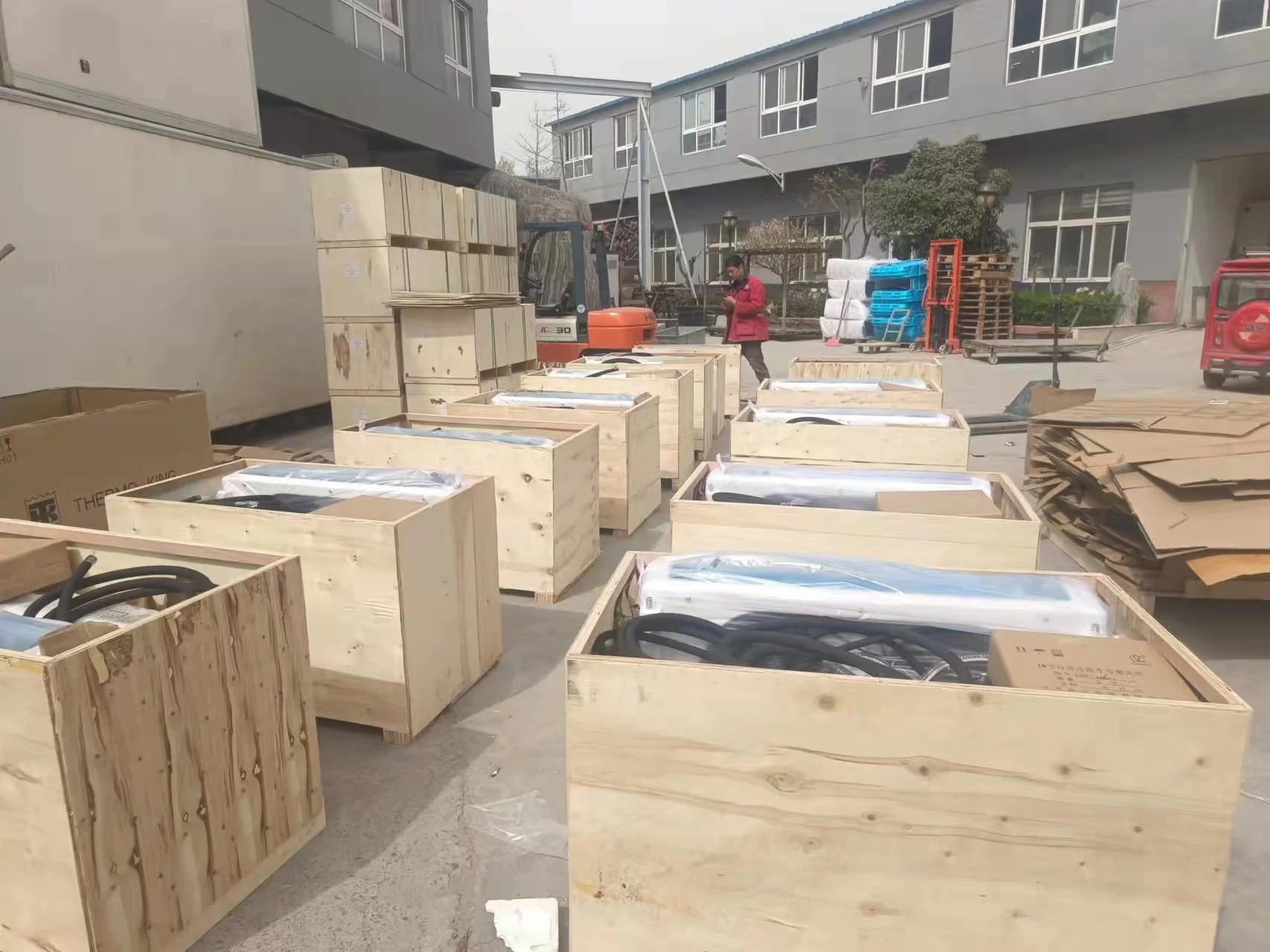

Export standard packing: carton, wooden case, or pallet.
About us
Located at Zhengzhou, China - one important traffic hub on One-Belt-One-Road, we are Huabon Thermo, and we are experts in the supply of complete units including transport refrigeration, truck air conditioning and heaters.
After years of quality assurance and after-sales accumulation, nowadays Huabon has become a leading supplier of transport refrigeration units and refrigeration solution provider in China, with products supplying FAW, FOTON, CIMC, HONGYU, SONGCHUAN and many other domestic manufacturers of refrigerated trucks and special vehicles. At the same time Huabon company has developed the dealer and after-sales service network system, and strives to provide professional, timely and efficient services for every customer.
.
Main Products:
* Transport Refrigeration Units
* In-Cab Heaters and Air Con Systems
* Refrigeration and Air Conditioning
Compressors
-Evaporator and Condenser Fan Motors
- Oil Separators - Driers
- Refrigerant Hoses and Fittings
- Solenoids
- Cab Controls -Circuit boards and electrical components
After years of quality assurance and after-sales accumulation, nowadays Huabon has become a leading supplier of transport refrigeration units and refrigeration solution provider in China, with products supplying FAW, FOTON, CIMC, HONGYU, SONGCHUAN and many other domestic manufacturers of refrigerated trucks and special vehicles. At the same time Huabon company has developed the dealer and after-sales service network system, and strives to provide professional, timely and efficient services for every customer.
.
Main Products:
* Transport Refrigeration Units
* In-Cab Heaters and Air Con Systems
* Refrigeration and Air Conditioning
Compressors
-Evaporator and Condenser Fan Motors
- Oil Separators - Driers
- Refrigerant Hoses and Fittings
- Solenoids
- Cab Controls -Circuit boards and electrical components
OFFICE
PRODUCTION LINES
WORKHOUSE
FAQ
1. What will include in the package?
Condenser, evaporator, TM16 compressor, controller, hoses, wires and installation kits, expect for compressor bracket，belt and refrigerant.
2.How about your warranty for new units?
We will provide one year warranty for our all units, during warranty, if the unit has any quality problems, we will offer free
spare parts for you, after warranty, we will provide spare parts for you with charges for products lifetime.
3. What is MOQ and delivery time for Huabon Thermo refrigeration unit?
We can accept samples before bulk purchasing, so MOQ is 1 set, our delivery time for samples will be 3-5 days after payment, 1~2 weeks for bulk purchasing.
4. If you have larger copper tubes truck refrigeration units now?
Yes, we also have HT-680 and HT-880 large refrigeration units for 6.8-8.6m long refrigerated trucks, they are used for 30~50m³box size, R404a system, more information, pls check HT-680C and HT-880C product details. What’s more, Huabon Thermo also provide the solutions for E-tricycle and all kinds of truck cabins, if you have any demands,contact us freely.
Condenser, evaporator, TM16 compressor, controller, hoses, wires and installation kits, expect for compressor bracket，belt and refrigerant.
2.How about your warranty for new units?
We will provide one year warranty for our all units, during warranty, if the unit has any quality problems, we will offer free
spare parts for you, after warranty, we will provide spare parts for you with charges for products lifetime.
3. What is MOQ and delivery time for Huabon Thermo refrigeration unit?
We can accept samples before bulk purchasing, so MOQ is 1 set, our delivery time for samples will be 3-5 days after payment, 1~2 weeks for bulk purchasing.
4. If you have larger copper tubes truck refrigeration units now?
Yes, we also have HT-680 and HT-880 large refrigeration units for 6.8-8.6m long refrigerated trucks, they are used for 30~50m³box size, R404a system, more information, pls check HT-680C and HT-880C product details. What’s more, Huabon Thermo also provide the solutions for E-tricycle and all kinds of truck cabins, if you have any demands,contact us freely.
