New Product 2ton Mini Excavator Small Excavator With boom swing Euro 5 engine mini digger for sale
- Category: >>>
- Supplier: Shandong Laigong International Business Co. Ltd.
Share on (1600637439795):
Product Overview
Description

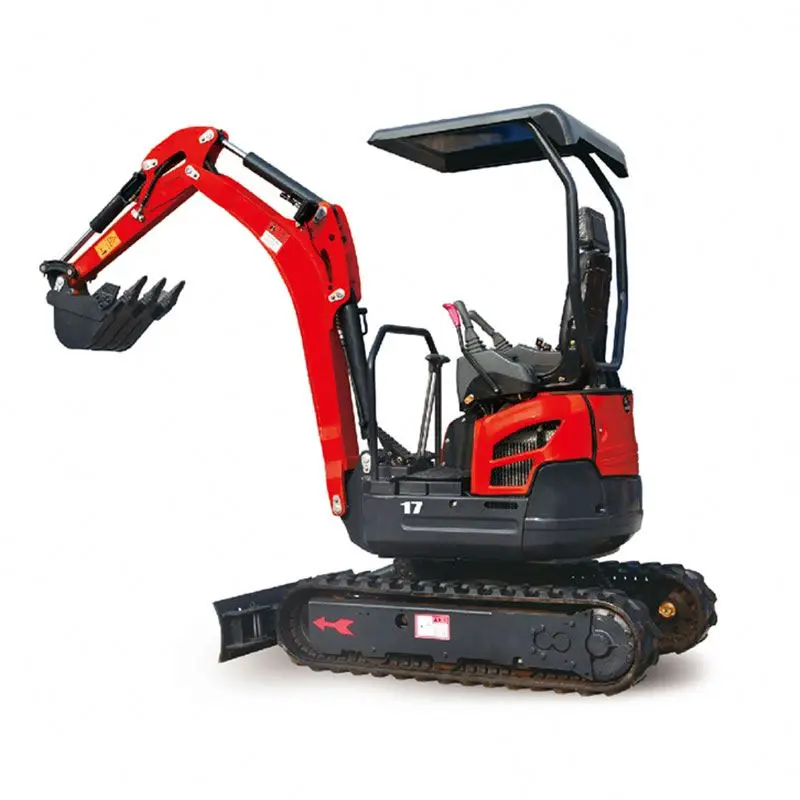

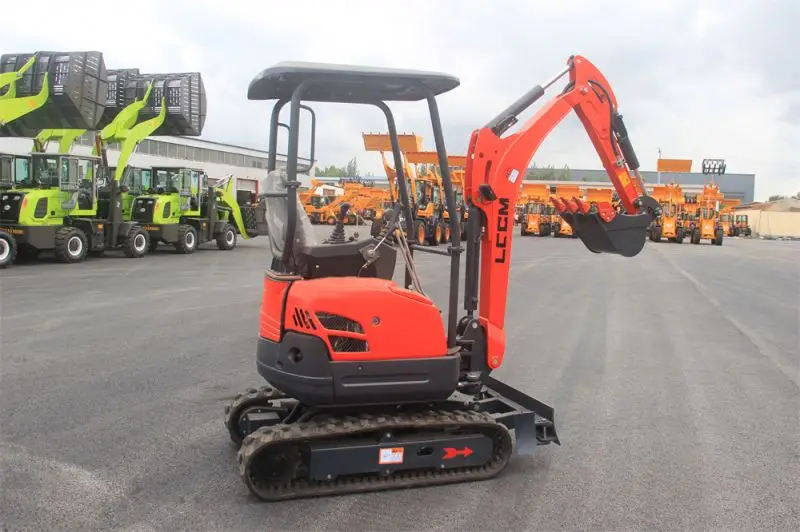

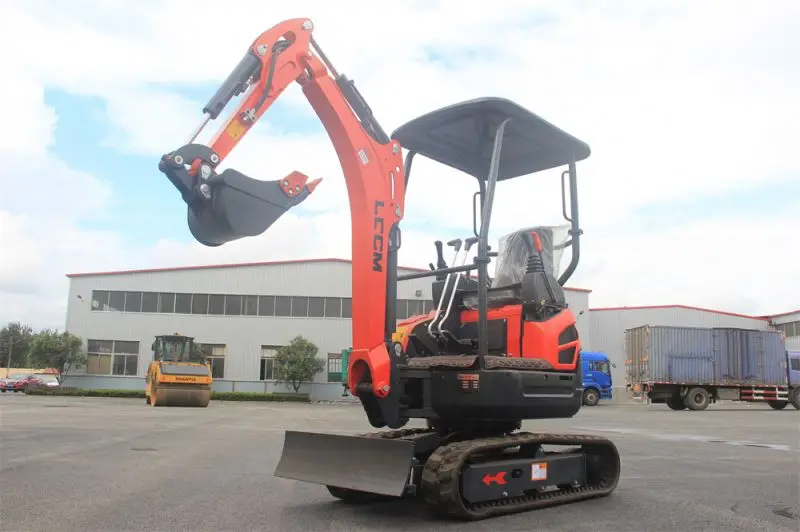

LAIGONG LGCM LG12E crawler is a very powerful product, with compact size, strong engine power and optimized transmission, widely used in agriculture and forestry.
Flexible: Mini excavators are small in size, flexible in operation, high in efficiency, can work in narrow environments, light in weight and easy to transport.
Special design: The mini excavator adopts a tailless design, which can effectively avoid the damage to the excavator caused by surrounding obstacles during the rotation process.
Multi-function: Because of the associated hydraulic power unit, the mini excavator can install many special tools for auxiliary work.
Multi-function: Because of the associated hydraulic power unit, the mini excavator can install many special tools for auxiliary work.
Product Paramenters
▲Main parameters | ▲Main operation range | |||||
Operating weight | 950kg | Max. digging depth | 1800mm | |||
Overall length | 2300mm | Max. digging height | 2820mm | |||
Overall width | 960mm | Max. dumping height | 2050mm | |||
Overall height | 2250mm | Max. digging radius | 3050mm | |||
Crawler belt length | 1230mm | Min. rotation radius | 1450mm | |||
Chasis width | 930mm | Max. digging distance | 2300mm | |||
Standard bucket capacity | 0.025m³ | Push blade lifting height | 180mm | |||
Standard bucket width | 370mm | Push blade fallinig depth | 210mm | |||
▲Main performance specifications | ||||||
Engine Type | KoopKD292F/UppowerKD292/UppowerKD2V80（Euro V） | |||||
Engine parameter | 11kw-3000rpm/11kw-3000rpm/12kw-3000rpm | |||||
Working pressure | 16Mpa | |||||
Main pump | 6mL/r | |||||
Gradeability | 30 ° | |||||
Max. digging force | 10KN | |||||
Operation mode | Mechnical operation | |||||
Special characteristics | ◆Lengthen front arm depth digging | |||||
◆Upper open engine hood | ||||||
◆Optional steel track; ◆Optional arm side swing | ||||||
◆Luxury seat and High strength frame shelf | ||||||
Related Products
LG10E
Total weight:800kg
Bucket capacity:0.025m3
Power:7.6kw/rpm
Engine:Changchai
LG10EH
Total weight:800kg
Bucket capacity:0.025m3
Power:7.6kw/rpm
Engine:Changcha
Power:7.6kw/rpm
Engine:Changcha
LG10EX
Total weight:800kg
Bucket capacity:0.025m3
Power:7.6kw/rpm
Engine:Changcha
Power:7.6kw/rpm
Engine:Changcha
LG17E
Total weight:1200kg
Bucket capacity:0.04m3
Power:19kw/rpm
Engine:Laidong
Power:19kw/rpm
Engine:Laidong
LG20E
Total weight:1885kg
Bucket capacity:0.05m3
Power:18kw/rpm
Engine:Changchai
Power:18kw/rpm
Engine:Changchai

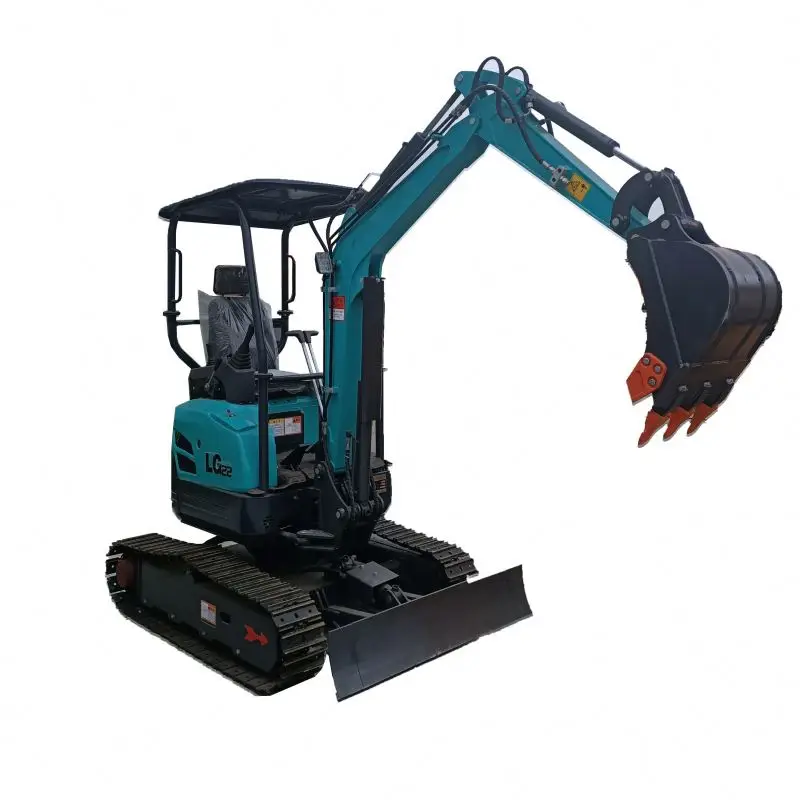

LG22EU
Total weight:2020kg
Bucket capacity:0.05m3
Power:10kw/rpm
Engine:Yanmar37TNV70
Power:10kw/rpm
Engine:Yanmar37TNV70
LG08E
Total weight:705kg
Bucket capacity:0.02m3
Power:7.6kw/rpm
Engine:CHANGCHAI
Power:7.6kw/rpm
Engine:CHANGCHAI
LG12E
Total weight:950kg
Bucket capacity:0.025m3
Power:11kw/rpm
Engine:KoopKD292F
Power:11kw/rpm
Engine:KoopKD292F
LG16EU
Total weight:1095kg
Bucket capacity:0.7-1.5m3
Power:78kw/rpm
Engine:YUCHAI 4102 Turbo
Power:78kw/rpm
Engine:YUCHAI 4102 Turbo
LG18E
Total Weight:1700kg
Bucket capacity:0.05m3
Power:18kw/rpm
Engine:KM385B/ZN390Q
Power:18kw/rpm
Engine:KM385B/ZN390Q
LG30E
Total weight:3390kg
Bucket capacity:0.15m3
Power:34kw/rpm
Engine:Changchai 490 ZN490B
Power:34kw/rpm
Engine:Changchai 490 ZN490B
LG35E
Total weight:3390kg
Bucket capacity:0.16m3
Power:34kw/rpm
Engine:Changchai 490 ZN490B
Bucket capacity:0.16m3
Power:34kw/rpm
Engine:Changchai 490 ZN490B
Main Categories
Company Profile
Customer Case
Transportation
FAQ
1.How long is your lead time?
15-20days after receiving the deposit
2.How is the warranty?
Our warranty time is 6 months from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of LAIGONG?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from LAIGONG?
If there is any using problem, we can provide online or video guidance.If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site. Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose LAIGONG?
LAIGONG Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
15-20days after receiving the deposit
2.How is the warranty?
Our warranty time is 6 months from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of LAIGONG?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from LAIGONG?
If there is any using problem, we can provide online or video guidance.If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site. Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose LAIGONG?
LAIGONG Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
