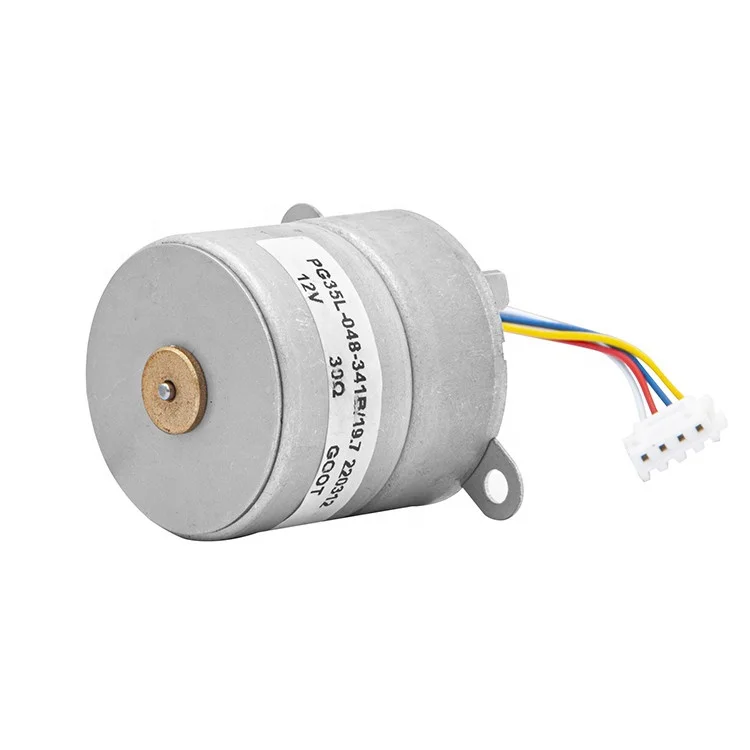

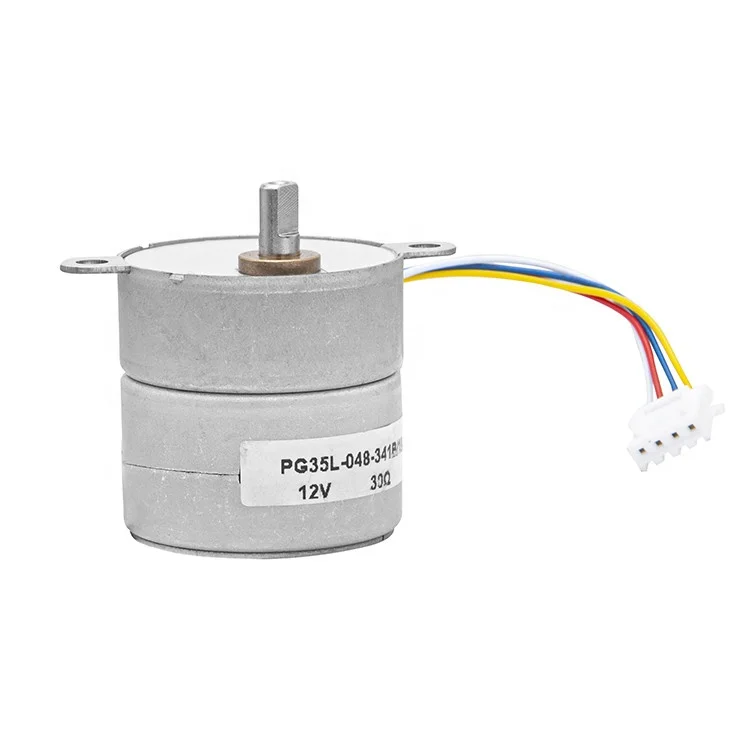

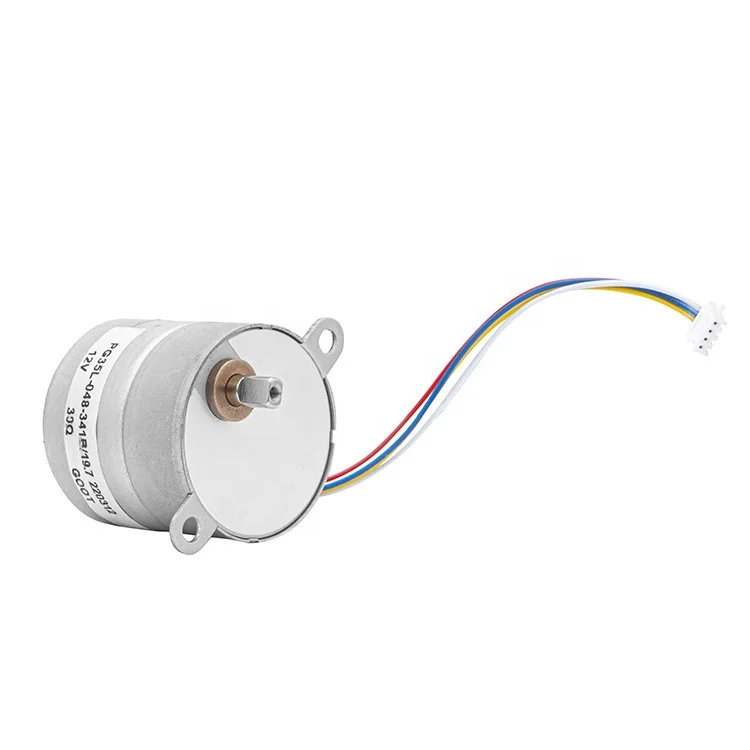

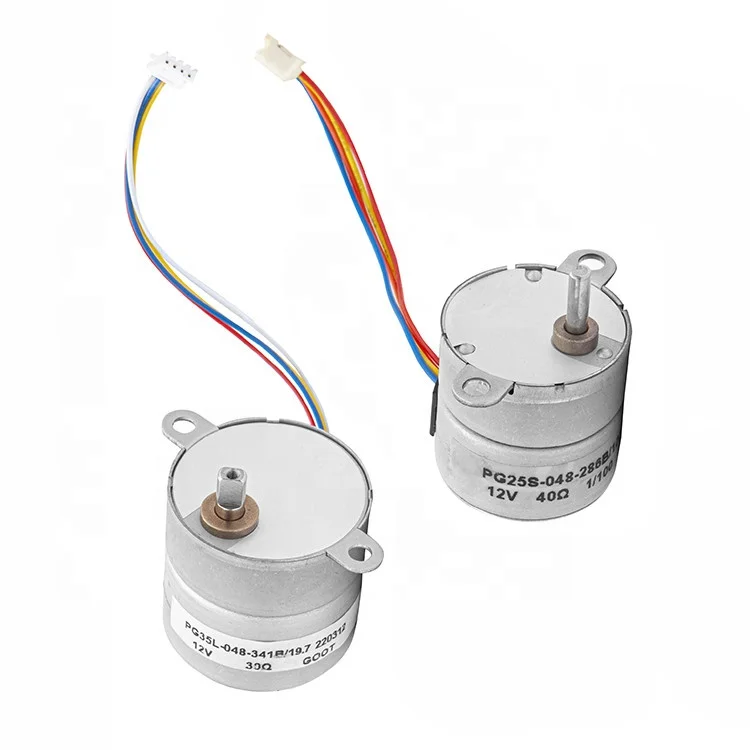

PG35L 048 Stepper Gear Motor For Valve Control Customization Available
- Category: Motors >>>
- Supplier: Changzhou Spark Motor Tech Co. Ltd.
Share on (1600637440668):
Product Overview
Description
Products Description
High-performance, Spark stepper motors provide accuracy and torque to meet numerous application needs:
- Excellent open loop control solution
- High continuous motor torque output per package size
- Long life provided by high-quality bearing assembly
- Unipolar and bipolar windings available
- High continuous motor torque output per package size
- Long life provided by high-quality bearing assembly
- Unipolar and bipolar windings available
General Specification:
Item | Specification |
Step Angle Accuracy | ±8%(full step, no load) |
Resistance Tolerance | ±10% |
Inductance Tolerance | ±20% |
Temperature Rise | 80.C Max.(rated current,2 phase on) |
Ambient Temperature | -20.C~+50.C |
Insulation Resistance | 100MΩMin. ,500VDC |
Dielectric Strength | 600VAC , 1s , 3mA |
Specification:

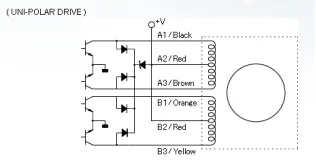

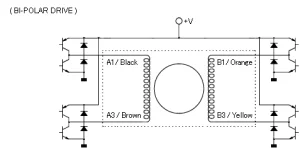

Model | Step Angle (Deg.) | No. of Phase | Rated Voltage (VDC) | Current /Phase(A) | Resistance /Phase(Ω) | Holding Torque (Kgf.cm) | Detent Torque (gf.cm) | Pull-in Torque (gf.cm) | Wire Diagram |
PG35L-048-01/19 | 7.5/19 | 4 | 12 | 0.4 | 30 | 10.0 | 2600 | 3500(at 100pps) | B |
PG35L-048-01/19 | 7.5/19 | 4 | 24 | 0.218 | 110 | 12.0 | 2280 | 5000(at 100pps) | B |
PG35L-048-01/30 | 7.5/30 | 4 | 12 | 0.4 | 30 | 3.0 | 1500 | 1500(at 100pps) | B |
PG35L-048-01/60 | 7.5/60 | 4 | 12 | 0.4 | 30 | 8.0 | 3000 | 4500(at 100pps) | B |
PG35L-048-01/120 | 7.5/120 | 4 | 12 | 0.4 | 30 | 10.0 | 6000 | 5000(at 100pps) | B |

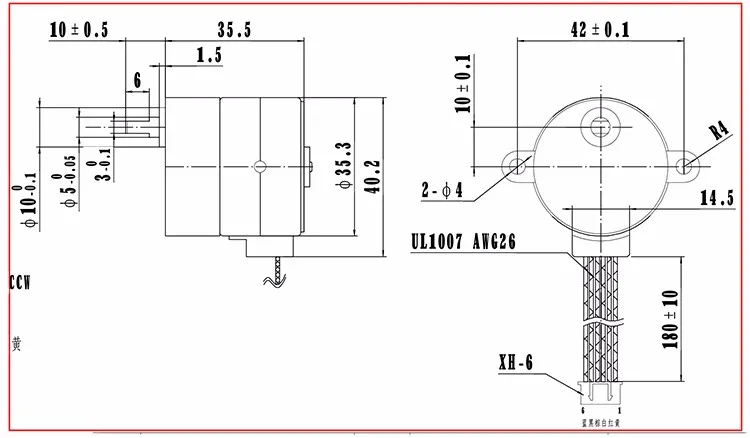

Dimension as below:

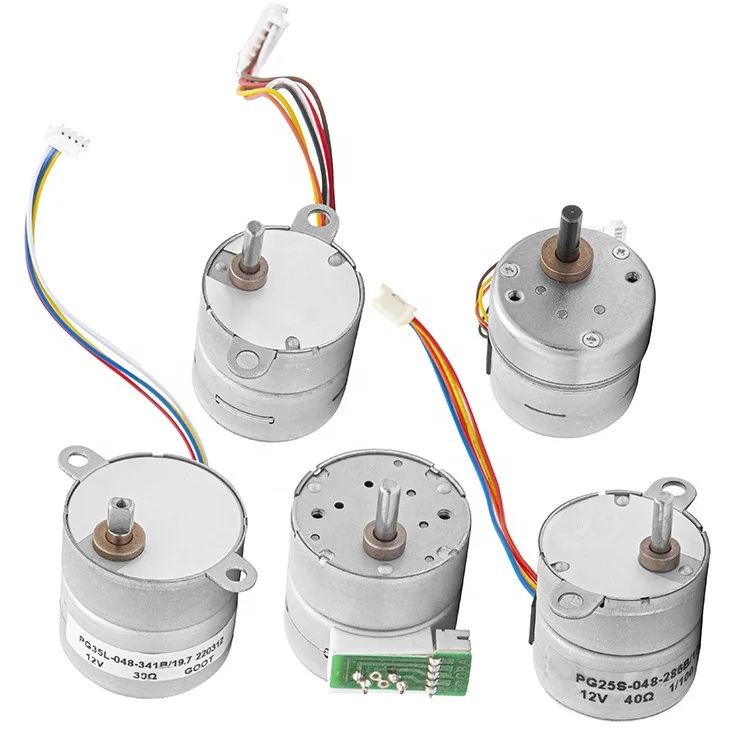

PM Gear Motor: | ||||||||||||||||
Diameter | 10mm | 15mm | 20mm | 24mm | 25mm | 28mm | 35mm | 42mm | ||||||||
Model No. | PG10S-020 | PG15S-020 | 20BYJ46 | 24BYJ48 | PG25S-048 | 28BYJ48 | 35BYJ46; PG35L-048 | PG42L-048 | ||||||||
Customization On Call | ||||||||
Coil Modifications | Resistance and Inductance | |||||||
Voltage amendment | 5V, 12V, 24V | |||||||
Magnets | To yield higher linear force or reduced detent levels | |||||||
Strength of Plastics | Higher strength for higher impact forces | |||||||
Detent force | Meet the application requirement | |||||||
Screw | Metric or imperial tips, different length | |||||||
Flanges/connectors | Special shape can be made | |||||||
Wire Harness | Can be designated for connectors, pins, lead length, shrink tubing | |||||||
Application
Application includes but not limited to :
* HVAC/R Valve Actuation * Office Automation Printers, Copiers, Data storage
* Medical Applications Pill dispensing Analysers * Other Industries & Applications Robotics
* Telecommunication Antennae positioning Switching lines. * CCTV systems
* Medical Applications Pill dispensing Analysers * Other Industries & Applications Robotics
* Telecommunication Antennae positioning Switching lines. * CCTV systems
