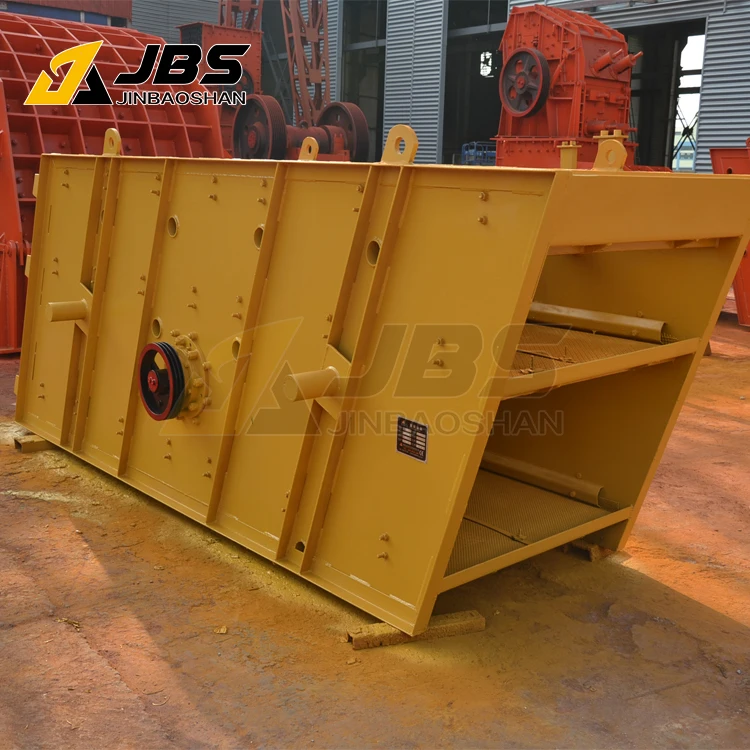

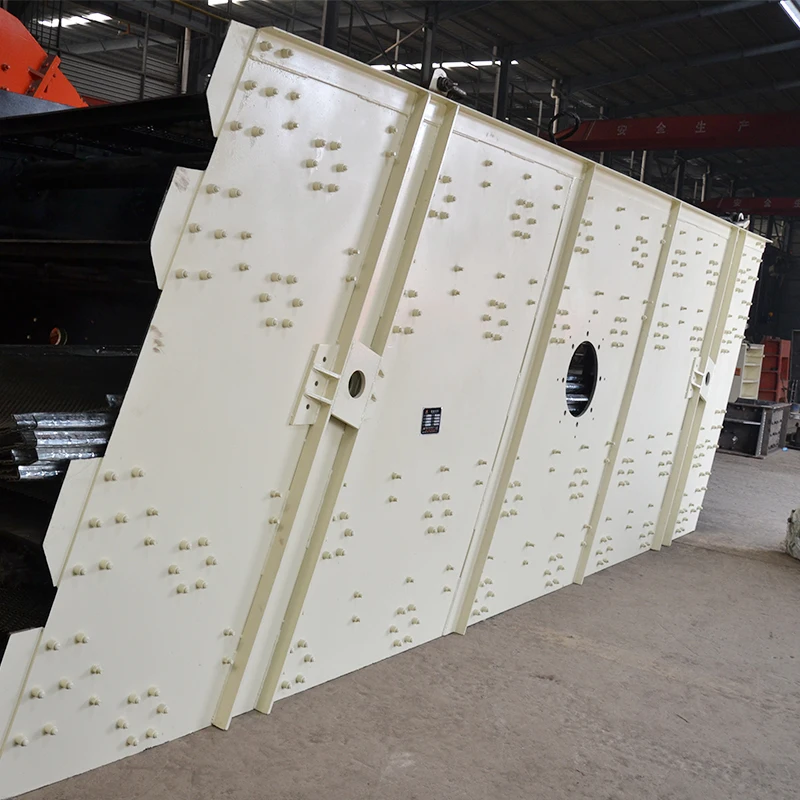

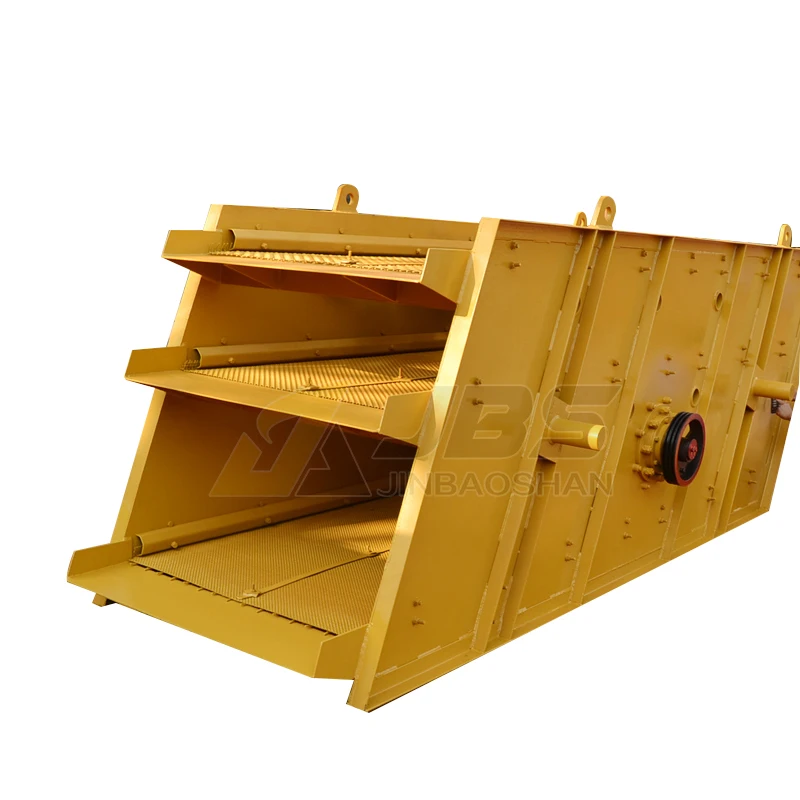

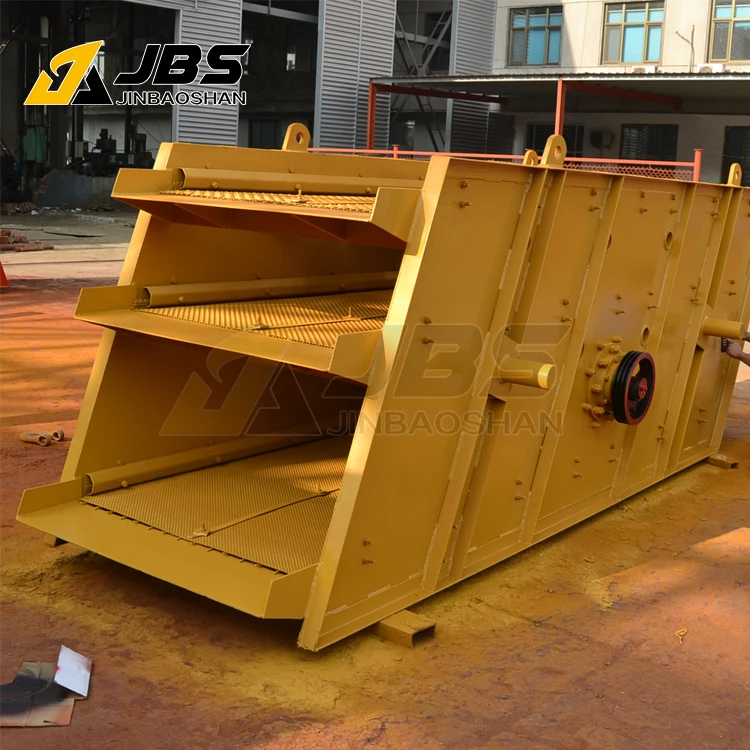

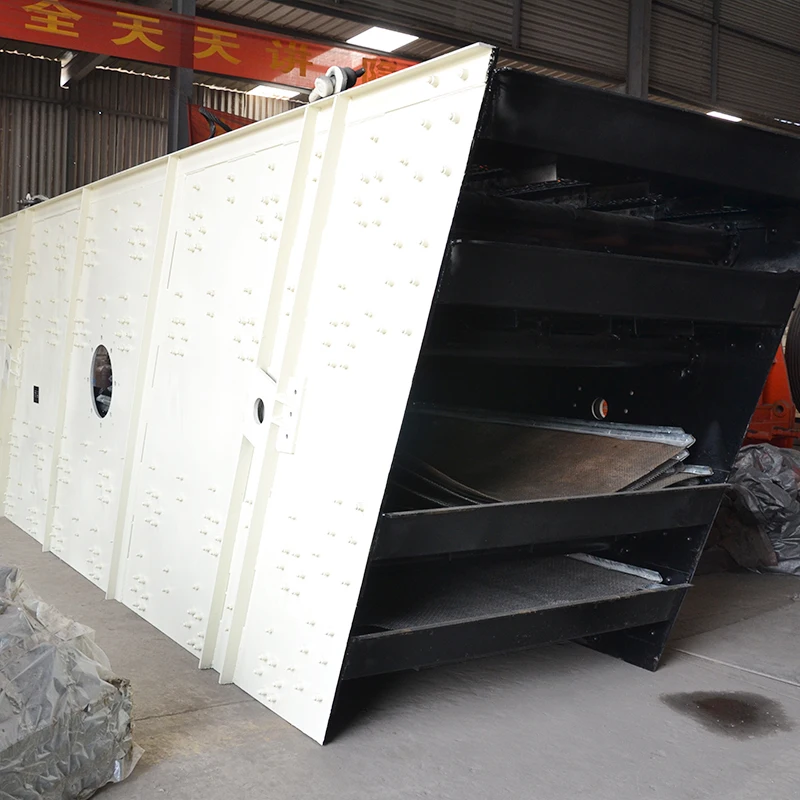

Fast Delivery Cheap 3 Layer Mining Stone Coal Linear Vibrating Screen
- Category: >>>
- Supplier: Shandong Jinbaoshan Machinery Co. Ltd.
Share on (1600637468012):
Product Overview
Description
Product Description
Specification
Model | Max Feeding(mm) | Layer | Capacity(t/h) | Motor Power(KW) | Screen Size(mm) | Vibration frequency(r/min) | Double Swing(mm) | Chute Slope(°) | Overall Dimension(L*W*H)(mm) |
4YZ1030 | 70 | 4 | 20-50 | 5.5 | 1000*2700 | 960 | 6--7 | 20 | 3100*1800*2500 |
4YZ1240 | 80 | 4 | 30-70 | 5.5 | 1200*3600 | 960 | 6--7 | 20 | 4100*2000*3100 |
4YZ1345 | 80 | 4 | 40-80 | 15 | 1300*4000 | 960 | 6--7 | 20 | 5200*1820*1900 |
4YK1345 | 80 | 4 | 40-80 | 15 | 1300*4000 | 960 | 6--7 | 20 | 5240*2000*2150 |
4YZ1545 | 90 | 4 | 45-85 | 18.5 | 1500*4000 | 960 | 6--8 | 20 | 5200*2140*2100 |
4YZ1555 | 90 | 4 | 50-100 | 22 | 1500*5000 | 960 | 6--8 | 20 | 6340*2140*2190 |
4YK1555 | 90 | 4 | 50-100 | 22 | 1500*5000 | 960 | 6--8 | 20 | 6340*2340*2350 |
4YZ1865 | 100 | 4 | 70-150 | 22 | 1800*6000 | 960 | 6--8 | 20 | 7344*2440*2190 |
4YK1865 | 80 | 4 | 70-150 | 22 | 1800*6000 | 960 | 6--8 | 20 | 7385*2620*2430 |
4YZ2165 | 120 | 4 | 100-220 | 30 | 2100*6000 | 960 | 6--8 | 20 | 7344*2740*2190 |
4YK2165 | 120 | 4 | 100-240 | 30 | 2100*6000 | 960 | 6--8 | 20 | 7385*2920*2430 |
3YK2465 | 120 | 3 | 120-260 | 37 | 2400*6000 | 960 | 6--8 | 20 | 7202*3220*1950 |
4YKS2465 | 120 | 4 | 120-260 | 30*2 | 2400*6000 | 960 | 6--8 | 20 | 7385*3220*2430 |
4YKS2570 | 120 | 4 | 150-300 | 30*2 | 2500*6500 | 960 | 7--10 | 22 | 7890*3360*2450 |
3YKS3070 | 120 | 3 | 200-400 | 37*2 | 3000*6500 | 960 | 7--10 | 22 | 7730*3860*2000 |
3YKS3585 | 150 | 3 | 280-450 | 45*2 | 3500*8000 | 960 | 7--10 | 25 | 9320*4440*2245 |
3YPS0924 | 60 | 3 | 10-40 | 4 | 2250*870 | 960 | 6--8 | 20 | 2837*1424*1200 |
4YPS1230 | 70 | 4 | 25-60 | 7.5 | 1160*1550 | 960 | 6--8 | 20 | 3557*1724*1530 |
3YPS1236 | 70 | 3 | 30-65 | 7.5 | 1850*1160 | 960 | 6--8 | 20 | 4146*1724*1500 |
Company Profile
Packing & Delivery
FAQ
Q1:Are you trading company or manufacturer ?
Answer: We are factory .
Q2: How long is your delivery time?
Answer: Generally it is 15-30days according to quantity .
Q3:What is your payment method ?
Answer:30% payment should be paid in advance , 70% balance should be paid before delivery .
Q4: How long is the warrenty of yuor equipment?
Answer: The warrenty period of the crusher equipment is one year .
Q5: If I need the complete plant , can you help us to built ?
Answer: Yes, we can help you to set up a complete crushing line.
Q2: How long is your delivery time?
Answer: Generally it is 15-30days according to quantity .
Q3:What is your payment method ?
Answer:30% payment should be paid in advance , 70% balance should be paid before delivery .
Q4: How long is the warrenty of yuor equipment?
Answer: The warrenty period of the crusher equipment is one year .
Q5: If I need the complete plant , can you help us to built ?
Answer: Yes, we can help you to set up a complete crushing line.
