Coin Scale With Printer In 570 Buy 3d Impedance Weight Logic Fat Percentage Composition Analysis Health Analyzer Body Scan
- Category: >>>
- Supplier: Inbca Medical Corp
Share on (1600637469707):
Product Overview
Description
Product Description
Coin Scale With Printer In 570 Buy 3d Impedance Weight Logic Fat Percentage Composition Analysis Health Analyzer Body Scan
A comprehensive type of integrated system, including a variety of medical examination equipment and unified information processing software, can provide customers with more then ten kinds of normal medical examinations,and can collect data from various testing instruments together for unified processing and reporting to the cloud platform, widely used in chain of medical examination centers, health management institutions,health cabin equipment integration.
Specification
Body weight measurement | Measuring system | Resistance strain gauge | |
Body weight index | Automatic intelligent calculation of body mass index | ||
Range of measurement | 500kg | ||
Height measurement | Verified precision | ±0.1kg | |
Measuring system | Ultrosonic probe | ||
Range of measurement | 70.0~200cm | ||
Verified precision | 0.1cm | ||
Blood pressure measurement | Model | Panasonic EW3153 Arm cuff | |
Display | LCD Digital Display | ||
Measurement Method | Oscillometric method | ||
Measurement Range | Pressure: 0 mmHg to 299 mmHg, Pulse: 40 to 180/min. | ||
Accuracy | Pressure: ±3 mmHg, Pulse: ± 5% | ||
Inflation | Electric pump | ||
Deflation | Automatic pressure release valve | ||
Pressure Detection | Capacitive pressure sensor | ||
Memory | 84 Measurements with date and time for each user | ||
(A and B) | |||
Power Source | AC/DC adapter (Included; Input 100-240V 50Hz/60Hz, | ||
AC/DC adapter (Included; Input 100-240V | Output 6V/9.6W) | ||
50Hz/60Hz,Output 6V/9.6W) | 10°C to 40°C/30 to 85% RH | ||
Storage temperature/Humidity/Air Pressure | -20°C to 60°C/10 to 95% RH700 - 1060 hPa | ||
Console Weight | Approximately 2600 g | ||
Outer Dimensions | Approximately 286 (l) mm * 294 (w) mm * 271 (h) mm | ||
Arm Circumference | 22 to 42 cm | ||
Measurement of fat | Measuring system | Multi-frequency 4- Electrode | |
Measurement frequency | 5kHz/50kHz/250kHz/500kHz | ||
Measurement category | Body fat, Muscle, Visceral fat, Body water, Basal metabolism, Body Type | ||
Material | Electroplating material | ||
Current for measurement | 90μA or below | ||
Range of measurement | 75.0~1,500.00Ω(0.1ΩUnit) | ||
Body parts of surveyor | Body, right leg, left leg, right arm, left arm | ||
Measurement of blood oxygen | Blood oxygen probe | CREATIVE KS-CM01 | |
Sensor | Dual wavelength LED | ||
Wavelength | "Visible light( Max):663nm | ||
Invisible Light:890nm" | |||
Measurement range | 35%~100% | ||
Average output power(Max) | ≤2mW | ||
Measurement error | In the range of 70% to 100% < ±2% | ||
Accuracy | In the range of 70% to 100% < ±3% | ||
Pulse rate measurement error | 30~250bpm | ||
Monitoring error is ±2bpm or ±%2, whichever is the | |||
largest | |||
Working humidity | 5℃~40℃ | ||
Relative humidity | 15%~95%(Non-condensing) | ||
Atmospheric pressure | 70kpa~106kpa | ||
Power supply mode | Powered by ancillary equipment | ||
Range of measurement | 95-99%(±2%normal status,±3% motion or weak perfusion,less than 95% undefined) | ||
Body temperature | Infrared thermometer | Calibeur DT-8836 | |
Accuracy | 0.1 ℃ | ||
Operating Temperature | 10~40℃ | ||
Storage temperature | 0~50℃ | ||
Relative humidity | ≤85% | ||
Power supply | DC 9V(6F22:a layer-built battery) | ||
Specification | 150*75*40mm | ||
Weight | Gross weight:400g, Net weight:172g | ||
Body temperature range | 32.0~42.5℃ | ||
Object temperature range | 0~100℃ | ||
Accuracy | ≤±0.3℃ | ||
Power dissipation | ≤120mw | ||
Measurement distance | 5-8cm | ||
Auto power off | About 15 seconds | ||

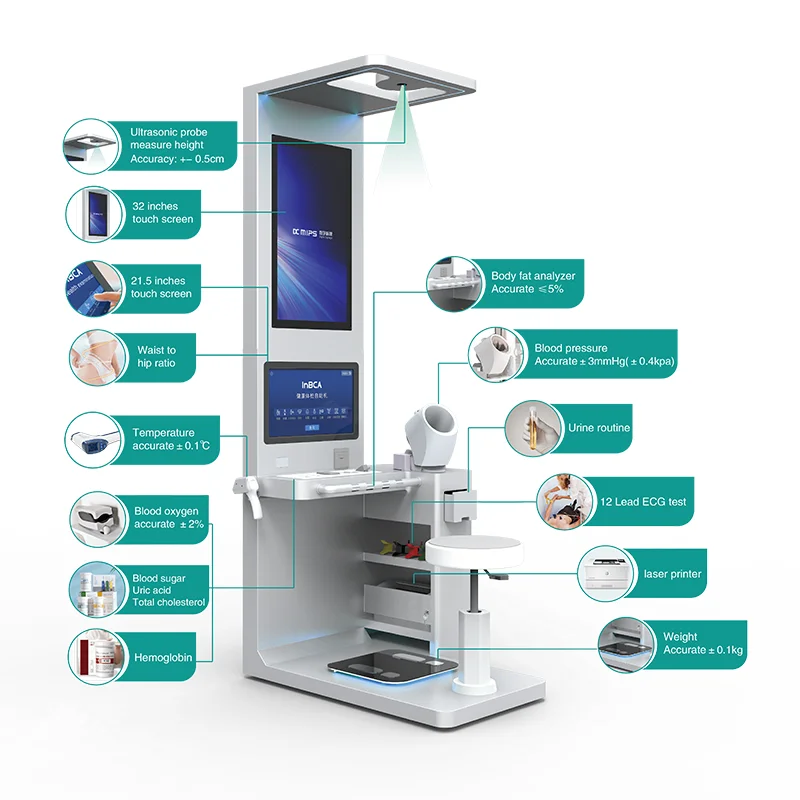

Detailed Image
Advantage
A.Human data model (body composition model)
B.DSM-BIA technology
C.Lot intelligent networking technology
D.AI deep learning and algorithm optimization technology
E.High-performance intelligent gateway technology
F.Face image identification technology
G.HDR data optimization acquisition technology
H.Multi-language selection, free switching between bilingual screens
DSM-BIA Technology
Product Packing
Usage Notice

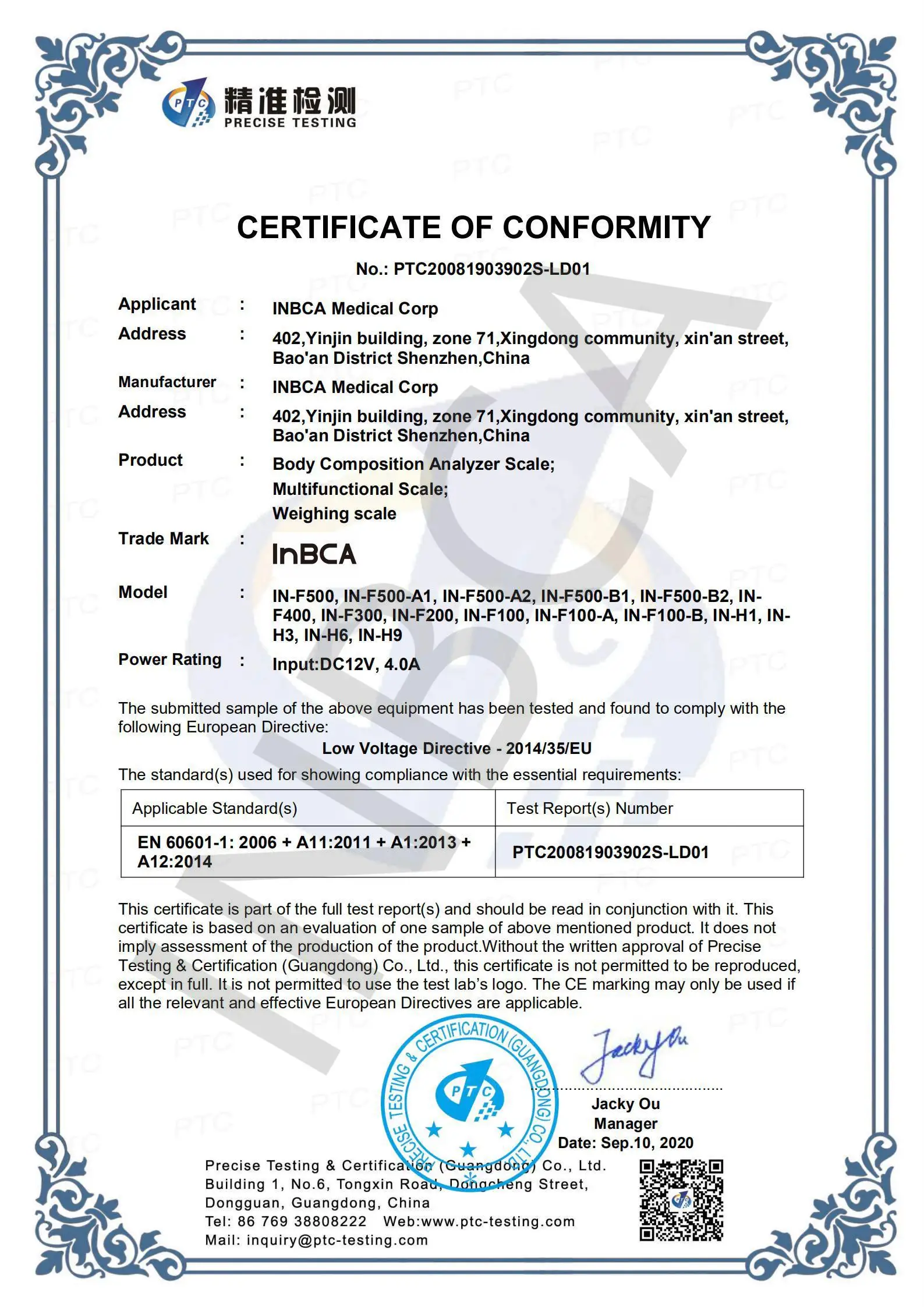

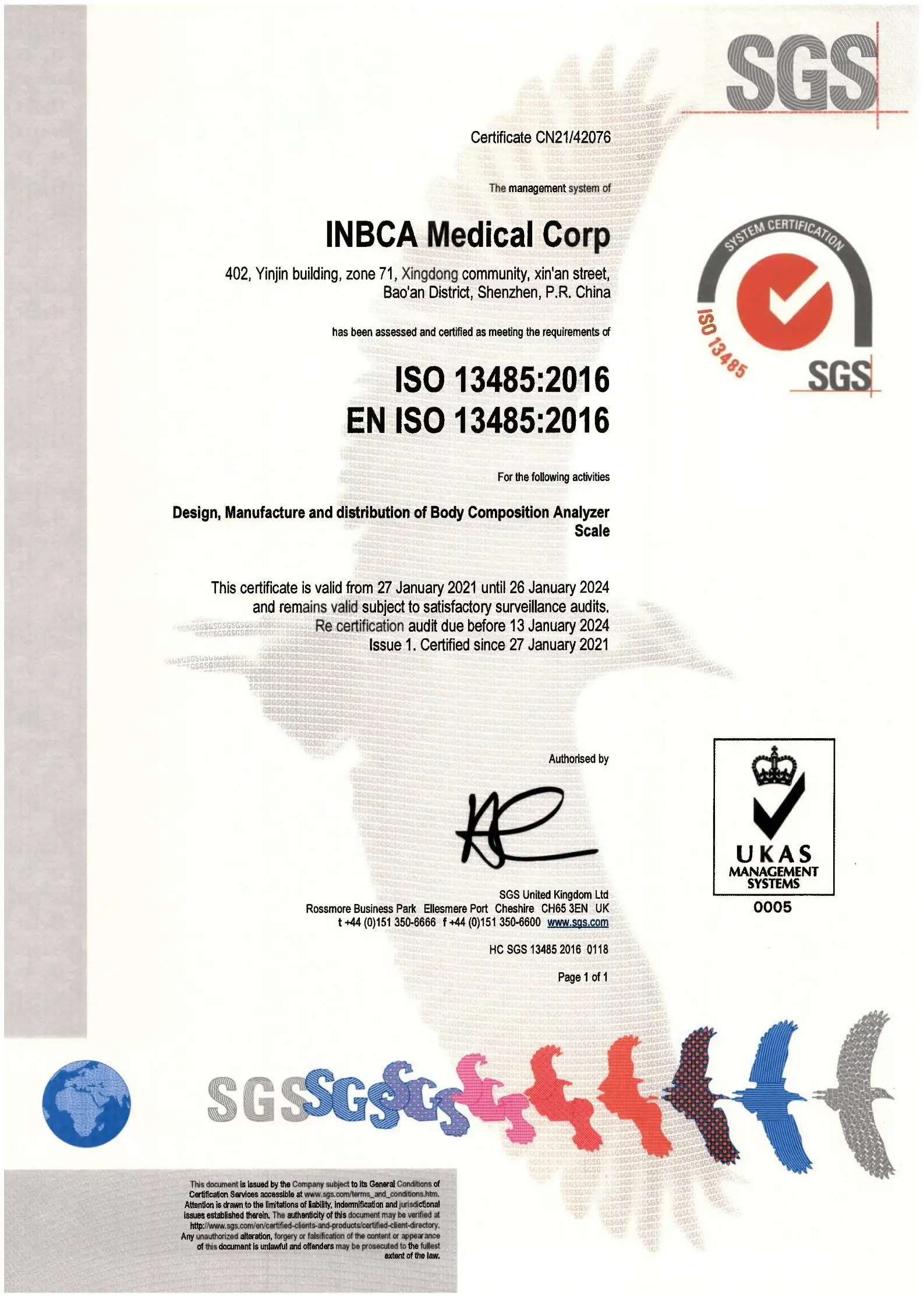

Certificates
