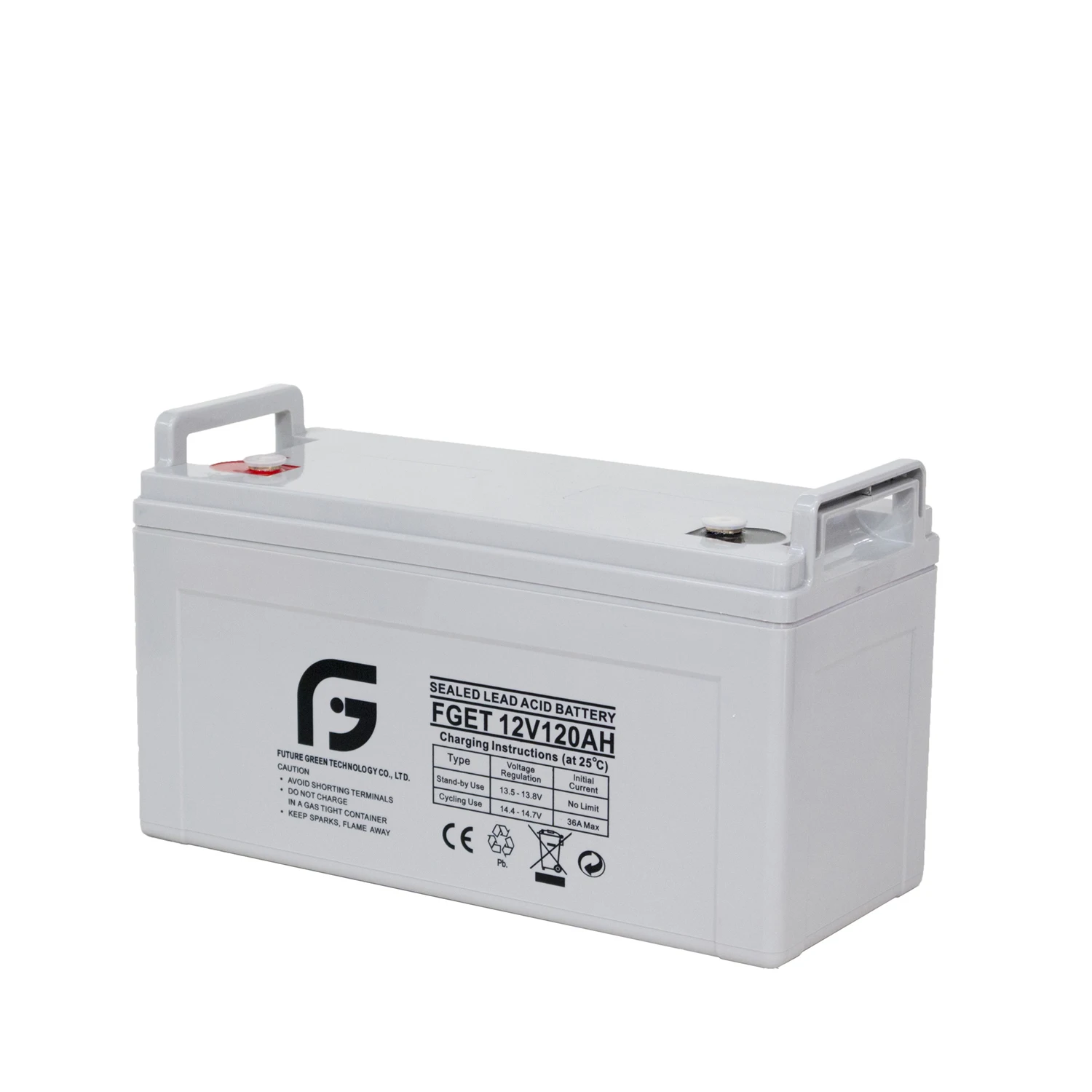

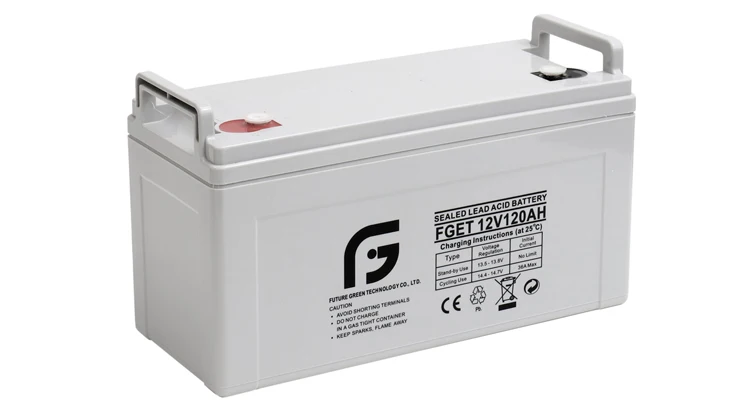

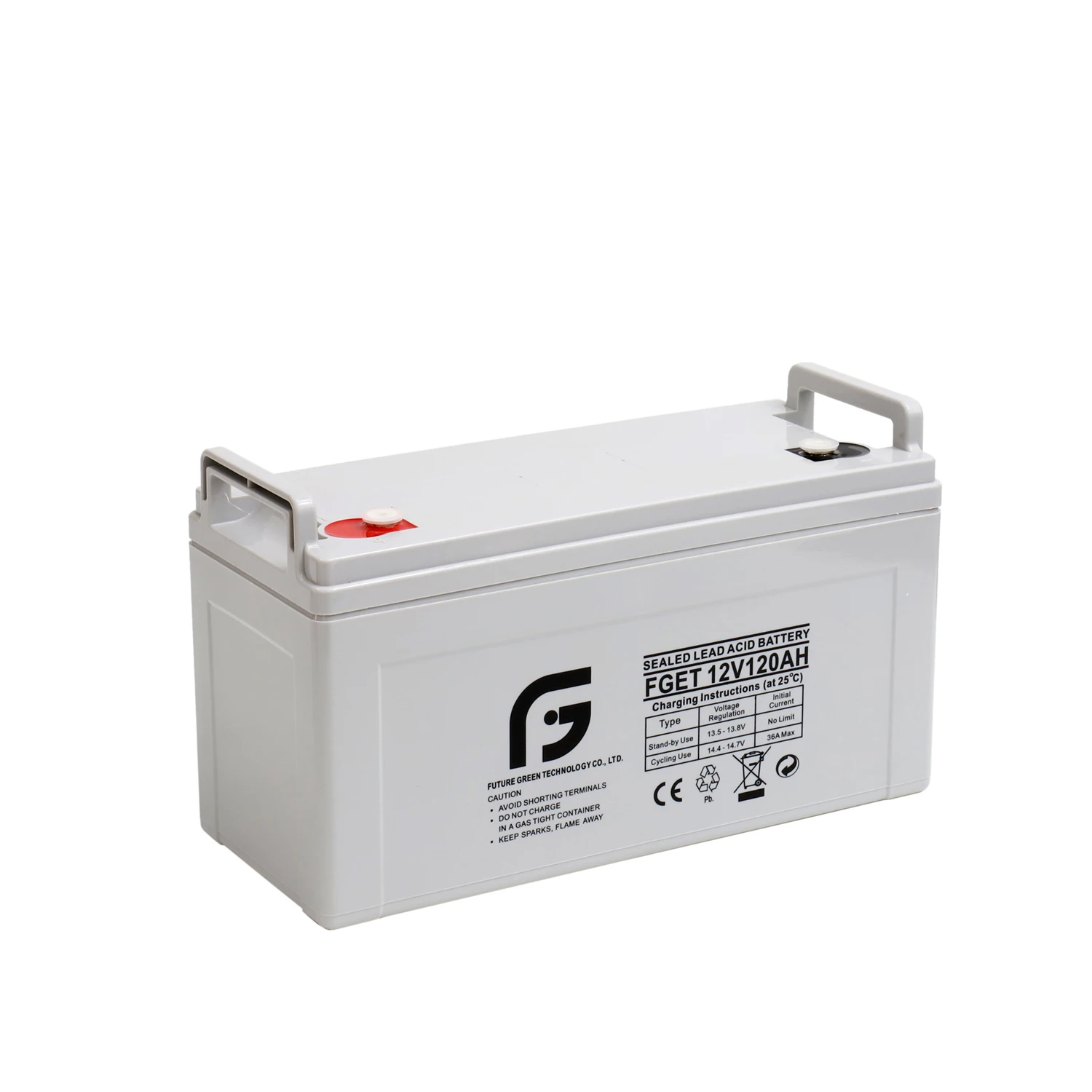

12V 120ah Solar Deep Cycle Accumulator Lead Acid Battery for Sale
- Category: >>>
- Supplier: Guangzhou Future Green Technology Co. Ltd.
Share on (1600637484603):
Product Overview
Description
Product Description
Generally Features:
1. GEL Technology
The success of DG batteries comes from the internationally superior Gel technology. It is ideal for standby or frequent cyclic discharge applications under extreme environments
2. Long Life Time
Especially designed for telecommunication use with 10+ years design life in float service. By combining the newly developed paste formula with up-to-date AGM structures, this range features 12 years design life. By using strong grids, high purity lead and patented Gel electrolyte, the DGseries offers excellent recovery after deep discharge under frequent cyclicdischarge use, and can deliver 400 cycles at 100% DOD.
3. Excellent Recovery from Deep Cycle
Unique technical processes are used into the grid alloy and electrolyte additive, in this case the battery can be recharged after being over-discharged.
Battery Use and Maintenance:
1. Please use constant-voltage charge.2. In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3. In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4. Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5. Please do not use it near the heat source and open flame.
6. Please keep it at low temperature. Please change it while there is liquid leaking or damage.
1. GEL Technology
The success of DG batteries comes from the internationally superior Gel technology. It is ideal for standby or frequent cyclic discharge applications under extreme environments
2. Long Life Time
Especially designed for telecommunication use with 10+ years design life in float service. By combining the newly developed paste formula with up-to-date AGM structures, this range features 12 years design life. By using strong grids, high purity lead and patented Gel electrolyte, the DGseries offers excellent recovery after deep discharge under frequent cyclicdischarge use, and can deliver 400 cycles at 100% DOD.
3. Excellent Recovery from Deep Cycle
Unique technical processes are used into the grid alloy and electrolyte additive, in this case the battery can be recharged after being over-discharged.
Battery Use and Maintenance:
1. Please use constant-voltage charge.2. In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3. In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4. Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5. Please do not use it near the heat source and open flame.
6. Please keep it at low temperature. Please change it while there is liquid leaking or damage.
Specification
Capacity | 10 hour rate(15.0A ) | 120AH | |
25'C (77'C) | 3 hour rate(37.5A ) | 96AH | |
1 hour rate(82.5A ) | 78AH | ||
Internal Resistance | Full charged Battery at 25 'C(77'F ) | ≤8mΩ | |
Capacity affected by Temp | 40'C (104F) | 102% | |
25'C (77'F) | 100% | ||
0'C (32'F) | 85% | ||
(-15'C )5'F | 65% | ||
Self-Discharge | Capacity after 3 month storage | 90% | |
25'C (77'F) | Capacity after 6 month storage | 80% | |
Capacity after 12 month storage | 62% | ||
Charge | Initial Charging Current less than 26 A | ||
(Constant Voltage) | Voltage 14.4-15.0V | ||
Voltage 13.5-13.8V | |||
AGM solar battery name | 12V 120ah Solar Deep Cycle Accumulator Lead Acid Battery for Sale | ||

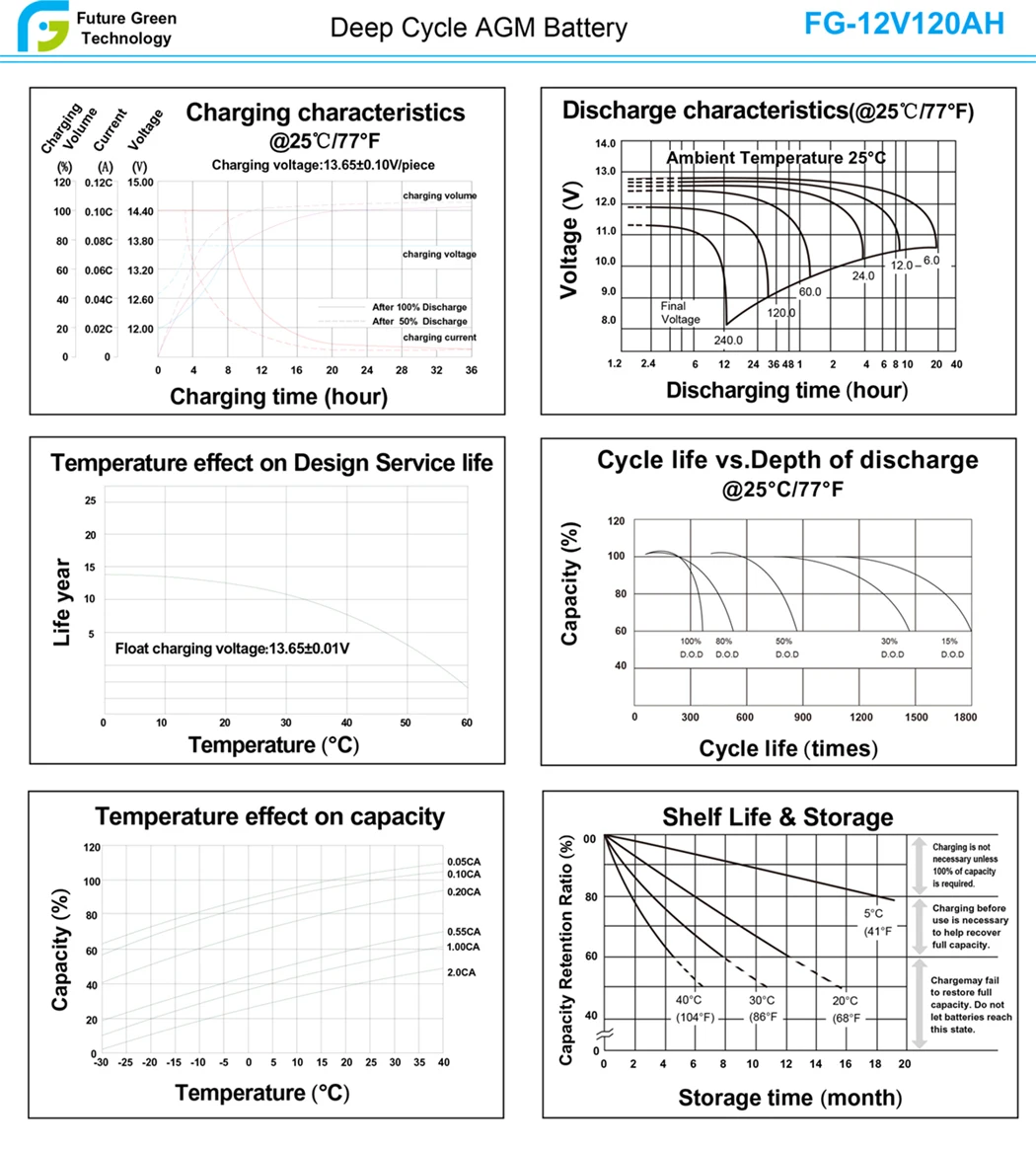

Charging time (hour)
Charging characteristics @25°C/77°F
Discharging time (hour)
Discharge characteristics(@25°C/77°F)
Temperature (°C)
Temperature effect on Design Service life
Cycle life (times)
Cycle life vs.Depth of discharge @25°C/77°F
Temperature (°C)
Temperature effect on capacity
Storage time (month)
Shelf Life & Storage
Lead Acid Batteries Data Sheet
Model | Voltage | Capacity | Weight | Size |
(kg) | (mm) | |||
12V | 7Ah | 2.05 | 151*65*94*100 | |
12V | 9Ah | 2.45 | 151*65*94*100 | |
12V | 12Ah | 3.3 | 151*98*95*101 | |
12V | 17Ah | 4.9 | 181*77*167*167 | |
12V | 24Ah | 7.3 | 177*165*126*126 | |
12V | 38Ah | 11 | 196*165*175*175 | |
12V | 40Ah | 12 | 196*165*175*175 | |
12V | 55Ah | 15.5 | 229*138*208*227 | |
12V | 65Ah | 19 | 350*166*175*175 | |
12V | 70Ah | 21 | 260*169*208*233 | |
12V | 100Ah | 28.7 | 328*172*222*238 | |
12V | 120Ah | 33 | 406*174*208*233 | |
12V | 150Ah | 41.5 | 483*170*241*241 | |
12V | 200Ah | 58.5 | 522*240*219*244 | |
12V | 250Ah | 69 | 522*269*220*205 |

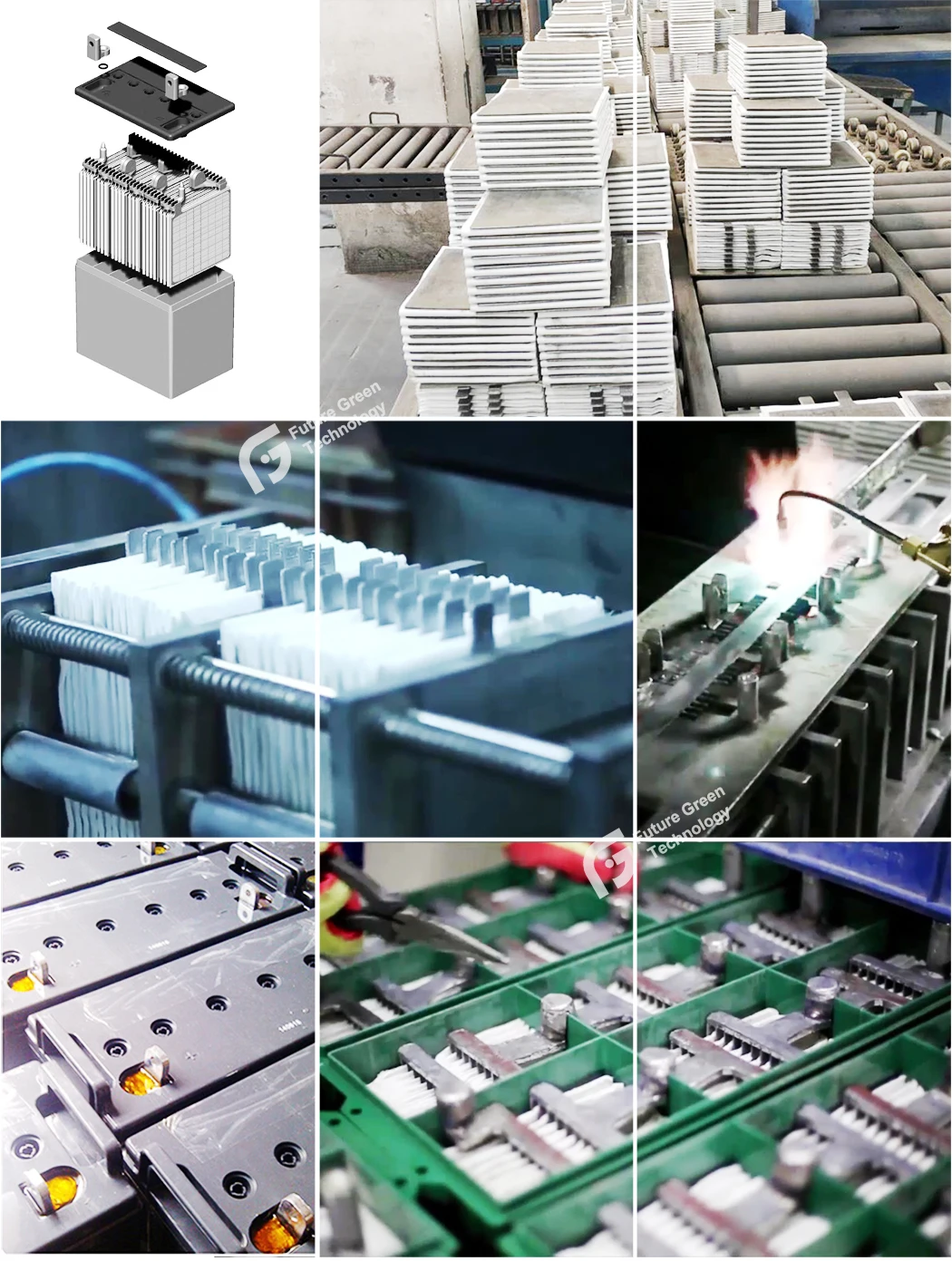

Production Process
Recommend Products

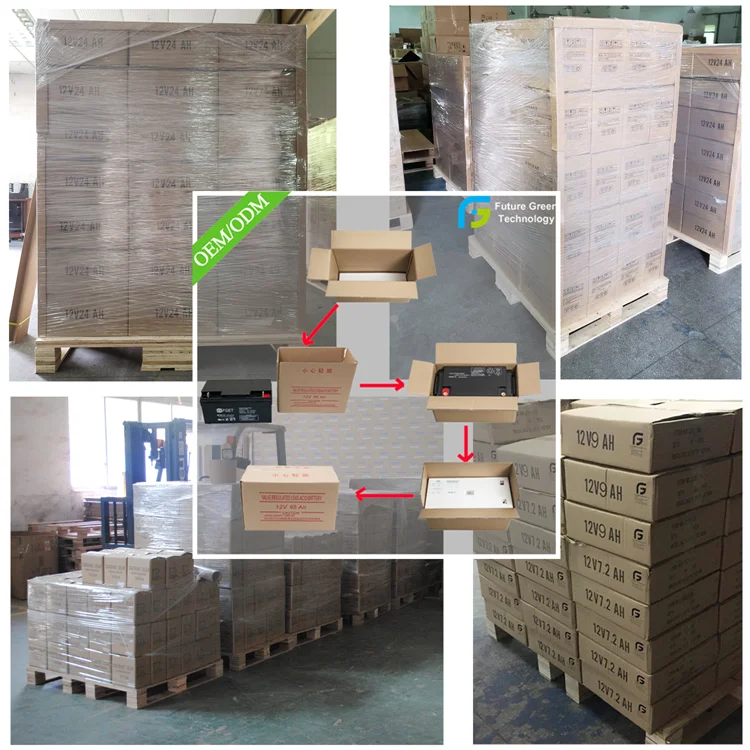

Packing & Delivery
About us
Future Green Technology Co., Ltd is a comprehensive hi-tech enterprise of R&D, manufacturing and trade which is located in Guangzhou city, Guangdong Province, China. We have more than 10 professional engineers and technical persons and its technical indicators of various solar panels have reached or exceeded national standards by introducing a number of international or domestic key equipment and technologies. Our company’s products have achieved the certificates as ISO 9001:2015, CE, MSDS and TESTING REPORT. Production licenses including: solar panels, flexible solar panels, folding solar panels, solar system, solar batteries, lead acid batteries, AGM batteries, GEL batteries and UPS batteries.
With high quality of the products, we own a high reputation among customers. In philosophy of quality, reputation, honesty, mutual benefit, we will provide high-quality and efficient services no matter what size of the clients and how long we cooperate. Full of confidence and enthusiasm, we are willing to work with you to create a new brilliance.
FAQ
Q1: How to choose the right battery?
A1: Tell us your demand, then our sales will recommend a suitable battery for you.
Q2: How about the delivery time?
A2: 7 days for sample; 25 working days for bulk order.
Q3: What is the warranty of lead acid battery?
A3: 12 months warranty.
Q4: How to solve the technical problem?
A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q5: How To Ask for Support if product failure in a warranty?
A5: 1. Email us about the PI number, serial number, Product S/N number, show us more details such as Pictures, your testing report or video, if it is the quality problem of the product itself, we will resend a new one in the next order.
A1: Tell us your demand, then our sales will recommend a suitable battery for you.
Q2: How about the delivery time?
A2: 7 days for sample; 25 working days for bulk order.
Q3: What is the warranty of lead acid battery?
A3: 12 months warranty.
Q4: How to solve the technical problem?
A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q5: How To Ask for Support if product failure in a warranty?
A5: 1. Email us about the PI number, serial number, Product S/N number, show us more details such as Pictures, your testing report or video, if it is the quality problem of the product itself, we will resend a new one in the next order.
2. We will submit your case to our after-sales department, and solve it in 24 hours.
