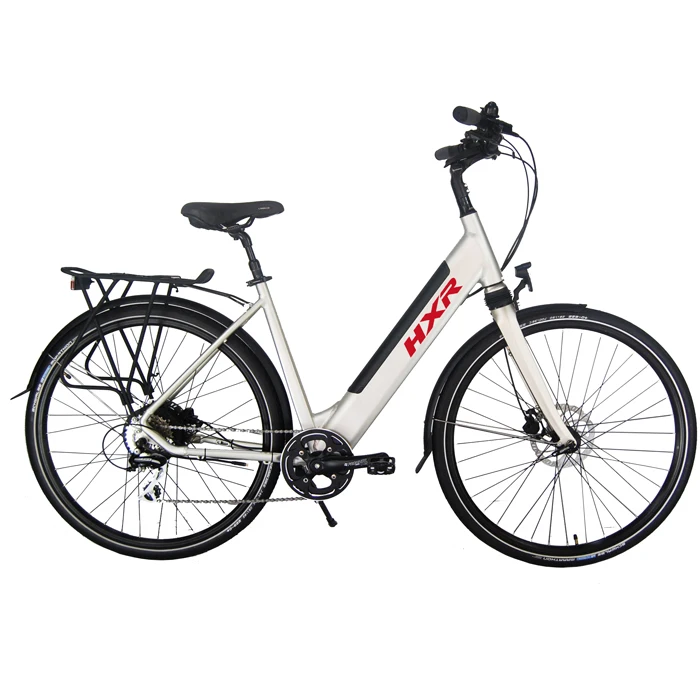

Step through integrated battery electric bike

Product Overview

Description

Step through integrated battery electric bike







Electric system

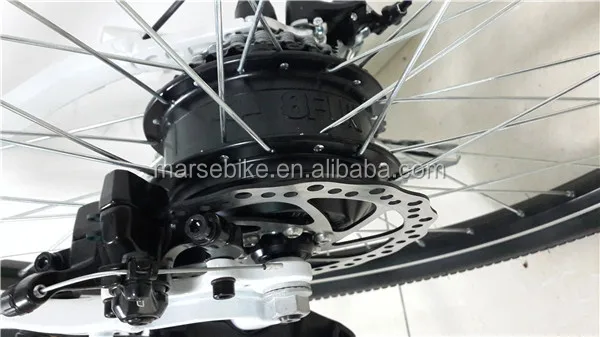

Motor	350W Brushless(8fun)
Battery	Lithium 36v 10.5ah (samsung 2600)
Charger	220 / 110V, 50 - 60Hz
PAS	1:1 intelligent pedal assistant system
Controller	Intelligent controller(lishui)
Main Components
Frame	6061 Aluminum alloy
Tyres	27.5x1.95(Kenda)
Rim	Al alloy double wall , CNC side wall
Front fork	al alloy  fork(XCM)
F/R brake	F:disc-brake ,R:disc- brake (TEKTRO)
Speed gears:	SHIMANO  7 speeds
Spokes	Stainless spokes
Mudguard	without
Handlebar	Al alloy  (zoom)
Stem	Al alloy  (zoom)
Brake lever	Al alloy with power off switch.
Chain	Rust resistant chain KMC

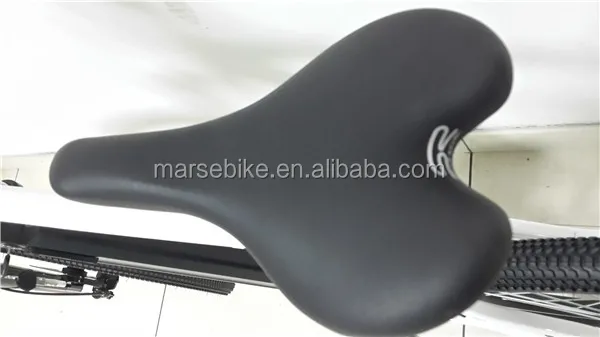

Saddle	comfortable and fat saddle
Seat post	Al alloy with suspension
Pedal	TMB STYLE
lights	F/R LED lights Spanniga
Display	LCD-display(800s)
Performance
Max speed	25km/h
Driving distance	45-70KM
Charging time and life	6-8 hours,>500 times
Max loading	125kg
G.W./N.W.	31/25Kg
Product size	1940×635×1195mm
Packing size	1550×270×820mm
