Built in breaker and surge protector Solar PV combiner box
- Category: >>>
- Supplier: Foshan Hober Electric Co. Ltd.
Share on (1600637519965):
Product Overview
Description
Hober Solar Combiner +AC Electronical Box
It’s similar to a junction box, which is an electrical enclosure that securely unites multiple wires and cables through various ports of entry. A solar combiner box combines the output of numerous strings of PV modules for connection to the inverter.
Products Description
Product name : Solar Combiner+AC Electronical 2 IN 1 PV Box
Lead time: 7-10 days
Product Origin: GUANGDONG,CHINA
Shipping Port: SHENZHEN or GUANGZHOU Port
Payment: T/T, Western Union, PayPal, Irrevocable L/C at sight
MOQ: 1 Set
Product description

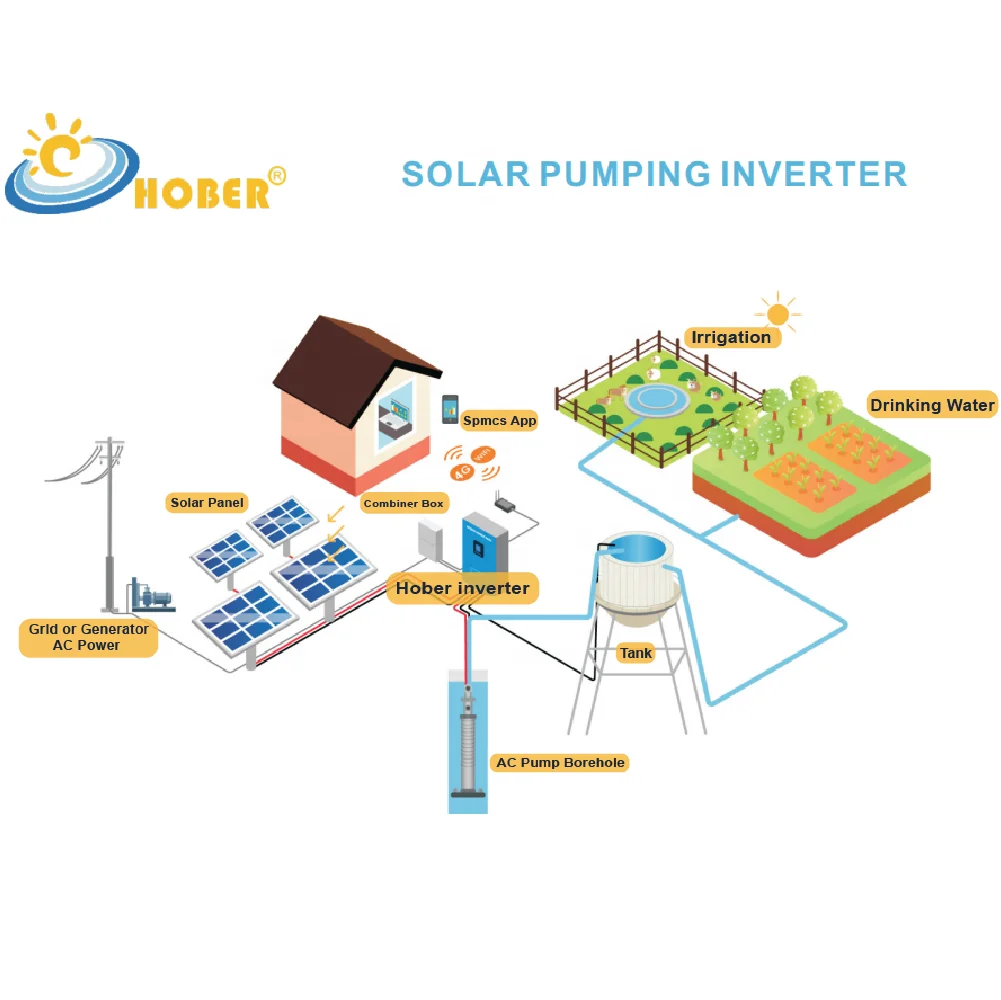

In the solar pumping system, in order to reduce the connection between the solar photovoltaic array and the inverter, improve the reliability of the system, and facilitate the installation and maintenance of the system, it is generally necessary to add a combiner box between the solar photovoltaic array and the inverter. Photovoltaic modules and inverters.
Users can connect a certain number of photovoltaic cells of the same specification in series to form a series of photovoltaic cells, and then connect several photovoltaic cells in series to the combiner box. After the current is collected by the photovoltaic arrester, the photovoltaic converter can be output to the photovoltaic converter through the arrester and circuit breaker to form a complete set of photovoltaic inverters.
Performance advantage

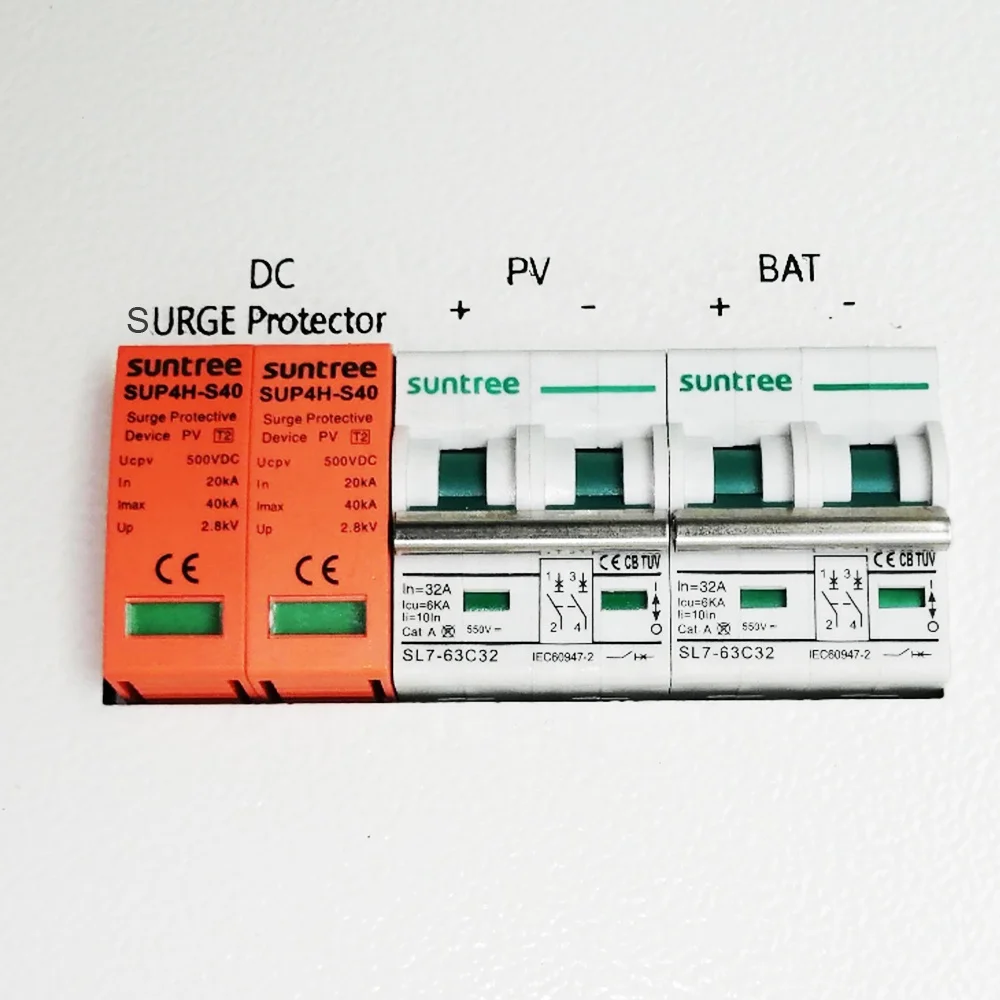

◆ Built-in DC breakers and AC breakers for hybrid solar pumping systems
◆ Surge protect
◆ Multiple cooling channels
◆ IP65 protection grade, can be used safely outdoors.
Lead time: 7-10 days
Product Origin: GUANGDONG,CHINA
Shipping Port: SHENZHEN or GUANGZHOU Port
Payment: T/T, Western Union, PayPal, Irrevocable L/C at sight
MOQ: 1 Set
Product description
In the solar pumping system, in order to reduce the connection between the solar photovoltaic array and the inverter, improve the reliability of the system, and facilitate the installation and maintenance of the system, it is generally necessary to add a combiner box between the solar photovoltaic array and the inverter. Photovoltaic modules and inverters.
Users can connect a certain number of photovoltaic cells of the same specification in series to form a series of photovoltaic cells, and then connect several photovoltaic cells in series to the combiner box. After the current is collected by the photovoltaic arrester, the photovoltaic converter can be output to the photovoltaic converter through the arrester and circuit breaker to form a complete set of photovoltaic inverters.
Performance advantage
◆ Built-in DC breakers and AC breakers for hybrid solar pumping systems
◆ Surge protect
◆ Multiple cooling channels
◆ IP65 protection grade, can be used safely outdoors.
◆Backplane wall-mount is easy to install and maintain.
◆Anti-reverse module to prevent back-end equipment damage caused by negative and positive pole connection

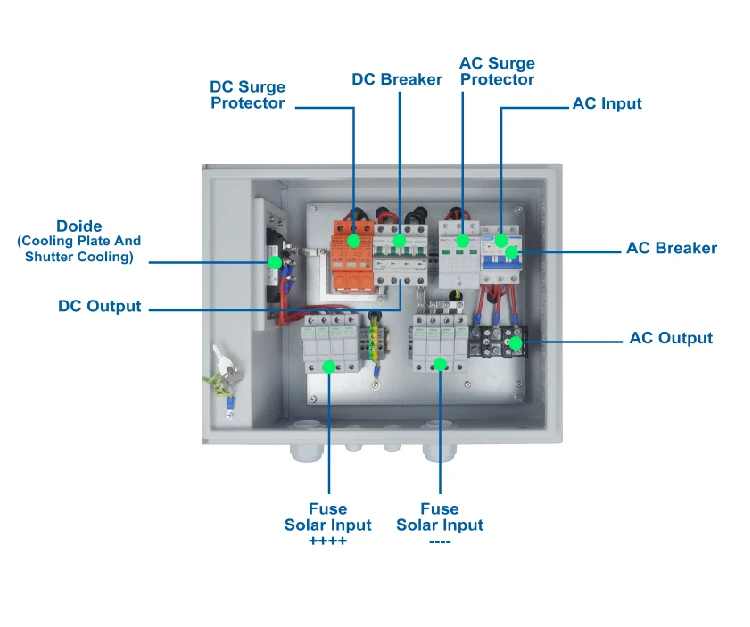

Components for combiner box assembly
Doide(Cooling Plate And Shutter Cooling),DC Surge Protector,DC Breaker,AC Surge Protector,AC Breaker,Earing wire
Product details:
1.Anti-Theft Lock Buckle
2.Waterproof Seal Ring
3.Build-in Earing Wire
4.Waterproof Terminal
5.Nature Cooling
6.Large box area is conducive to heat dissipation of the machine and installation of optical cables
7.NEMA 4 steel outdoor material housing
Product Paramenters
Model | HCBL1+2 | HCBH3+2 | HCBH3+4 | HCBH3+6 | HCBH3+8 | |||||
SOLAR INPUT | ||||||||||
Solar Input pairs(+, - ) | 2 | 2 | 4 | 6 | 8 | |||||
Each string input max current | 15A | 15A | 15A | 15A | 15A | |||||
Each string fuse current | 15A | 15A | 15A | 15A | 15A | |||||
Output pairs (+,-) | 1 | 1 | 1 | 1 | 1 | |||||
DC breaker Current | 32A | 32A | 63A | 100A | 160A | |||||
Solar input Max Voltage | DC500V | DC1000V | DC1000V | DC1000V | DC1000V | |||||
DC surge protector | yes | yes | yes | yes | yes | |||||
Max DC output current | 30A | 30A | 60A | 90A | 120A | |||||
AC INPUT | ||||||||||
AC input Voltage | single phase 220~240V | 3phase 380~440V | 3phase 380~440V | 3phase 380~440V | 3phase 380~440V | |||||
Max AC input Current | Single phase 32A | 3phase 32A | 3phase 63A | 3phase 100A | 3phase 100A | |||||
AC Surge Protector | yes | yes | yes | yes | yes | |||||
AC Output Max Current | Single phase 32A | 3phase 32A | 3phase 63A | 3phase 100A | 3phase 100A | |||||
Protection Class | IP65 | IP65 | IP65 | IP65 | IP65 | |||||
Operation Temperature | ~20 to 50 | ~20 to 50 | ~20 to 50 | ~20 to 50 | ~20 to 50 | |||||
Net Size(mm) | 440*380*170 | 440*380*170 | 440*380*170 | 528*456*204 | 528*456*204 | |||||
