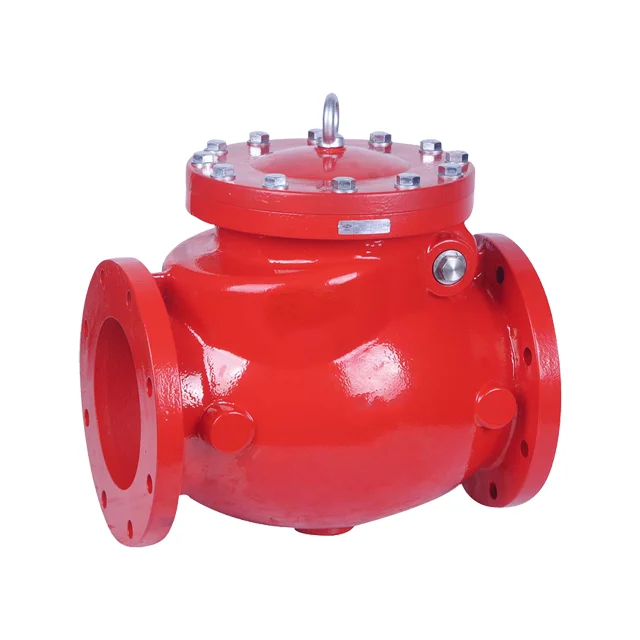

Fire Fighting UL/FM/LPCB PN10/16 DI Grooved Flanged Gate Butterfly non return Swing Check Valve
Fire Fighting UL/FM/LPCB PN10/16 DI Grooved Flanged Gate Butterfly non-return Swing Check Valve
Fire Fighting UL/FM/LPCB PN10/16 DI Grooved Flanged Gate Butterfly non-return Swing Check Valve
Fire Fighting UL/FM/LPCB PN10/16 DI Grooved Flanged Gate Butterfly non-return Swing Check Valve
Fire Fighting UL/FM/LPCB PN10/16 DI Grooved Flanged Gate Butterfly non-return Swing Check Valve
Fire Fighting UL/FM/LPCB PN10/16 DI Grooved Flanged Gate Butterfly non-return Swing Check Valve
Fire Fighting UL/FM/LPCB PN10/16 DI Grooved Flanged Gate Butterfly non-return Swing Check Valve

Fire Fighting UL/FM/LPCB PN10/16 DI Grooved Flanged Gate Butterfly non return Swing Check Valve

Share on (1600637540988):


Price:$15.00 - $20.00

Quantity:


Product Overview

Description



Please contact us for more details about package, delivery time and shipment.




Product Specification



Product Name
Grooved Resilient OS&Y Gate Valve, Check Valve, Butterfly Valve, etc.
Material
Ductile Iron
Standard
UL, FM
Working Pressure
PN 10/16, 300-1000psi
Size
2"-72"
Temperature
0-100 Degree

Coating
Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550 or painting upon customer's requirements
Application
Fire Fighting
Connection Ends
Flange to BS, EN, AWWA/ Grooved End


Delivery Details
Acoording to the quantities and specifications of each others
Normal delivery times is from 30 to 50 days from deposit





Description

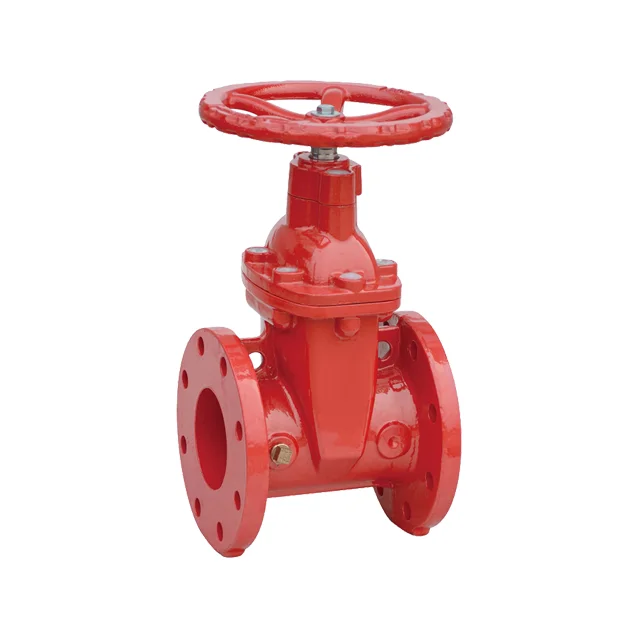

This kind of valve is widely used in the field of fire protection, and it is connected by flange, which is convenient and quick to install. Pressure rated up to 200 psi, 350 psi. The valve is designed for above ground installations, and it is specifically used in fire protection sprinkler systems. A valve stem and nut are mounted on the outside of the valve body for easy identification of whether the valve is in the open or closed position.

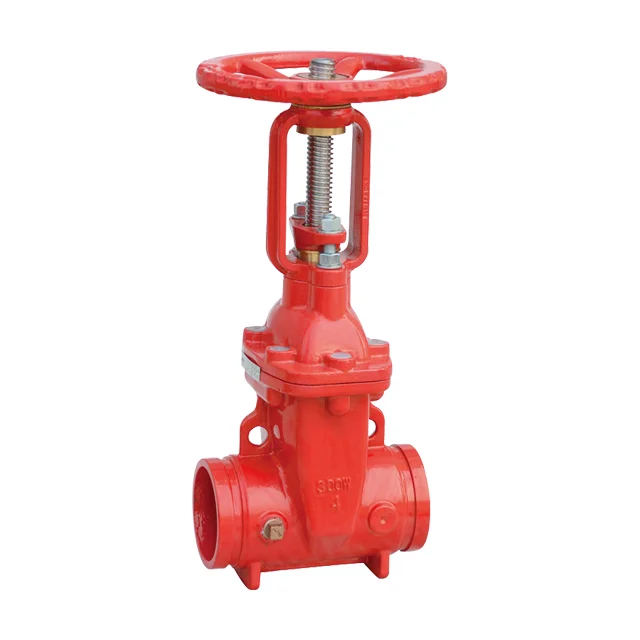

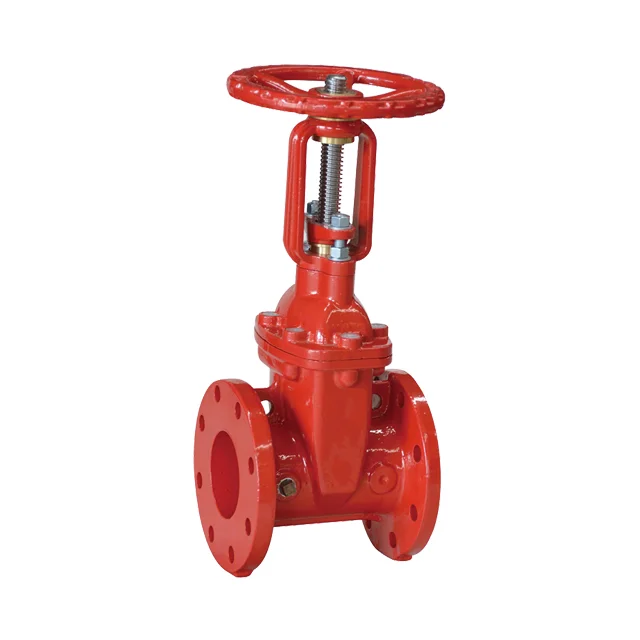

What is an OS&Y valve?

Technically OS&Y stands for ‘Outside Screw and Yoke’. That means that when the handle is turned it directly raises and lowers the gate of the valve by interacting directly with the stem of the valve. The handle and the stem are both threaded so they interact together. The stem of the valve itself raises and lowers visibly outside the body of the valve, while the handle remains in a fixed position. As the stem rises the gate inside the body of the valve rises in unison letting water flow through the body of the valve. With an OS&Y valve it is always clear whether the valve is open or closed. This is vitally important for properly maintaining fire protection.
