DHW pressurized corrugated coil water storage tank 200L,300L,500L

Product Overview

Description

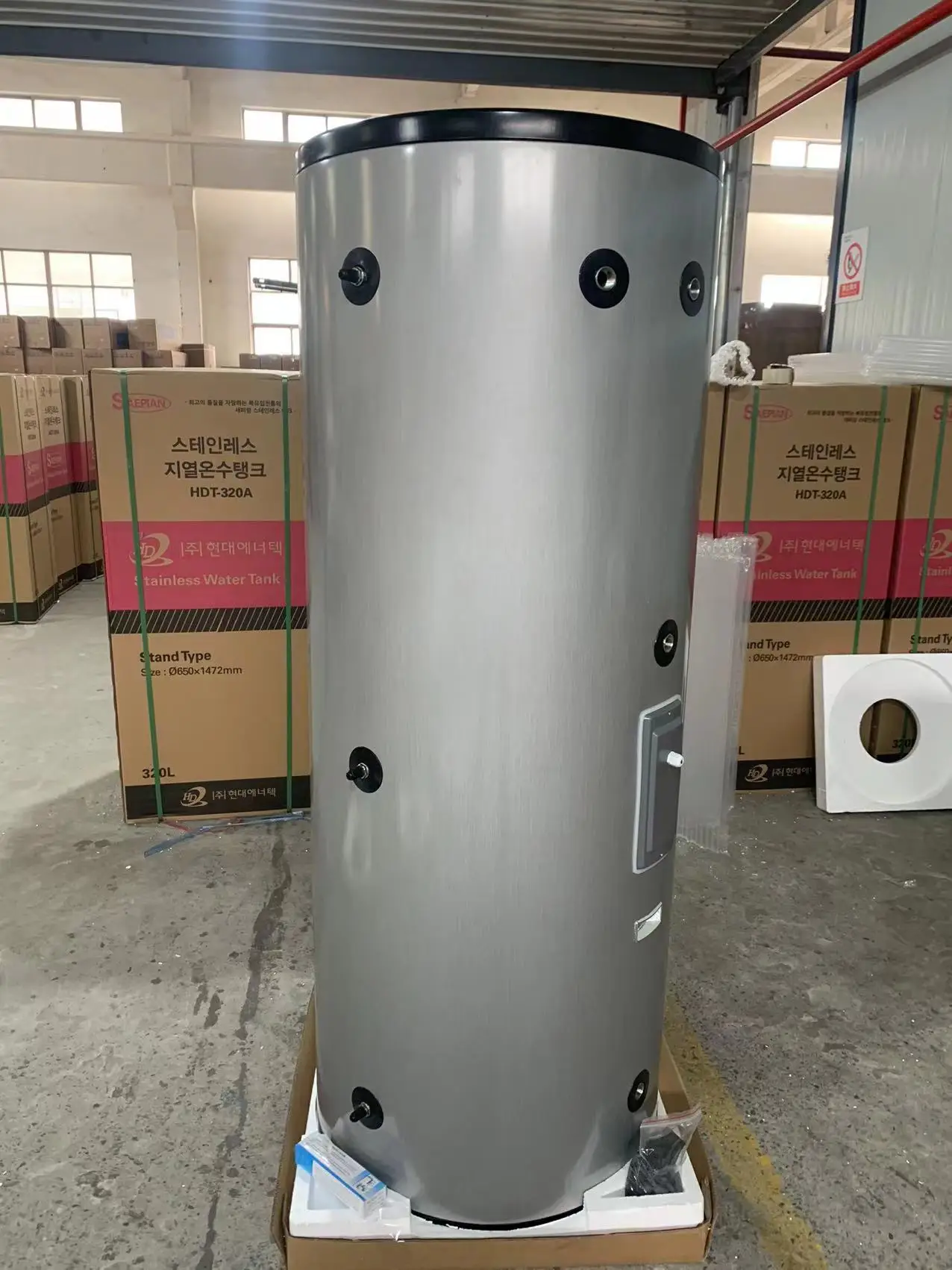

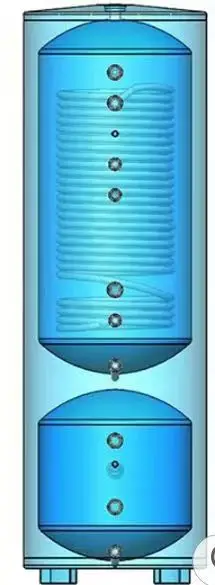

DHW Coiled Tank For Heat Pump
Model	200L	300L
Inner Tank Diameter	Φ440mm	Φ480 mm
Galvanized steel Outer Tank Diameter	φ540 mm	φ580 mm
Inner Material&Thickness	SUS 304  1.5mm
Outer Material&Thickness	Galvanized steel with white painting 0.5mm
Iinsulation Layer Thickness	50mm	50mm
Water Inlet&Outlet Size	G 3/4" Female *2 pcs	G 3/4" Female *2 pcs
Heat exchange Coil Inlet&Outlet Size	G 1" Female *2 pcs	G 1" Female *2 pcs
heat exchange area	2.5 m2	3 m2

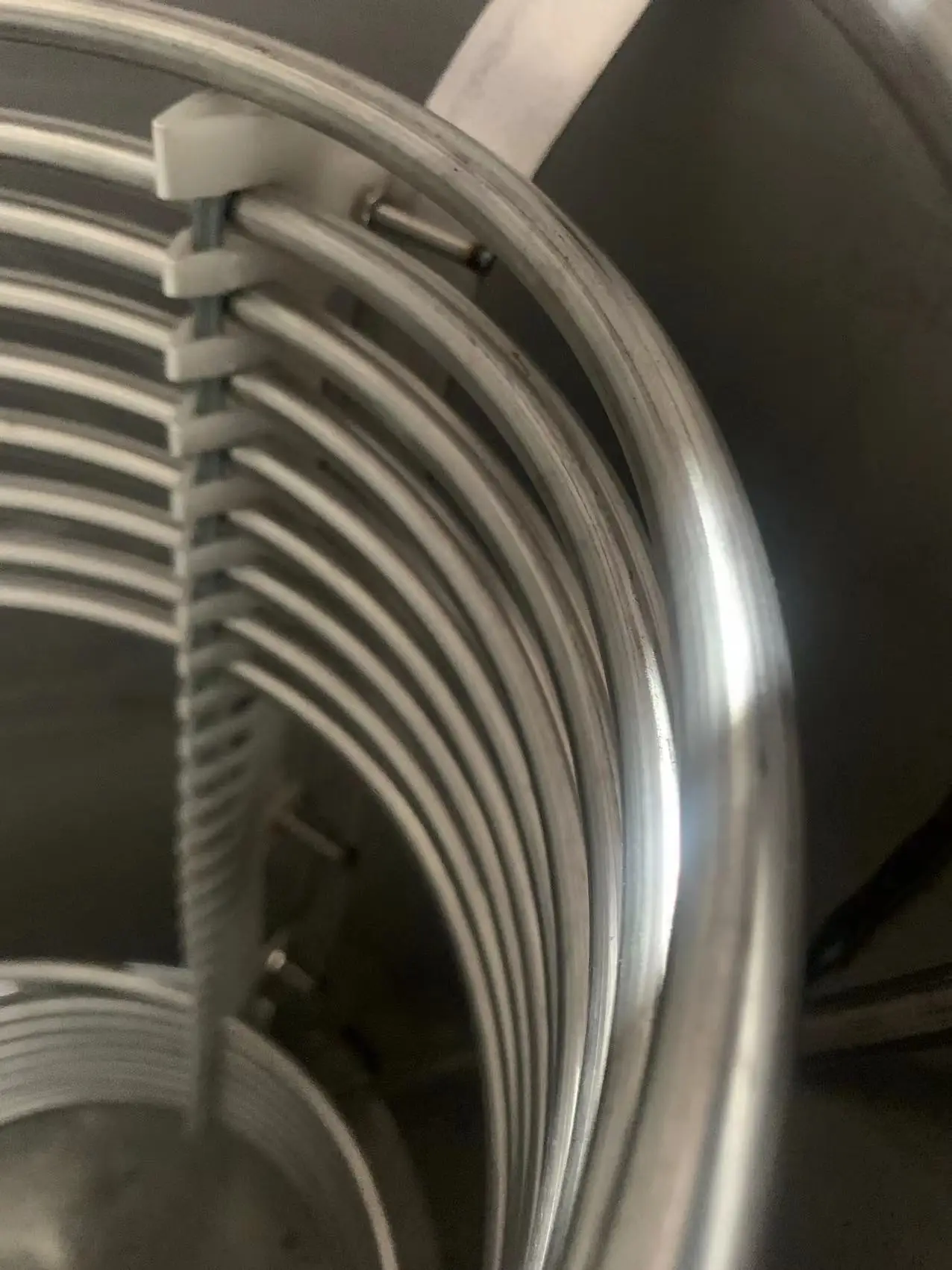

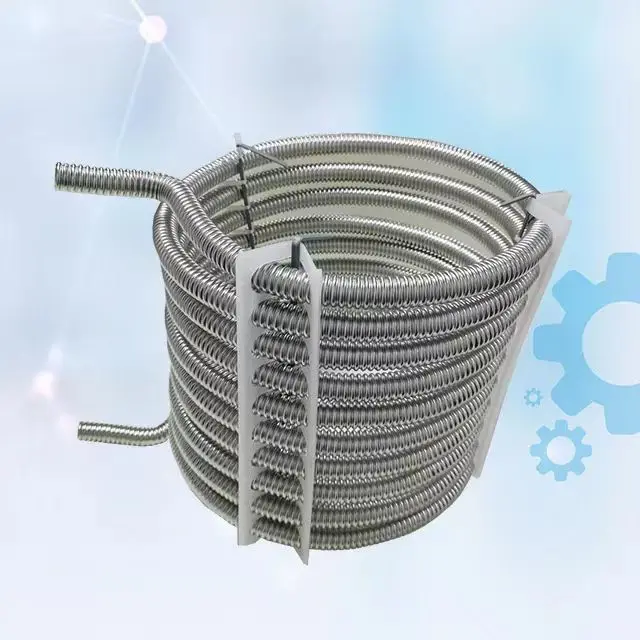

φ25mm SUS304 coil length	25 m	30 m
Water Return &Outlet Size	G 1/2" Female *1 pcs	G 1/2" Female *1 pcs
Drain &Outlet Size	G 3/4" Female *1 pcs	G 3/4" Female *1 pcs
P/T valve &Outlet Size	G 3/4" Female *1 pcs	G 3/4" Female *1 pcs
Magnesium anode &Outlet Size	G 3/4" Female *1 pcs	G 3/4" Female *1 pcs
Electric heater & thermostat	G 1" Female *1 pcs	G 1" Female *1 pcs
Tank Size	Φ540*1450 mm	Φ580*1840 mm
Picking Size	600*600*1550 mm	620*620*1880 mm
Working pressure	6 Bar	6 Bar
Max. testing pressure	10 Bar	10 Bar
