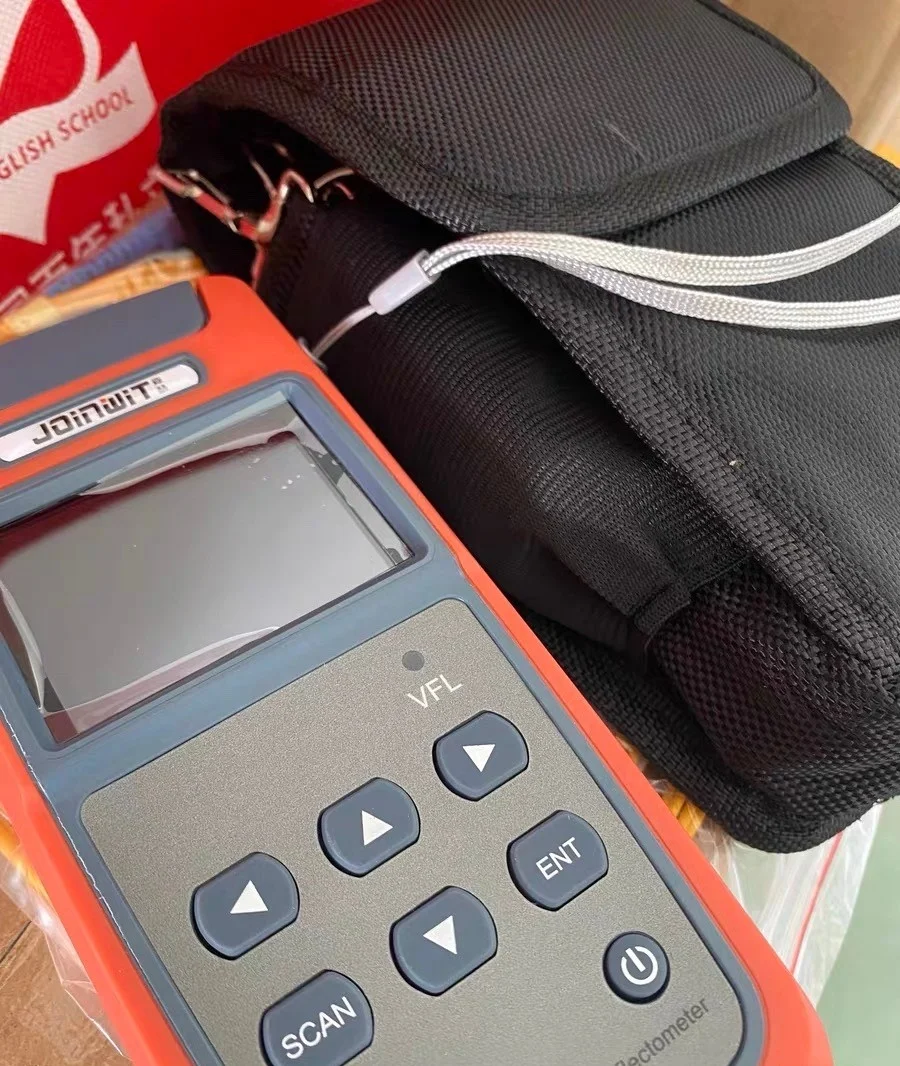

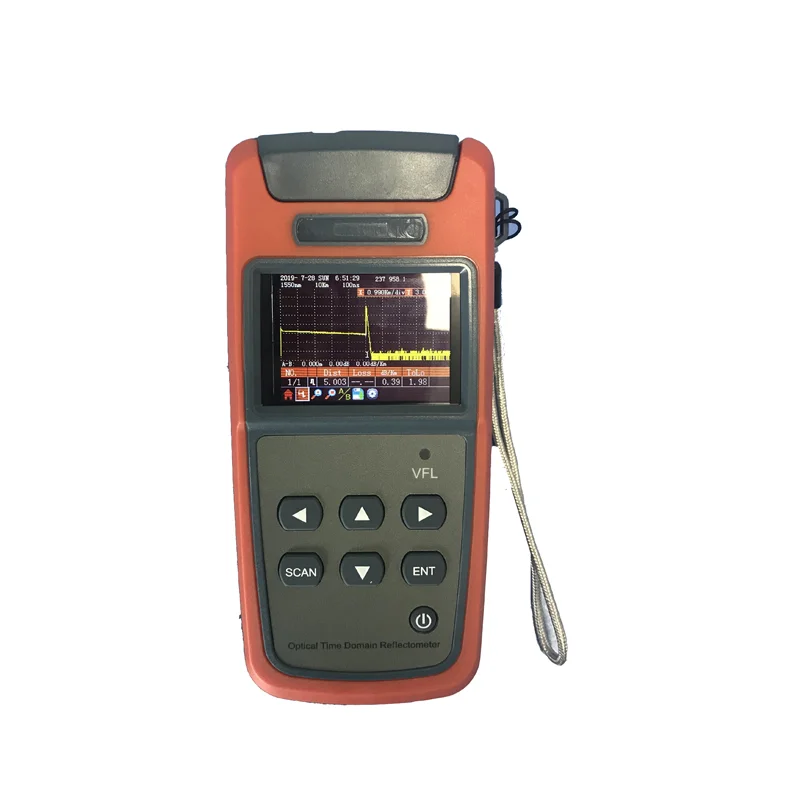

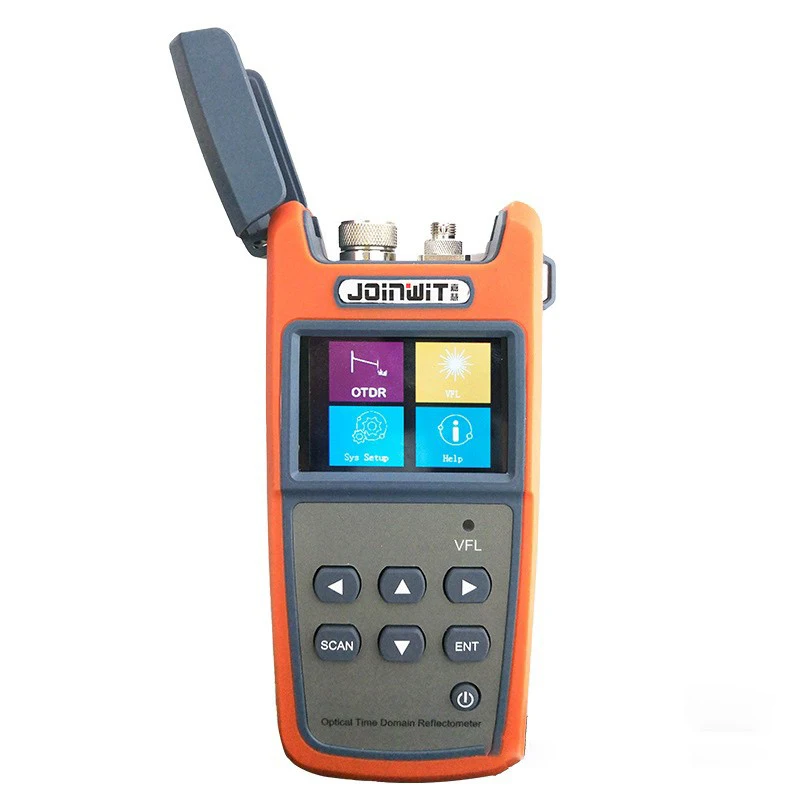

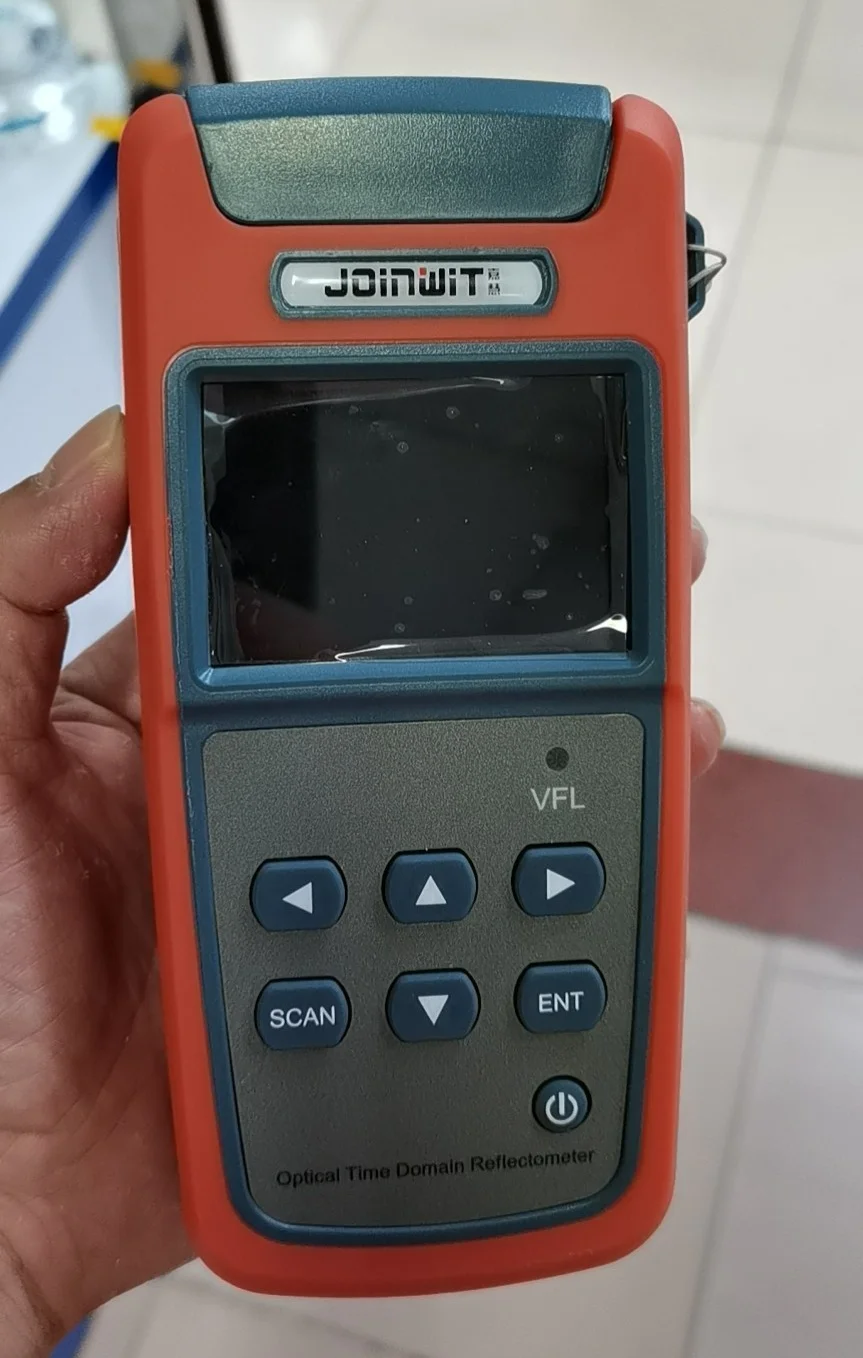

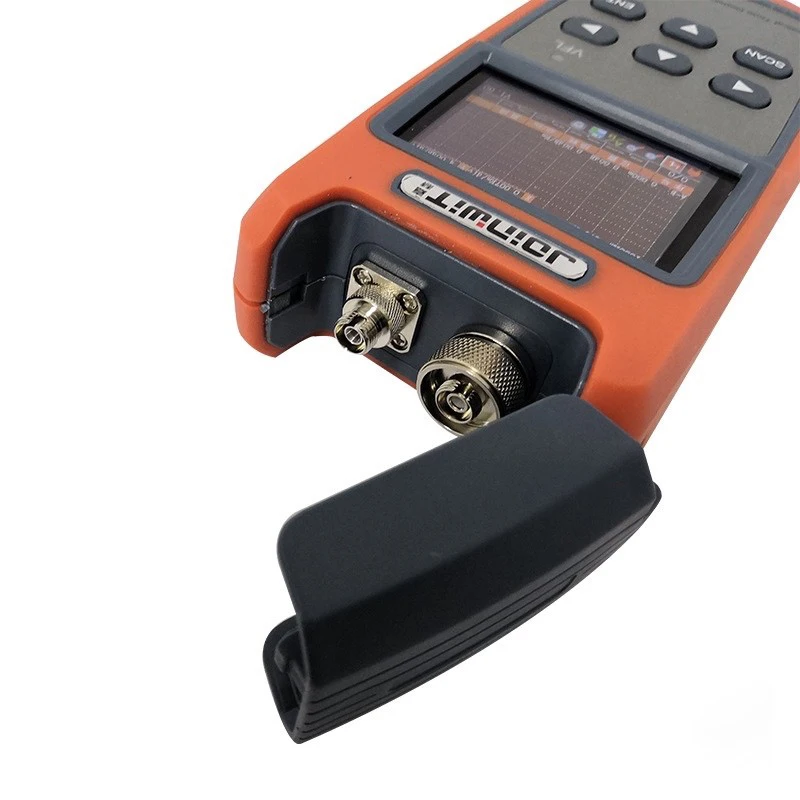

Joinwit JW3305A 5 In 1 ILOM OPM VFL OLS 1310 1550nm 22dB Handheld Fiber Optic Mini OTDR
- Category: >>>
- Supplier: Hefei Equilateral Communication Equipment Co. Ltd.
Share on (1600637618179):
Product Overview
Description
Products Description
Mini OTDR is the most portable test instrument in the industry. It adopts the OTDR technical principles and integrates the powerful analysis software, which enables the OTDR fiber ranger detect fiber faults location more accurate and easier.
Features
*Portable, rugged, lightweight; Easy to use.
*More accurate testing results and better repeatability.
*Automatic Pulse Width Control design to ensure a convenient operation.
*Easy to identify the faults location.
*Built-in visual fault locator (VFL), conveniently to find the faults in dead zone.
*Dust, water and shock proof, designed for field use.
*Long battery life, up to 5000 measurements operation.
*2.6 inch screen, data saves in SOR format.
*More accurate testing results and better repeatability.
*Automatic Pulse Width Control design to ensure a convenient operation.
*Easy to identify the faults location.
*Built-in visual fault locator (VFL), conveniently to find the faults in dead zone.
*Dust, water and shock proof, designed for field use.
*Long battery life, up to 5000 measurements operation.
*2.6 inch screen, data saves in SOR format.
Product Paramenters
Model | JW3305A | ||||
Wavelength | 1310nm or 1550nm | ||||
Dynamic Range | 22dB | ||||
Event Blind Zone | 3m | ||||
ATT Blind Zone | 10m | ||||
Test Range | 0.1-60km | ||||
Pulse Width | 5ns~ 8000ns，Auto | ||||
OPM | -50~+26dBm / 850/1300/1310/1490/1550/1625nm | ||||
VFL | ≥10mW | ||||
Optical Light Source | 1550nm | ||||
Power Supply | 3pcs of Dry battery | ||||
Battery Work time | ≥2000 times measure | ||||
Save Data | ＞500 | ||||
LCD | 2.6-inch high-definition touch screen | ||||
Working Temperature | 0℃~50℃ | ||||
