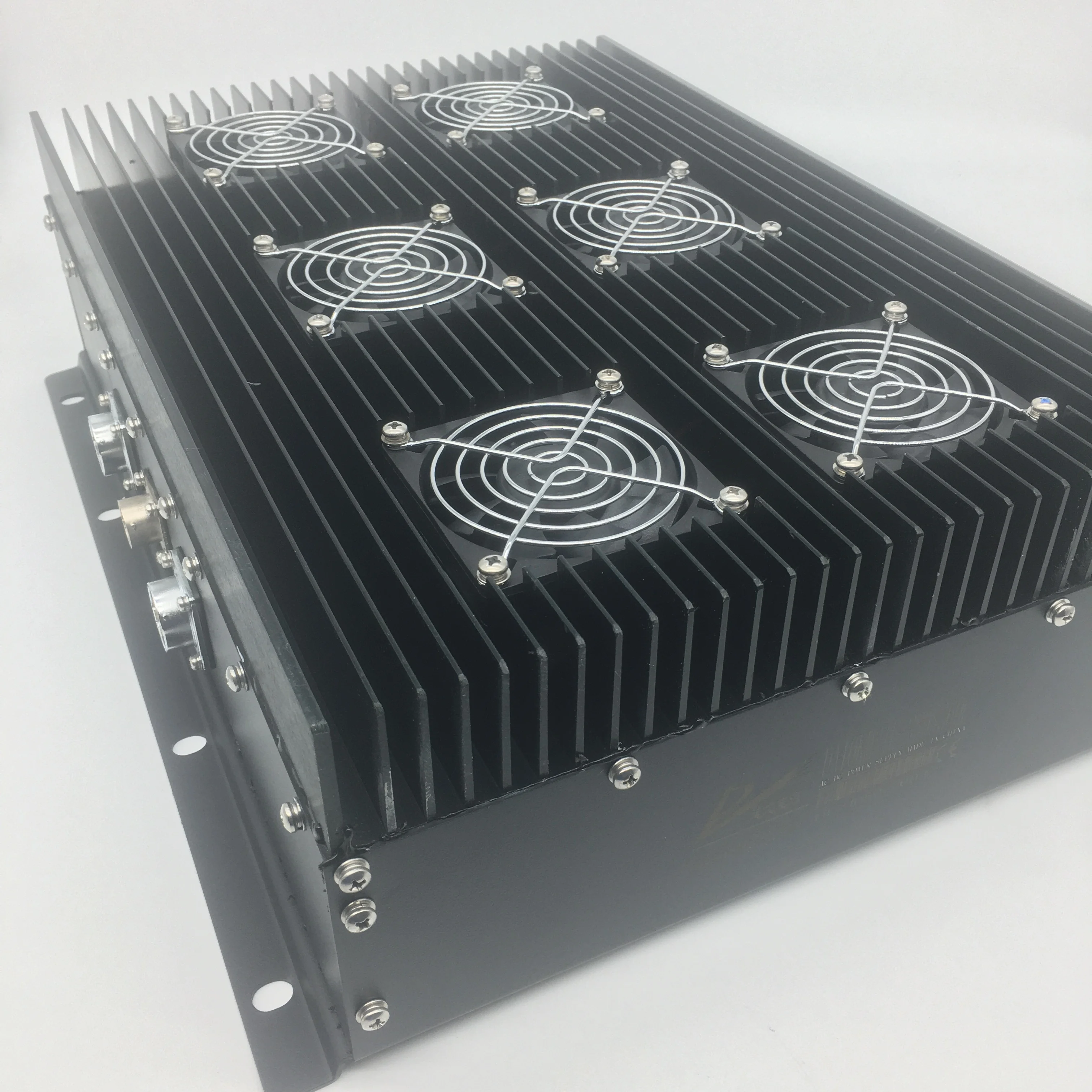

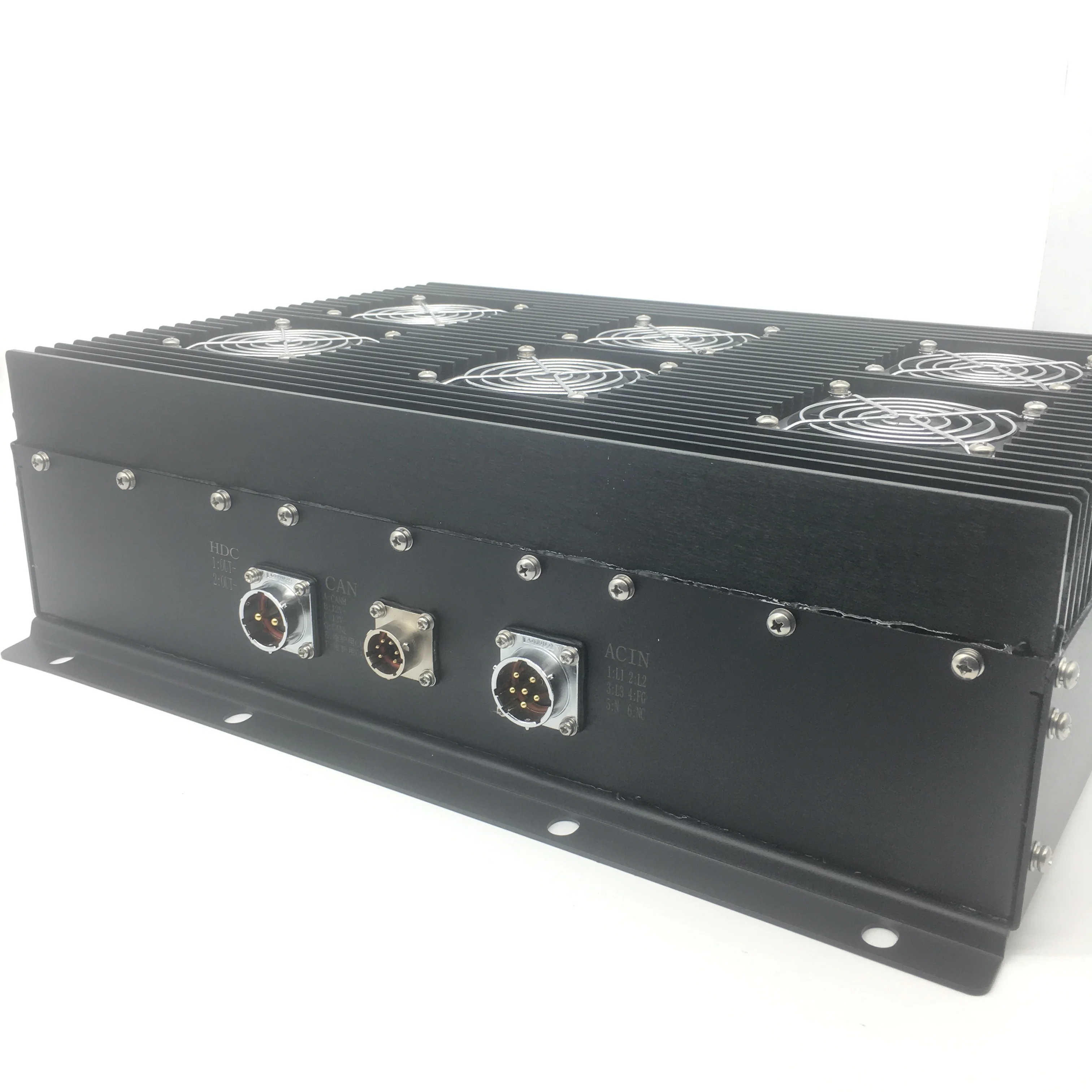

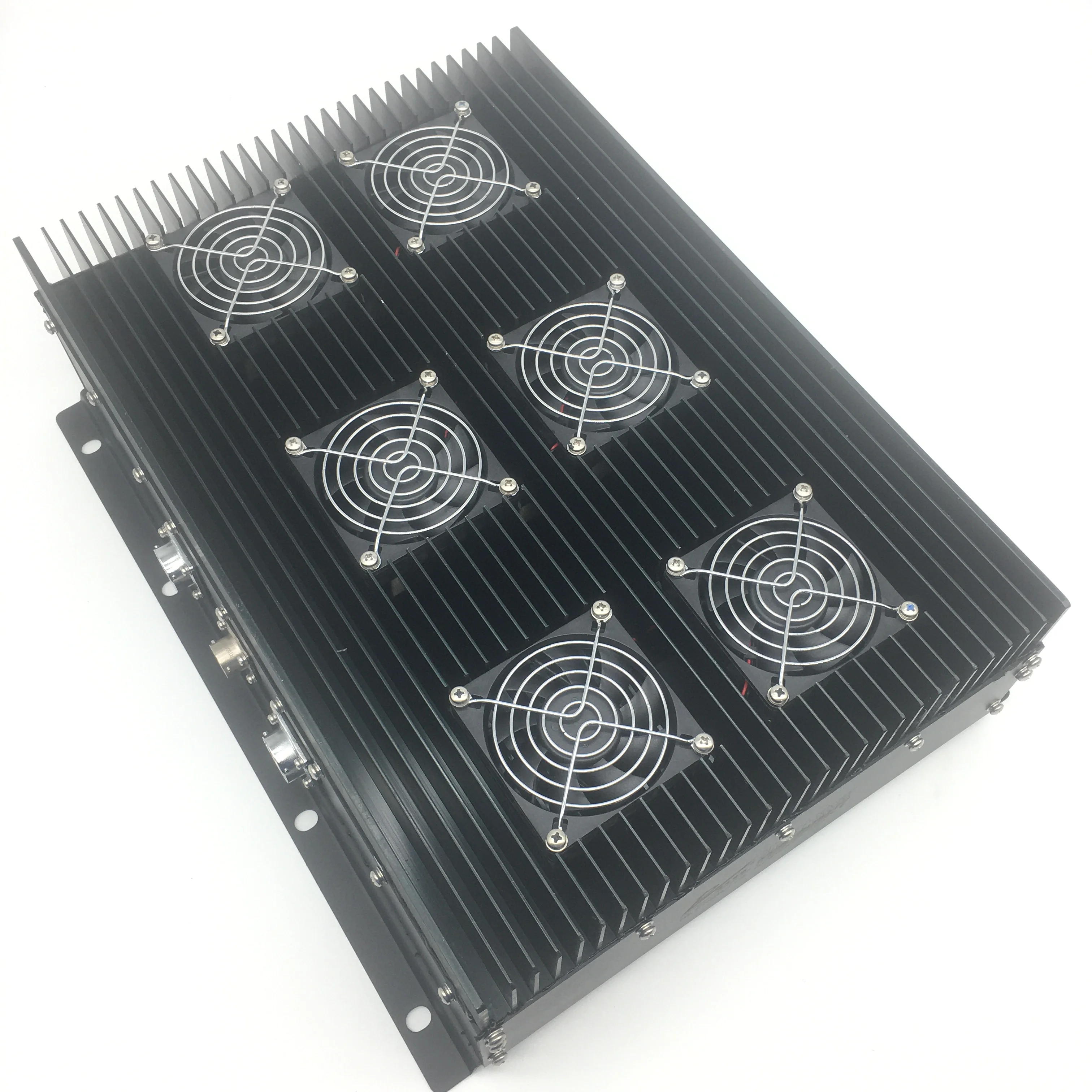

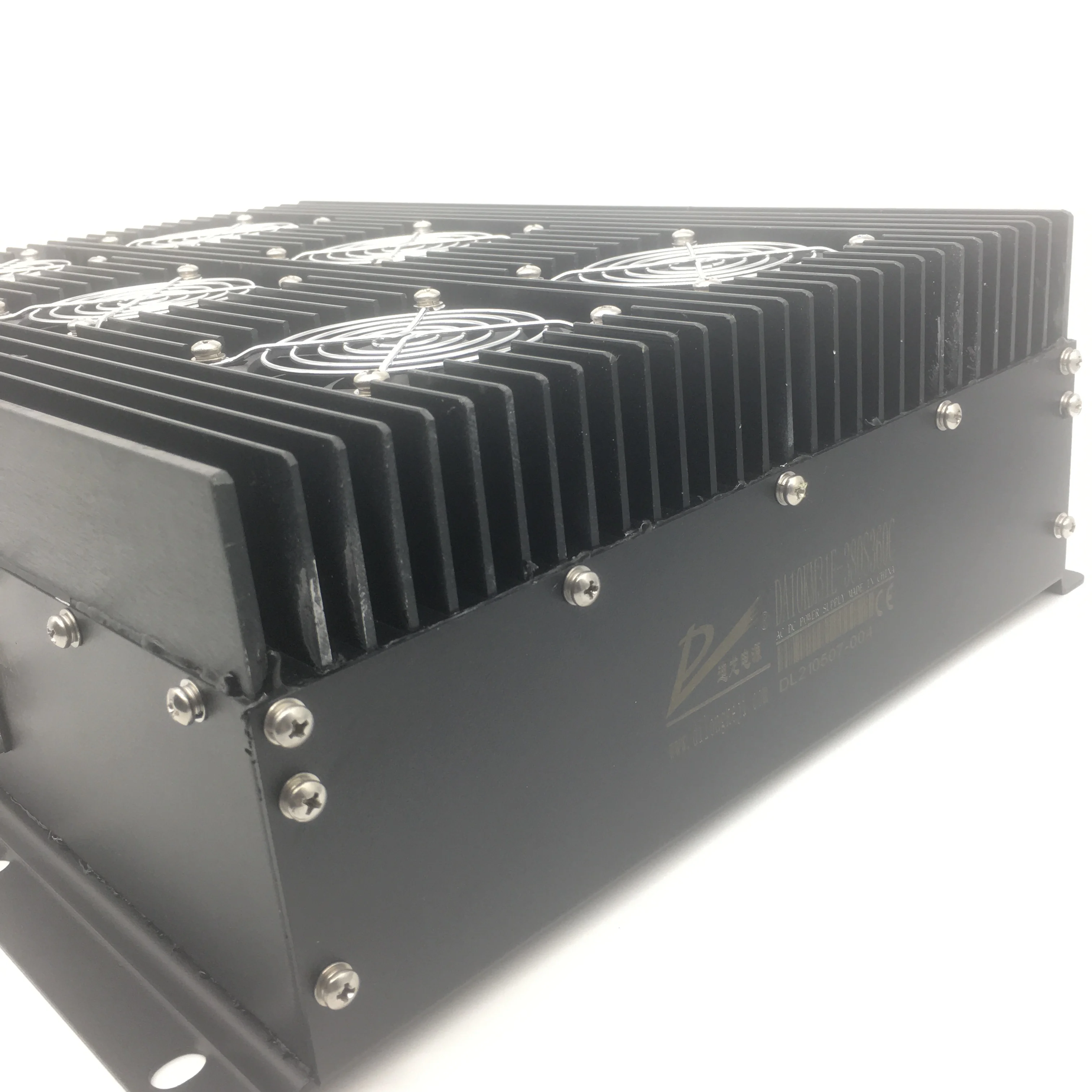

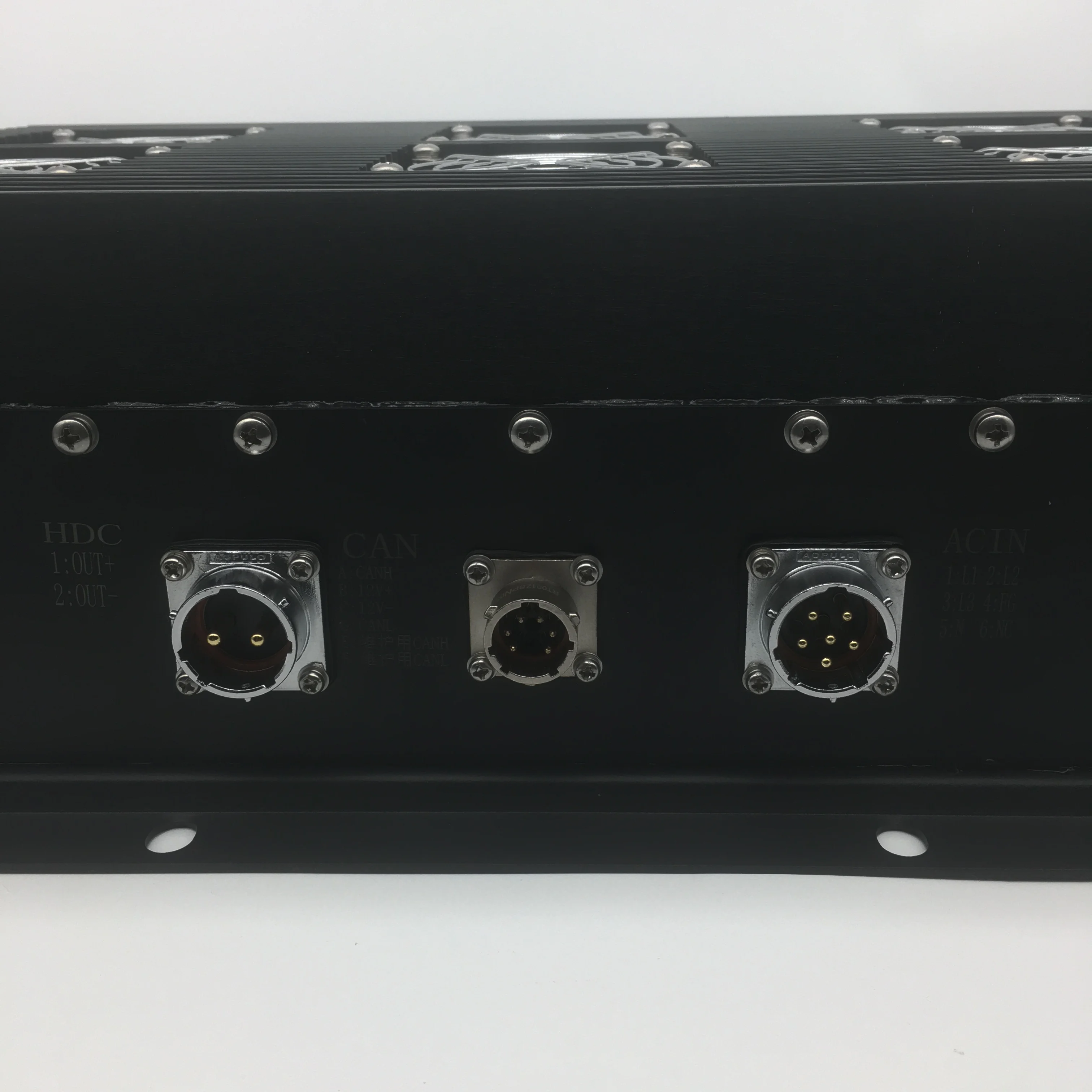

Dilong high power 9.9KW 360v air cooled OBC charger
- Category: >>>
- Supplier: Shijiazhuang Dilong Technology Co. Ltd.
Share on (1600637618405):
Product Overview
Description
Product Overview
DA10KM31E-380S360CA
DA10KM31E-380S360C is an OBC switching power converter.The charger adopts advanced all-digital resonant frequency modulation technology, which has high efficiency, high power, small size and reliable operation. The charging mode adopts constant power,constant voltage and constant current automatic state transition, which effectively saves charging time. With active power factor correction, zero pollution to the grid, wide input and output voltage range, using CAN2.0B
communication protocol. With intelligent charging function, it has intelligent monitoring fault alarm protection function,programme function and fault inquiry function; it also has built-in 12V independent auxiliary power supply for power supply of car battery management system.
communication protocol. With intelligent charging function, it has intelligent monitoring fault alarm protection function,programme function and fault inquiry function; it also has built-in 12V independent auxiliary power supply for power supply of car battery management system.
FEATURES AT A GLANCE

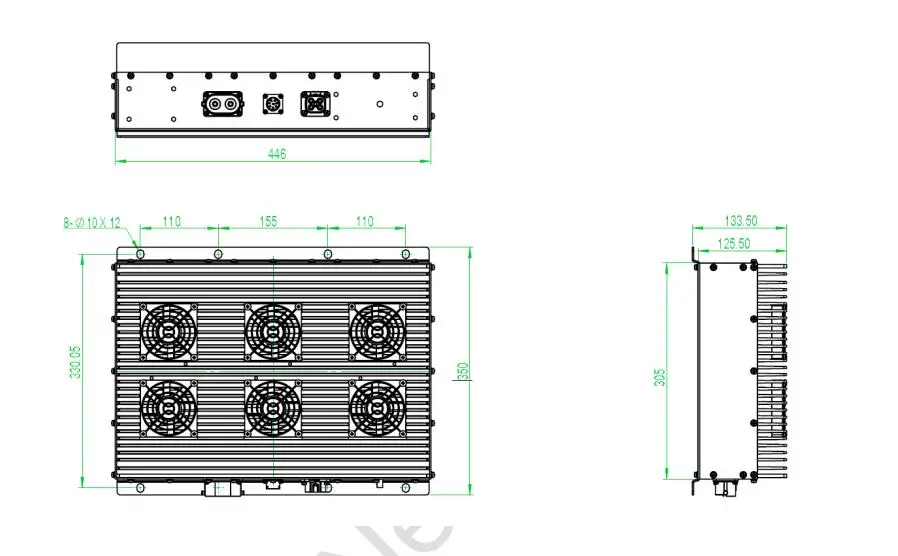

Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Rated Power | 9.9KW |
2 | Input Voltage Range | AC147V-AC457V 3-phase4-wire |
3 | Frequency range | 45Hz~63Hz |
4 | Maximum Input Current | 16A |
5 | MAX Efficiency | 93% |
6 | Rated Output Voltage | 360Vdc |
7 | Output Current Range | ≤30A |
8 | Cooling Method | Air cooled |
