Product Overview
Description
Product Description

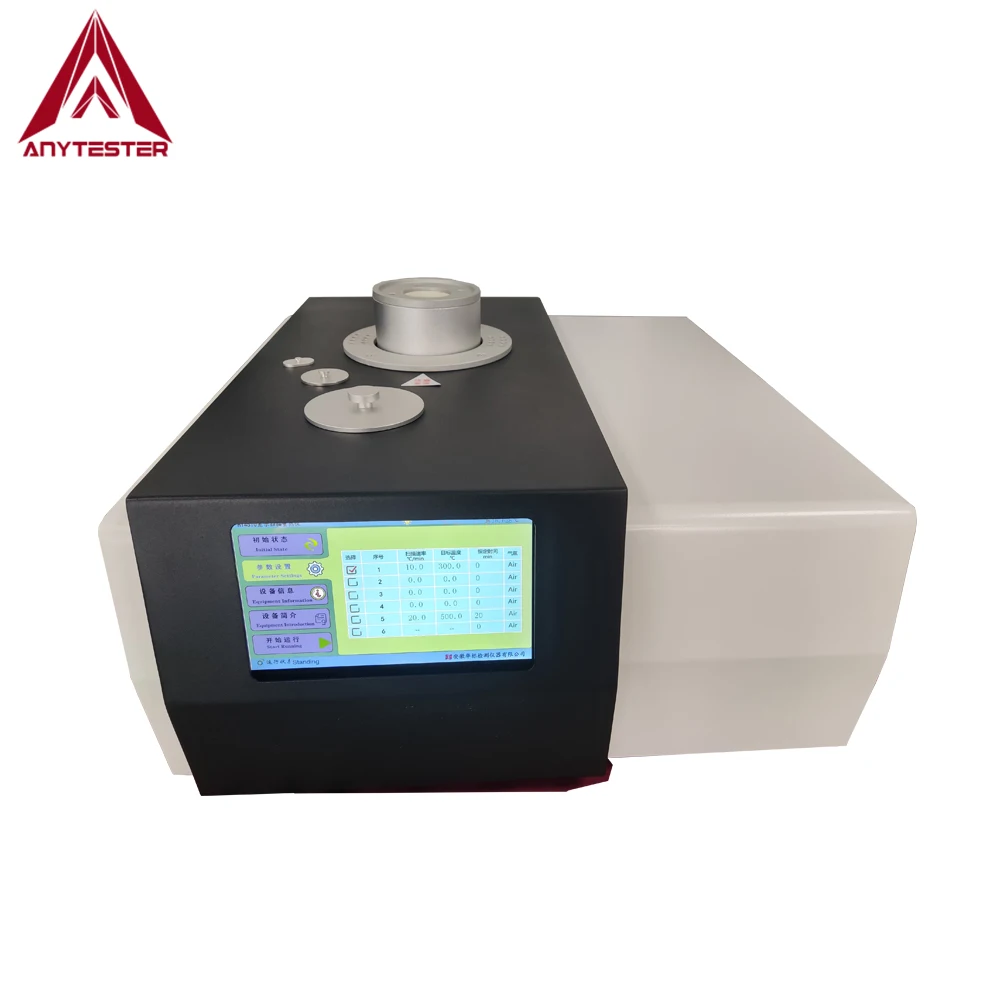

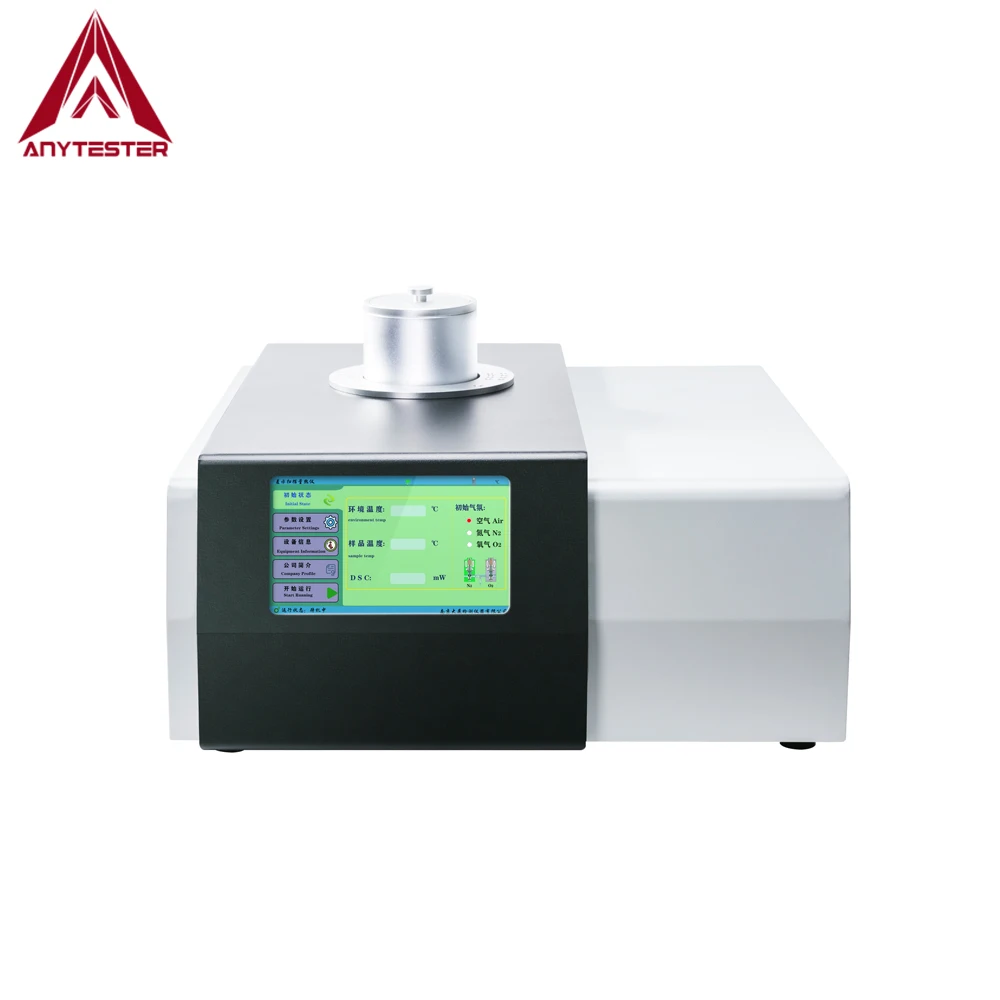

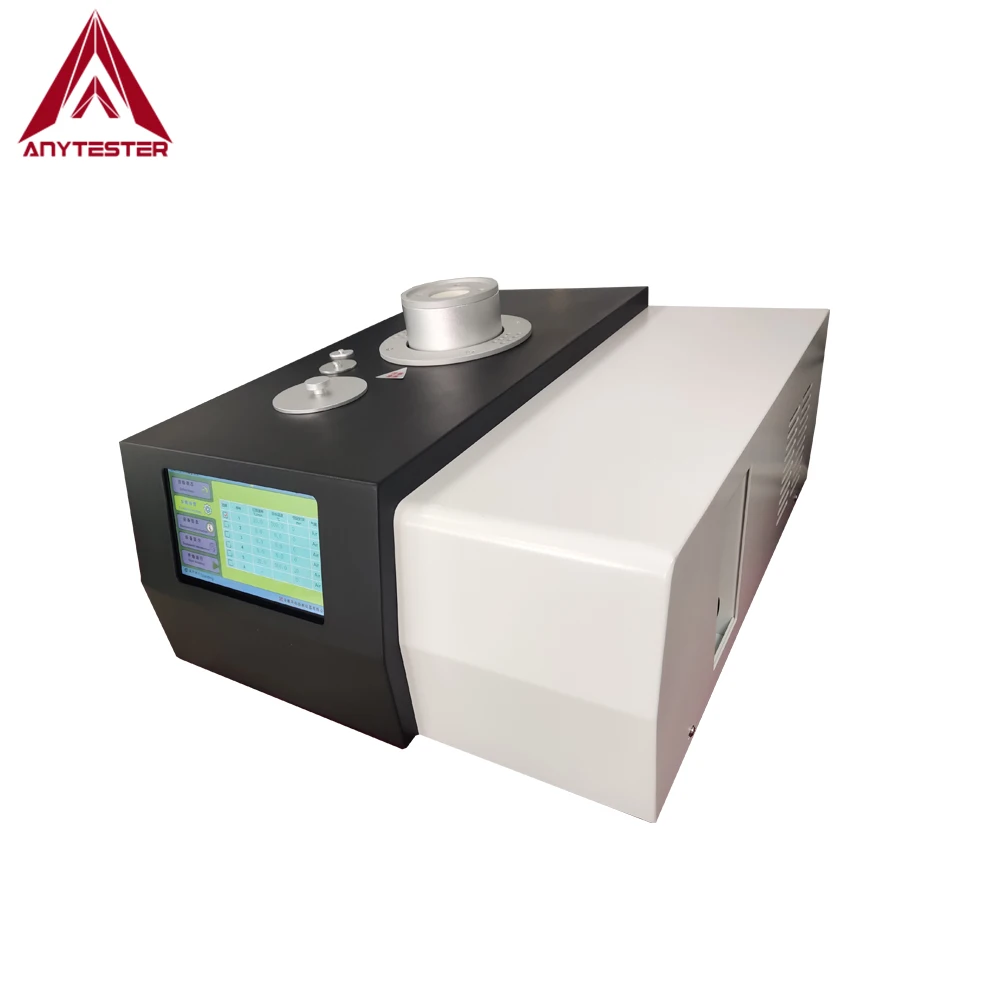

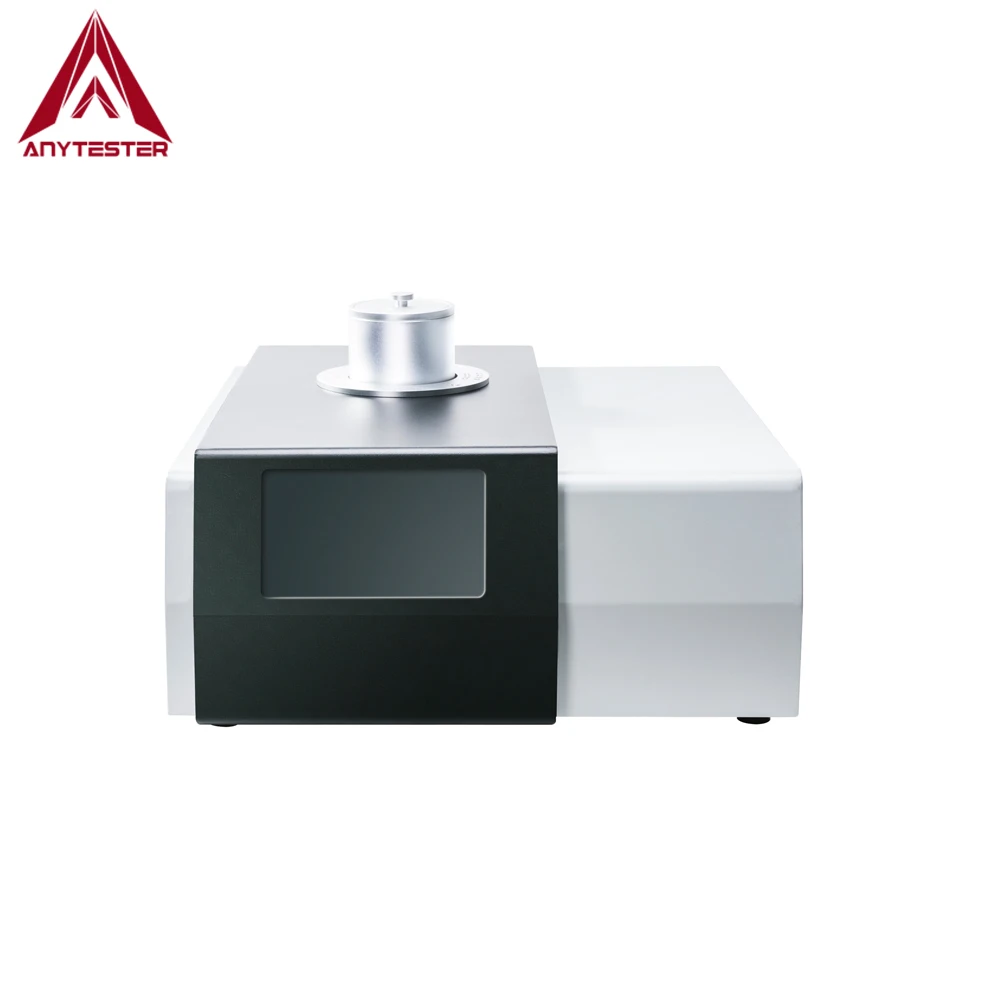

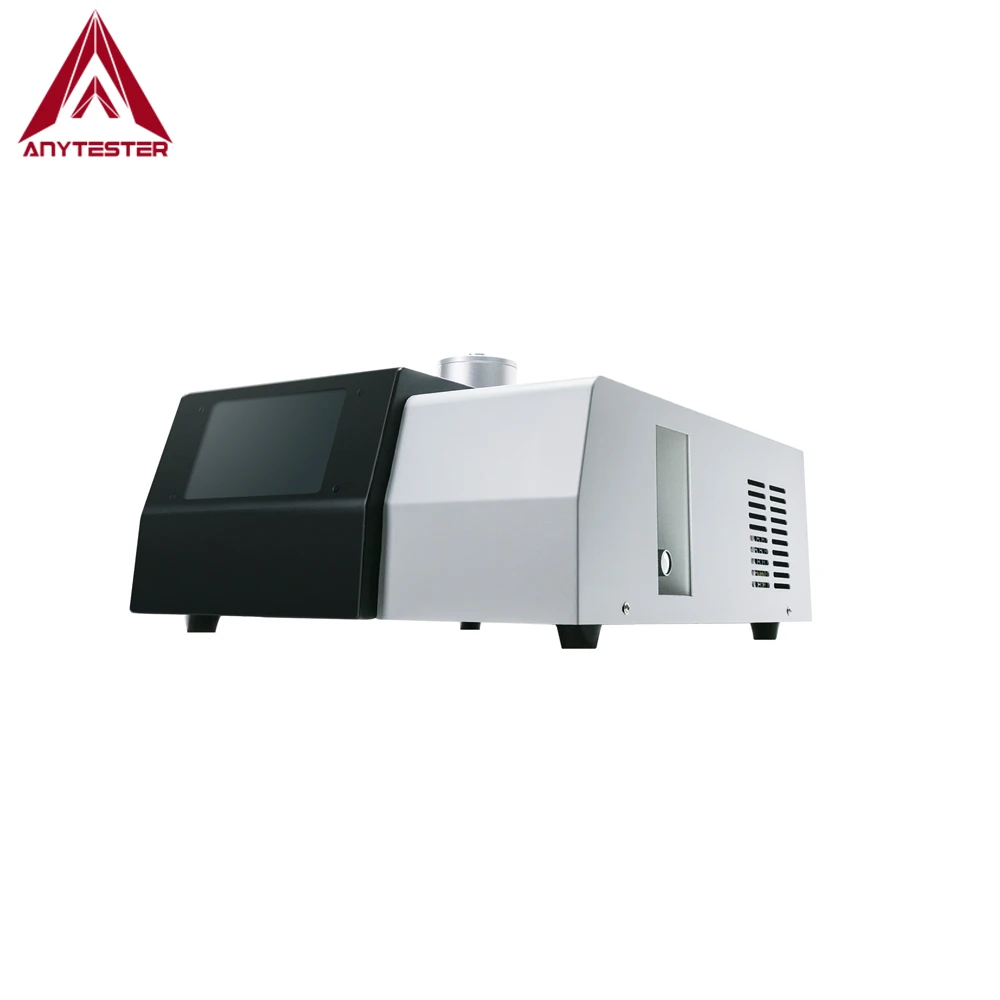

AT451 Differential Scanning Calorimeter (DSC) is used to determine and research the melting and crystallization process, glass transition temperature, oxidation induction time (OIT), reaction heat, heat enthalpy, melting point, phase transition, etc.
Principle:
The difference between the heat flux into a test specimen and that into a reference specimen is measured as a function of temperature and time, while the test specimen and the reference specimen are subjected to a controlled temperature programme under a specified atmosphere.
Principle:
The difference between the heat flux into a test specimen and that into a reference specimen is measured as a function of temperature and time, while the test specimen and the reference specimen are subjected to a controlled temperature programme under a specified atmosphere.
Standard
ISO 11357 | ASTM E794 | GB/T 13464, 19466 | ||
Note: For more standards, please contact us | ||||
Specification
Model | AT451 |
DSC range | 0～±600mW |
Temperature range | RT~600℃, air cooling (standard configuration) |
Heating speed | 0.1~100℃/min |
Temperature resolution | 0.01℃ |
Temperature fluctuation | ±0.01℃ |
Temperature repeatability | ±0.1℃ |
DSC resolution | 0. 01μW |
DSC accuracy | 0.01μW |
DSC sensitivity | 0.001μW |
Gas flow | 0-300ml /min |
Display mode | 24bit color, 7 inch LCD touch screen |
Temperature control mode | Heating up, keeping temperature, cooling down (program control) |
Display mode | LCD touch screen & PC softeware |
Data interface | USB |
Power supply | AC220V, 50Hz |
Details & Features
Title goes here.

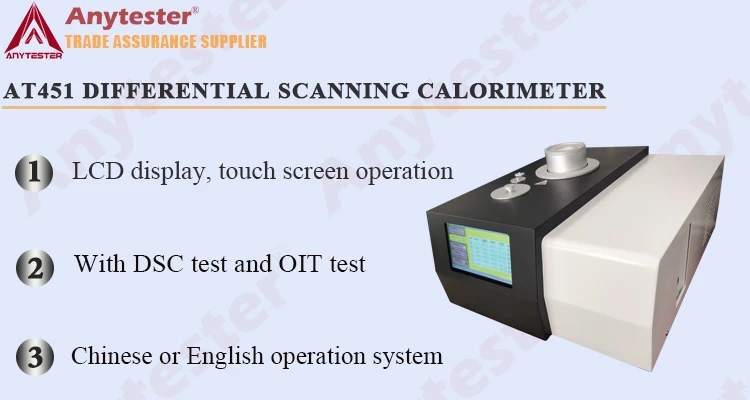

★ Suitable for solid, powder and liquid samples, except gas sample.

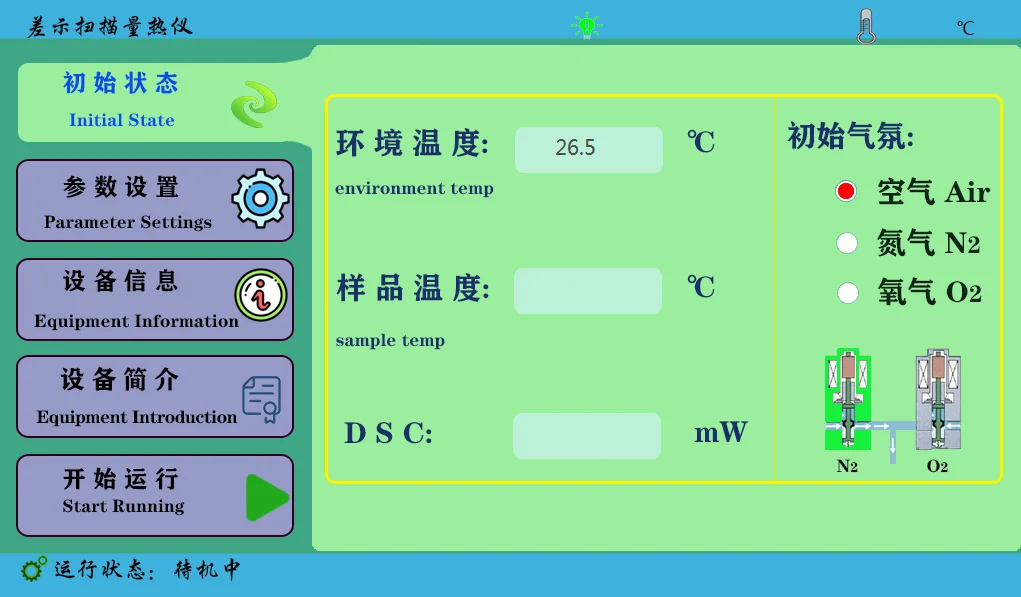

★ LCD display, touch screen operation.friendly operation interface.
★ LCD display, touch screen operation.friendly operation interface.
★ In-built atmosphere device, can simultaneously connect with Nitrogen and Oxygen, automatic switchover. With USB cable to connect machine to computer.

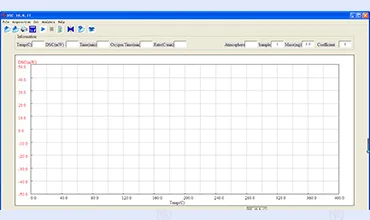

Test interface for DSC test
★ Two user interface on software, one is for DSC test, the other is for OIT test

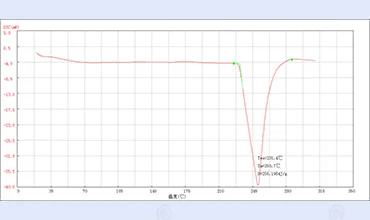

DSC-Temp curve for melting point test.
★ Real-time record and display DSC-Temp curve or DSC-time & Temp-time curve
.

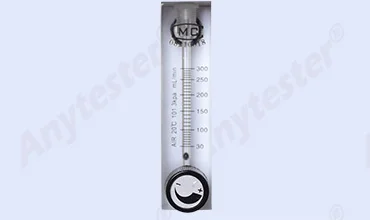

Flow meter
★ Full equipped with accessories, convenient and easy to test.
★ Chinese or English operation system can be selected.
Our Company
Packing & Delivery
Packaging | ||
Dimensions | 1160x510x1050mm | |
Weight | Approx. 80kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
