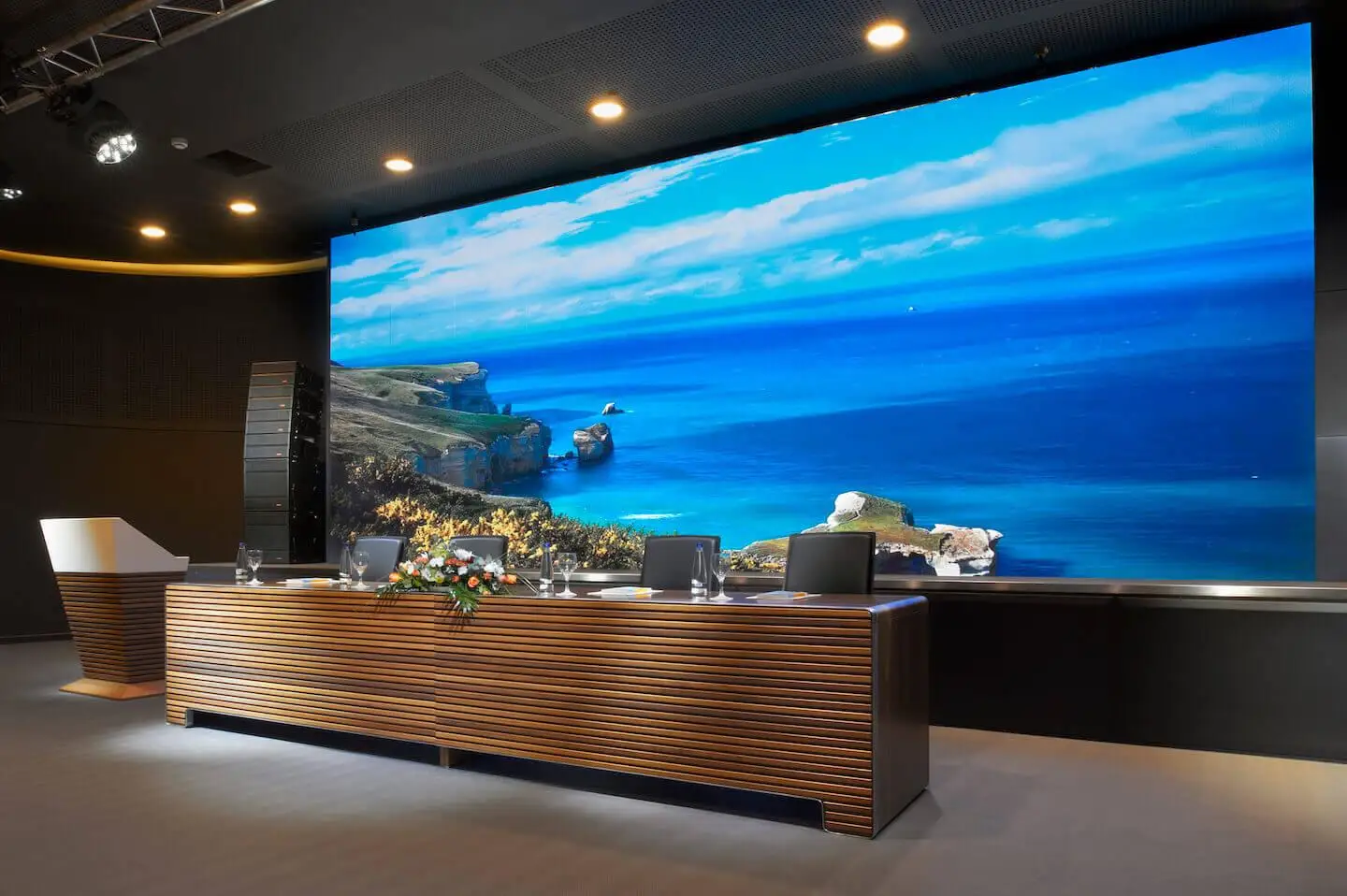

P1.25 P1.56 P1.87 P2.5 Small Pixel Pitch Indoor LED Screen Display HD LED Video Wall Screen
- Category: >>>
- Supplier: Hxtech Co. Ltd.
Share on (1600637628818):
Product Overview
Description
Features
Product Paramenters
Model | TVB1.25 | TVB1.56 | TVB1.87 | TVB2.5 |
Module Size(mm) | 150*168.75 | 150*168.75 | 150*168.75 | 150*168.75 |
Module Pixel Dots(L*W) | 120*135 | 96*108 | 80*90 | 60*135 |
Scanning method | 1/45 | 1/48 | 1/30 | 1/30 |
Pixel point configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
LED light beads | SMD1010 | SMD1212 | SMD1515 | SMD1515 |

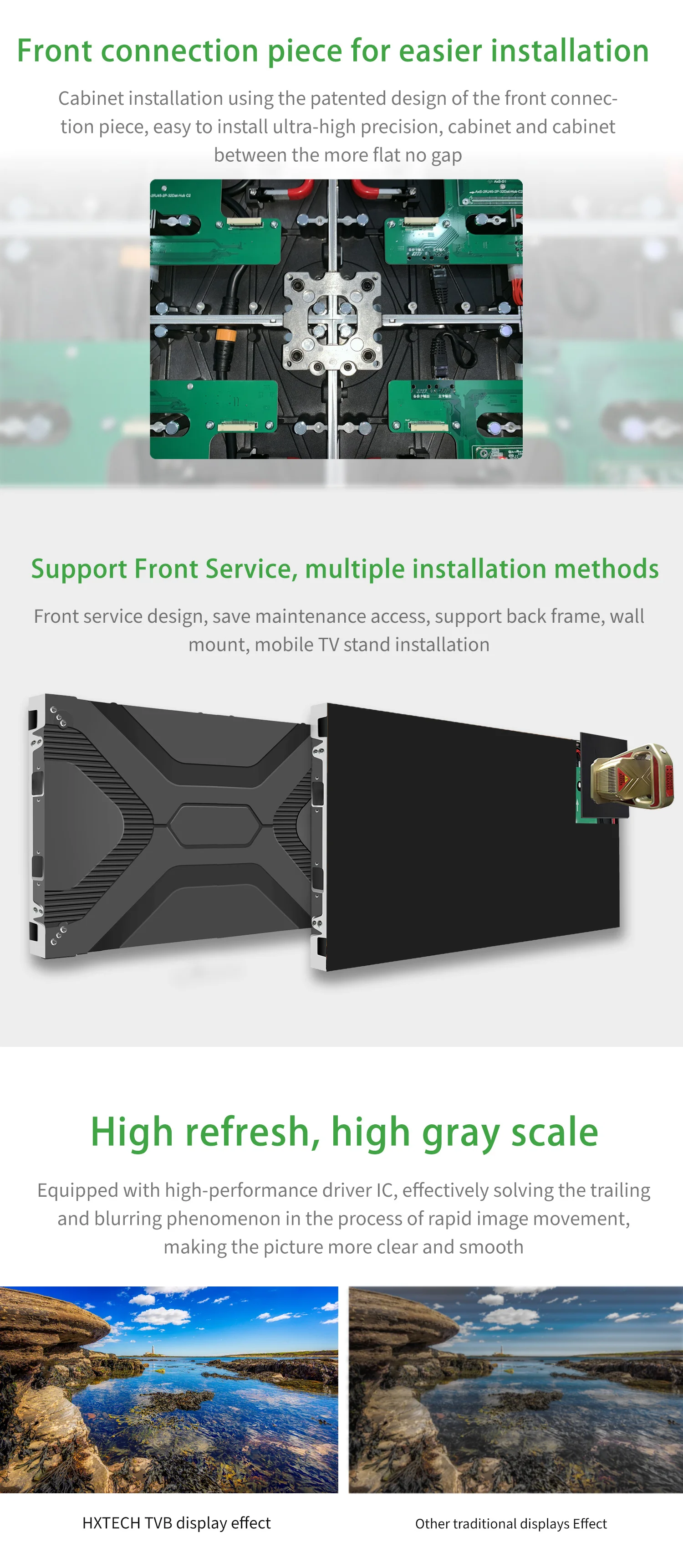

Maintenance method | Front Service | Front Service | Front Service | Front Service |
Installation method | Front/rear mounting | Front/rear mounting | Front/rear mounting | Front/rear mounting |

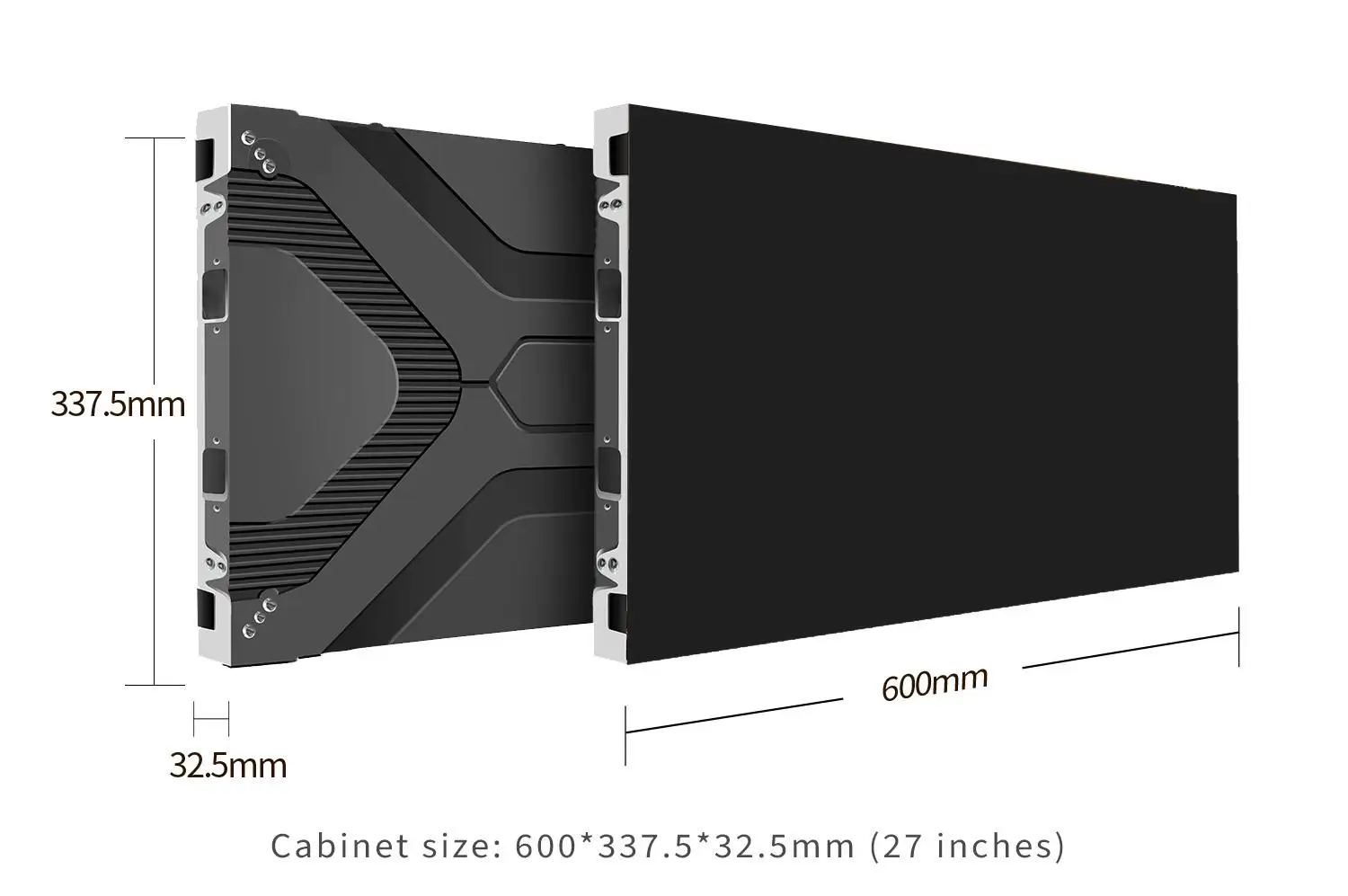

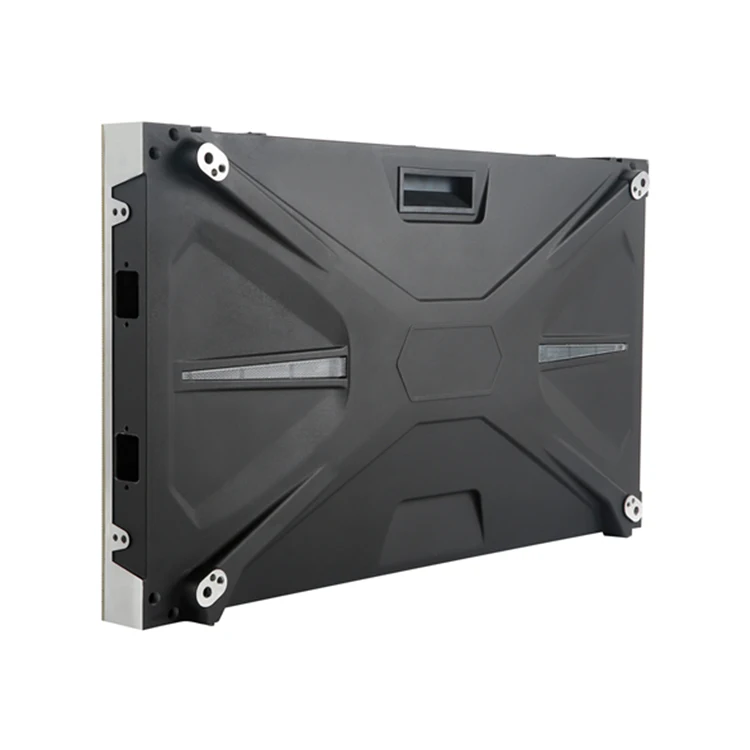

Cabinet size(mm*mm) | 600*337.5*39 | 600*337.5*39 | 600*337.5*39 | 600*337.5*39 |
Cabinet pixel point(L*W) | 480*270 | 384*216 | 320*180 | 240*135 |
Density(dot/m2) | 640000 | 409600 | 284444 | 160000 |
Brightness(cd/m²) | 500-900cd/m | 500-900cd/m | 500-900cd/m | 500-900cd/m |
Maximum power consumption(W/m2) | 600WV | 600W | 600W | 500W |
Average power consumption(W) | 200W | 200W | 200W | 170WV |
Cabinet weight(KG) | 7.5KG | 7.5KG | 7.5KG | 7.5KG |
Cabinet material | Die-cast aluminum cabinet | Die-cast aluminum cabinet | Die-cast aluminum cabinet | Die-cast aluminum cabinet |
Display panel protection level | / | / | / | / |
Contrast Ratio | ≥8000:1 | ≥8000:1 | ≥8000:1 | ≥8000:1 |
Grayscale level | 14bit(software on 16bit) | 14bit (software on 16bit) | 14bit (software on 16bit) | 14bit (software on 16bit) |
Refresh Frequency(Hz) | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
Company Profile
HXTECH CO.,LTD
Founded in Shenzhen, the "habitation" of LED display industry in China, HXTECH CO., Ltd. considers itself as a high-tech enterprise that provides integrated solution of intelligent LED display. Our principal service items include the smart urban digital screen solutions, the fixed indoor and outdoor advertising solutions, the leasing market solutions, and the innovation display solutions etc.
Certificate
Why Choose Us
Why Choose HXTECH
✓ Professional team
Most of engineers have been served this industry more than10 years. Most of sales representative has been working in this industry for more than 5 years.
✓ Stable quality
Each failure of the LED display maybe a disaster to end users, it is costly and moreover it may ruins your reputation. Product quality is our life. We apply the high quality components of LEDs, PCB, etc with our cutting-edges manufacture control to ensure a most endurable LED display product.✓ Reasonable price, win to win business.
We understand that for us to be successful we need to make your business a success.That is why we are offering the reasonable price with a high quality. We need a win to win business for a long time. ✓ Commitment to customer service
HXTECH treasure each of our clients/partners, and committed to providing customer service to the highest standards. ✓ Annual visiting and service
HXTECH offers annual visiting to our valued clients. We will introduce our newest products and solutions, and also offer the free training and onsite service. ✓ Eco-Friendly
HXTECH always strive to make eco-friendly & green energy-saving products by right of intelligent manufacturing and cutting-edge technologies so as to protect our living earth.✓ Make your own brand of LED display
OEM & ODM is available, you can use your own brand for our standard product line. And we can assist you to build your assemble & aging test workshop at your own country , which helps a lot for your business. ✓ Fast delivery

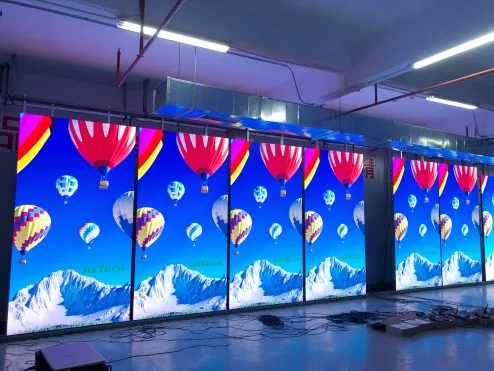

We will build stock of key material for the standard product which can offer extremely fast production and on time delivery.Production Process

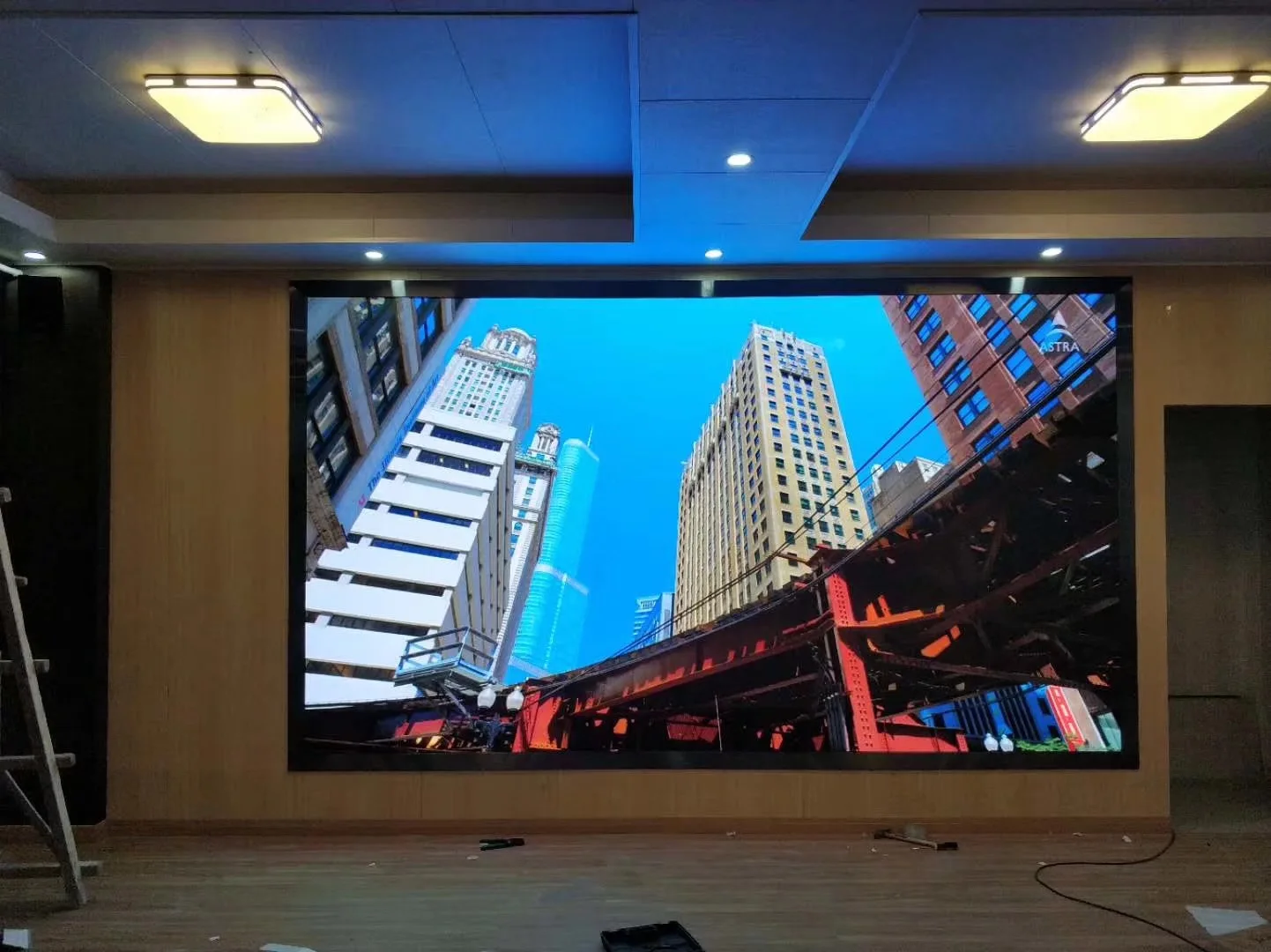

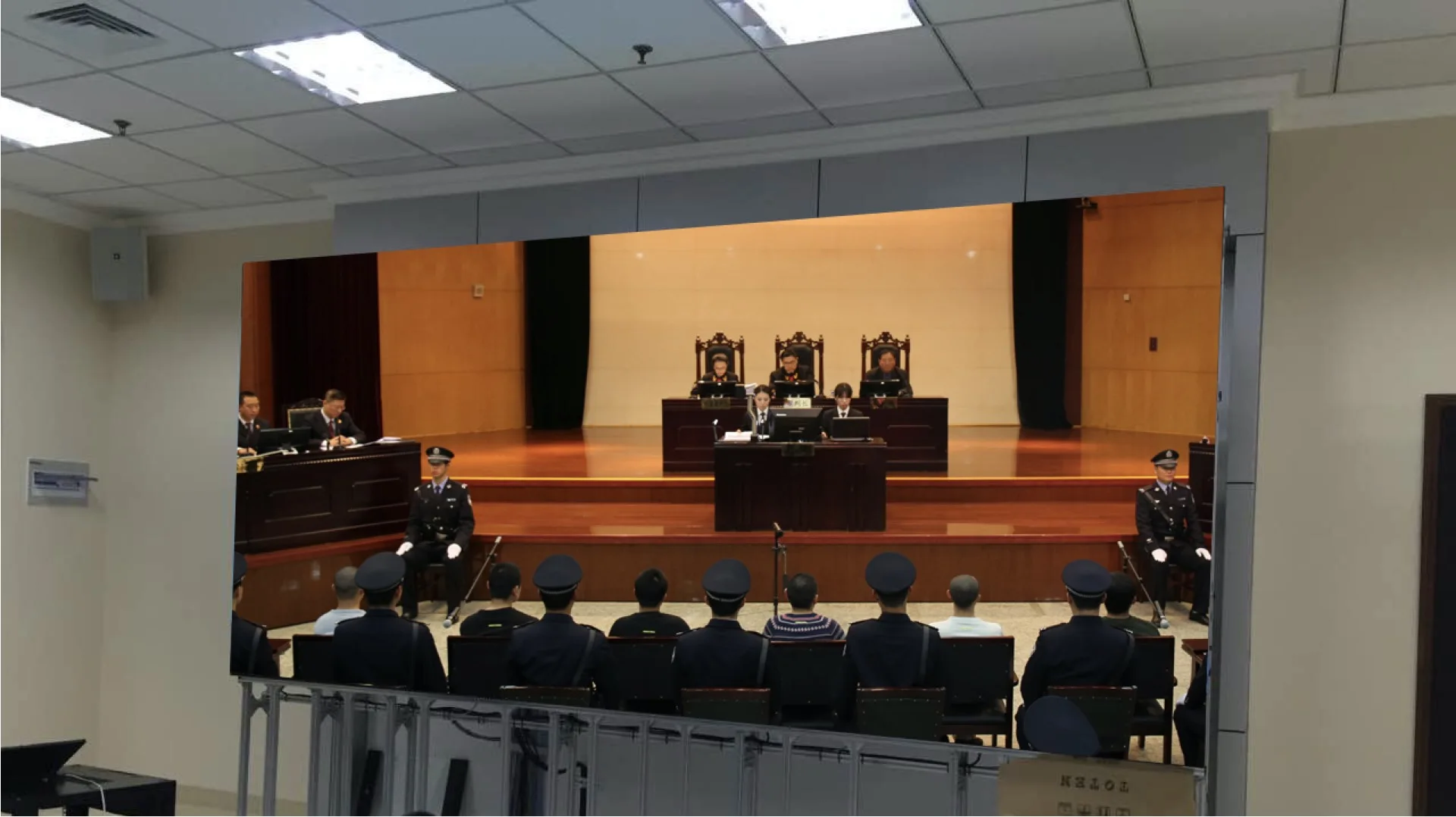

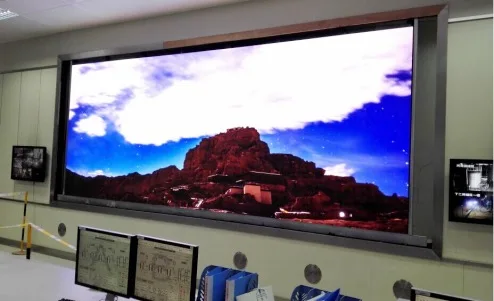

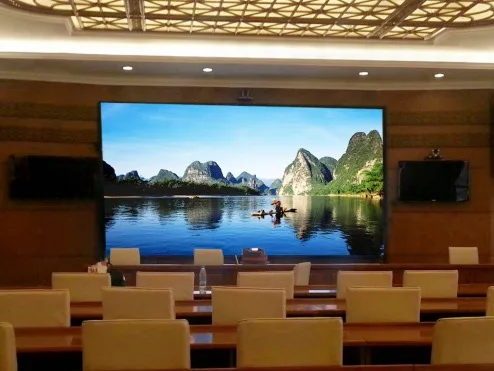

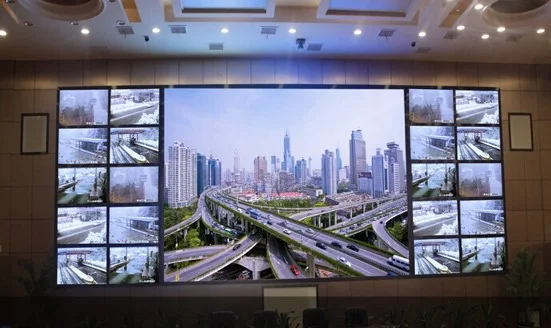

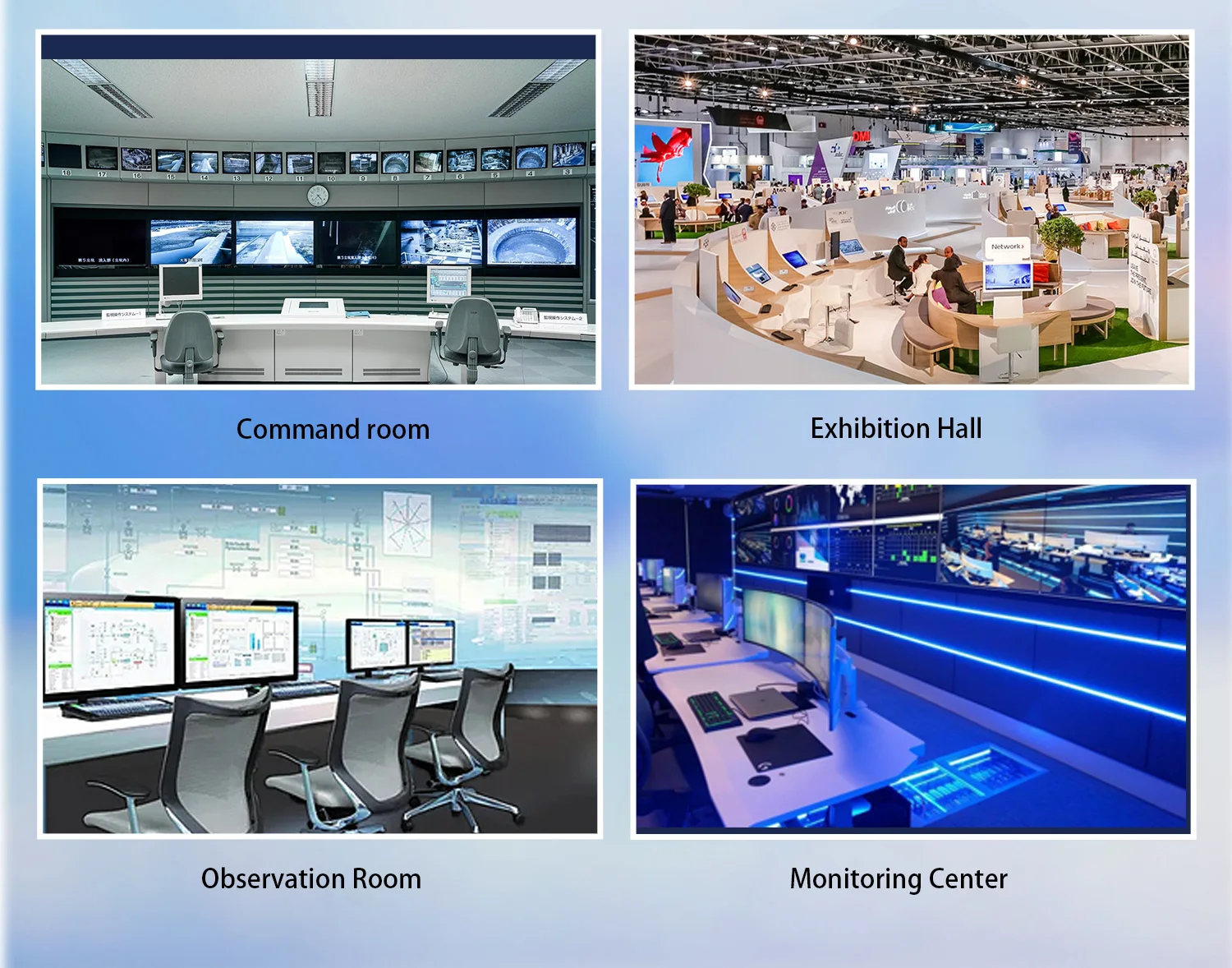

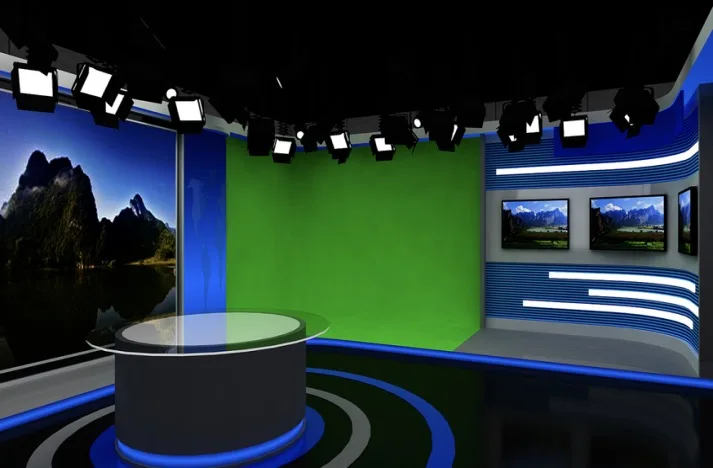

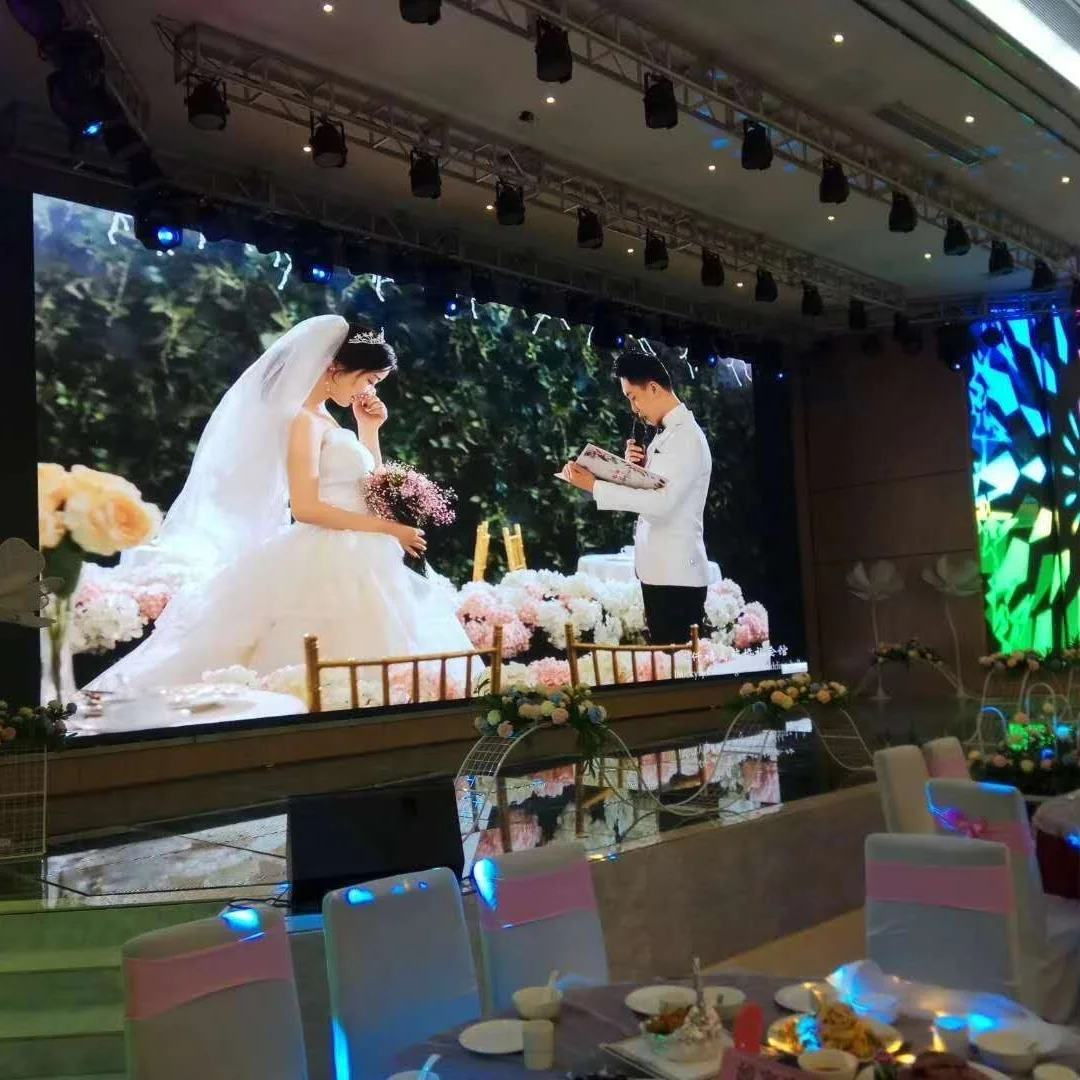

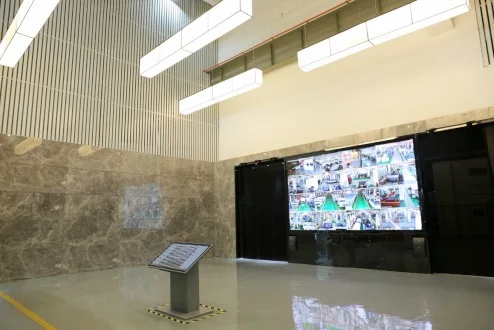

Installation cases
FAQ
Q1:What is an LED?
A: light emitting diode (LED) is a tiny, electronic semiconductor that converts electric energy into visible light. The chemical
compound used within an LED determines its color, brightness and power efficiency.
Unlike incandescent lamps, LEDs have no filaments that can burn out or fail.
Q2:What is a pixel? (LED type)
A:Pixel is short for picture element. Pixels are points of light that illuminate together to form letters, words, graphics,
animation, and video images.
Q3:What is pixel pitch ?
A:Pixel pitch is the distance between pixels. So P10 means pixel pitch is 10mm, it is the same with P16,P20, etc. Pixel pitch
varies from 0.7mm to 40mm, even 100mm.
Q4:What is the LED module?
A:An LED module is a combination of parts that form the building blocks of LED video displays, message centers and dynamic message
signs. Each LED module is composed by different pixel configuration, like: 32*32, 32*16, 16*16,20*20, 16*8, 8*8, etc.
Q5:Does your LED display visible under direct sun light ?
A:Yes. We are using high brightness outdoor SMD LEDs. It is visible even under sun light. Normal brightness will be be more than 5500 nits.The high brightness one can be as high as more than 10000 nits.
Q6:What is the delivery time for outdoor SMD LED display ?
A:Outdoor SMD LED display takes around 2 weeks.It depends on when the order happen and the quantity.
Q7:Can we make our own size LED cabinet ?
A:Yes. The most popular size would be 960X960mm for outdoor SMD fixed LED display. We can customized the
size for you, for example 1280X960mm, etc.
A: light emitting diode (LED) is a tiny, electronic semiconductor that converts electric energy into visible light. The chemical
compound used within an LED determines its color, brightness and power efficiency.
Unlike incandescent lamps, LEDs have no filaments that can burn out or fail.
Q2:What is a pixel? (LED type)
A:Pixel is short for picture element. Pixels are points of light that illuminate together to form letters, words, graphics,
animation, and video images.
Q3:What is pixel pitch ?
A:Pixel pitch is the distance between pixels. So P10 means pixel pitch is 10mm, it is the same with P16,P20, etc. Pixel pitch
varies from 0.7mm to 40mm, even 100mm.
Q4:What is the LED module?
A:An LED module is a combination of parts that form the building blocks of LED video displays, message centers and dynamic message
signs. Each LED module is composed by different pixel configuration, like: 32*32, 32*16, 16*16,20*20, 16*8, 8*8, etc.
Q5:Does your LED display visible under direct sun light ?
A:Yes. We are using high brightness outdoor SMD LEDs. It is visible even under sun light. Normal brightness will be be more than 5500 nits.The high brightness one can be as high as more than 10000 nits.
Q6:What is the delivery time for outdoor SMD LED display ?
A:Outdoor SMD LED display takes around 2 weeks.It depends on when the order happen and the quantity.
Q7:Can we make our own size LED cabinet ?
A:Yes. The most popular size would be 960X960mm for outdoor SMD fixed LED display. We can customized the
size for you, for example 1280X960mm, etc.
