Plate Vertical Roller Grinding Powder Wet Grain Mill Flat Grinding Machines Factory In China Yxqm 4l Planetary Mini Ball Mill
- Category: >>>
- Supplier: Changsha Mitr Instrument Equipment Co. Ltd
Share on (1600637649173):
Product Overview
Description
Product Description

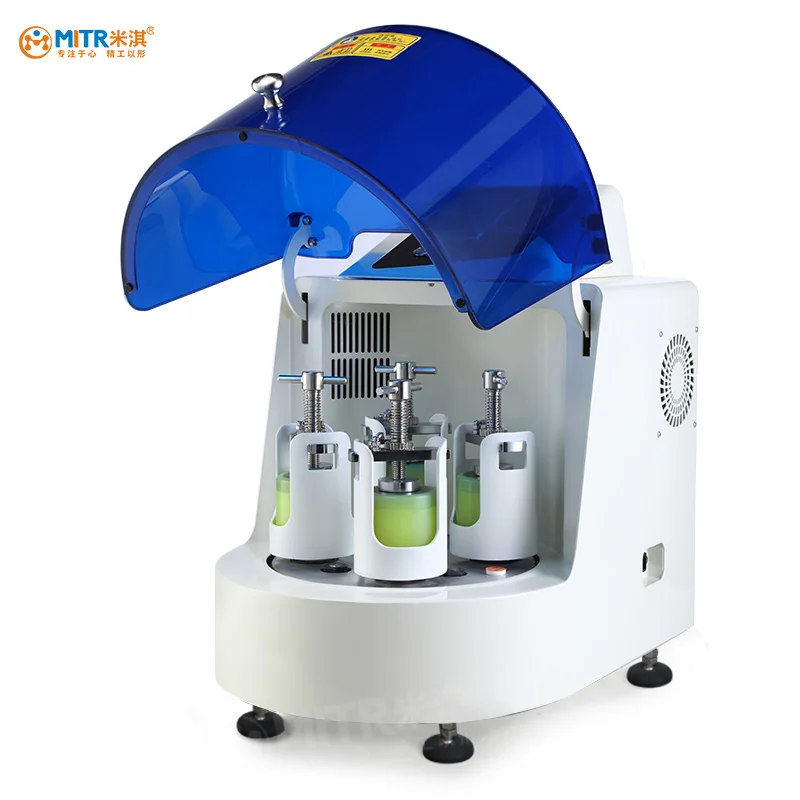

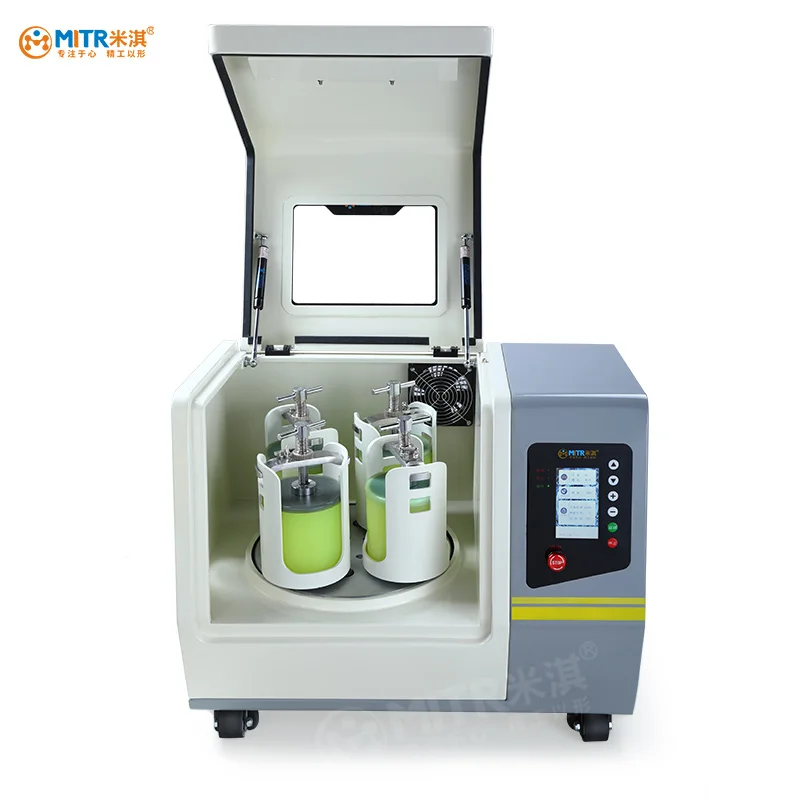

Plate Vertical Roller Grinding Powder Wet Grain Mill Flat Grinding Machines Factory In China Yxqm-4l Planetary Mini Ball Mill
Planetary ball mill | |
Model | YXQM-4L(Oil seal mute) |
Field of Application | Pharmaceuticals, food, geology, metallurgy, agriculture, glass, ceramics, aviation chemicals, biology, materials, lithium power, electronics, plants, biology and so on. |
Feed Material | Medium or low hardness, hard, brittle, fibrous, viscous. |
Size Reduction Principle | Crushing, grinding, mixing, homogenization, alloying |
Main Disk Structure | Planetary main disk gear invades and reinforces in lubricating oil, noise isolation treatment |
Standard | CE |
Electrical Description | 200-240V AC ,50-60Hz,0.75KW |
Material Feed Size | < 5 mm soil<10 mm |
Final Fineness | < 100 nm |
Batch Size / Feed Quantity | 4 x 1000 ml |
Grinding Jar Sizes | 50 ml /100 ml / 250 ml / 500 ml/1000ml |
Vacuum Jar Size | 250 ml /500ml/1000ml( Stainless steel) |
Feed Material Capacity | 330 ml*4 |
Feed balls Capacity | 330 ml*4 |
Sun Wheel Speed | 10 - 400 r/min |
Ball Mill Jar Speed | 20 - 800 r/min |
Total Grinding Speed | 1200 /min |
Speed Ratio | 1:2 |
Material of Grinding Tools | Stainless steel, agate, zirconia, corundum, tungsten carbide, nylon, polyurethane, polytetrafluoroethylene, silicon carbide, etc. |
Ball Size | 1 / 2 / 3 / 5 / 8 / 10 / 15 / 20 / 25 / 30 mm |
No. of Grinding Stations | 2 or 4 |
Mode | Vertical planetary |
Grinding Mode | Dry/wet |
Low Temperature Cooling Treatment | Yes (air cooler added) |
Oil Seal Position | The bottom of planetary main disk |
Disk Dimensions | 420mm |
Oil Seal Capacity | 800ml(fill in before using the planetary ball mill) |
Noise | < 60dB(Within 3 metre) |
Protection Code | IP60 |
CN Patent | Safety protection (No.ZL 2015 2 0836150.6) |
CN Patent | Oil seal silent (Patent No.ZL 2014 2 0375569.1) |
CN Patent | Frequency control(patent No.ZL 2016 2 0836150.6) |
W x H x D Closed | 30 45/64" x 22 53/64" x 26 49/64" (780 x 580 x 680 mm) |
Net Weight | 120kg |
Application:
YXQM-4L laboratory planetary ball mill with 500ml polyurethane grinding jar which is suuface elasticity and finish.
Used the polyurethane grinding jar,the material won't adhere to its surface.
The other accessories would be shaker sieve and so on.
Feature:
1.Patented oil seal mute technology
2.PLC frequency conversion control
3.With own design for precision gear drive instead of original belt drive
4.Suitable for dry/wet/vacuum/protective atmosphere/low temperature/high temperature mill.
5.Ensures the Homogeneity and repeat-ability of the experiment.
6.It can solute the problems for the deposition and sticking of some materials
7.Two and four samples could be obtained at one time
8.Low center of gravity, stable performance, compact structure, convenient operation, safe and reliable, low noise, no pollution, low loss.
9.The device is equipped with a safety switch
10.There are universal wheels to push and run;And there are universal supporting feet for stable.
11.Safety automatic gear lock
Technical parameter:
| Model | Voltage | Motor power(KW) | Inverter power KW | Total timing (min) | Alternating Run Time | Rotation speed r/min | Noise ≤db | |
| Revolution speed | Rotation speed | |||||||
| YXQM0.4L | 220V 50HZ | 0.55 | 0.55 | 1-9999 | 1-9999 | 5-450 | 10-900 | <50db |
| YXQM1L | 220V 50HZ | 0.55 | 0.55 | 1-9999 | 1-9999 | 5-450 | 10-900 | <50db |
| YXQM2L | 220V 50HZ | 0.75 | 0.75 | 1-9999 | 1-9999 | 5-400 | 10-800 | <50db |
| YXQM4L | 220V 50HZ | 0.75 | 0.75 | 1-9999 | 1-9999 | 5-400 | 10-800 | <50db |
| YXQM8L | 220V 50HZ | 1.5 | 1.5 | 1-9999 | 1-9999 | 5-320 | 10-640 | <58db |
| YXQM10L | 220V 50HZ | 1.5 | 1.5 | 1-9999 | 1-9999 | 5-320 | 10-640 | <58db |
| YXQM12L | 380V 50HZ | 1.5 | 2.2 | 1-9999 | 1-9999 | 5-320 | 10-640 | <58db |
| YXQM16L | 380V 50HZ | 2.2 | 2.2 | 1-9999 | 1-9999 | 5-280 | 10-560 | <58db |
| YXQM20L | 380V 50HZ | 3.0 | 3.7 | 1-9999 | 1-9999 | 5-230 | 10-460 | <60db |
| YXQM40L | 380V 50HZ | 5.5 | 7.5 | 1-9999 | 1-9999 | 5-220 | 10-440 | <63db |
| YXQM60L | 380V 50HZ | 7.5 | 7.5 | 1-9999 | 1-9999 | 5-180 | 10-360 | <65db |
| YXQM80L | 380V 50HZ | 7.5 | 11 | 1-9999 | 1-9999 | 5-180 | 10-360 | <65db |
| YXQM100L | 380V 50HZ | 11 | 11 | 1-9999 | 1-9999 | 5-180 | 10-360 | <68db |
Mill jars and Mill balls of ball grinding mill
![Grinding balls].jpg](http://sc01.alicdn.com/kf/He5e0f004271b40138014a390ef0503a2z/220360158/He5e0f004271b40138014a390ef0503a2z.jpg)
Our planetary ball grinding mill used in the customer
Join an exhibition
Company Information
Changsha MITR instrument & equipment Co., Ltd. specializes in designing, manufacturing and selling experimental equipment. Supported by the state key laboratory of Central South University Powder Metallurgy with Hunan University, Shanghai Jiao tong University and other well-known universities to maintain long-term close technical exchanges and product development cooperation.
The high-tech talents in our company are: doctor, master, eight senior engineer,eight senior technician, ten engineer,six technician.The main business is the R&D, production and sale of experimental equipment and related technical consultation services.
