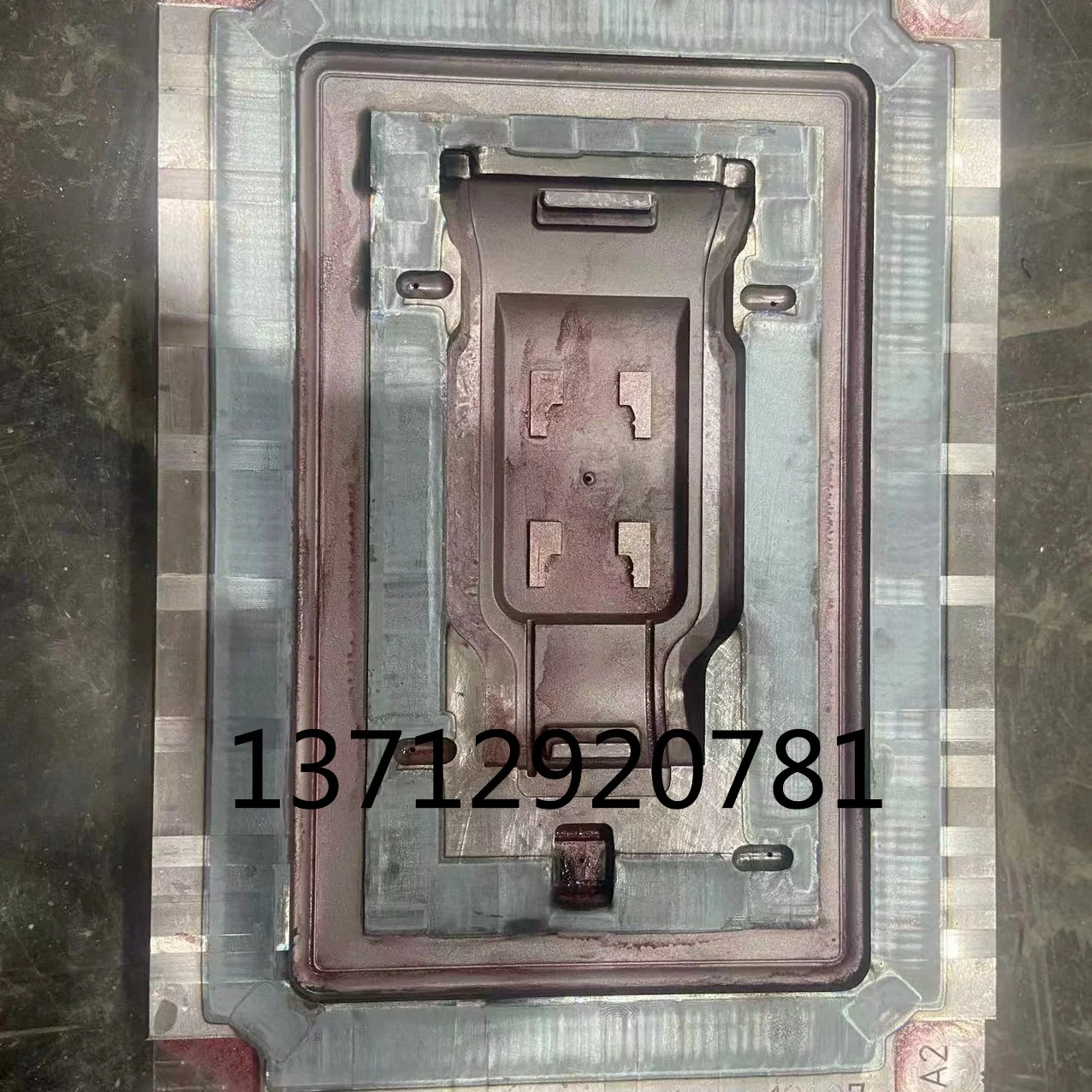

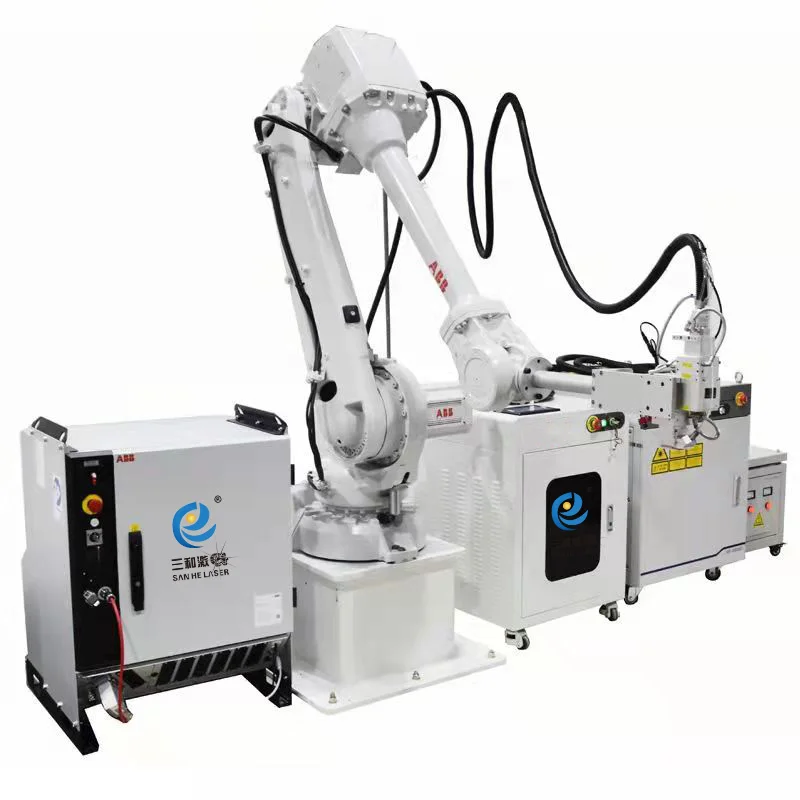

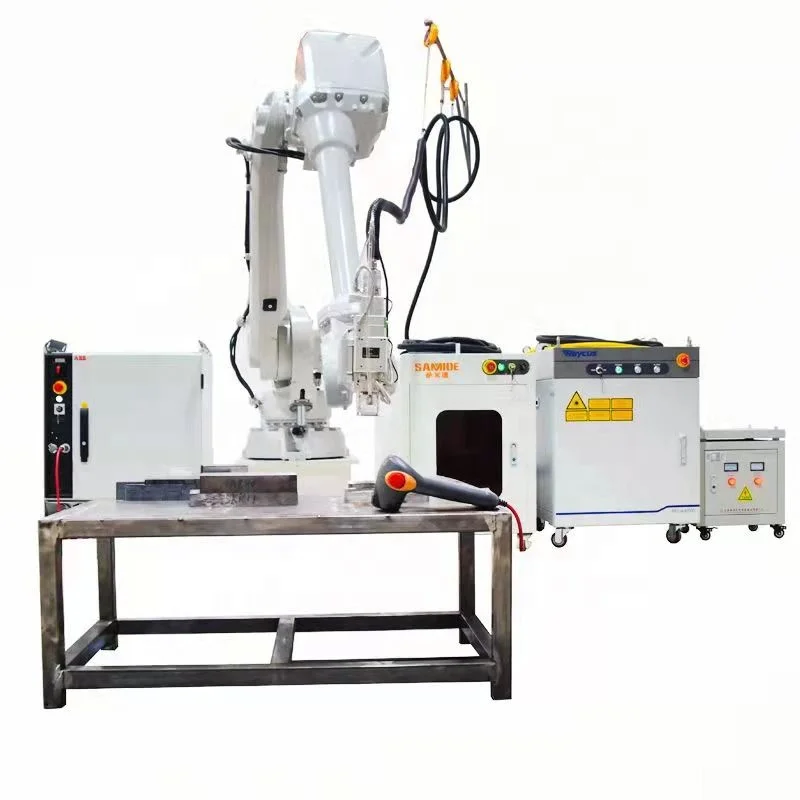

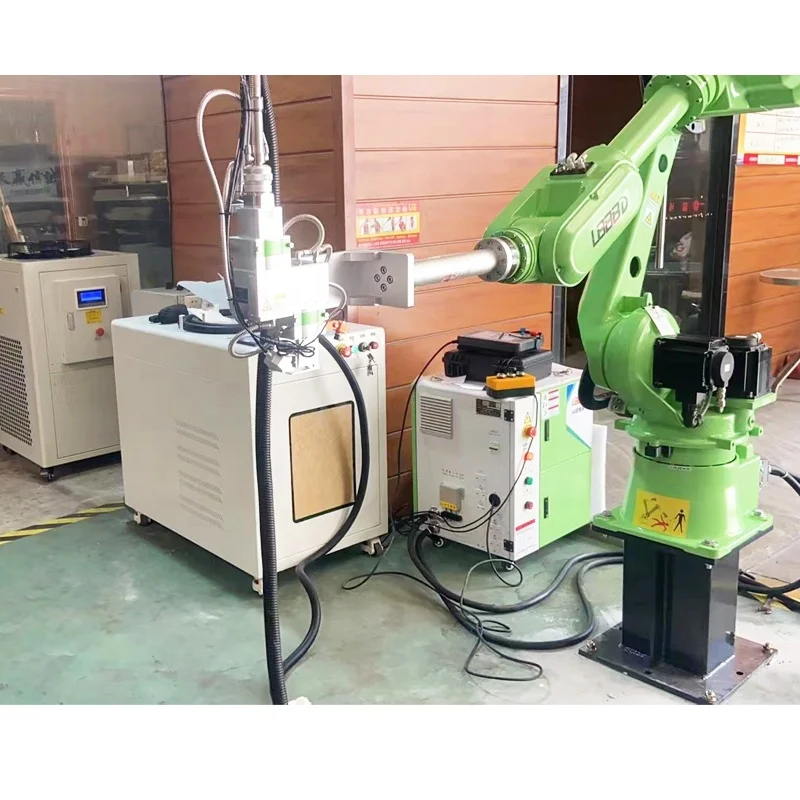

3000w 6000w High precision laser quenching machine for hardware mold car accessories
- Category: >>>
- Supplier: Dongguan Sanhe Laser Technology Co. Ltd.
Share on (1600637665192):
Product Overview
Description
Laser quenching is a quenching technology that uses a laser to heat the surface of a material above the transformation point, and as the material cools itself, austenite transforms into martensite, thereby hardening the surface of the material.
The laser quenched tooth surface has a high heating and cooling rate, a short process cycle, and no external quenching medium. It has the advantages of small deformation of the workpiece, clean working environment, no need for finishing such as tooth grinding after treatment, and the size of the treated gear is not subject to heat treatment. Unique advantages such as device size limitations

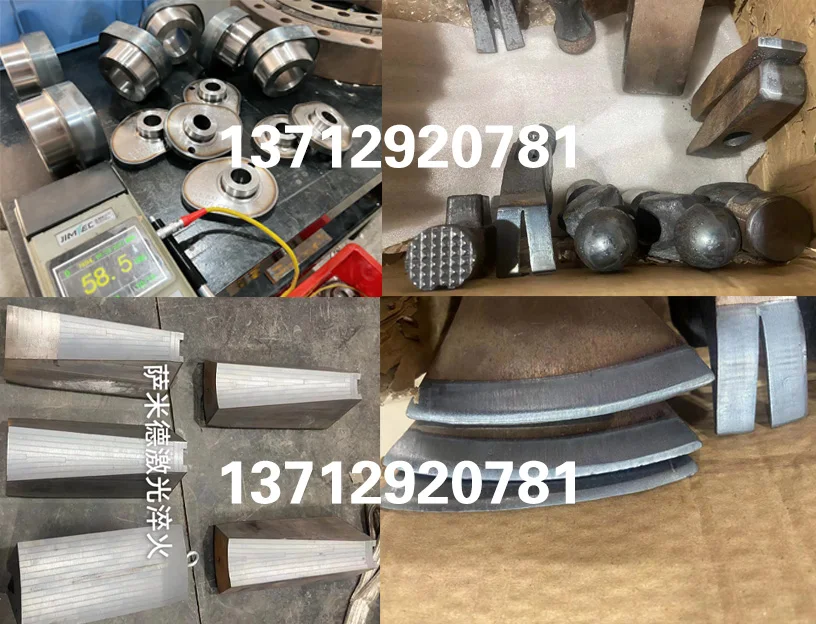

1. The quenched parts are not deformed, the thermal cycle process of laser quenching is fast, medium carbon steel, large shafts
2. It hardly destroys the surface roughness and adopts a thin coating of anti-oxidation protection. Die steel and various dies
3. Laser quenching does not crack, precise and quantitative numerical control quenching, cold work die steel, mold, cutting tool

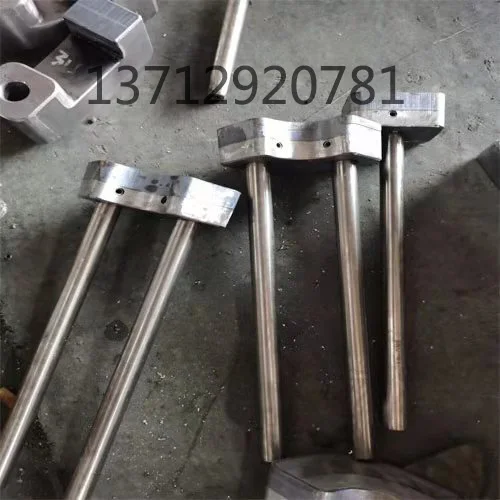

4. CNC quenching with precise positioning for local, groove and groove quenching Medium carbon alloy steel shock absorber
5. Laser quenching is clean and efficient No cooling medium such as water or oil is required Cast iron material Engine cylinder

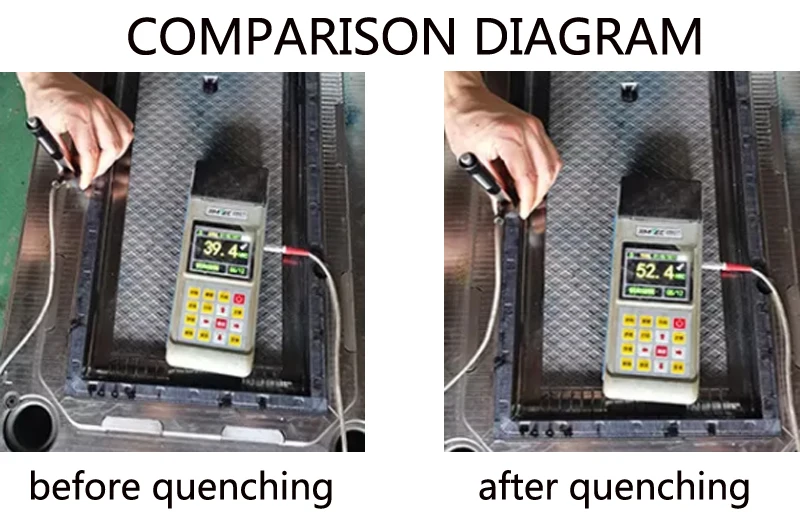

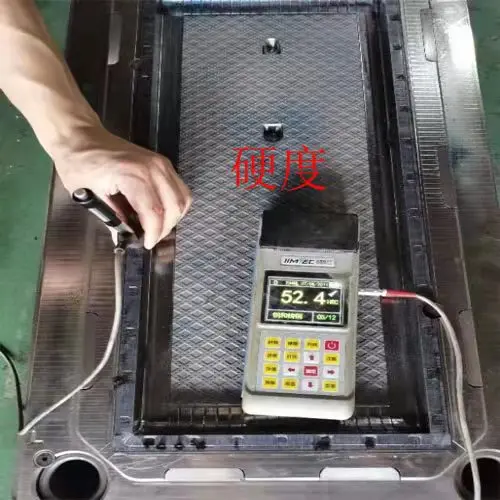

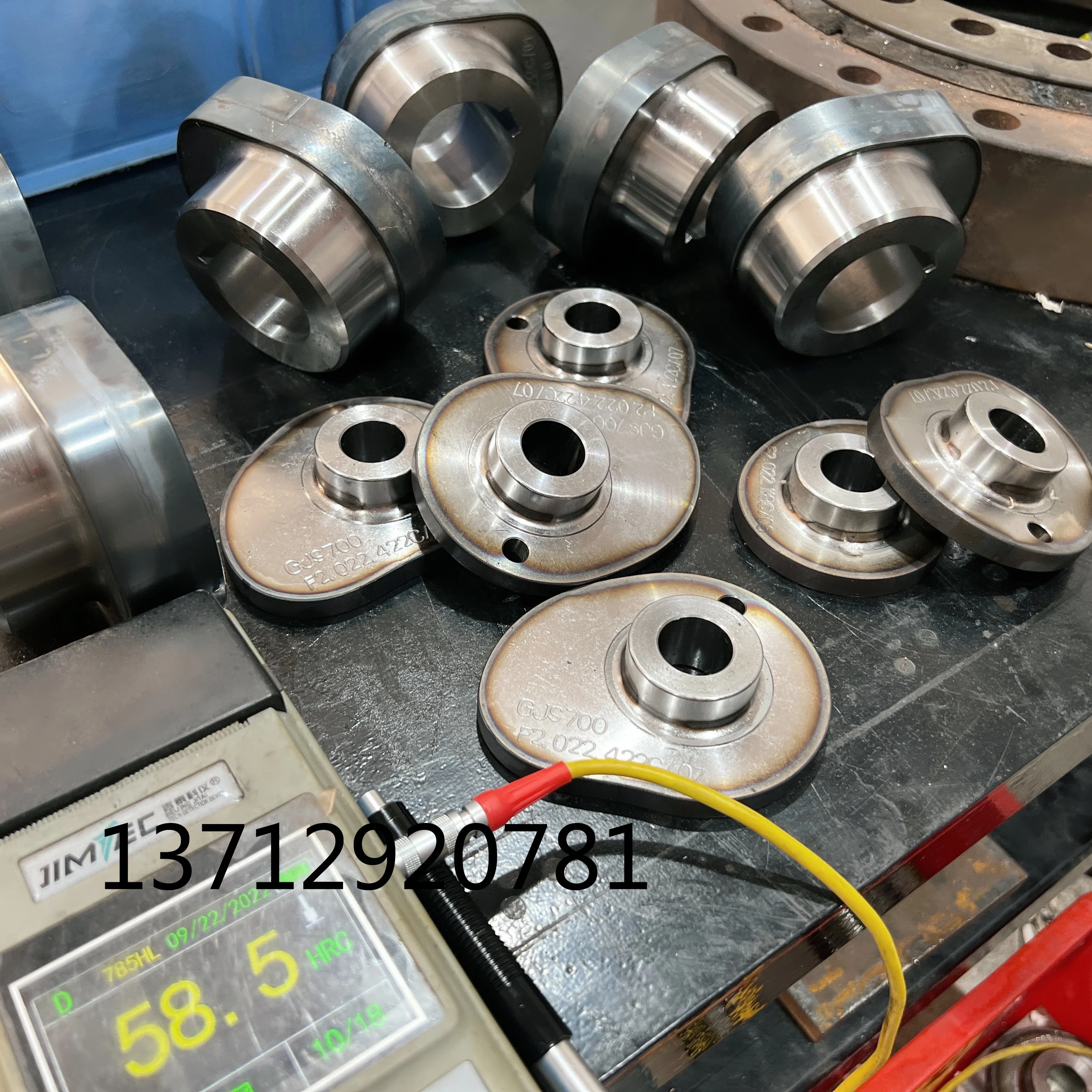

6. The quenching hardness is higher than that of the conventional method. The quenched layer has fine structure and good strength and toughness. High carbon alloy steel Large roll
7. Laser quenching is rapid heating and self-excited cooling, without furnace heat preservation and cooling liquid quenching. It is a pollution-free green environmental protection heat treatment process, which can easily perform uniform quenching on the surface of large molds.
8. Because the laser heating speed is fast, the heat affected zone is small, and the surface scanning heating and quenching is used, that is, instantaneous local heating and quenching, so the deformation of the processed mold is small.
9. Due to the small divergence angle of the laser beam, it has a good directivity, and can perform precise local quenching on the surface of the mold through the light guide system.
10. The depth of the hardened layer of laser surface quenching is generally 0.3~1.5mm.
Model | RFL-A3000D |
Optical Parameters | |
Nominal Output Power (W) | 3000 |
Operation Modes | CW/Modulated |
Polarization Orientation | Random |
Output Power Tunability(%) | 10~100 |
Emission Wavelength(nm) | 915±10 |
Output Power Instability(%) | <3 |
Modulation Frequency(Hz) | 50~5k |
Pilot Light Power(mW) | 0.25~1 |
Output Cables Parameters | |
Output Header Type | QBH |
Fiber Core Diameter(μm) | 600 |
Minimum Bending Diameters | ≥400 |
Half Angle of beam divergence(rad) | ≤0.22 |
Delivery Cable Length(m) | 20(Customizable) |
Electrical Parameter | |
Power Supply | AC 380V±38, 50/60Hz, TN-S |
Control Mode | Hyper Terminal/RS-232/AD |
Other Parameters | |
Dimensions(W×H×D)(mm) | 650×950×980 |
Weight(kg) | <150 |
Operating Ambient Temperature (℃) | 10~40 |
Humidity (%) | <70 |
Storage Temperature (℃) | -10~60 |
Cooling Method | Water Cooling |
Power consumption | 22KW |
Our Services
1) Free Pre-Sales Consulting / Free Sample Marking
2) Strict Quality Control of Production
3) 5-7 Days Quick Delivery
4) 1 Year Quality Guarantee
5) 12 hours Quick Feedback & After-Sales Service
6) Quick Back-up Parts Available & Technical Assistance
7) Free Training Service
8) Special Designing, Customized, OEM Order is accepted

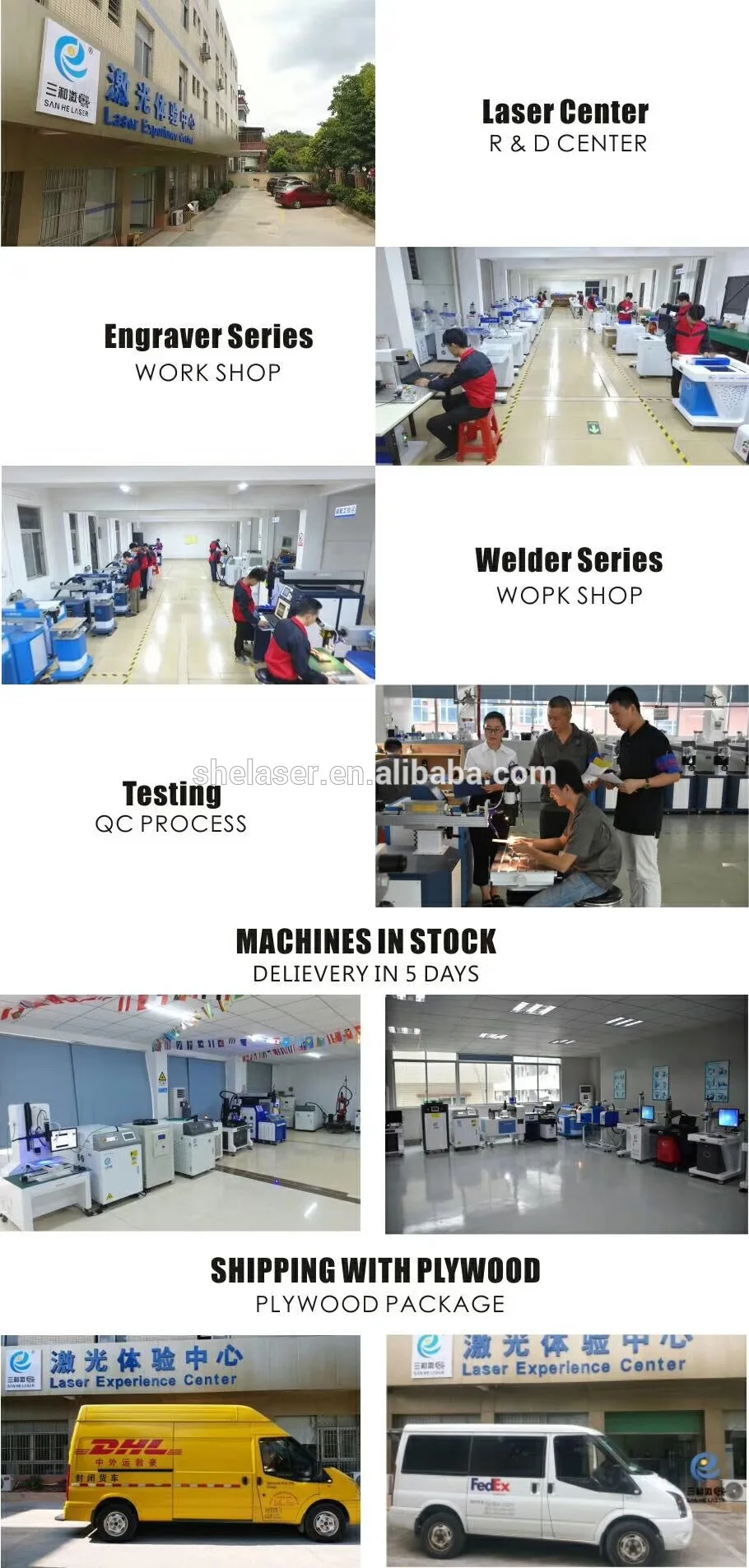

Company Information
Dongguan Sanhe laser technology Limited Company is a professional manufacture of laser equipment and the modernization of production and application of high-tech enterprises,In this ten years ,out sanding Sanhe team has been committed to the study and practice of light conversion , take lifting laser value as our business goals ,take promoting Chinese national laser industry to the world as our professional mission,we believe that if you want to success ,you must be professional ,and professional skills and pragmatic approach to service each customer .
Certification:ISO. CE . SGS .
Vision:when three lines must has somebody be my teacher, we respected team members idea.
FAQ
Q1. When the machine can't work well, what should I do?
A: 1. The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon.
2. All our machines have two years' warranty, If there is any problems of machine parts under "normal use", new machine parts will be sent by air for free.
3. Please rest assured that operation CD and manual will be offered along with machine, ensuring you can operate the machine easily.
Q2. Are you factory or trading company?
A: We are factory with 10 years experience has branch or offices in America. Thailand, Vietnam, Malaysia, Tianjin, Zhejiang, Jiangsu, Shanghai, Chongqing and Dalian. Also equipment with a comprehensive network of marketing channels for domestic and foreign customers with complete and quick sale service.
Q3. Where is your facotry located in? How can I visit there?
A: Our factory is located in 3/F, Building B, Lianyi Industrial Park, Wentang Middle Road, Dongcheng District, Dongguan, Guangdong, China. We can pick you up from Shenzhen airport to our factory, You are warmly welcome to visit us! ! !
Q4. How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the end.
1). All raw material we used are environmental-friendly;
2). Skillful workers care every details in handling the producing and packing processes;
3). Quality Control Department specially responsible for quality checking in each process.
And we have CE, ISO9001, SGS certification.
Q5. What is the delivery time?
A: We have standard models in stock, will delivery within 5-7 working days.
For un-standard models, we will delivery within 10-15 working days.
Q6. How long can I expect to get the sample?
A: We ensure that the samples could be done within 1-2 days once we receive the sample from your side.
Q7. How can I get Machine's spare parts?
A: There are two methods. Spare Parts ordered together with the machine, this is the safest way to transport the parts.
The other way is you can inform us when you need to replace the consumables, we will send them to you within 24 working hours.
