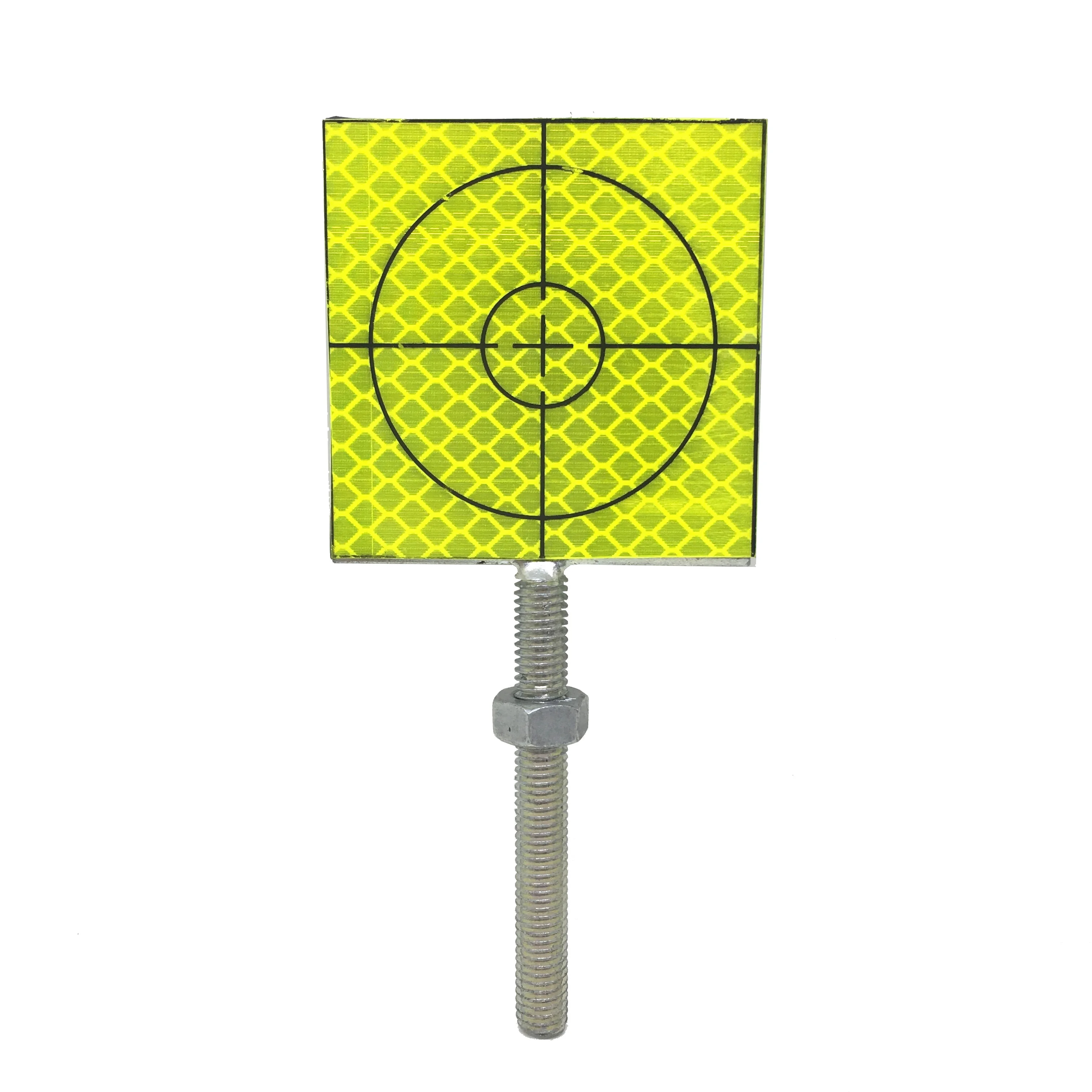

60mm Plate Target With Threaded/ Yellow Reflective Tapes
- Category: Reflective Material >>>
- Supplier: Commander Group Ltd.
Share on (1600637684052):
Product Overview
Description
Product Description
Model NO. | PTT60Y |
Reflective Tape target size | 60 x 60mm |
Application | Rangefinder/ cpc reflector / prism measurement |
Measuring distance | up to 300m |
Transportation Package | Soft bag,carton |
Feature | self-adhesive Inexpensive tape targets, Available in different design and size, Applied for Standard applications and Manual measurements |
Self-adhesive reflective sheet
Technical Specifications
The following data refer only to the Leica brand instruments, all index data from Leica to official data, the index data other brands instrument slightly different.
Distance Measurement
Observation distance
EDM type specifications conditions A conditions B conditions C
IR EDM (IR mode) 60mm x 60mm 1.5m - 150m 1.5m - 250m 1.5m - 250m
IR EDM (IR mode) 40mm x 40mm 1.5m - 120m 1.5m - 200m 1.5m - 200m
IR EDM (IR mode) 20mm x 20mm 1.5m - 80m 1.5m - 130m 1.5m - 130m
RL EDM (long-distance mode) 60mm x 60mm 1.5m - 600m 1.5m - 1000m 1.5m - 1300m
RL EDM (long-distance mode) 40mm x 40mm 1.5m - 480m 1.5m - 800m 1.5m - 1000m
RL EDM (long-distance mode) 20mm x 20mm 1.5m - 320m 1.5m - 650m 1.5m - 650m
Atmospheric conditions:
A: fog, visibility 5 km, or strong sunlight, severe heat shimmer.
B: Light haze, visibility 20 kilometers or moderate sunlight, slight heat shimmer.
C: Overcast, no haze, visibility 40 km, no hot flashes.
Accuracy
· Standard measurement mode 2mm +2 ppm
· Fast measurement mode 5mm +2 ppm
· Tracking measurement mode 5mm +2 ppm
· The average measurement mode 2mm +2 ppm
· RL Short mode 3mm +2 ppm
· RL Long Range Mode 5mm +2 ppm
Measurement time (slightly different models of different instruments)
· Standard measurement mode 1.0 - 3.0 seconds
· Fast measurement mode 0.5 - 1.5 seconds
· Tracking measurement mode 0.15-0.3 seconds
· RL Long Range Mode 2.5 seconds
Prism constant
· +34.4 mm
Technical Specifications
The following data refer only to the Leica brand instruments, all index data from Leica to official data, the index data other brands instrument slightly different.
Distance Measurement
Observation distance
EDM type specifications conditions A conditions B conditions C
IR EDM (IR mode) 60mm x 60mm 1.5m - 150m 1.5m - 250m 1.5m - 250m
IR EDM (IR mode) 40mm x 40mm 1.5m - 120m 1.5m - 200m 1.5m - 200m
IR EDM (IR mode) 20mm x 20mm 1.5m - 80m 1.5m - 130m 1.5m - 130m
RL EDM (long-distance mode) 60mm x 60mm 1.5m - 600m 1.5m - 1000m 1.5m - 1300m
RL EDM (long-distance mode) 40mm x 40mm 1.5m - 480m 1.5m - 800m 1.5m - 1000m
RL EDM (long-distance mode) 20mm x 20mm 1.5m - 320m 1.5m - 650m 1.5m - 650m
Atmospheric conditions:
A: fog, visibility 5 km, or strong sunlight, severe heat shimmer.
B: Light haze, visibility 20 kilometers or moderate sunlight, slight heat shimmer.
C: Overcast, no haze, visibility 40 km, no hot flashes.
Accuracy
· Standard measurement mode 2mm +2 ppm
· Fast measurement mode 5mm +2 ppm
· Tracking measurement mode 5mm +2 ppm
· The average measurement mode 2mm +2 ppm
· RL Short mode 3mm +2 ppm
· RL Long Range Mode 5mm +2 ppm
Measurement time (slightly different models of different instruments)
· Standard measurement mode 1.0 - 3.0 seconds
· Fast measurement mode 0.5 - 1.5 seconds
· Tracking measurement mode 0.15-0.3 seconds
· RL Long Range Mode 2.5 seconds
Prism constant
· +34.4 mm
