100L High Quality Stirred Tank Single Layer Jacketed Glass Reactor For Lab Use
- Category: Reactors >>>
- Supplier: Hangzhou,West,Tune,Trading,Co.,ltd.
Share on:
Product Overview
Description
Products Description

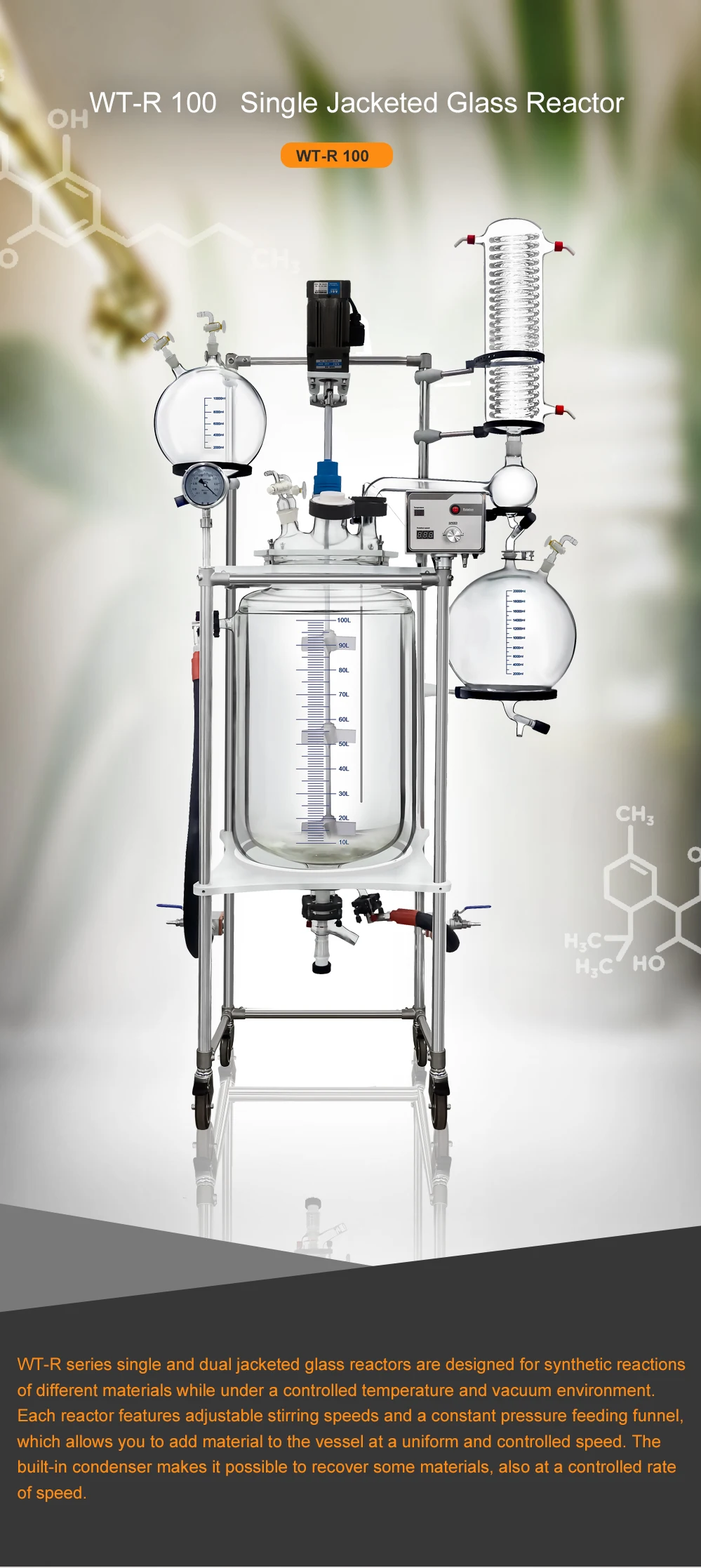

100L High Quality Stirred Tank Single Layer Jacketed Glass Reactor For Lab Use
WT-R series single and dual jacketed glass reactors aredesigned for synthetic reactions of different materials while under a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel, which allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.hine is suitable for producing PET plastic containers and bottles in all shapes.
Specifications
Vessel capacity (L) | 100 | ||
Vessel jacket capacity (L) | about 30.0 | ||
Heat transfer area of condenser(m²) | about 0.63 | ||
Feeding flask capacity（L） | 10 | ||
Lid cover | stirrer port | 50# flange | |
temp. sensor port | 35# flange | ||
condenser port | 50# ball-ground port | ||
Liquid feeding port | 34# standard ground port | ||
Feeding funnel port | 40# standard ground port | ||
Solid feeding port | 80# flange | ||
Glassware material | borosilicate 3.3 | ||
Frame | SUS304 | ||
Working temp. range (℃) | -80～250 | ||
Pressure range（MPa） | -0.1～0.0 | ||
Jacket pressure tolerance（MPa） | ≤+0.03 | ||
Motor power（W） | 250 | ||
Speed adjustment | frequency control | ||
Speed range（rpm） | 50～500 ± 10% | ||
Temp. sensor type | Pt100 | ||
Temp. accuracy（℃） | ±0.1 | ||
Thermo insulation hose connector | 1/2 male screw | ||
Seal material | PTFE | ||
Drain port height（mm） | about 450 | ||
Stirrer type | Paddle, SUS304 with PTFE coated | ||
Power supply | 110-240V～,50/60Hz | ||
Operating temp. (℃) | 5～35 | ||
Ambient humidity (%) | ≤ 65 | ||
Machine size (mm) | 900W×750D×2300H | ||
N.W.（kg） | 130 | ||
Detailed Images
