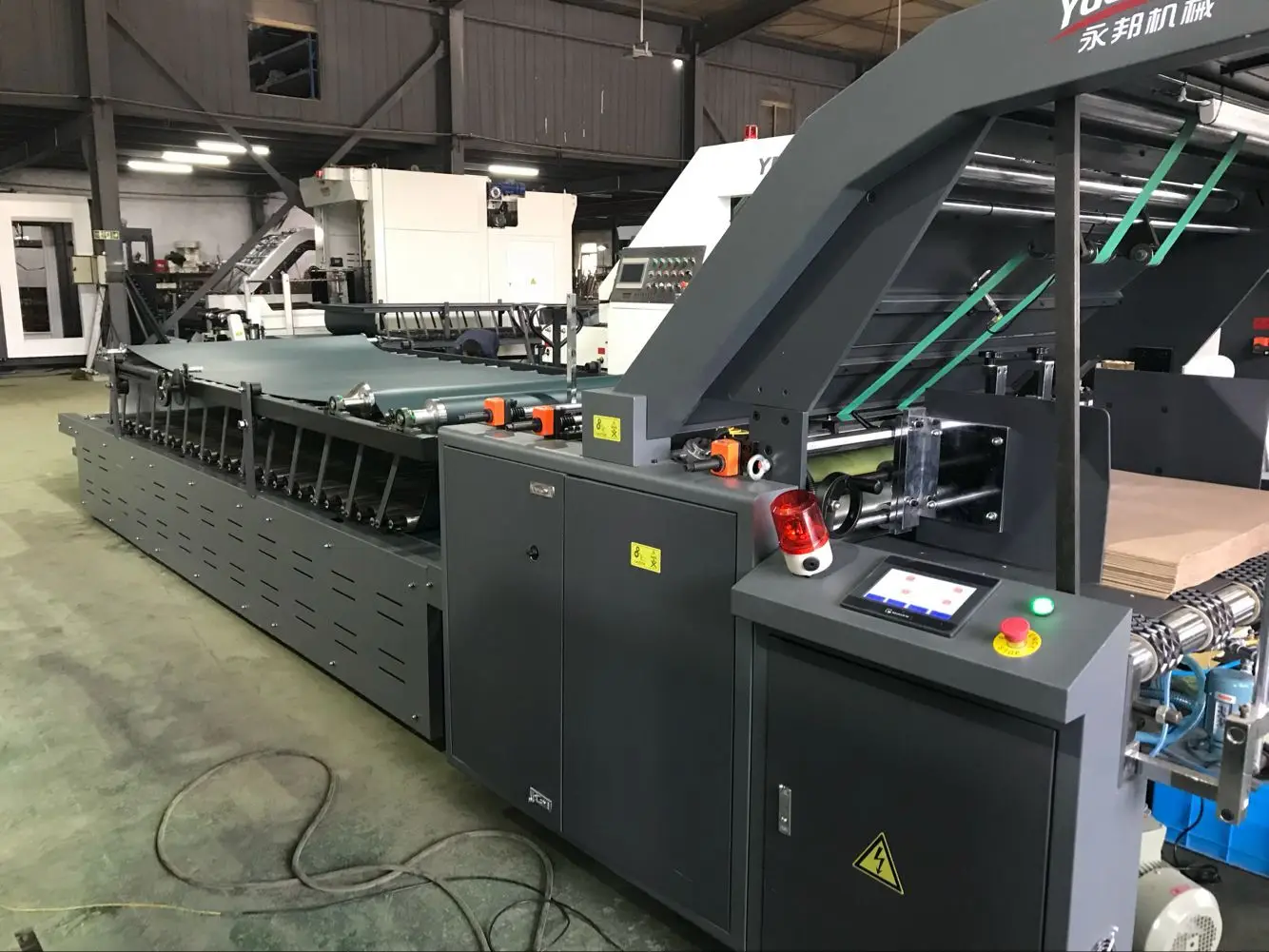

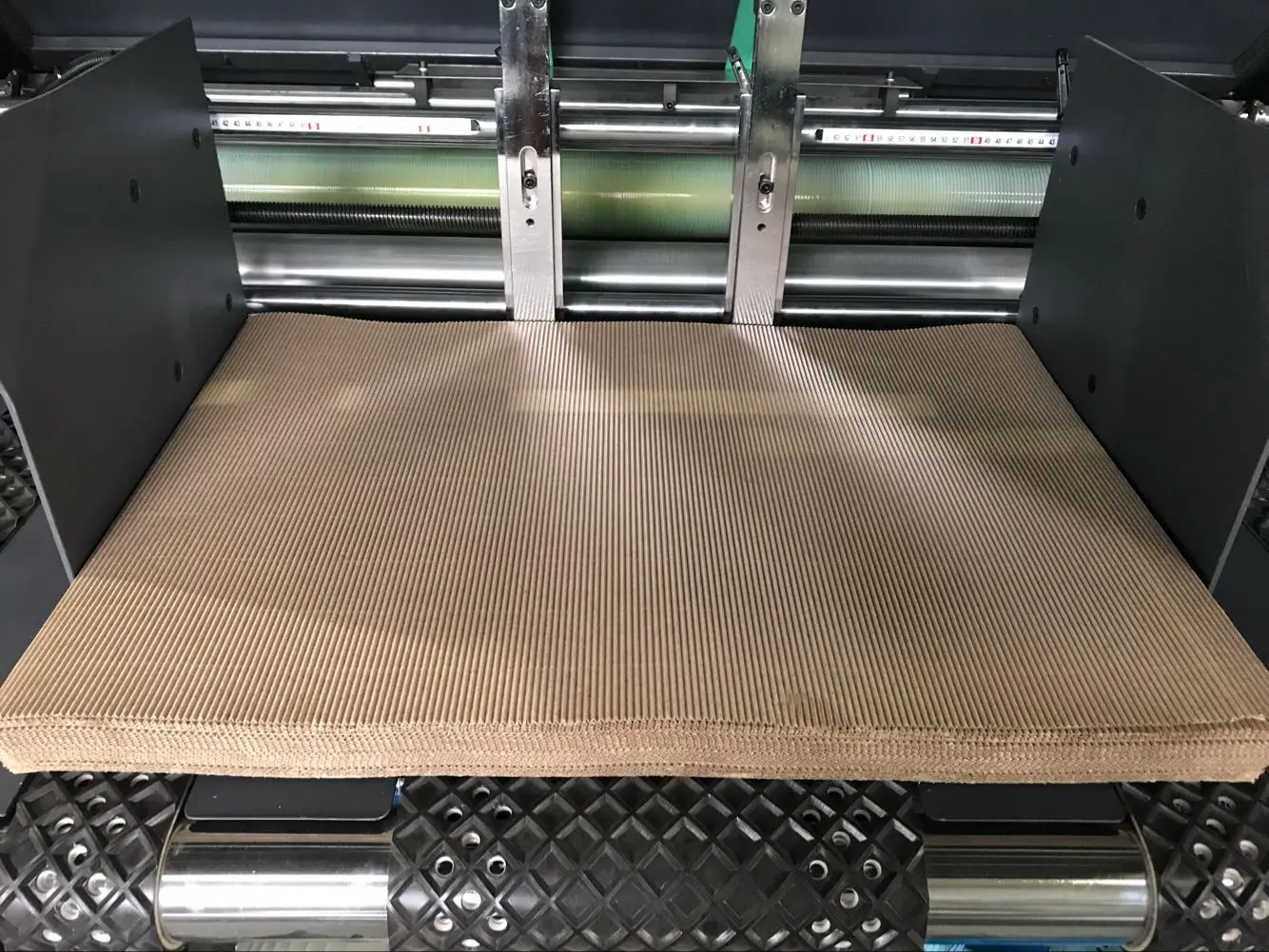

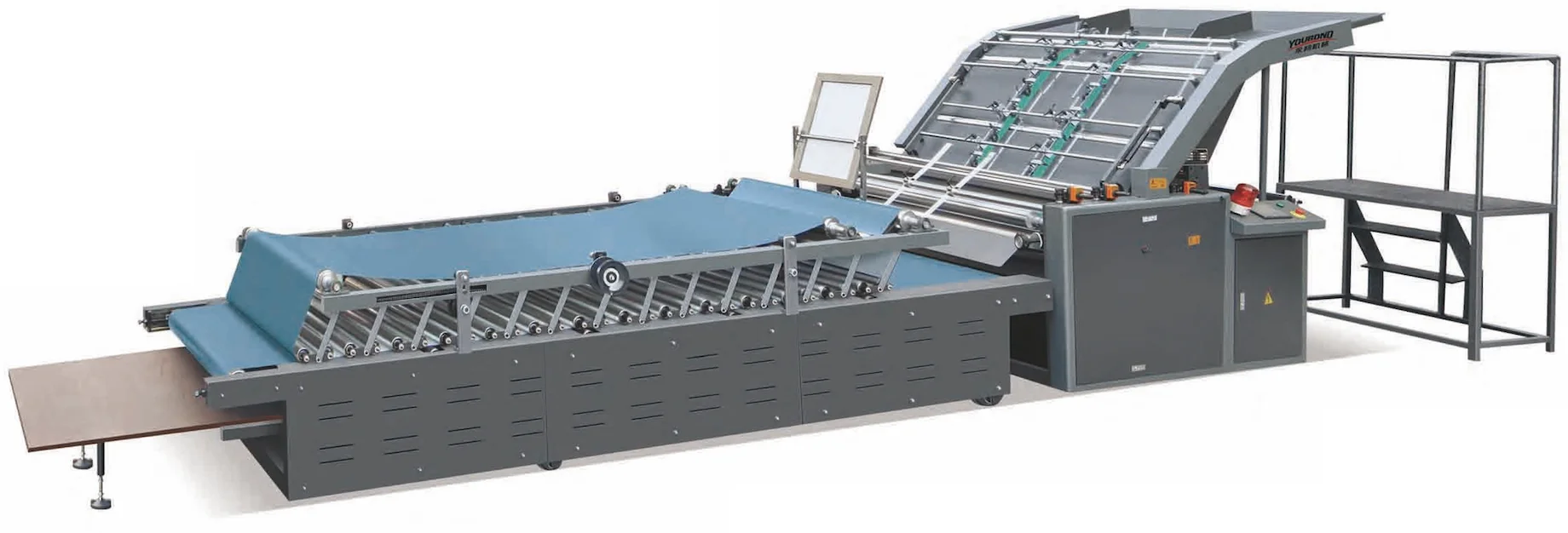

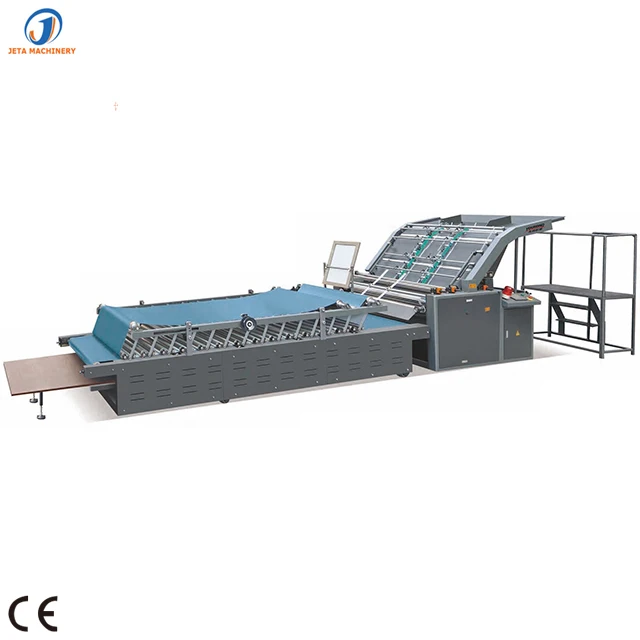

[JT YB1300B]CE Certificated Corrugated Carton Paperboard Semi Automatic Flute Laminating Machine Paper Lamination machine
- Category: >>>
- Supplier: Yiwu Jeta International Trading Co . Ltd.
Share on (1600637721606):
Product Overview
Description
Products Description
Usage:
This CE Certificated Corrugated Carton Paperboard Semi Automatic Flute Laminating Machine use bottom sheet automatically sent by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient. It is suitable for color top sheet and corrugated paper laminating, color top sheet and grey cardboard laminating..
This CE Certificated Corrugated Carton Paperboard Semi Automatic Flute Laminating Machine use bottom sheet automatically sent by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient. It is suitable for color top sheet and corrugated paper laminating, color top sheet and grey cardboard laminating..
Features:
* CE Certificated Corrugated Carton Paperboard Semi Automatic Flute Laminating Machine
* Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous mautomatic tracking
* The humanized design that manually feeding from the front makes delivery more easier and efficient.
* Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceeds the top sheet.

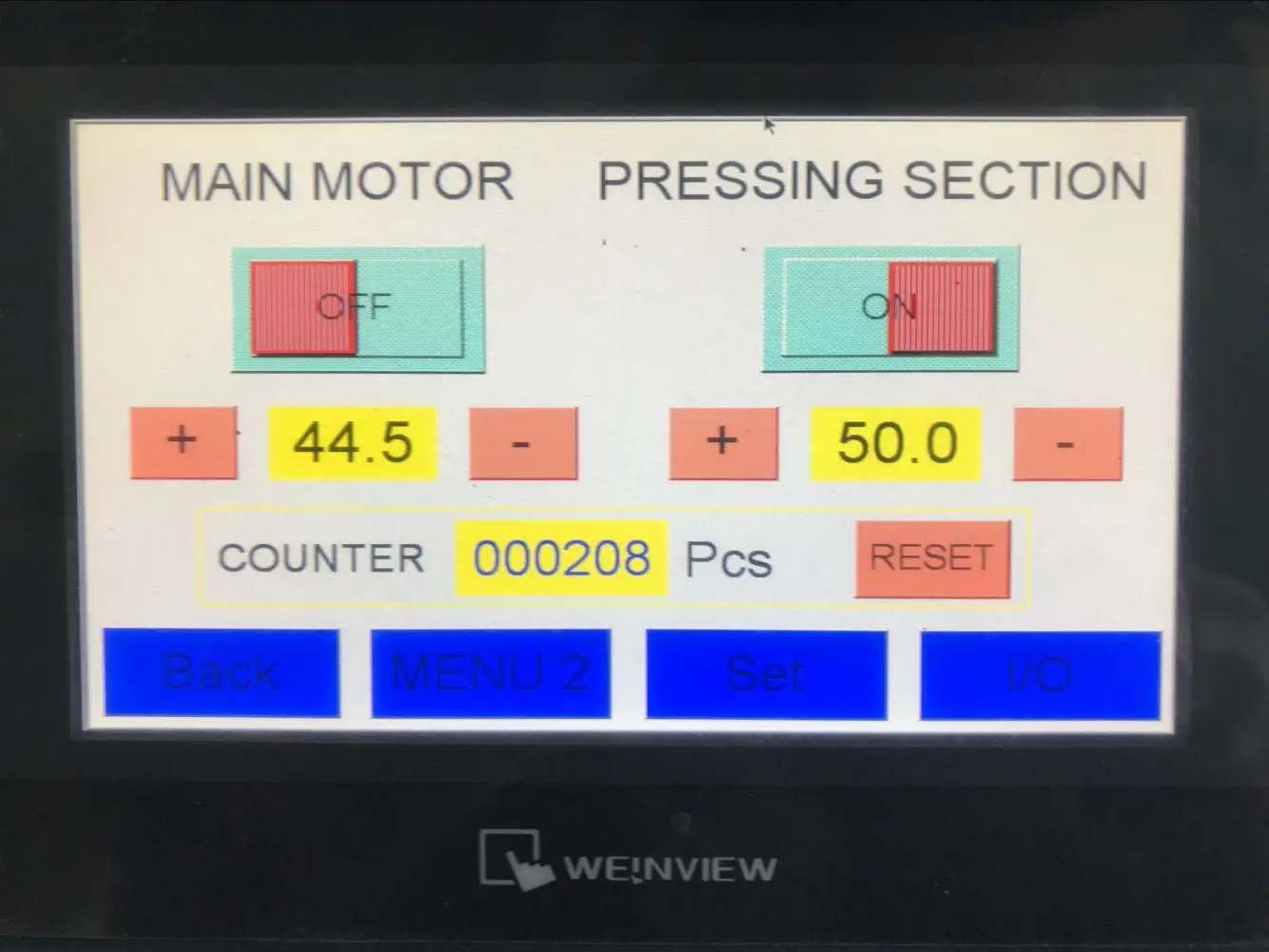

* Machine uses touch-screen / PLC control system, the circuit system is stable, and can automatically display the failure malarm
* The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue mto avoid loss of waste
* The scientific design of the metering roller speed to ensure the glue evenly on the same time, to avoid rejection of glue mat high speed.
* Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and mstraight unilateral adjustment by way of adjustment worm roll lamination pressure for quick
* Control of water tank cleaning cycle using an independent method, clean, hard rubber product;
* Suitable for color top sheet 175-500g and A/B/C/D/E/F corrugated paper laminating;
* Color top sheet 175-500g and grey cardboard paper laminating
* Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous mautomatic tracking
* The humanized design that manually feeding from the front makes delivery more easier and efficient.
* Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceeds the top sheet.
* Machine uses touch-screen / PLC control system, the circuit system is stable, and can automatically display the failure malarm
* The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue mto avoid loss of waste
* The scientific design of the metering roller speed to ensure the glue evenly on the same time, to avoid rejection of glue mat high speed.
* Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and mstraight unilateral adjustment by way of adjustment worm roll lamination pressure for quick
* Control of water tank cleaning cycle using an independent method, clean, hard rubber product;
* Suitable for color top sheet 175-500g and A/B/C/D/E/F corrugated paper laminating;
* Color top sheet 175-500g and grey cardboard paper laminating
Specification
Model | Max.Sheet size | Min.Sheet size | Total power | Speed | Weight | Measurement |
JT-YB1100B | 1100*1100mm | 350*350mm | 8kw | 0-90m/min | 4500kg | 8000*1770*1750mm |
JT-YB1300B | 1300*1250mm | 350*350mm | 8kw | 0-90m/min | 5000kg | 8000*1970*1750mm |
JT-YB1450B | 1450*1250mm | 350*350mm | 9kw | 0-90m/min | 5500kg | 8000*2020*1750mm |
JT-YB1650B | 1650*1250mm | 350*350mm | 11kw | 0-90m/min | 6000kg | 8000*2250*1750mm |
