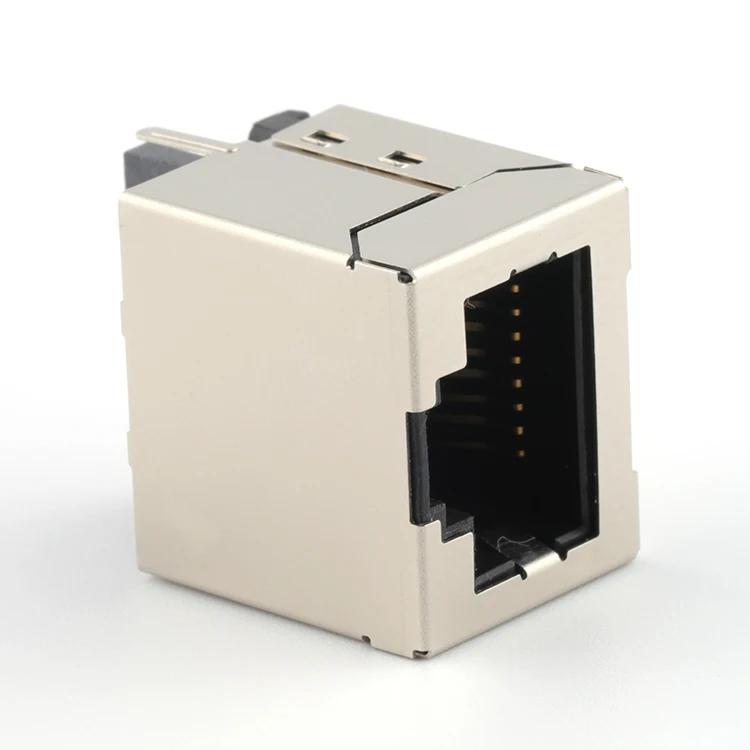

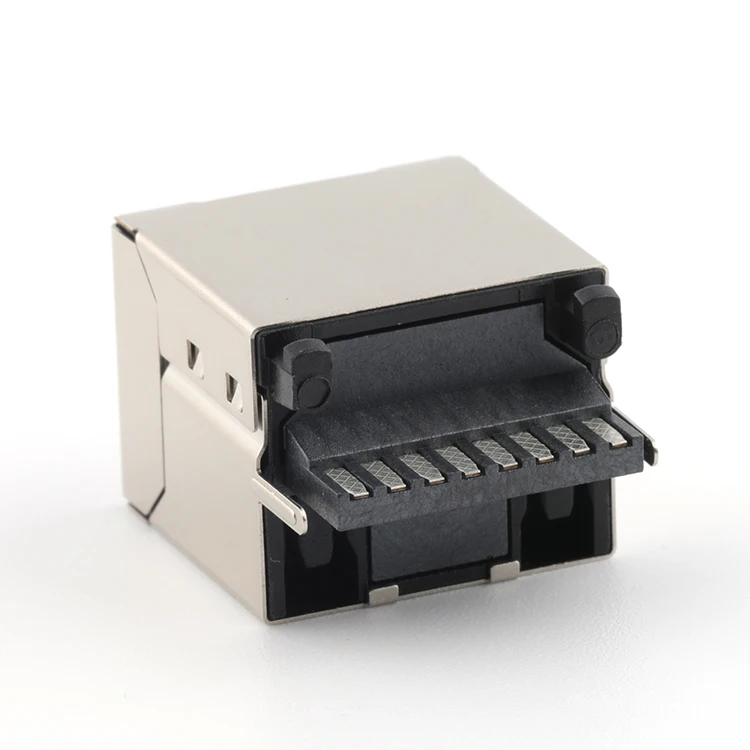

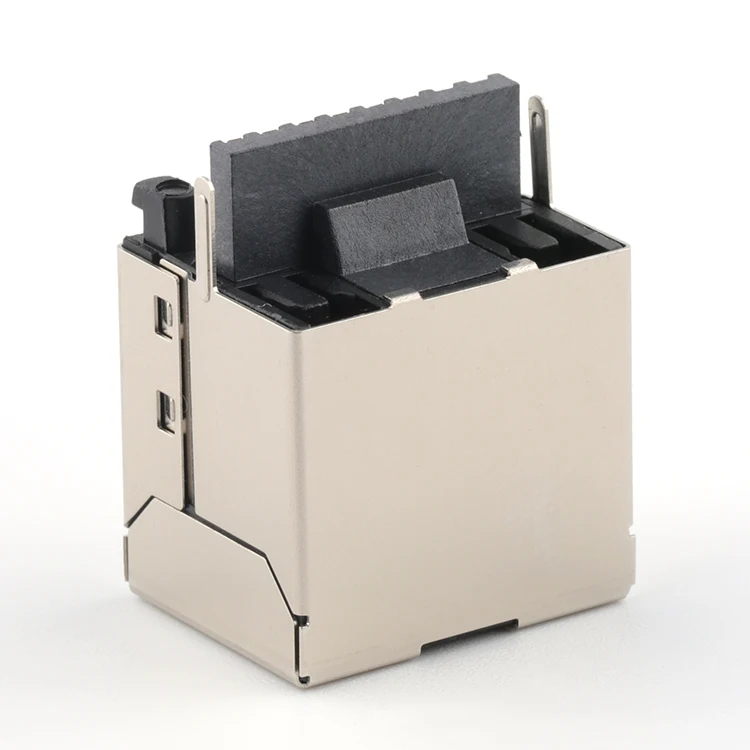

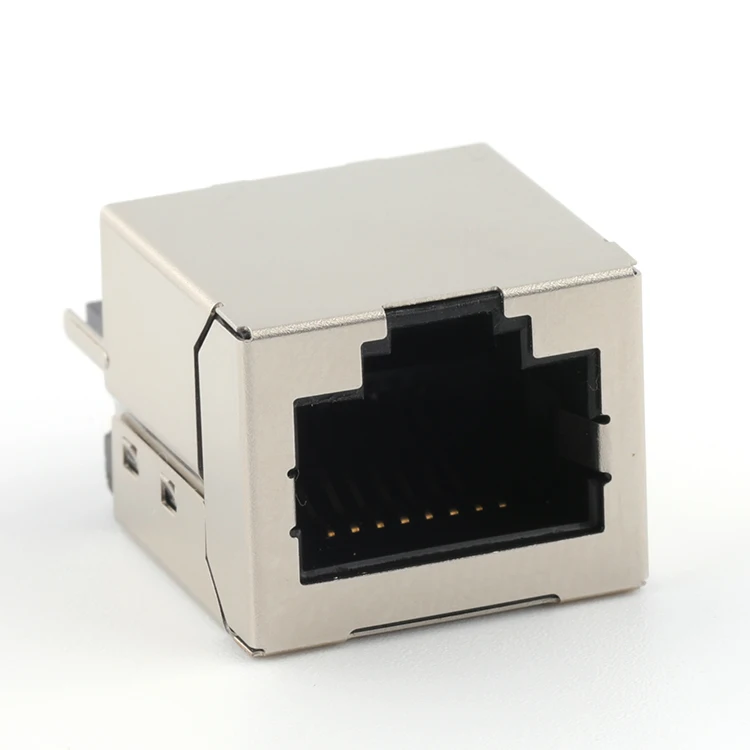

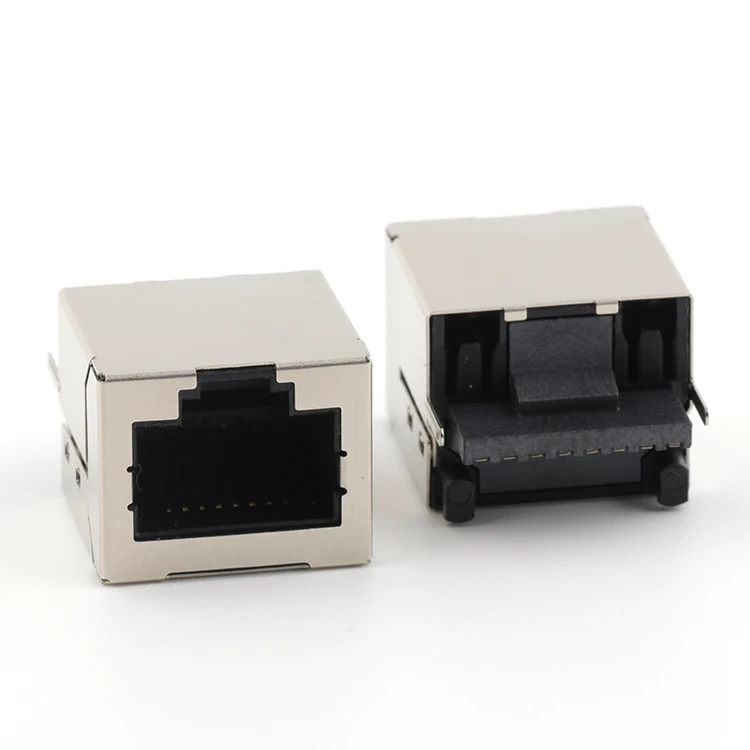

180Degree RJ45 Female Connector Jack Lan Network RJ45 8P8C A Type Female Connector
- Category: >>>
- Supplier: Dongguan Bestcreate Electronics Technology Co. Ltd.
Share on (1600637760028):
Product Overview
Description
Insulator | PBT UL94-0 | ||||||
Plating | Contact Area- Selective Gold Plating | ||||||
Contacts | Phosphor Bronze T=0.3mm | ||||||
Current Rating | 1.5 AMP. | ||||||
Dielectric Withstand Voltage | 1000V DC | ||||||
Contact Resistance | 30MILLIOHMS MAX. | ||||||
Insulation Resistance | 500 MEGOHMS MIN @ 100V DC . | ||||||
Operating Temperature | -40℃～+85℃ | ||||||
Mating Force | 2.24 KG.F MAX. | ||||||
Unmating Force | 2.24 KG.F MAX. | ||||||
Durability | 750 CYCLES MIN. | ||||||
Certification | SGS,ROHS,ISO9001 | ||||||
Packaging | Tray Package | ||||||
SPQ | 100PCS/Tray | ||||||
Contact me to get PDF and 3D Drawing.
