Product Overview
Description
5 Years Guarantee
product introduction

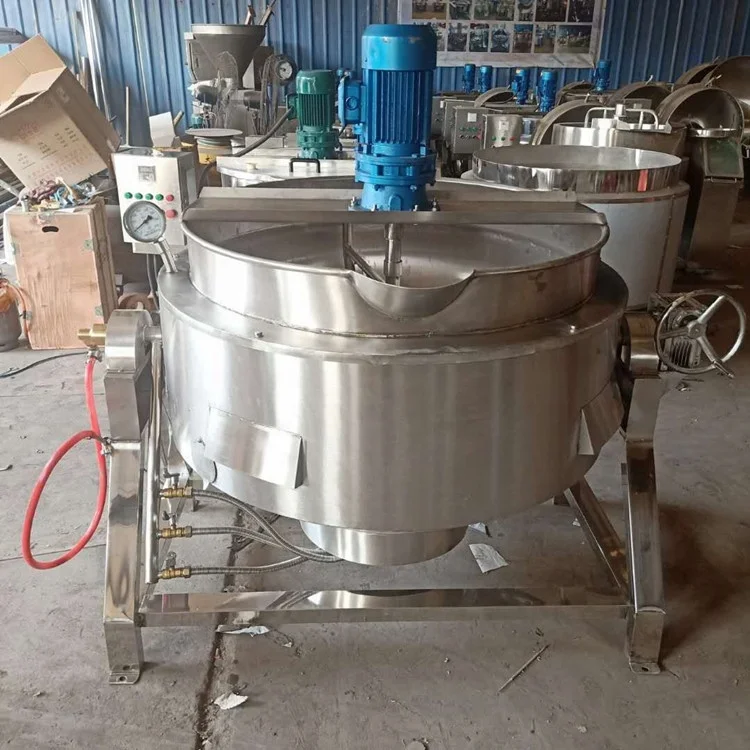

Jacketed pot is also known as steam pot, cooking pot and jacketed steam pot. It usually consists of a pot body and legs. The pot is a double-layer structure composed of an inner and outer spherical pot, and the middle interlayer is heated by steam. There are fixed, tilting, stirring and other styles. The sandwich pot is characterized by large heating area, high thermal efficiency, uniform heating, short boiling time of liquid materials, easy control of heating temperature, beautiful appearance, easy installation, convenient operation, safety and reliability. The sandwich pot is widely used in the processing of all kinds of food, and can also be used in large restaurants or canteens to cook soup, stew, congee, etc. It is a good equipment for improving the quality, shortening the time, and improving the working conditions of food processing

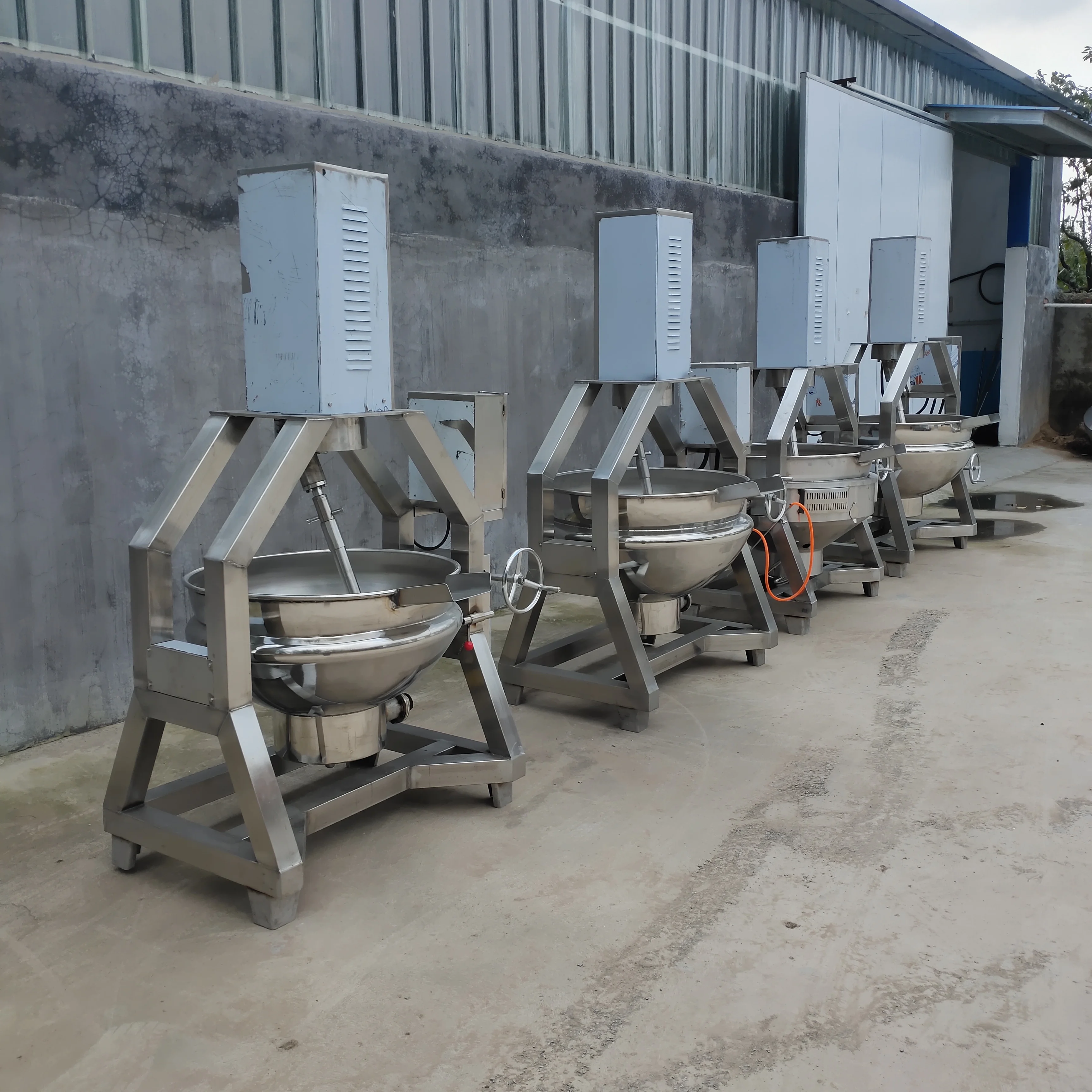

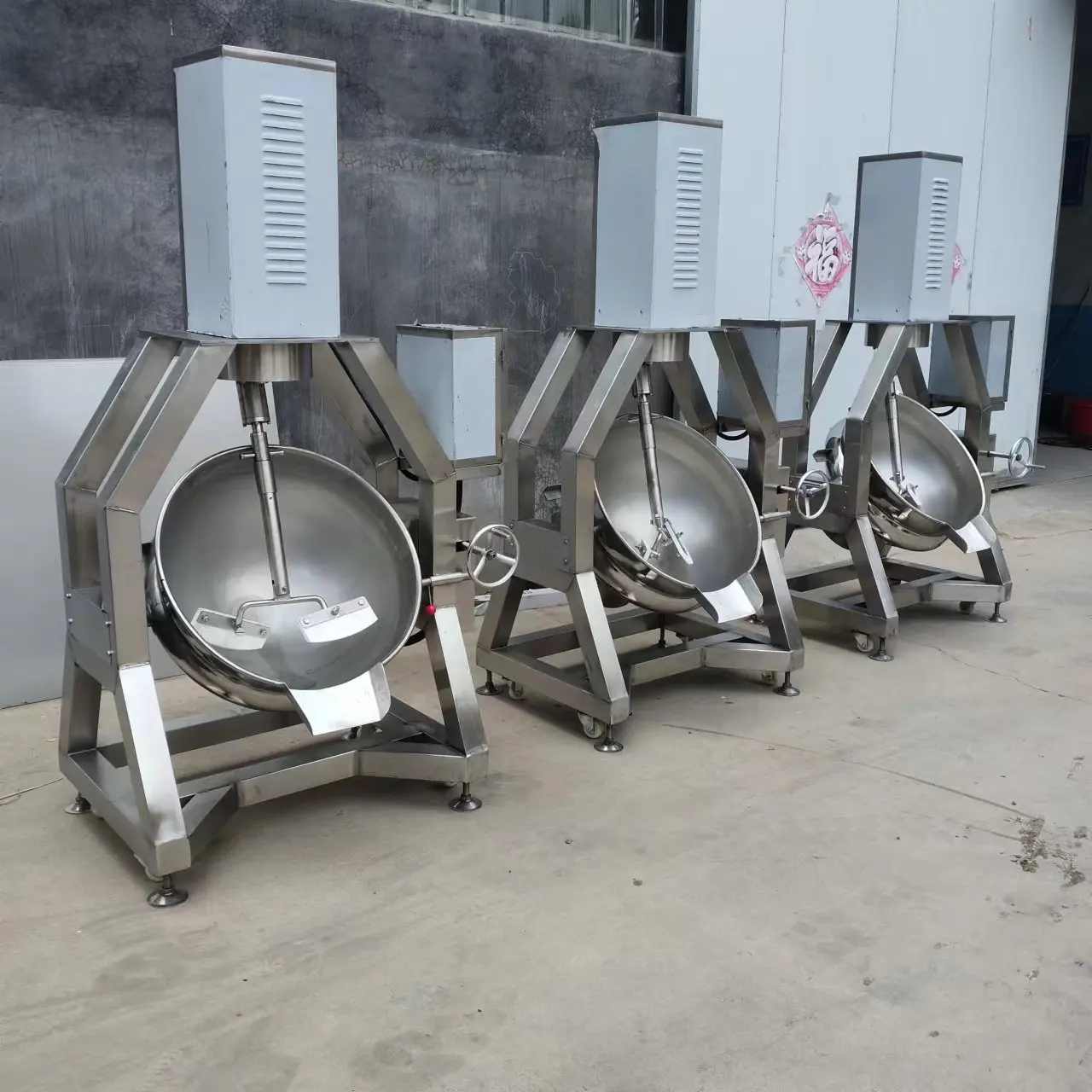

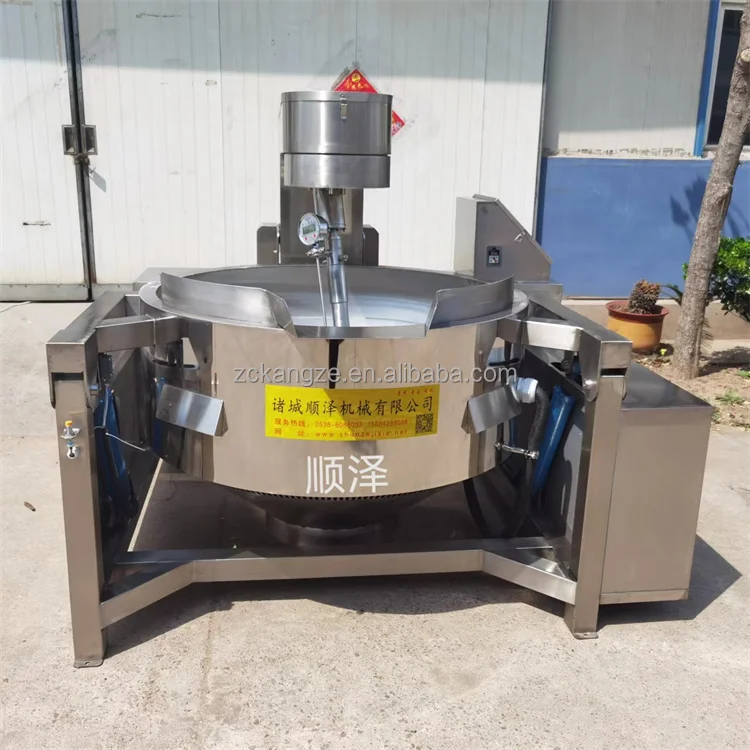

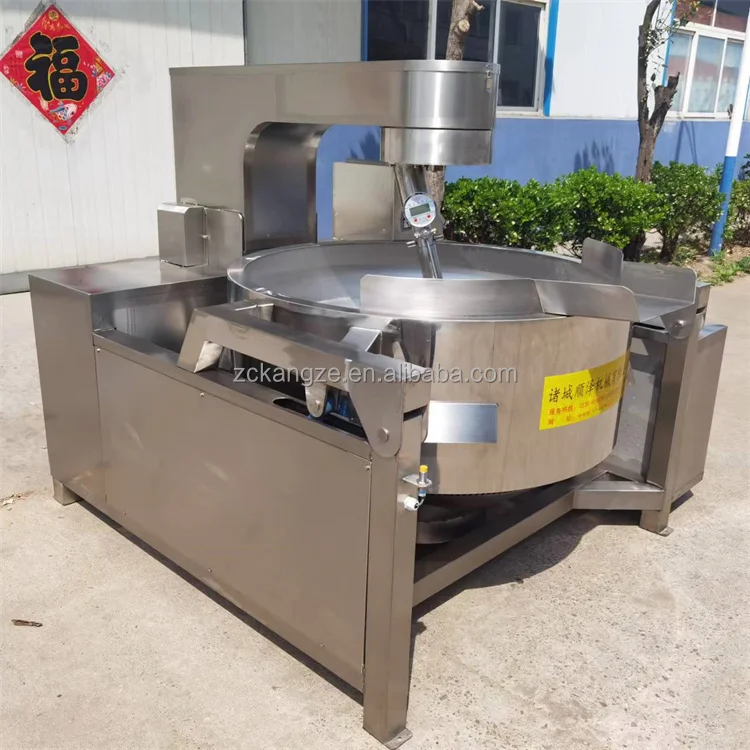

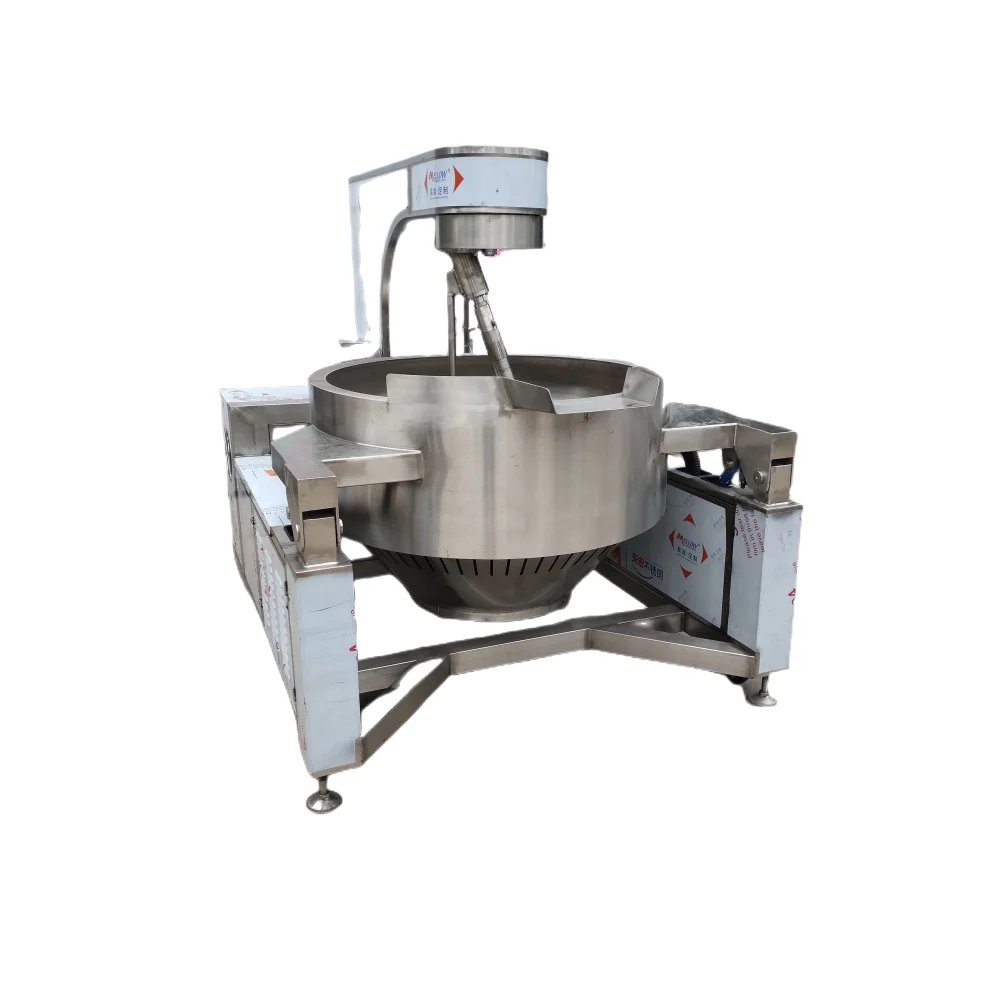

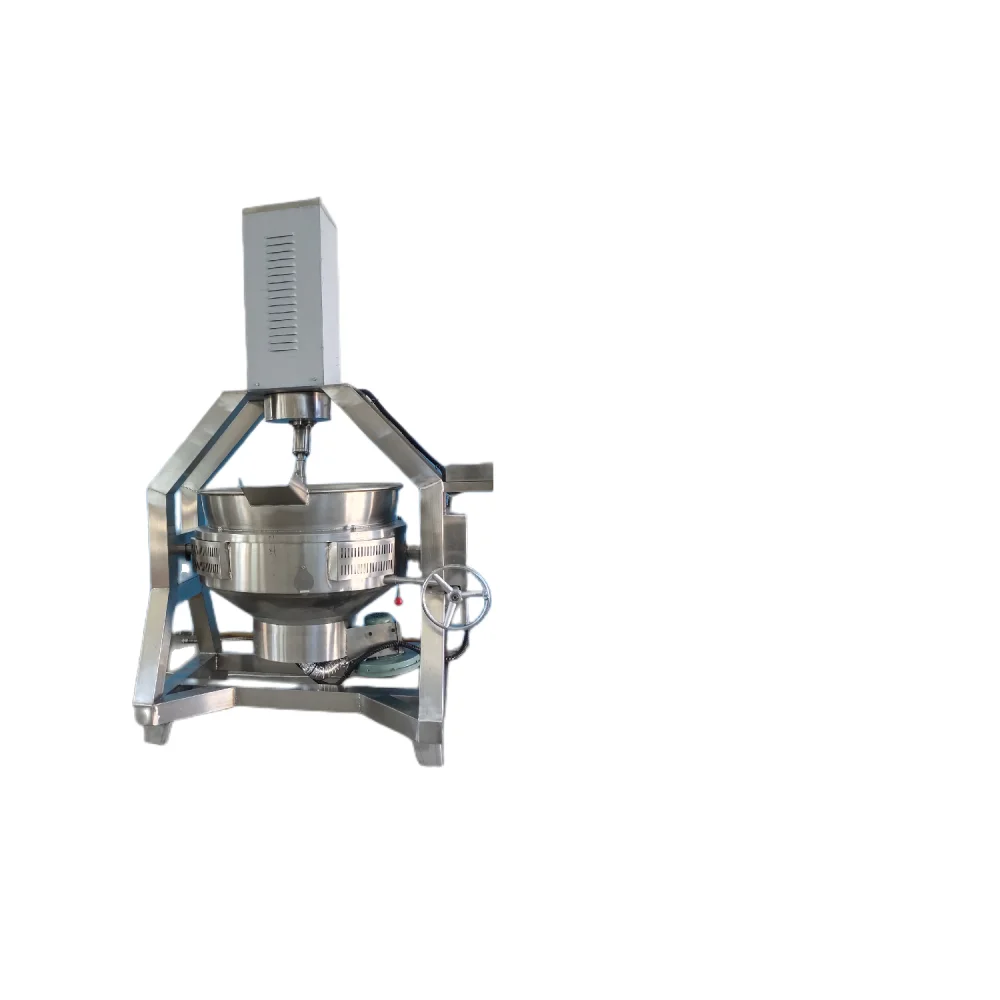

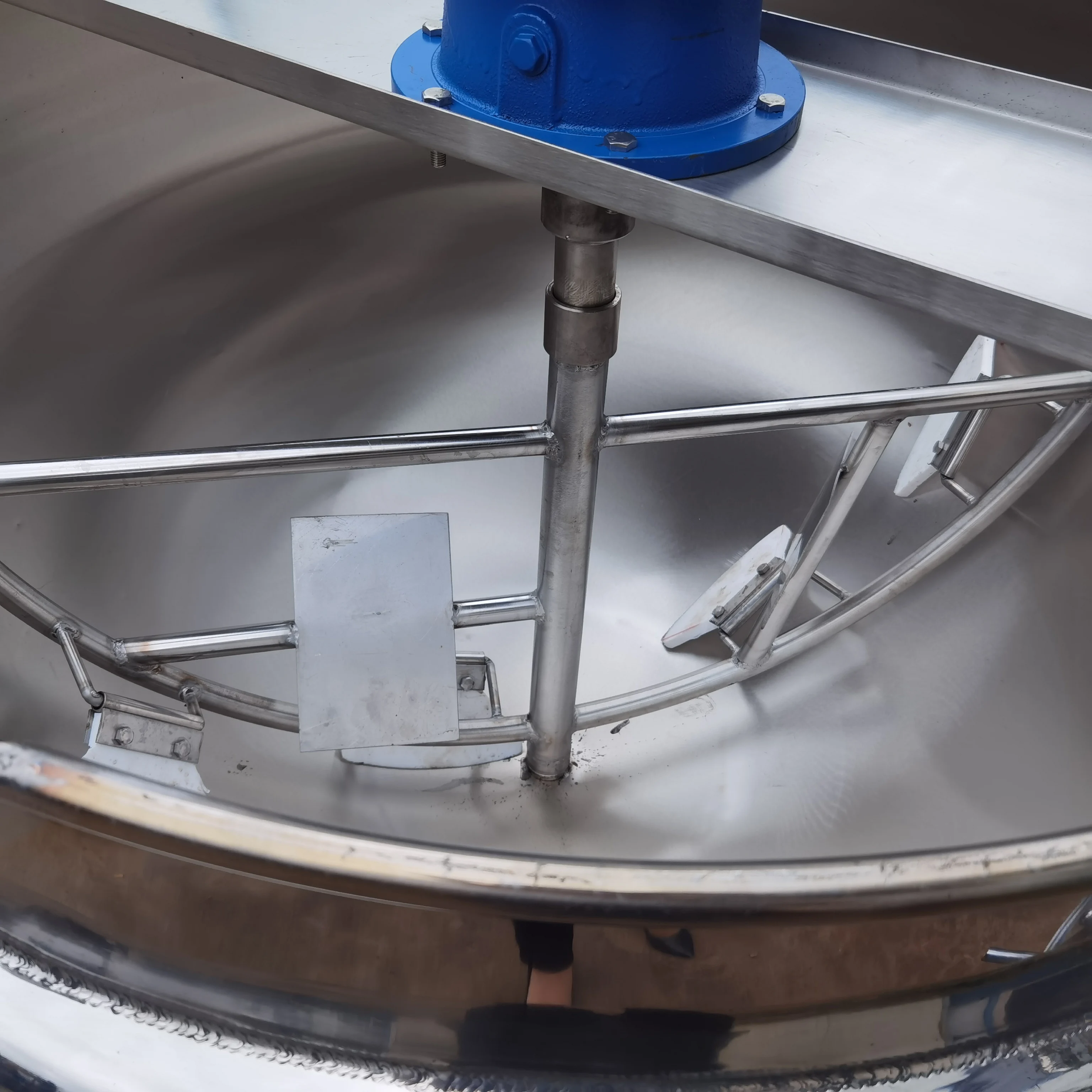

The so-called semi-automatic planetary stirring frying pan is frying pan+planetary stirring+semi-automatic discharging. The shell of the frying pan is made of food grade 304 stainless steel with a hemispherical body formed by one time cold stamping, which meets the requirements of food safety production. Planetary stirring with stepless speed change, autobiography and revolution are combined to ensure complete bottom scraping, which can effectively avoid sticking to the pan and pasting the pan and make the materials stir more evenly. The manual deceleration anti turnover pan is used for discharging, which is convenient and reliable. The heat source can be selected flexibly by using electromagnetic, electric heating, heat transfer oil, gas, steam heating and other heating methods for customers to choose. The heating area is large, and the latest energy-saving combustion structure has high thermal efficiency, saving 40% of the cost compared with the traditional combustion structure

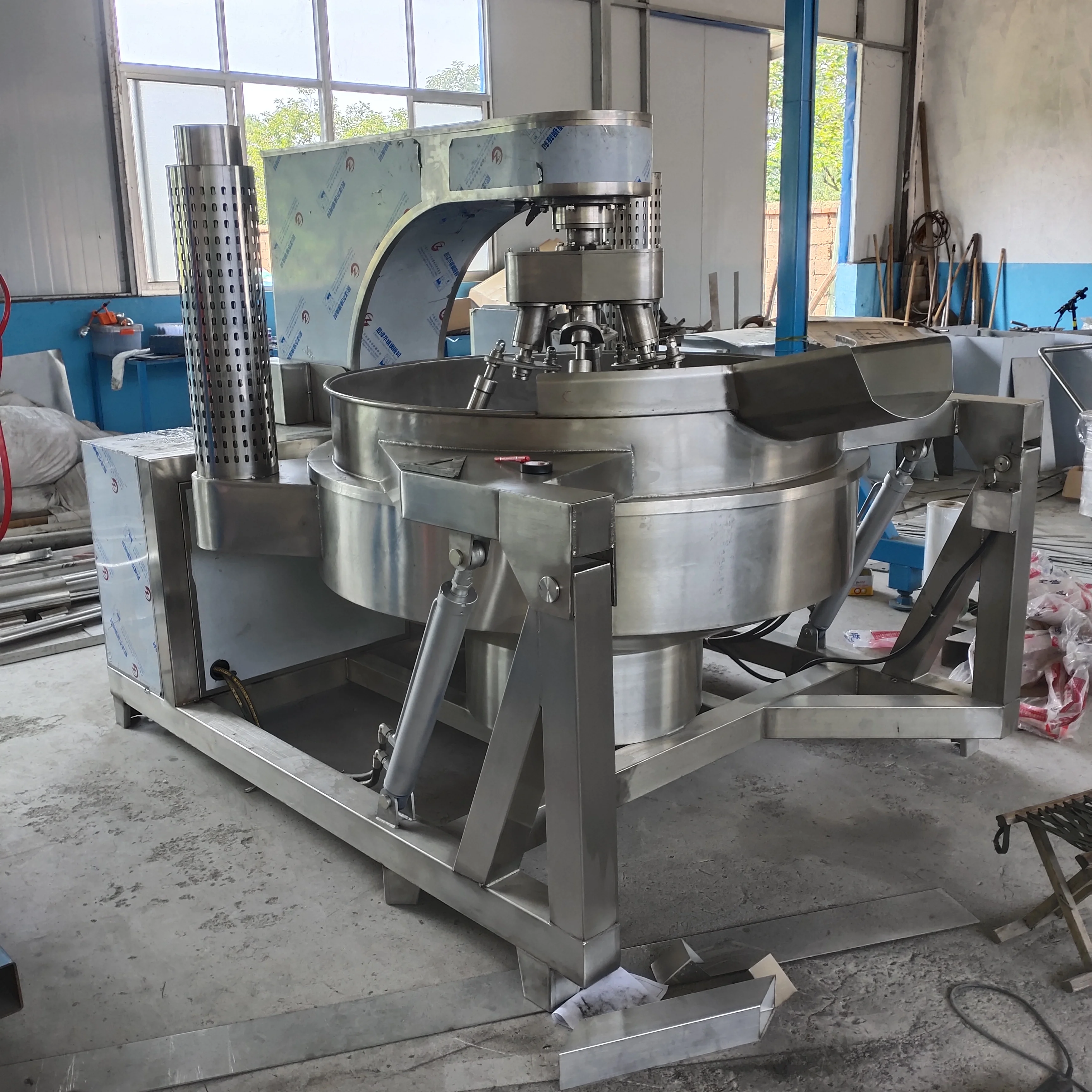

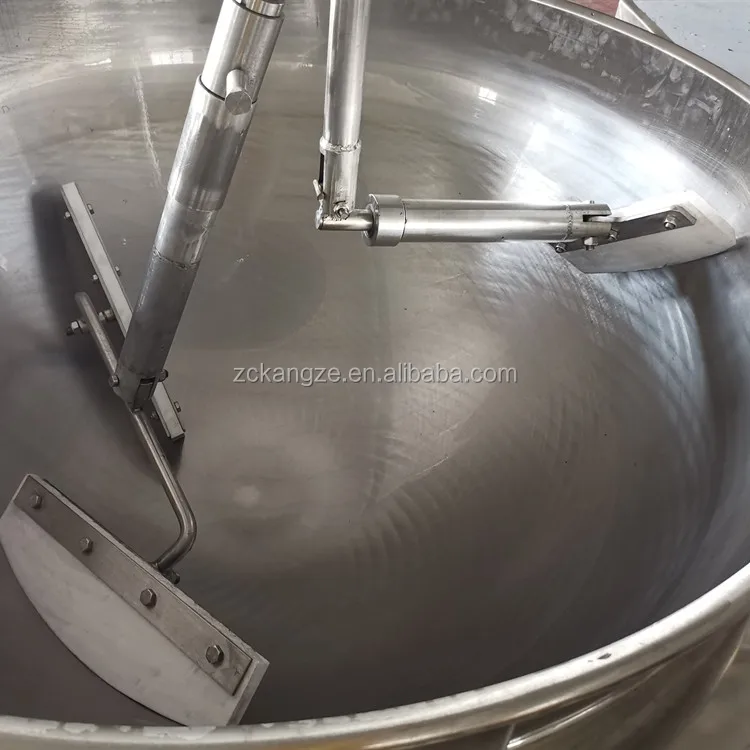

The automatic planetary frying pan is mainly used for mixing and frying materials with a certain viscosity. The processing of this material has its particularity. If the automatic planetary frying pan is not used in the processing process, it is very easy to stick the pan and paste the pan. This takes time and effort and costs materials. Even if it can be processed, the taste is not good. The biggest feature of the fully automatic planetary frying pan is that the bottom and edge are scraped during the mixing process, and there is no dead angle for 360 ° mixing, so that even viscous materials will not appear in the sticky pan. Therefore, if viscous materials are to be processed, planetary stirring frying pan should be selected; For example, sauces with meat, sticky hot pot bottoms, various fillings that need to be stir fried, donkey hide gelatin products, boiled sugar, etc.

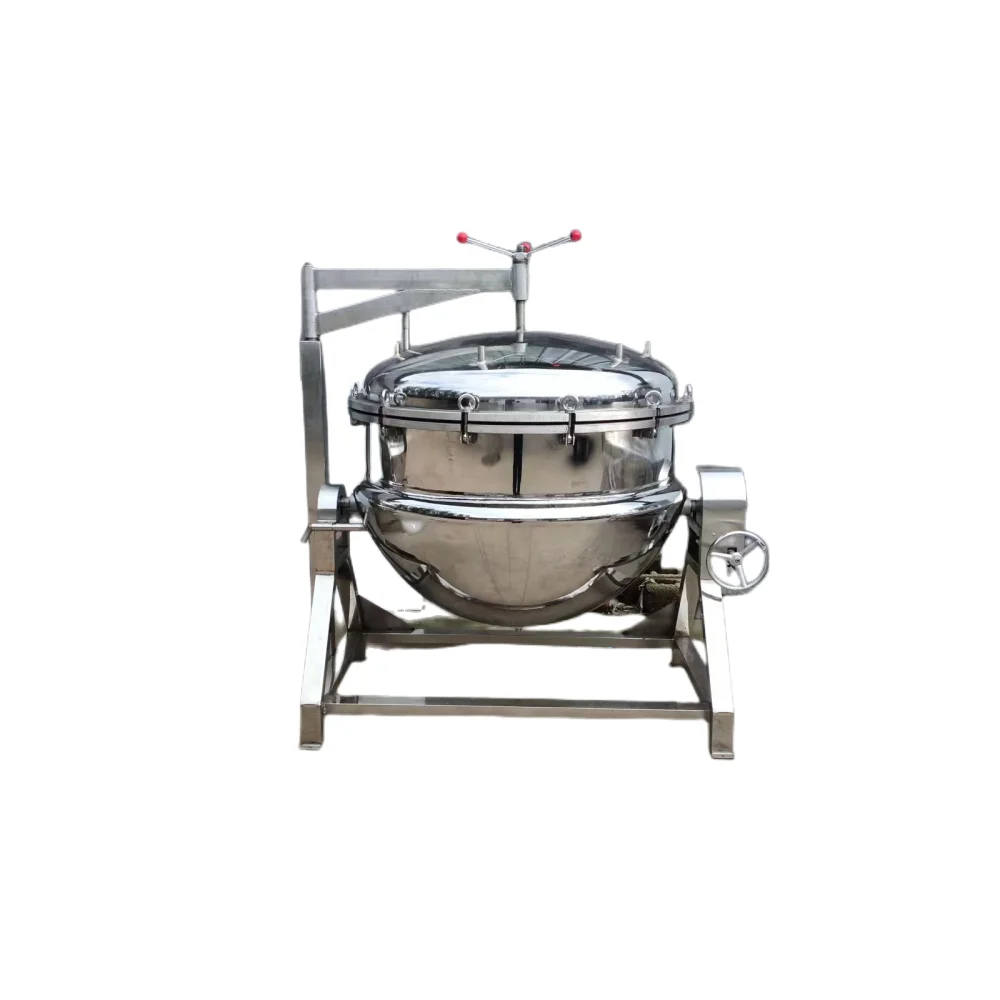

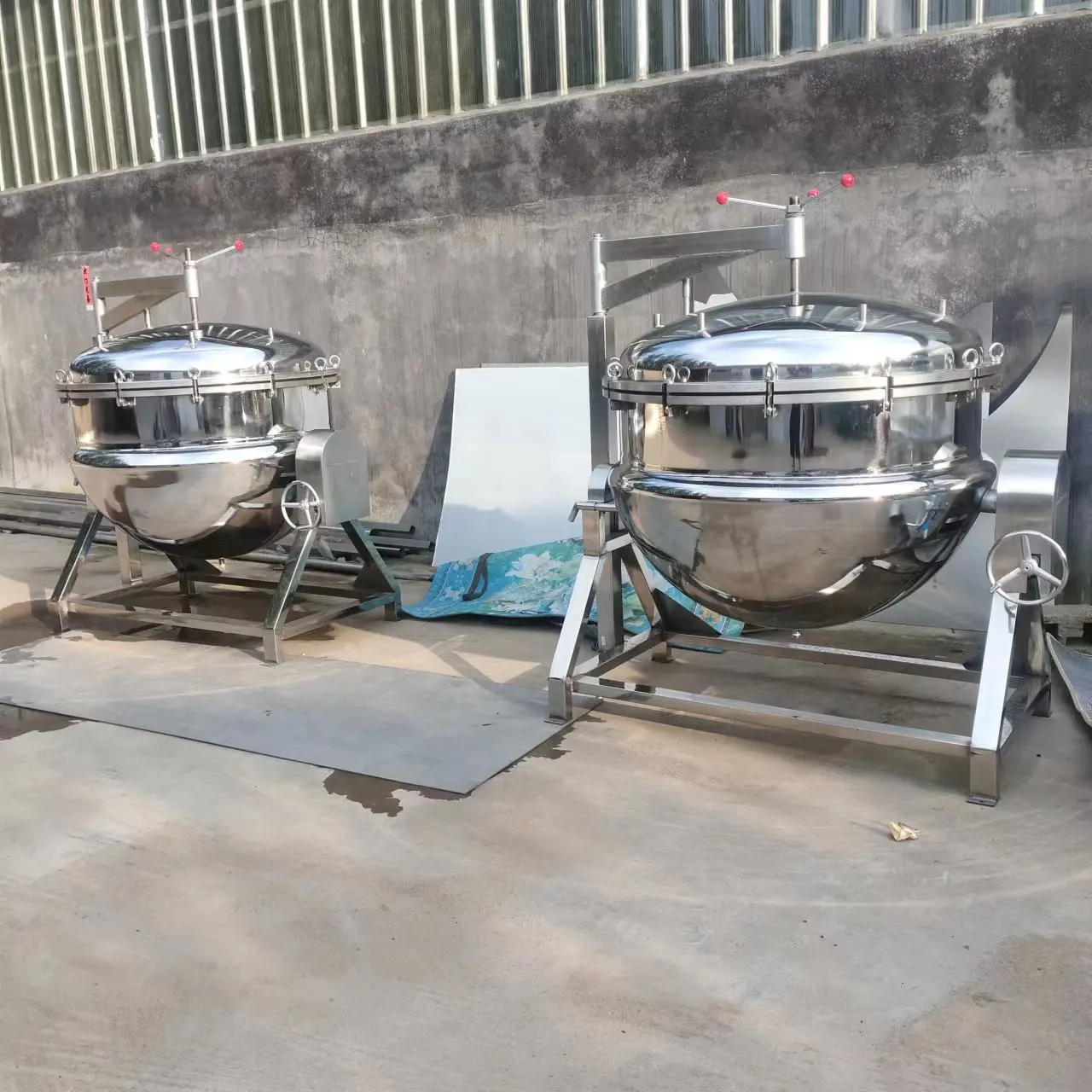

The electric heating tube heating is to use a high-quality 304 stainless steel heating roller to heat the heat transfer oil in the jacket, heat the 320 # or 350 # heat transfer oil to boil and brine the materials in the compartment pan, and seal the opening of the pan with a quick opening flange or a bolt type flange to form a pressure in the pan (the pressure can be set freely), so that the materials can be boiled under high pressure to achieve rapid softening, decay, and dissolution!
The boiler is designed with temperature control and can be set freely, and the cooking time can be designed. The boiler door can be opened easily and conveniently by turning the boiler door with a wrench or by turning the cylinder,

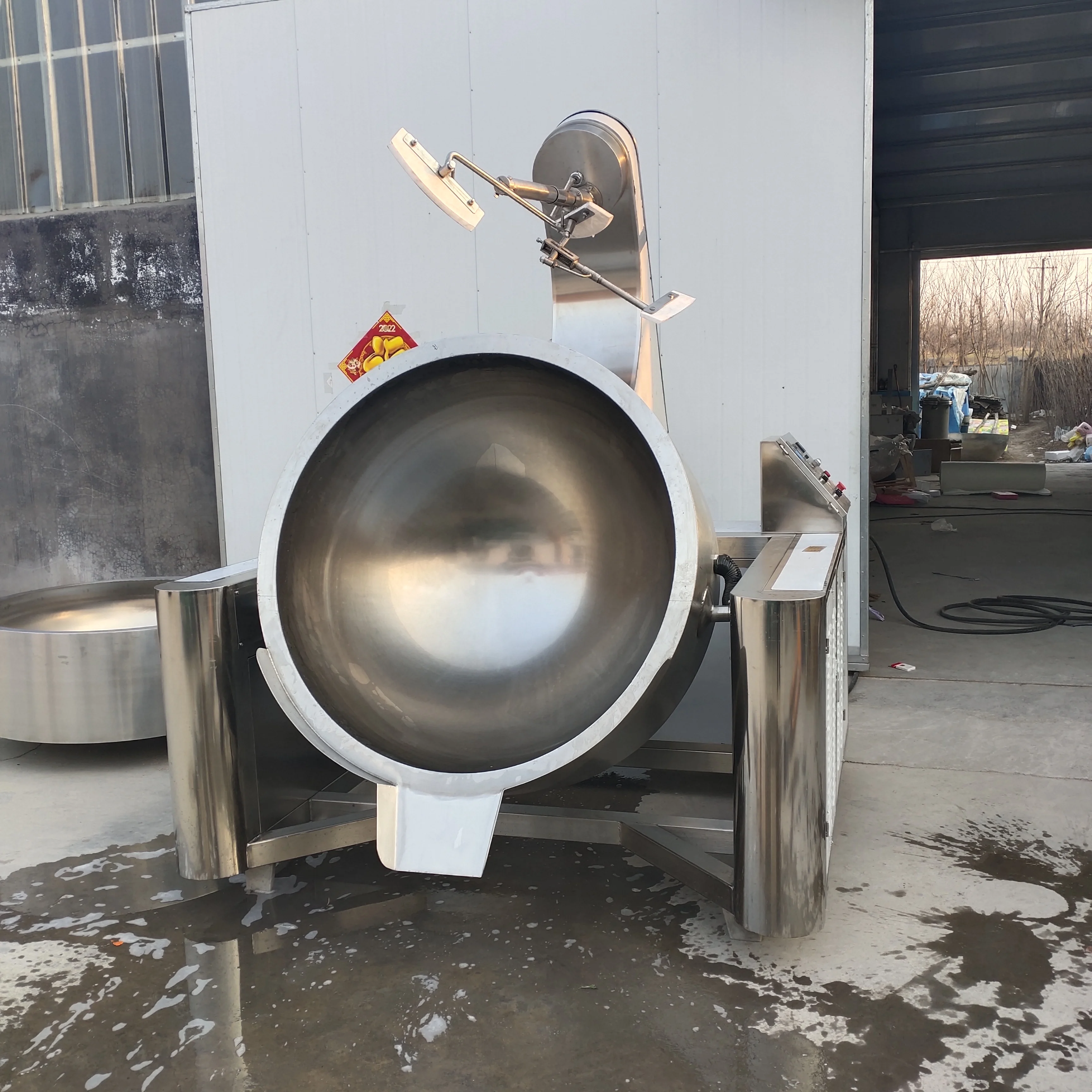

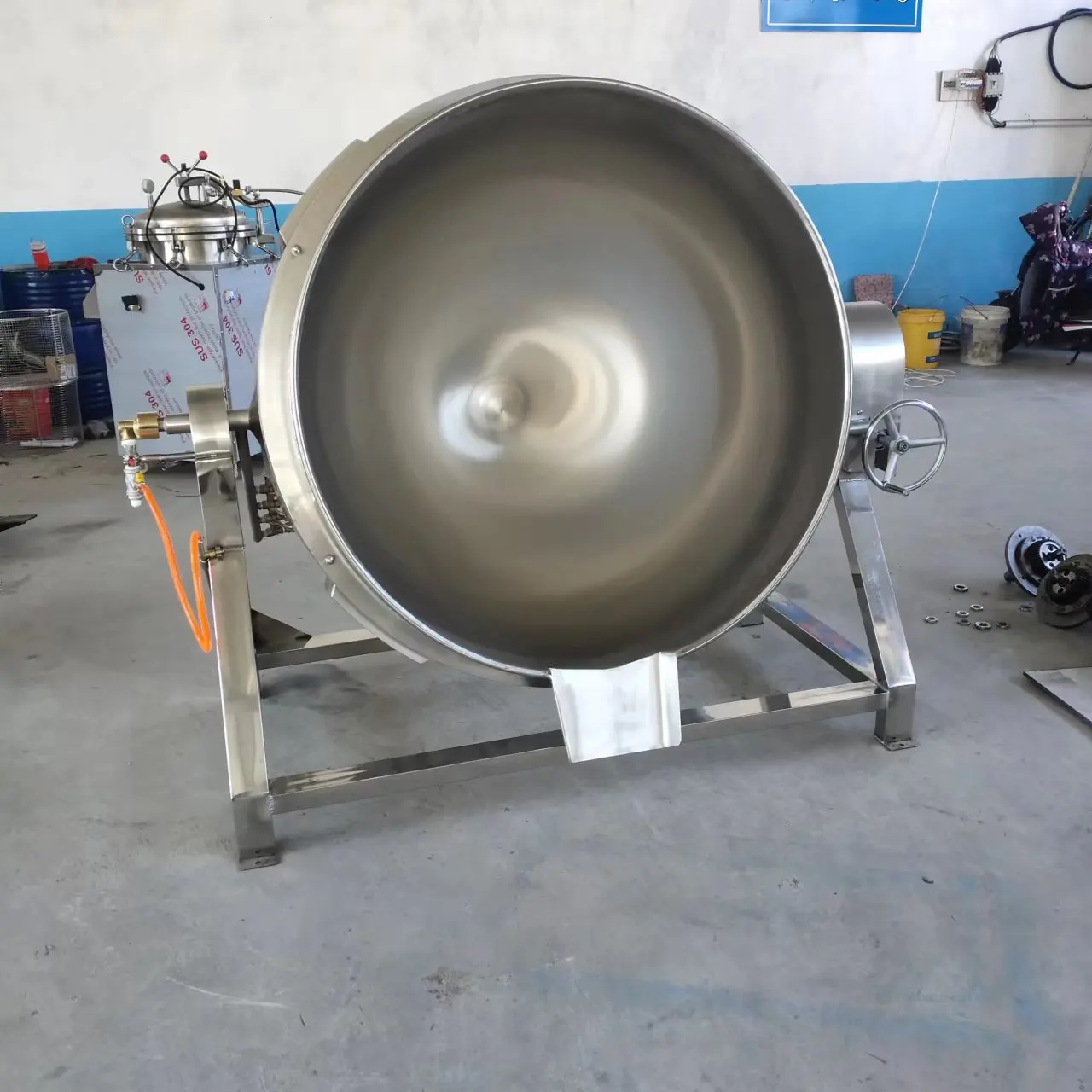

The principle of worm gear for material transfer design is to tilt the pot by shaking the handle, so that the materials in the pot can be discharged from the pot. The hydraulic device can also be designed to tilt the pot by pressing the switch, so that the materials in the pot can be discharged, and the pot can automatically return to its original position.
The boiler is designed with temperature control and can be set freely, and the cooking time can be designed. The boiler door can be opened easily and conveniently by turning the boiler door with a wrench or by turning the cylinder,
The principle of worm gear for material transfer design is to tilt the pot by shaking the handle, so that the materials in the pot can be discharged from the pot. The hydraulic device can also be designed to tilt the pot by pressing the switch, so that the materials in the pot can be discharged, and the pot can automatically return to its original position.

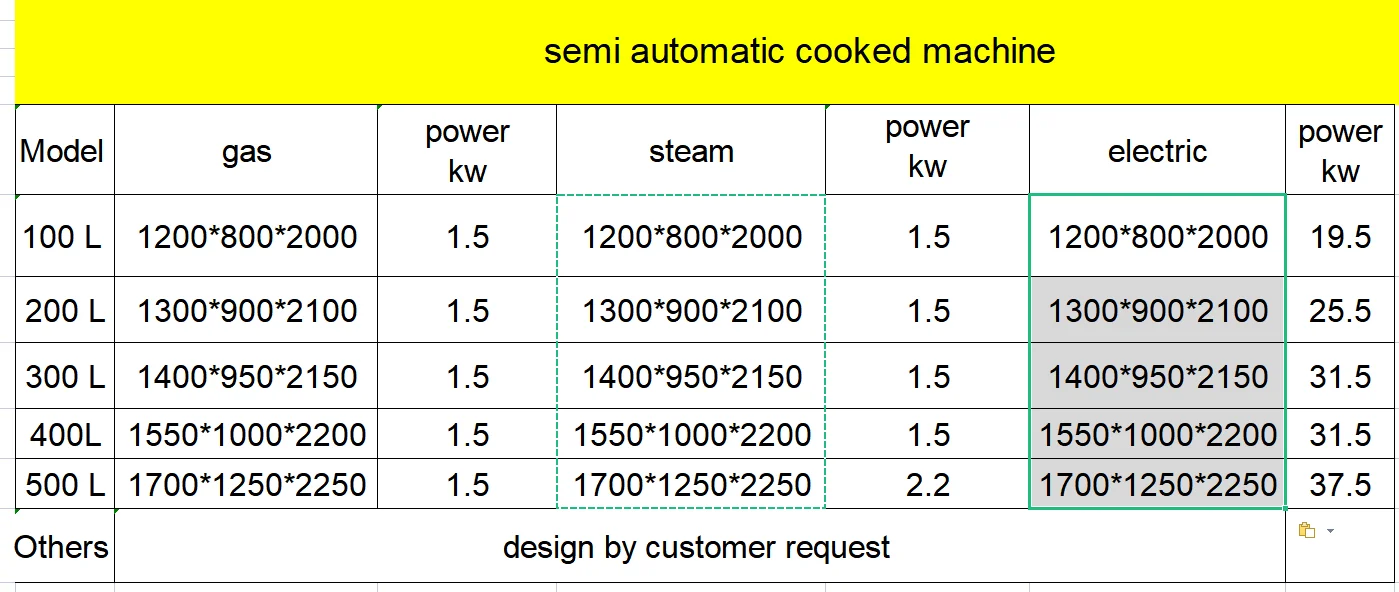

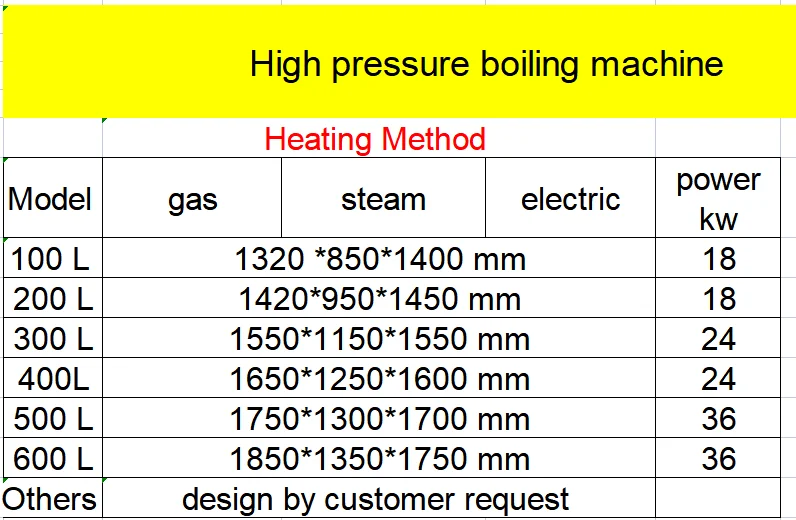

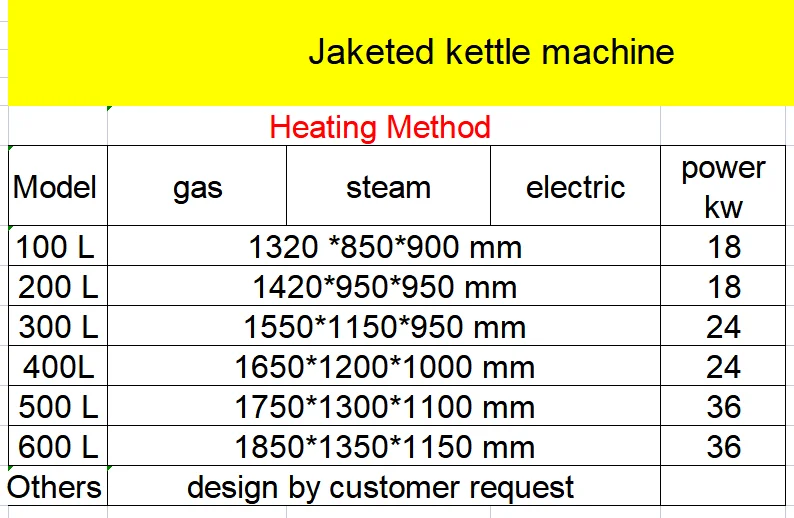

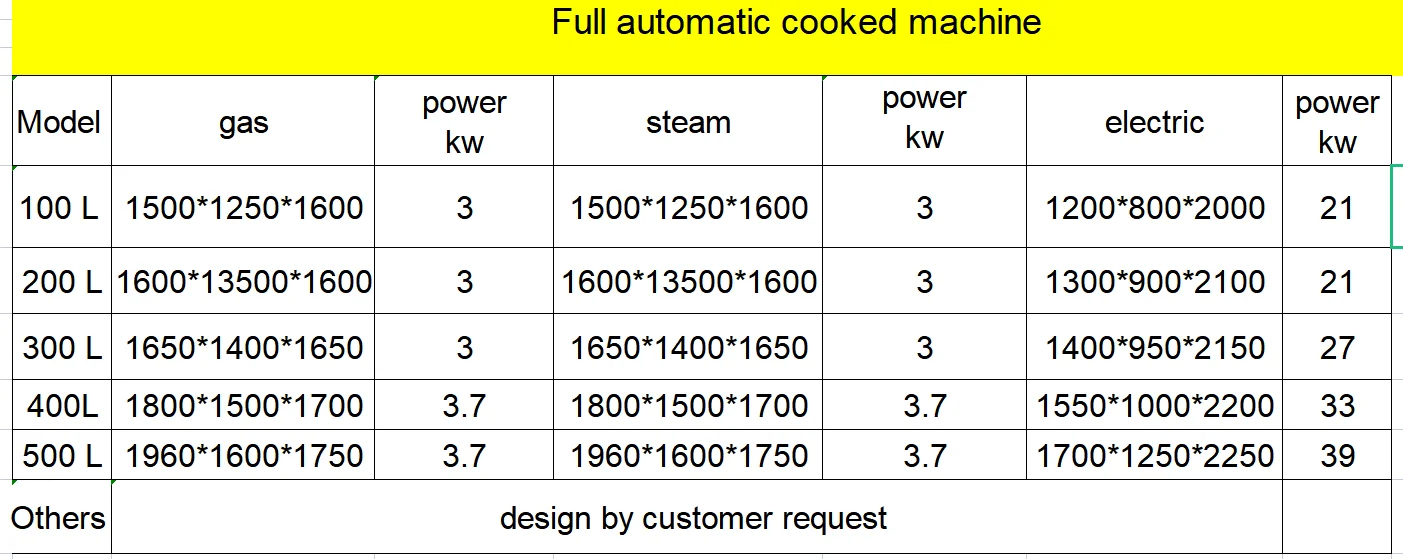

products parameter
Details Images
suitable range

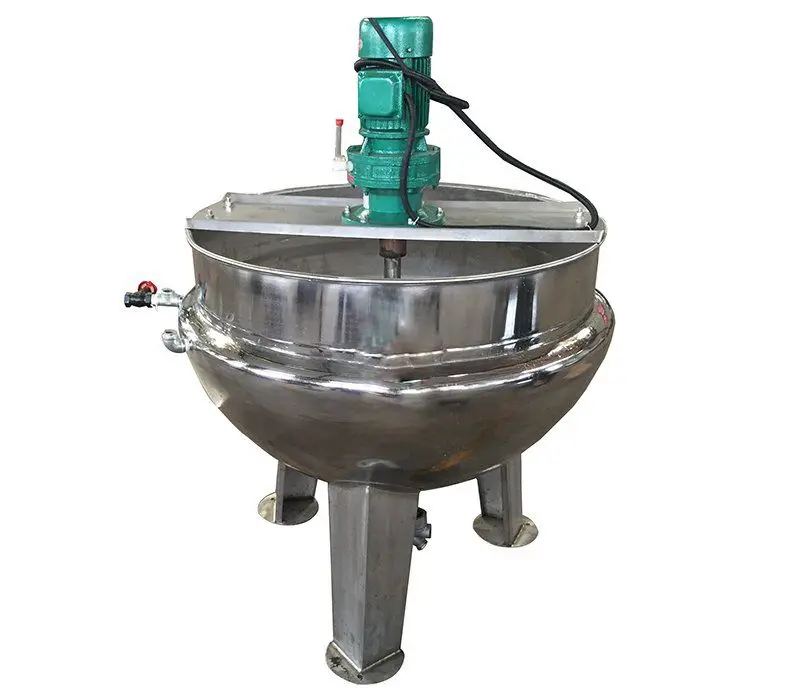

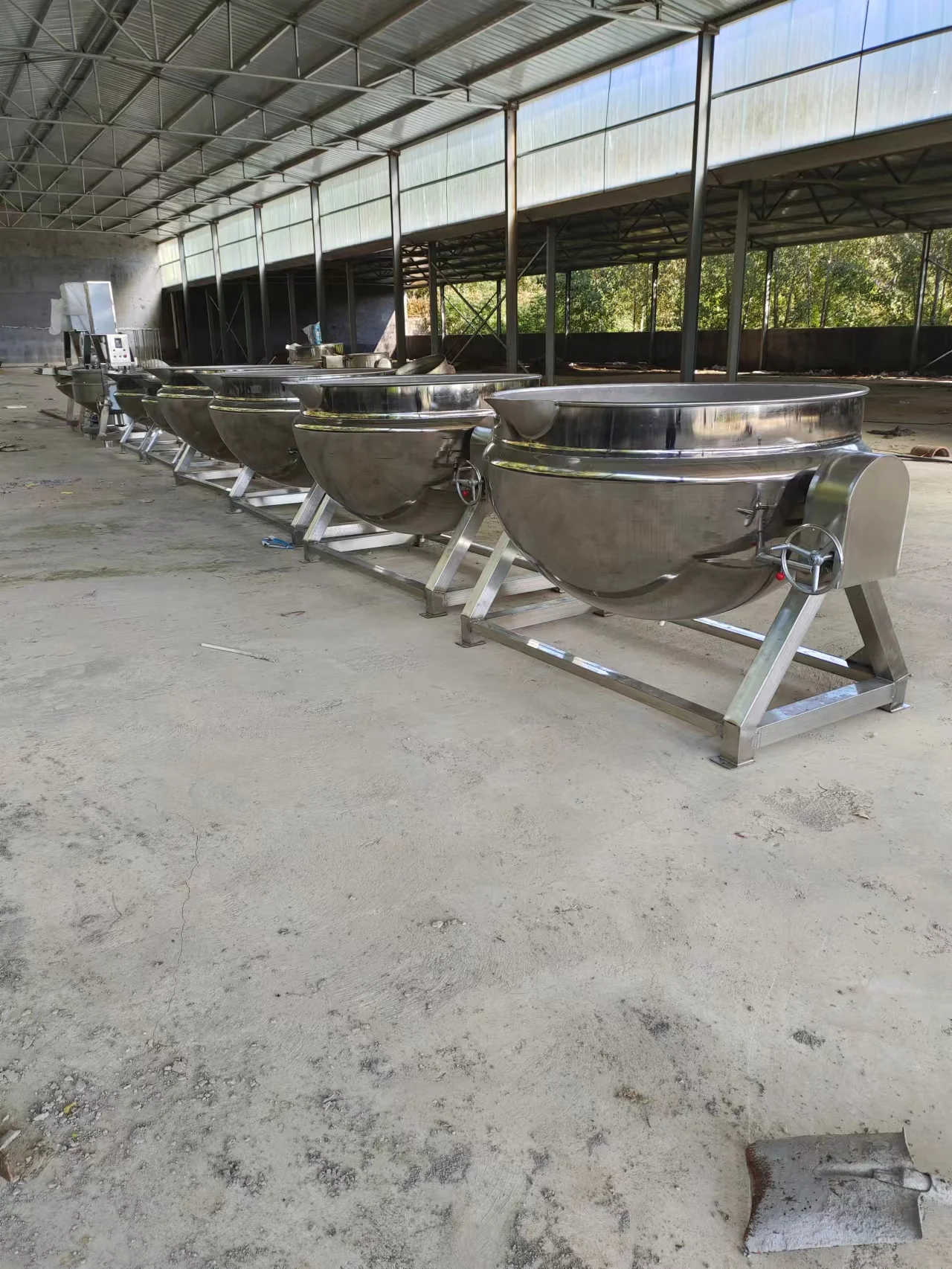

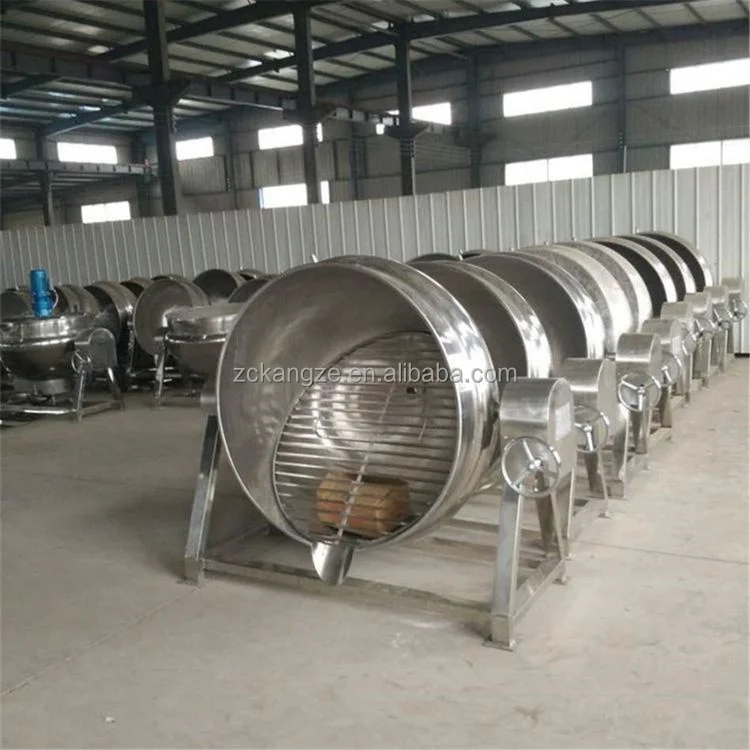

jacketed kettle
cooked machine

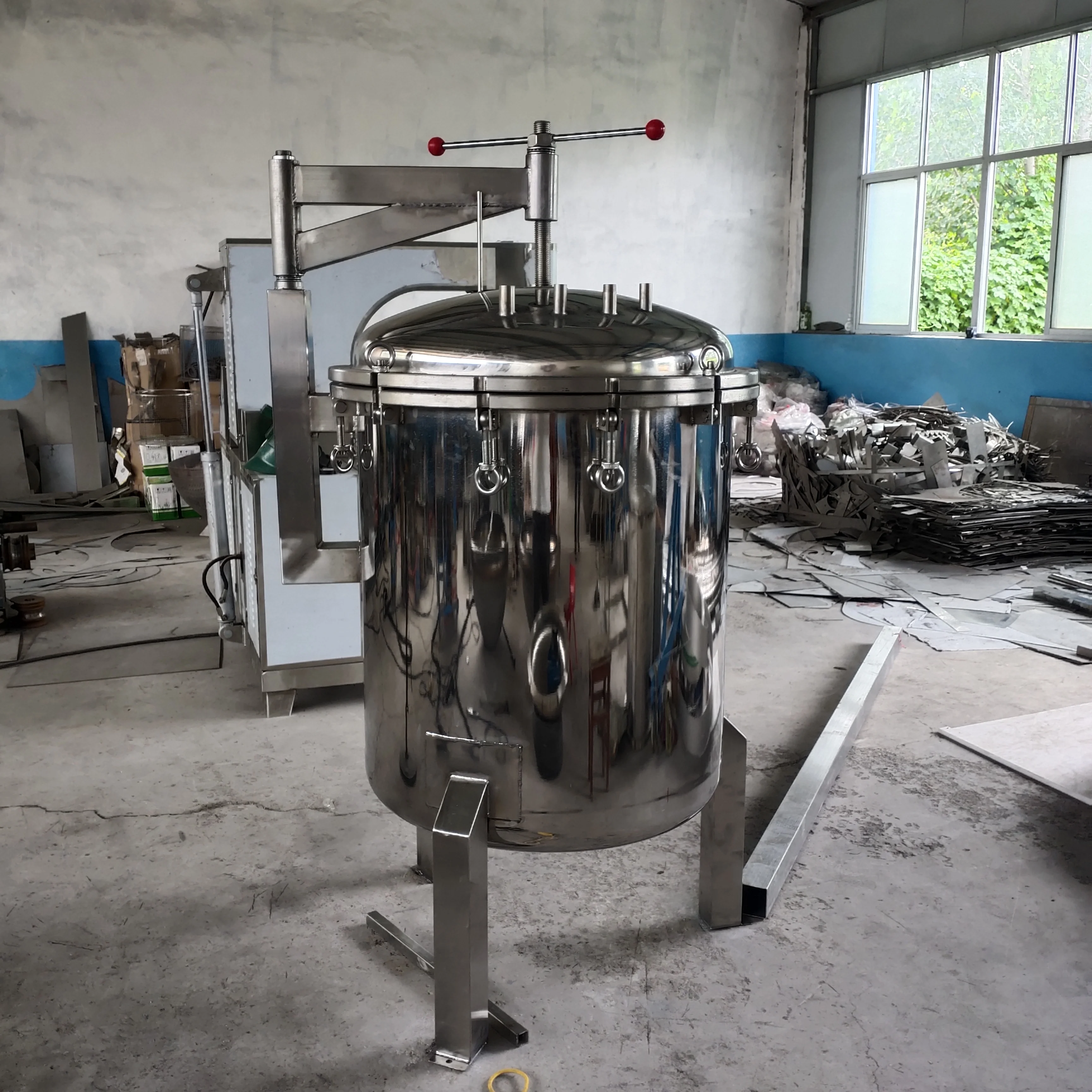

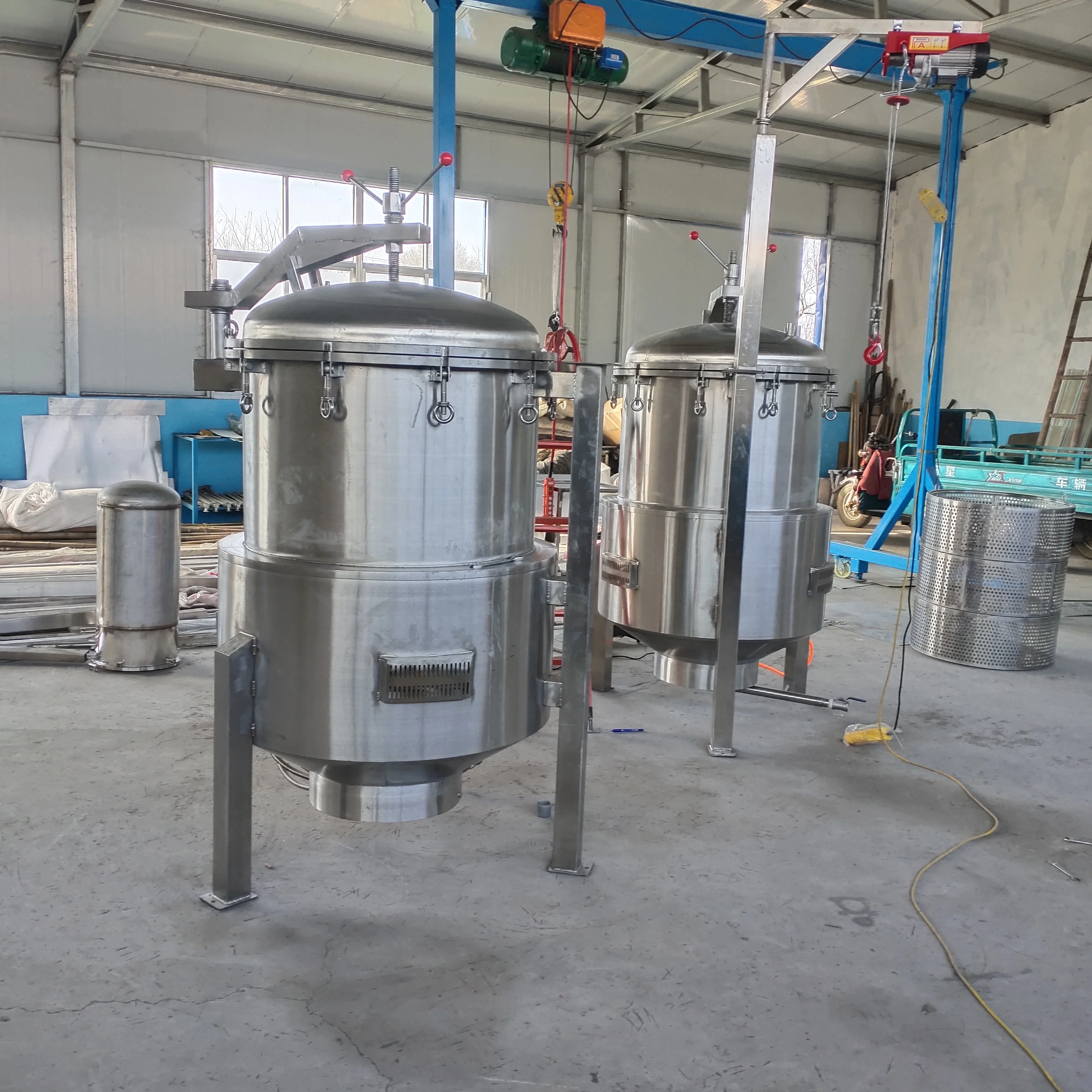

high pressure boiling machine

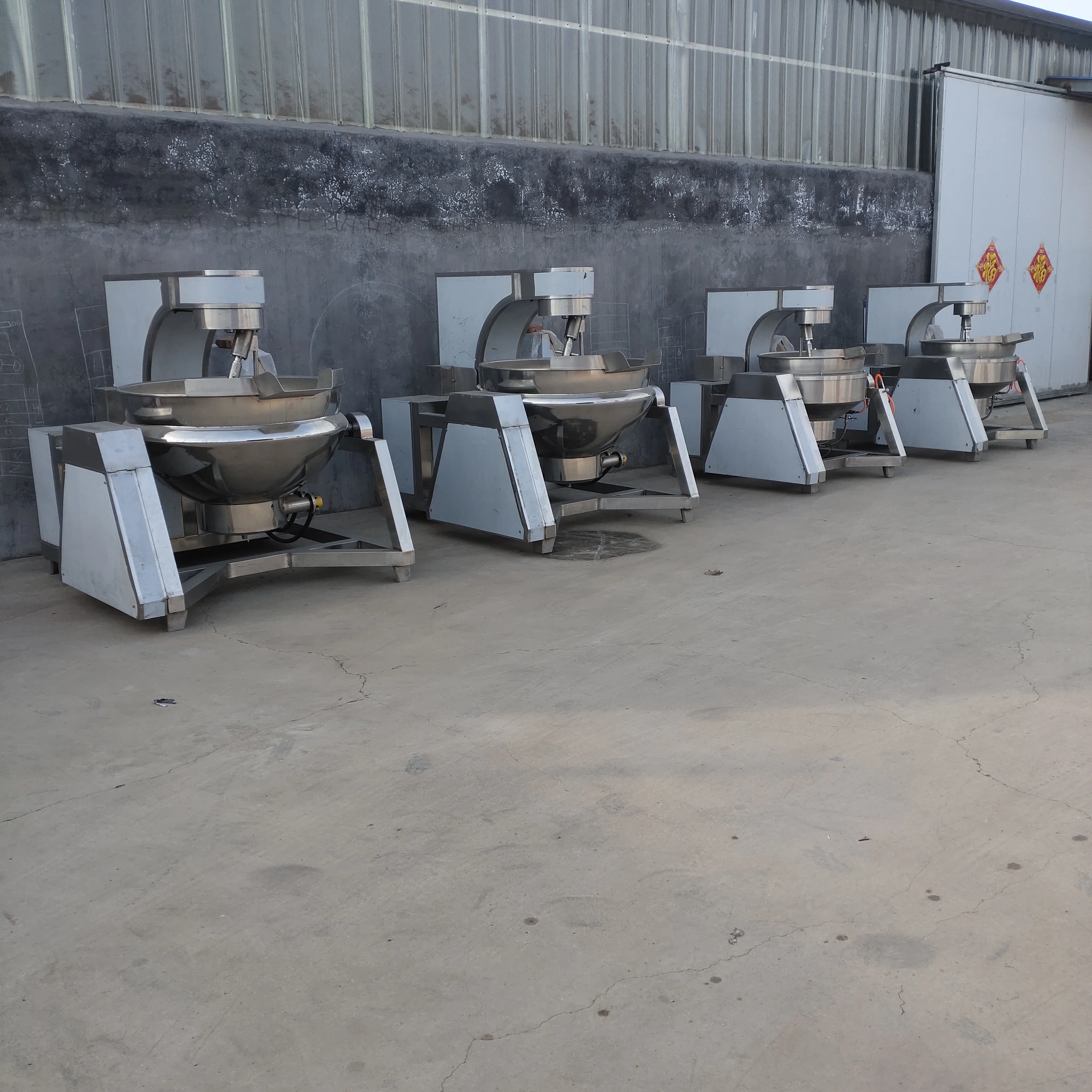

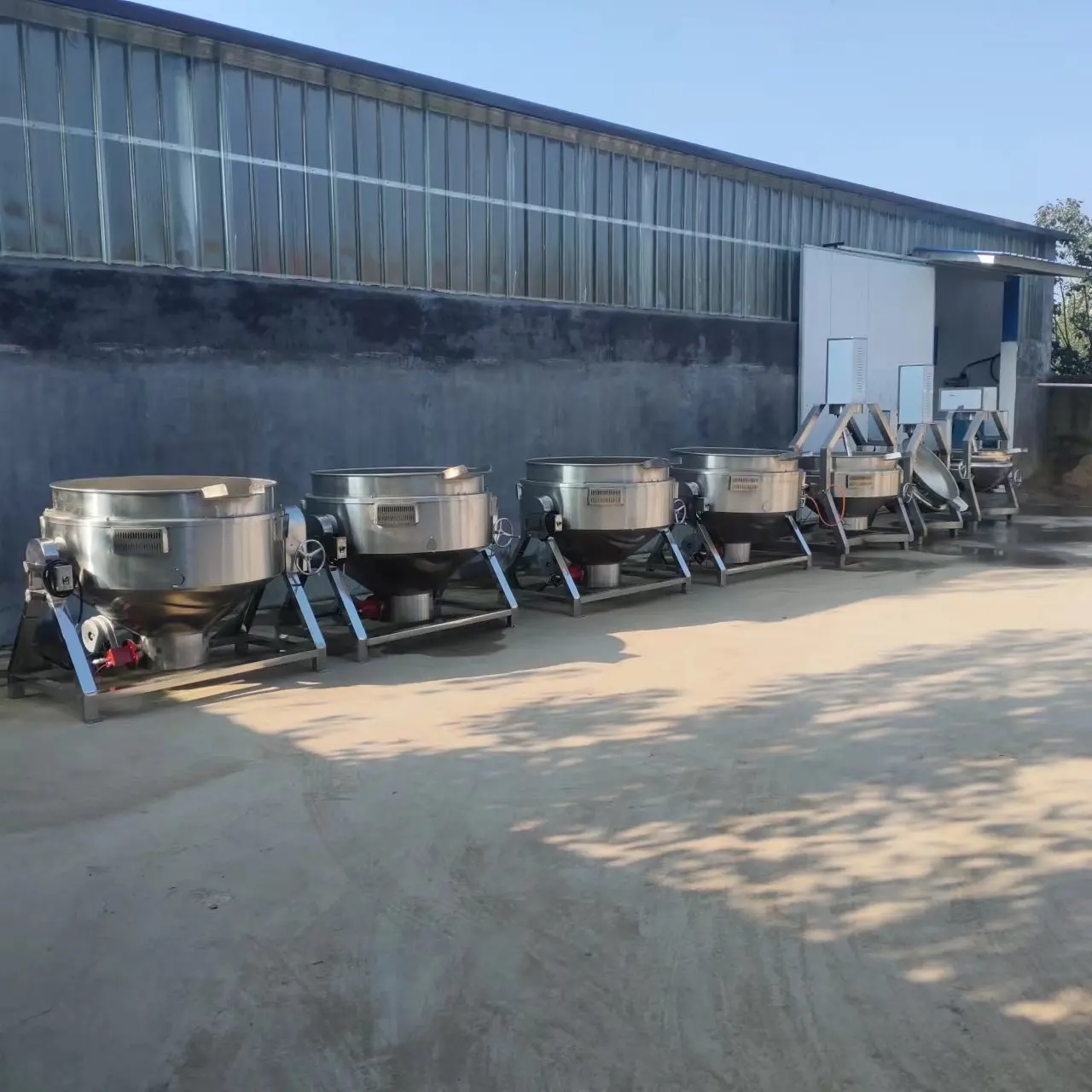

Workshop and warehouse

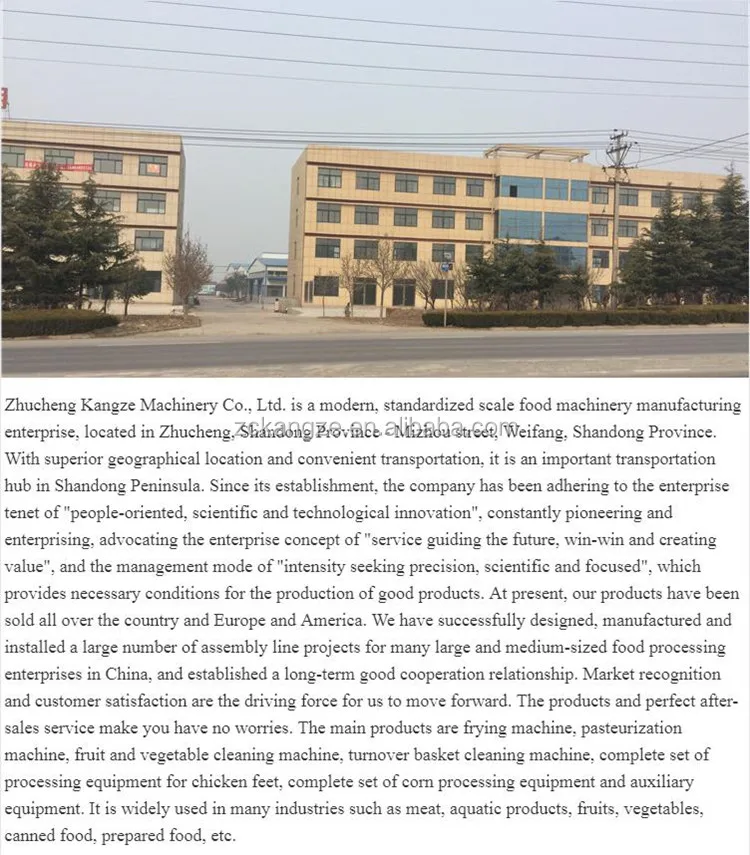

Company Profile
customer visited and logistics
