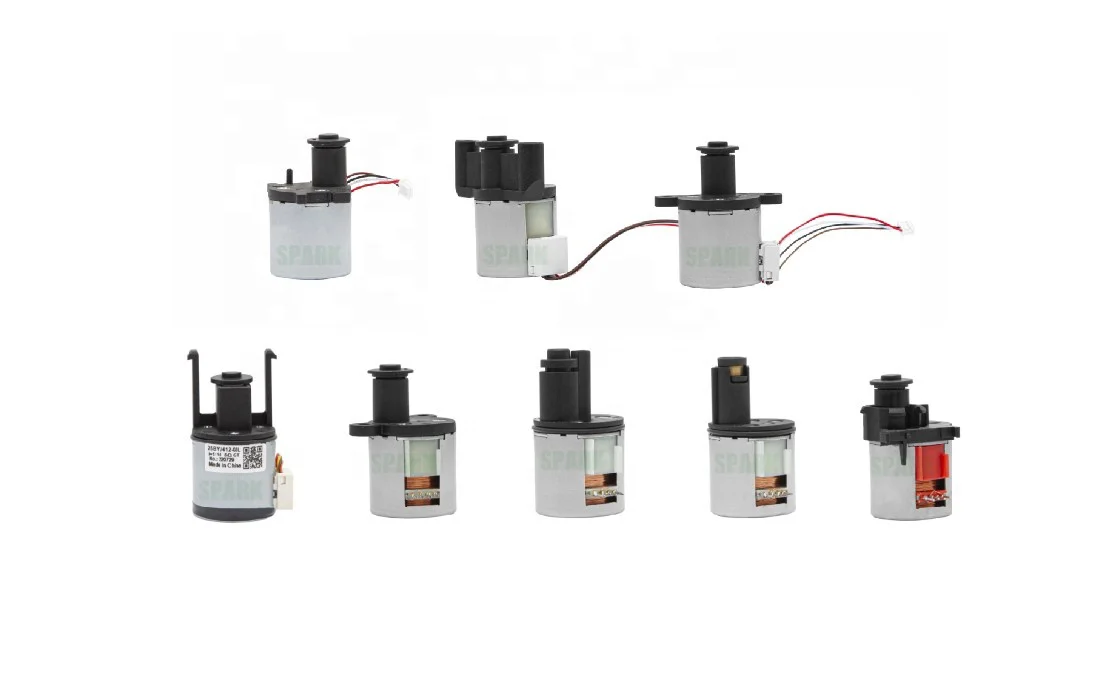

25BYJ/25BYJ412 PM Linear Motor With 1:10 Gear Ratio For electric wifi thermostatic radiator/smart TRV/vale control
- Category: >>>
- Supplier: Changzhou Spark Motor Tech Co. Ltd.
Share on (1600637799405):
Product Overview
Description
Products Description
25BYJ Linear Actuator
PM linear actuator converts the rotation of the motor into a linear motion through the relative movement of the internal rotor and the screw. It is mainly used in smart home appliance, valve control, automatic buttons, medical equipment, textile machines, robots and other related fields.
General Specification:
Item | Specification |
Step Angle Accuracy | ±8%(full step, no load) |
Resistance Tolerance | ±10% |
Inductance Tolerance | ±20% |
Temperature Rise | 80.C Max.(rated current,2 phase on) |
Ambient Temperature | -20.C~+50.C |
Insulation Resistance | 100MΩMin. ,500VDC |
Dielectric Strength | 600VAC , 1s , 3mA |

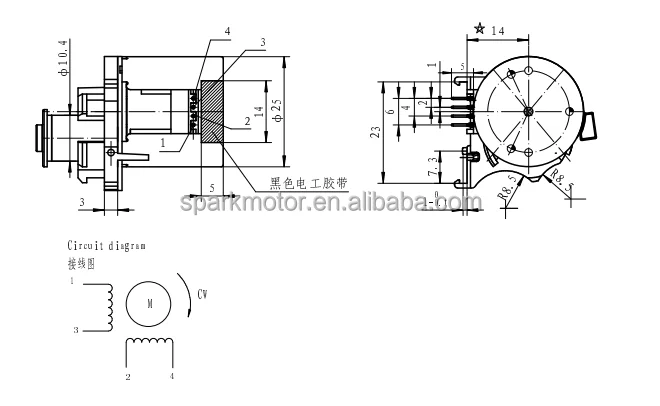

Dimension as below:
BYJ Series: | ||||||||
Diameter | 24mm | 25mm | 28mm | 35mm | ||||
Model No. | 24BYJ48 | 25BYJ412; 25BYJ48 | 28BYJ48 | 35BYJ412; 35BYJ46 | ||||
Customization On Call | ||
Coil Modifications | Resistance and Inductance. | |
Voltage amendment | 5V, 12V, 24V | |
Magnets | to yield higher linear force or reduced detent levels. | |
Screw | metric or imperial tips, length. | |

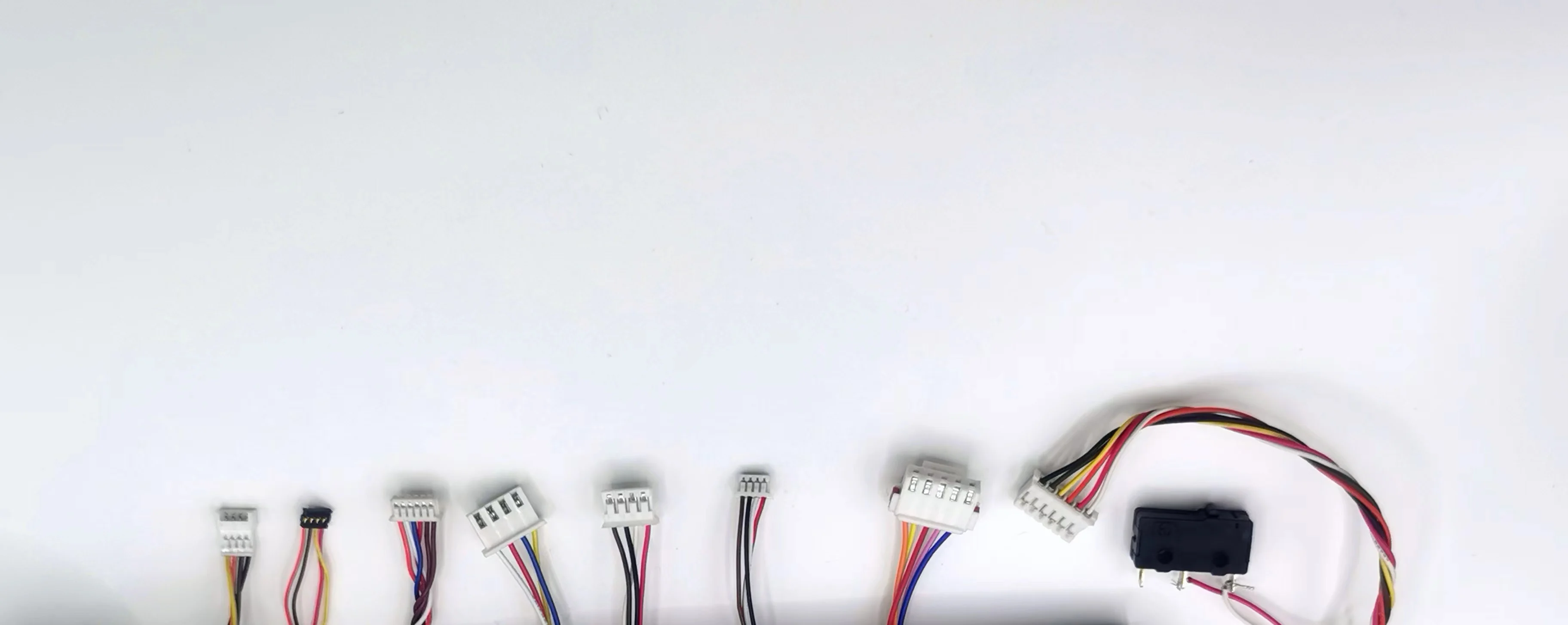

Wire Harness | connectors, pins, lead length, shrink tubing. | |
Higher Strength Plastics for higher impact forces. | ||
Reduced or increased Detent Force to suit the application. | ||
Special Flanges, Connectors. | ||
Application
Wide applications
Stepper motors use input pulses to take proportional steps. These motors can be used for positioning and/or speed control in a wide variety of applications:
* Valve control. * Clinical Diagnostics
* CCTV system. * Printers and copiers
* Pharmaceutical dispensing. * Robotics Antenna positioning
* CCTV system. * Printers and copiers
* Pharmaceutical dispensing. * Robotics Antenna positioning
