Вращающаяся трубка 600 кг 240 мм, фланцевое отверстие, Сварочный позиционер, цена
- Category: Other Welding Equipment >>>
- Supplier: Dalian,Acrros,Machine,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Welding Positioner / Welding Turn table
Tube Rotating 600Kg 240Mm Hole Welding Positioner Price
Advantage of CNC welding positioner:
Accurately control the rotation angle of the turntable workpiece, the falling time of the pneumatic welding gun, the arcing of the welder etc., PLC display parameters, one-key operation, simple structure, and portable equipment. It is suitable for automatic welding of circular seams, to achieve high-quality automatic welding.
Steel pipe can pass through the worktable and chuck, which can ensure the concentric rotation of the weld; Suitable working: bellows, stainless steel, flanges, pipes, engineering machinery high pressure oil pipes and long tubs etc.
SPECIFICATIONS:
| Model | AWP-30 | AWP-50 | AWP-100 | AWP-200 | AWP-300 | AWP-600 |
| Capacity | 30 kg | 50 kg | 100 kg | 200 kg | 300 kg | 600 kg |
| Table dia. | 310 mm | 320 mm | 360 mm | 400 mm | 500 mm | 650 mm |
| Speed | 0.1-9 R/M | 0.1-9 R/M | 0.05-5 R/M | 0.05-5 R/M | 0.05-5 R/M | 0.01-5 R/M |
| Motor power | 57 Stepper motor | 86 Stepper motor | 86 Stepper motor | 86 Stepper motor | 86 Stepper motor | 86 Stepper motor |
| Table hole | 25 mm | - | 65mm | 100/140mm/170mm | 140/170 mm | 245/360mm |
PACKAGE :
1. Welding rotary positioner turntable.
2. PLC Touch Screen.
3. Footpedal.
4. Power line.
5. Line to linkage to your torch.
6. Wooden case package.
Optional:
1. Quick welding chuck, wp200mm, wp300mm, wp400mm and bigger.
2. Welding Torch stand ( Manual/Pneumatic).
3. Pneumatic Head and Tailstock.
4. Pipe Support Bracket.
SHIPPING :
1. By Couriers: DHL/UPS/FEDEX/TNT to your address directly.
2. By Sea: Delivery to your sea port.
3. To your agent: Delivery to your China agent.
Welding Samples:
Flange, steel pipe, circular seam welding.
CHINA ACRROS WELDING POSITIONER FEATURES
1. The AWP CNC Series welding positioner is self-design as one high-tech positioner, which is PLC Touch screen control,driven by high-accuracy step motor with high precision, high torque and detailed control program.
2. The rotation speed range is 0.01r/min-9.00r/min ; rotation speed can be set up optionally in measurement unerring.
3. Rotation angle can be set up.
4. Controller has the function of memory storge. and the parameter which has been set can be read for the next operation.
5. Special design of anti-electromagnetic, which reduces the high frequency.
6. The machine can work linkage with welding.
7. The lagging time and arc starting can be set for welding. The lagging time can be set according to requirement while linkage with the welder.
8. The machine responses quickly, starting and stopping very smoothly.
9. The through-hole structure can facilitate the welding, which can delivery the protective gas.
10. ACRROS Rotary Welding Positioner is suit for flange, steel pipe, and other seam welding; Used for annular welding, cutting, polishing, assembling etc. Support CO2 ,MIG, MAG, TIG etc.

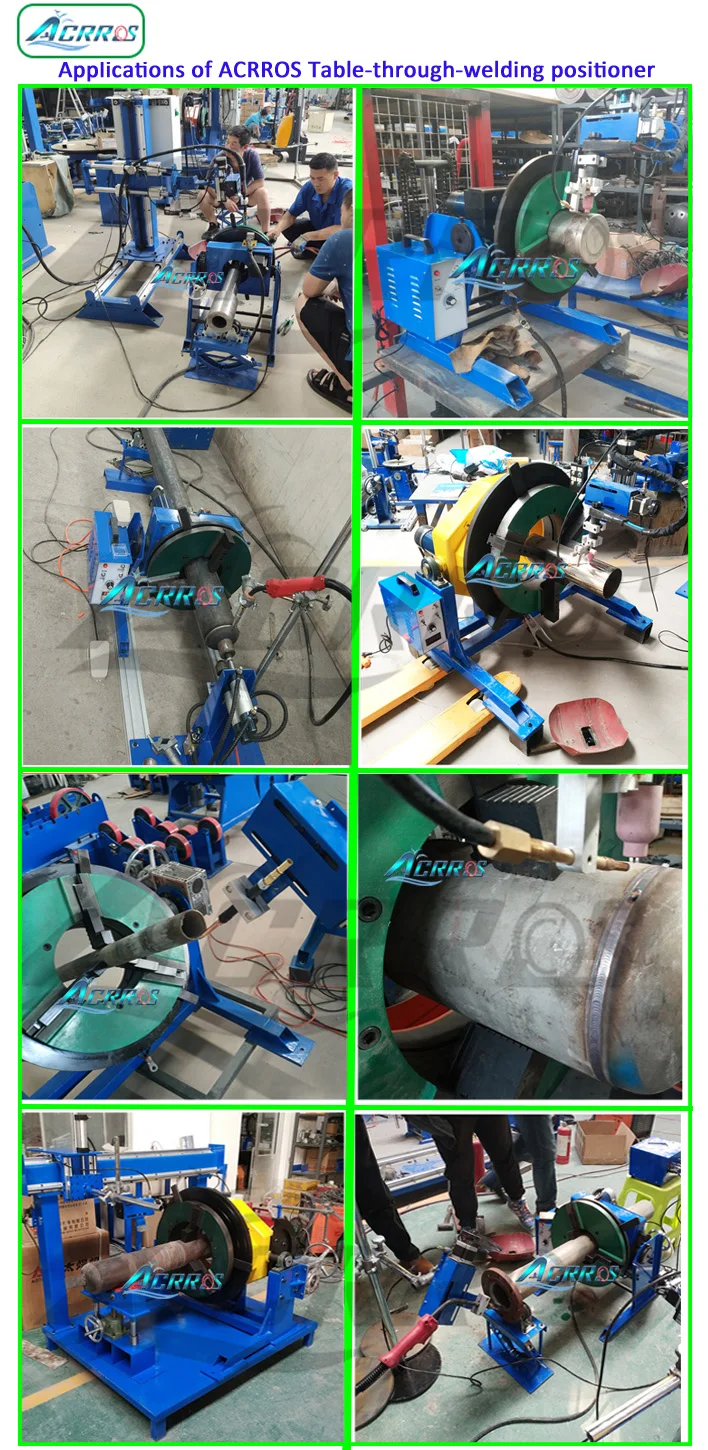

Acrros welding positioner turntable applications widely.
It can be matched with the tig,co2,mig welding machine and welding manipulator welding job.
Packaging & Shipping
Welding positioner with strong wooden case package
Company Information
Acrros Machine Co, Ltd has focused on introducing and cultivating high-tech talents and takes it as development strategy at present. Dalian Acrros Machine Co.,Ltd have been specialized in manufaturing welding positioners for more than 20 years. All of its welding positioner are certificated approved and exported all over the world. ACRROS is getting great reputation for its great quality and service. Welding positioners are the machines be used to change the position of work piece on the welding positioner table and to ensure smooth rotation of the work piece at certain required speed. So welding postitioner normally means a table rotates workpiece at certain rotation speed, optional torch holder, tailstock, pipe bracket etc.
ACRROS can be your loyal friends, we can establish our own national brand and witness prosperous future m a harmonious world.
If you interested in our products,Please dont hesitate to contact us for inquiry,
DALIAN ACRROS MACHINERY CO.,LTD.
Ms.Kelly Che _ Manager
E-MAIL: kelly@ acrrosmachine.com
MOB: +86-135-9177-2781
WHATSAPP:+86-135-9177-2781
WECHAT:+86-135-9177-2781
SKYPE:che.kelly29
FAQ
Q: Can I get some samples?
A: Yes, sample orders welcomed.
Q: Could I use my own logo or design the items?
A: Yes, customized logo and design on mass production are available,.
Q: Why do I trust you?
A: We are "Alibaba" verified supplier and we have high quality goods and service.
Q: What is your shipping item ?
A:
1. By Couriers: DHL/UPS/FEDEX/TNT to your address directly.
2. By Sea: Delivery to your sea port.
3. To your agent: Delivery to your China agent.
