Product Overview

Description



Products Description

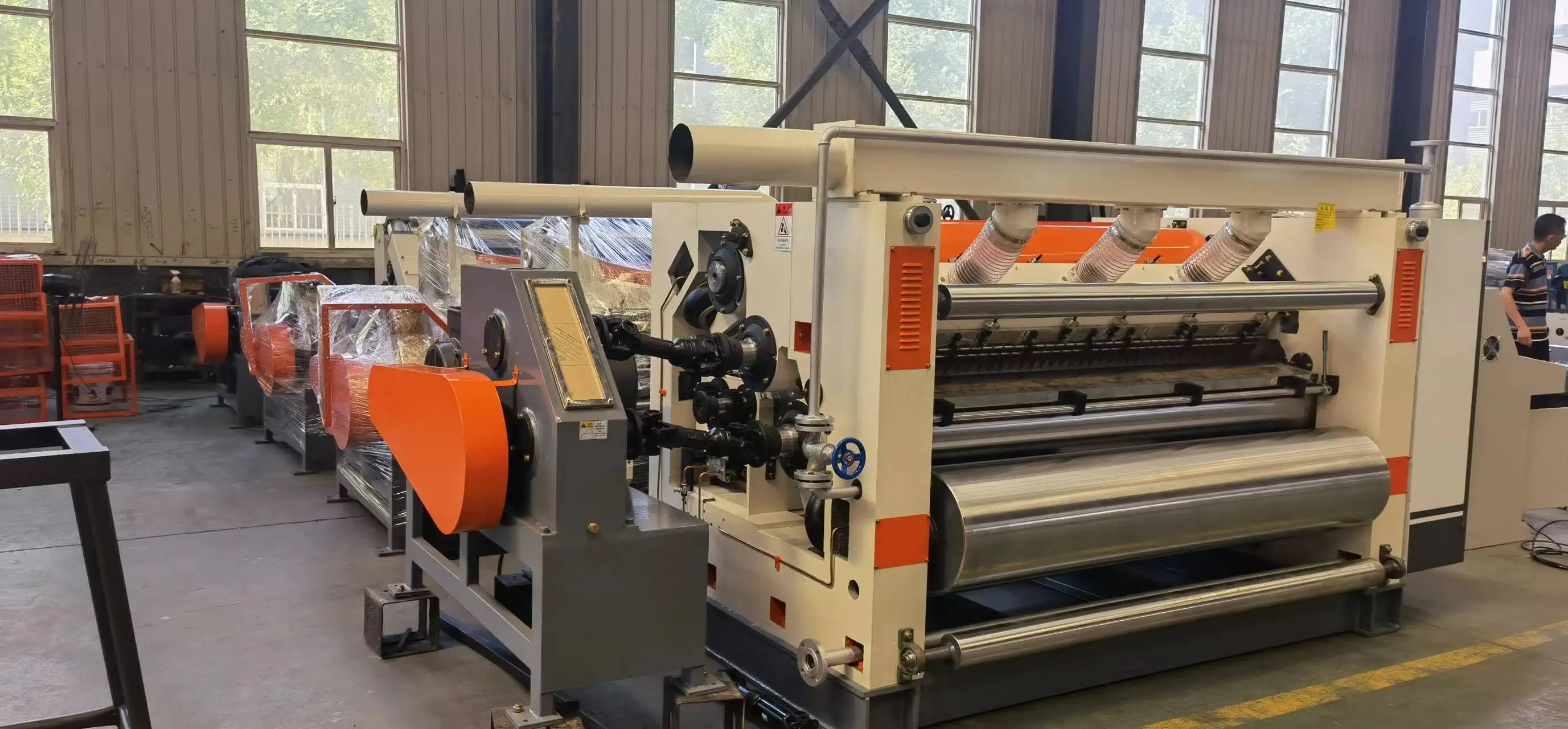

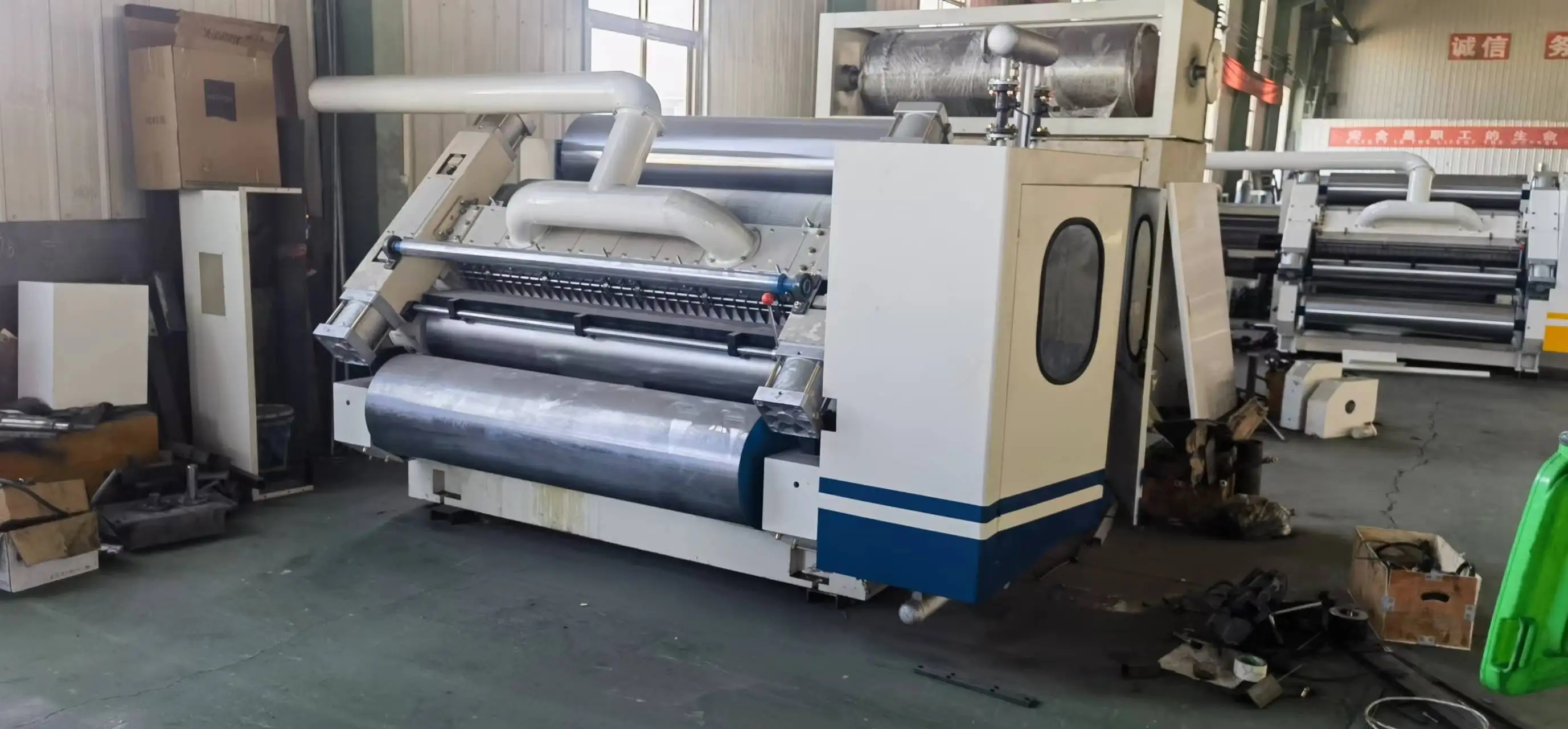

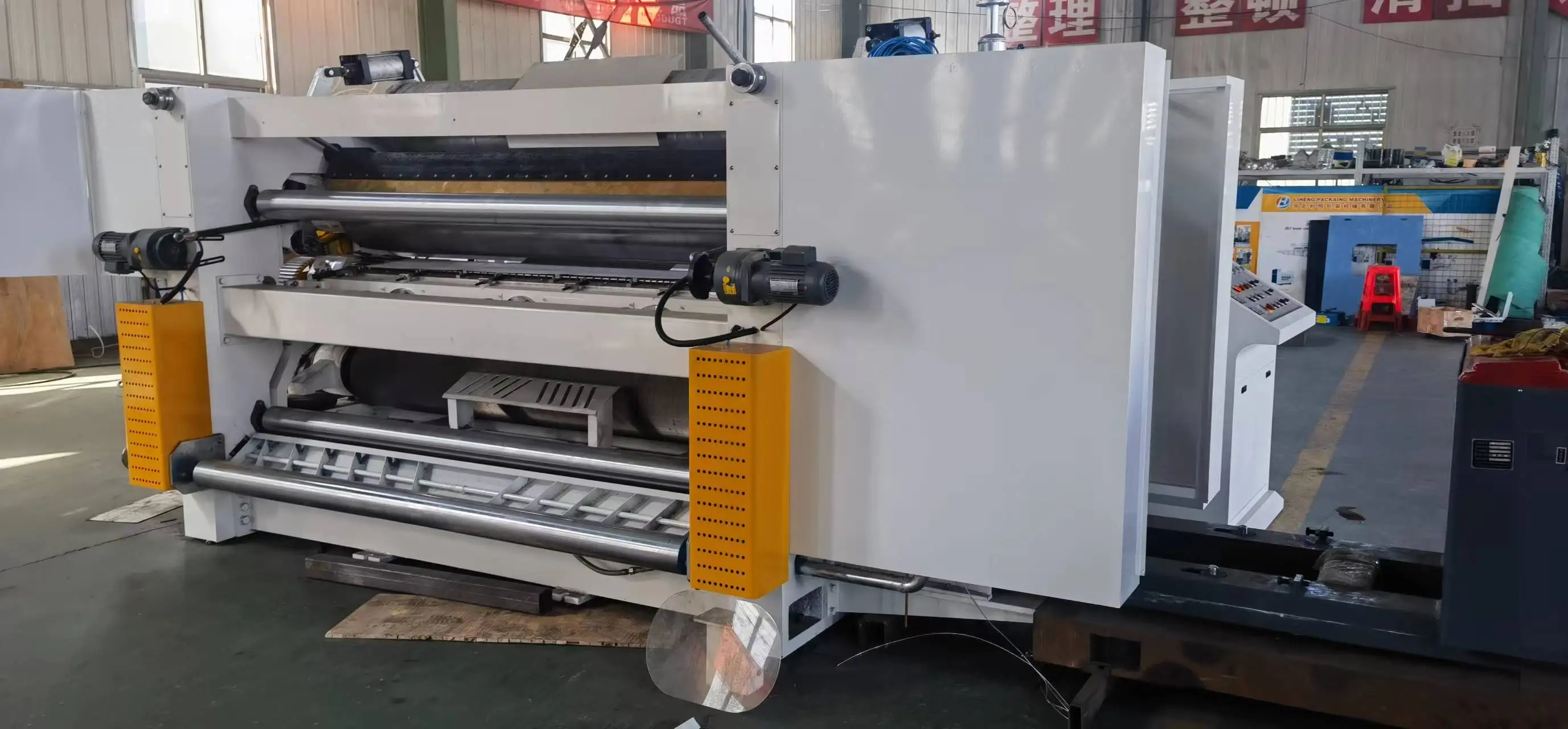

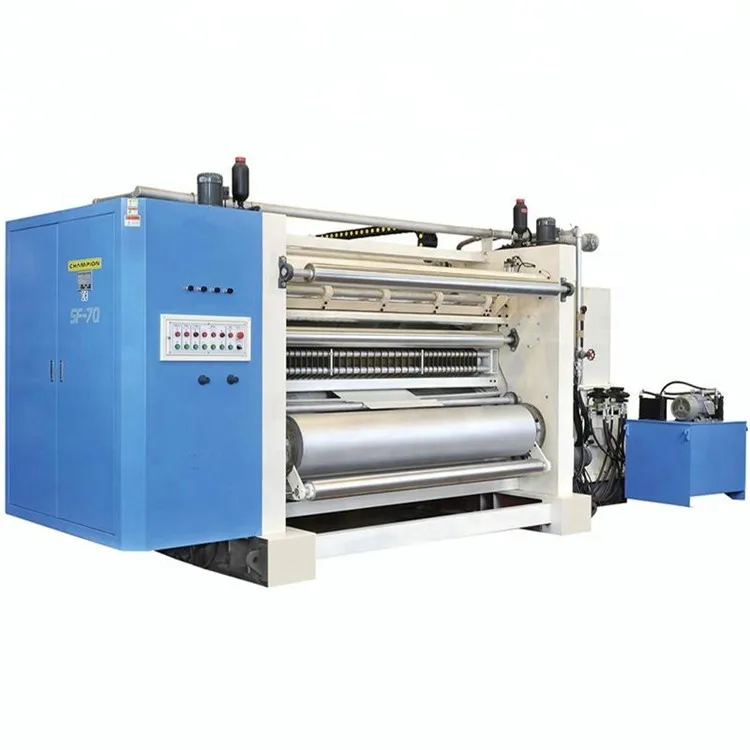

Single Facer is the main machine for producing the corrugated paperboard , make monolayer corrugated board from flat craft paper , the first stage for semi auto 3/5/7 layer corrugated paperboard production line.


Model number
Working Speed
Type of corrugation
Way of heating
1600
0-35
A C B E
Electric . steam , oil
1800
0-35
A C B
Electric . steam , oil
2000
0-35
A C B
Electric . steam , oil




1.Corrugated material 45CrMo, diameter 268, wall thickness 45mm.


2..hard chrome plated surface hardness HRC55-60 °.

3.Motor power: 5.5kw

4. Havalo national standard high-temperature bearing is adopted for bearing.

5. High temperature grease is used for lubrication. Good sealing and reliable.

6. Standard flute: E=1.6 high and UV.

7. External size: 3000 * 1600 * 2600mm.


8.The design speed is 60m/min, and the economic speed is 40m/min.

9. The machine weight is about 3.2t.




The main structure for Single facer group and working principle:

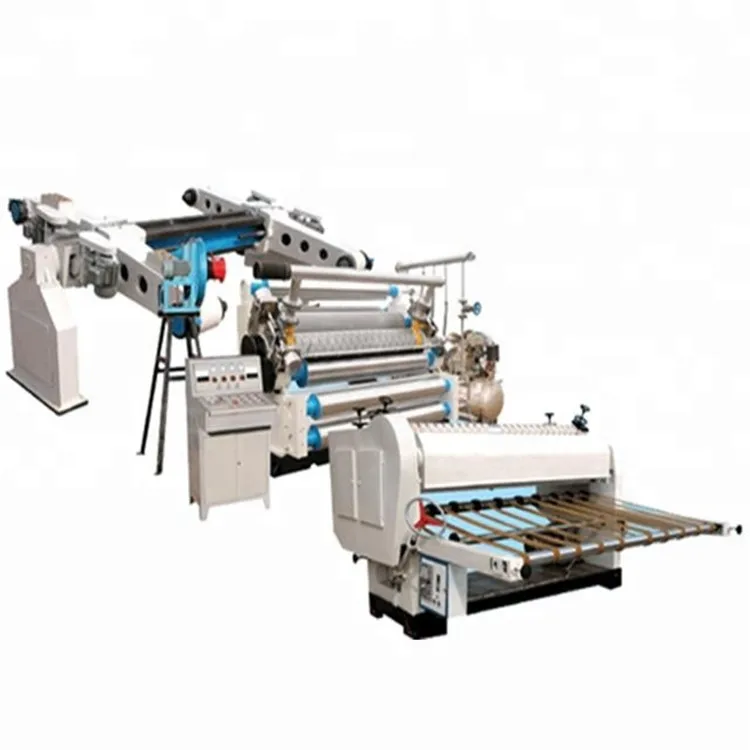

This line including paper mill roll stand ,single facer machine and sheet cutter machine
Step one : Install craft paper on mill roll stand



Step two : Get single face corrugated paperboard from single facer machine , production process
1)Heat the corrugated layer by heating shaft
2)Make the flat paperboard to corrugated board by corrugated shaft
3)Gluing top wave by glue shaft and make this two pieces paper to monolayer


Step three:Cut to the size you want by sheet cutter machine(horizontal and vertical cutting)
Step Four : Make single face corrugated paper to 3/5/7 layer corrugated paper by glue machine
Step Five : Press the paperboard and make it firmly




Our services




Related Products




Company Profile








Packing & Delivery




FAQ


1.Are you manufacturer?
Yes.We are manufacturing factory for corrugating roll and corrugated machines, with over 22 years experience.

2. What is the delivery time of your machines?
Normally, the delivery time of our machines is about 20 days, and customized machines will be delivered in consultation with our customers.

3. May I visit your factory?
Welcome you come to our factory anytime.

4. What's your minimum order and can you send me a sample?
Our minimum quantity is 1 set, because our products are mechanical equipment, it is difficult to send you samples, if you have any questions about the products, please feel free to contact us for more details, we will be happy to provide you with more information such as specifications, videos, etc.

5. What’s the size and speed?
We produce corrugated machine and corrugating roll with paper web size from 1400mm to 2800mm.
Machine designed speed from 150m/min to 350m/min.

6.What kind of corrugating roll do you offer?
A: We offer: 1.New Tungsten Carbide Corrugating Roll(TC); 2.Periphery Heating Corrugating Roll;
3.Refurbished Corrugating Roll; 4.Alloy chrome plated corrugated roll

If you encounter any other problems, please feel free to contact us.
