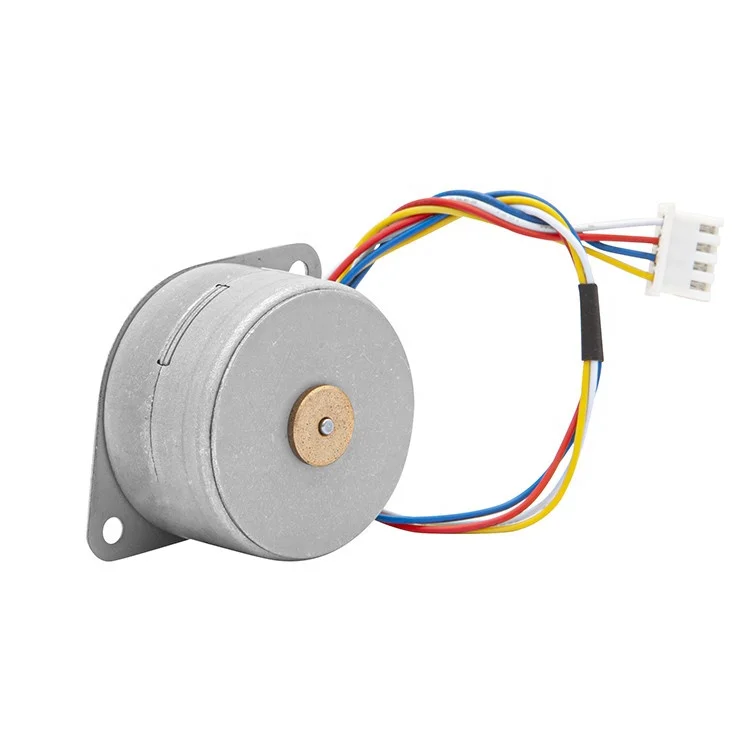

AC Synchronous Motor 24V 250 rpm 50Hz Rosh Meeted
- Category: >>>
- Supplier: Changzhou Spark Motor Tech Co. Ltd.
Share on (1600637910299):
Product Overview
Description
Products Description
General Specification:
Item | Specification |
Step Angle Accuracy | ±8%(full step, no load) |
Resistance Tolerance | ±10% |
Inductance Tolerance | ±20% |
Temperature Rise | 80.C Max.(rated current,2 phase on) |
Ambient Temperature | -20.C~+50.C |
Insulation Resistance | 100MΩMin. ,500VDC |
Dielectric Strength | 600VAC , 1s , 3mA |
Specification:
Model | Voltage (VAC) | Rated frequency (Hz) | Speed (RPM) | Operation capacitor (μF ) | Working current (mA) | Start Voltage (VAC) | Detent Torque (g.cm) | Running Torque (g.cm) | Fig |
PM25S-048-81 | 24 | 50 | 250 | 3.3 | 96 Max | 20 | ≤30 | 40 Min | 1 |
PM35L-048-311 | 24 | 50 | 250 | 4.7 | 80 Max | 19 | ≤80 | 160 | 2 |
PM42L-024-05 | 110 | 50 | 500 | 0.47 | 90 | ≤80 | 130 | 3 |

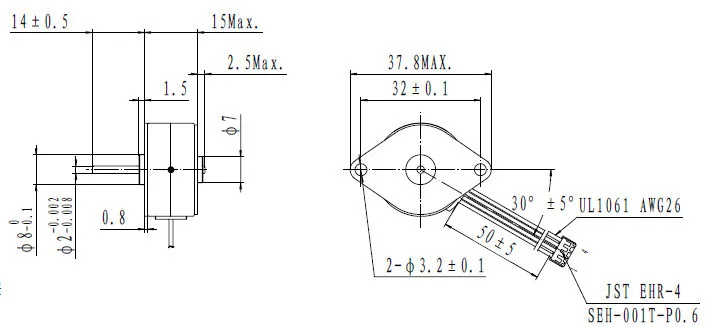

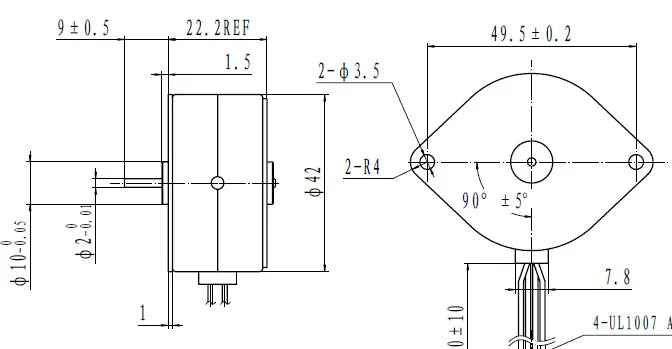

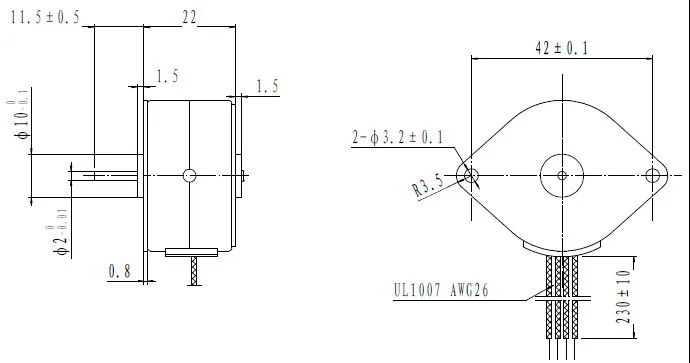

Dimension as below:
PM Synchronous motor | ||||||||||
Diameter | 25mm | 35mm | 42mm | 49mm | 50mm | |||||
Model No. | PM25S-048-81 | PM35L-048-311 | PM42L-024-05 | PM49-048-102 | 50TKYJ24 | |||||
Customization On Call | ||
Coil Modifications | Resistance and Inductance. | |
Voltage amendment | 5V, 12V, 24V, 110V, 230V | |
Magnets | to yield higher linear force or reduced detent levels. | |
Screw | metric or imperial tips, length. | |
Wire Harness | connectors, pins, lead length, shrink tubing. | |
Higher Strength Plastics for higher impact forces. | ||
Reduced or increased Detent Force to suit the application. | ||
Special Flanges, Connectors. | ||
Application
Application includes but not limited to :
HVAC/R Valve Actuation
Office Automation Printers, Copiers, Data storage
Medical Applications Pill dispensing Analysers
Telecommunication Antennae positioning Switching lines
Other Industries & Applications Robotics
HVAC/R Valve Actuation
Office Automation Printers, Copiers, Data storage
Medical Applications Pill dispensing Analysers
Telecommunication Antennae positioning Switching lines
Other Industries & Applications Robotics
