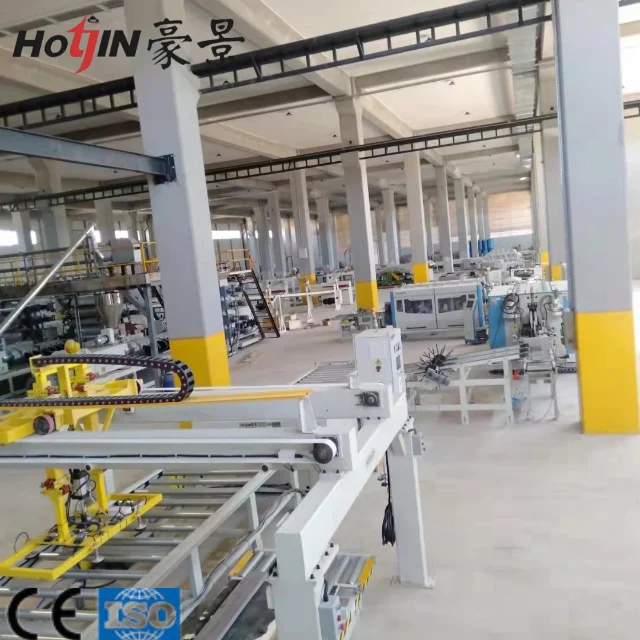

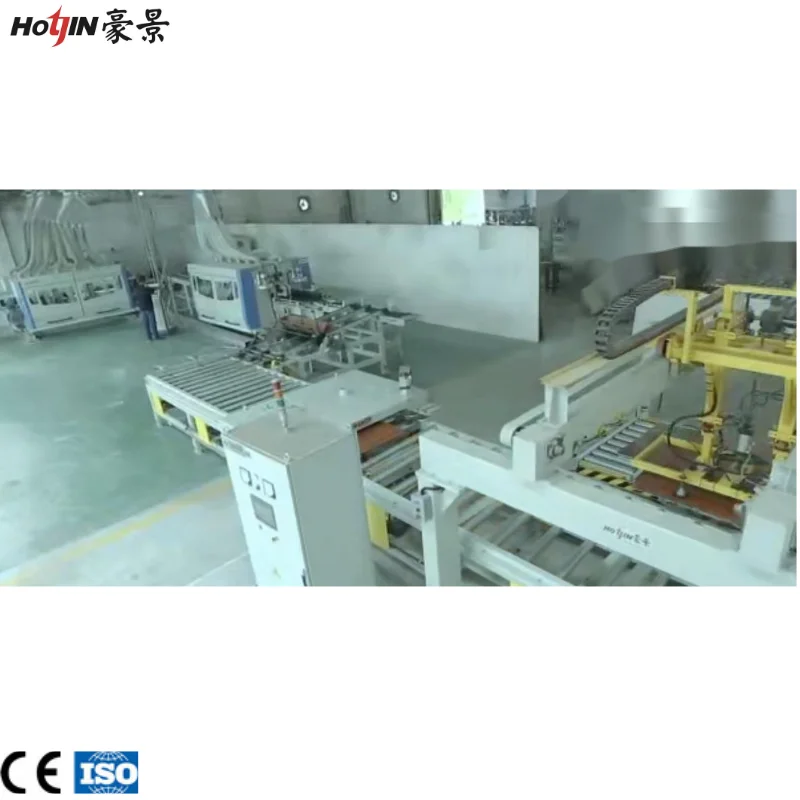

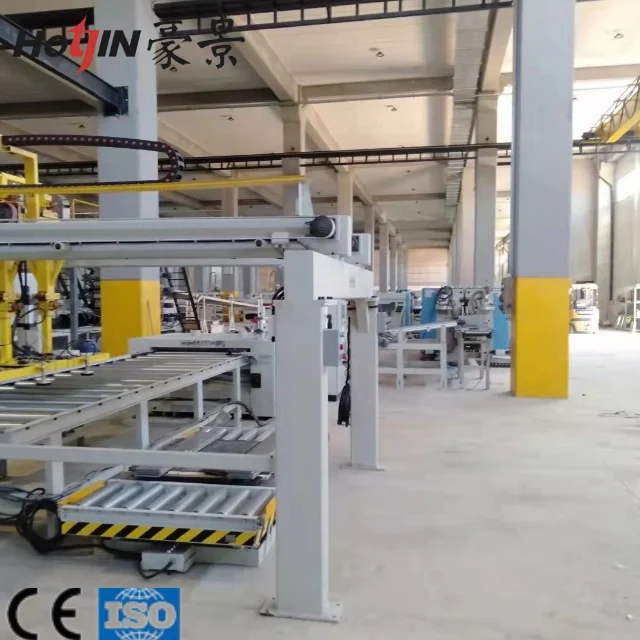

  • Automatic LVT flooring cutting and double end tenoner production line
Automatic LVT flooring cutting and double end tenoner production line
Automatic LVT flooring cutting and double end tenoner production line
Automatic LVT flooring cutting and double end tenoner production line
Automatic LVT flooring cutting and double end tenoner production line
Automatic LVT flooring cutting and double end tenoner production line
Automatic LVT flooring cutting and double end tenoner production line
Automatic LVT flooring cutting and double end tenoner production line

Automatic LVT flooring cutting and double end tenoner production line

Share on (1600638420715):


Price:

Quantity:


Product Overview

Description



HOTJIN

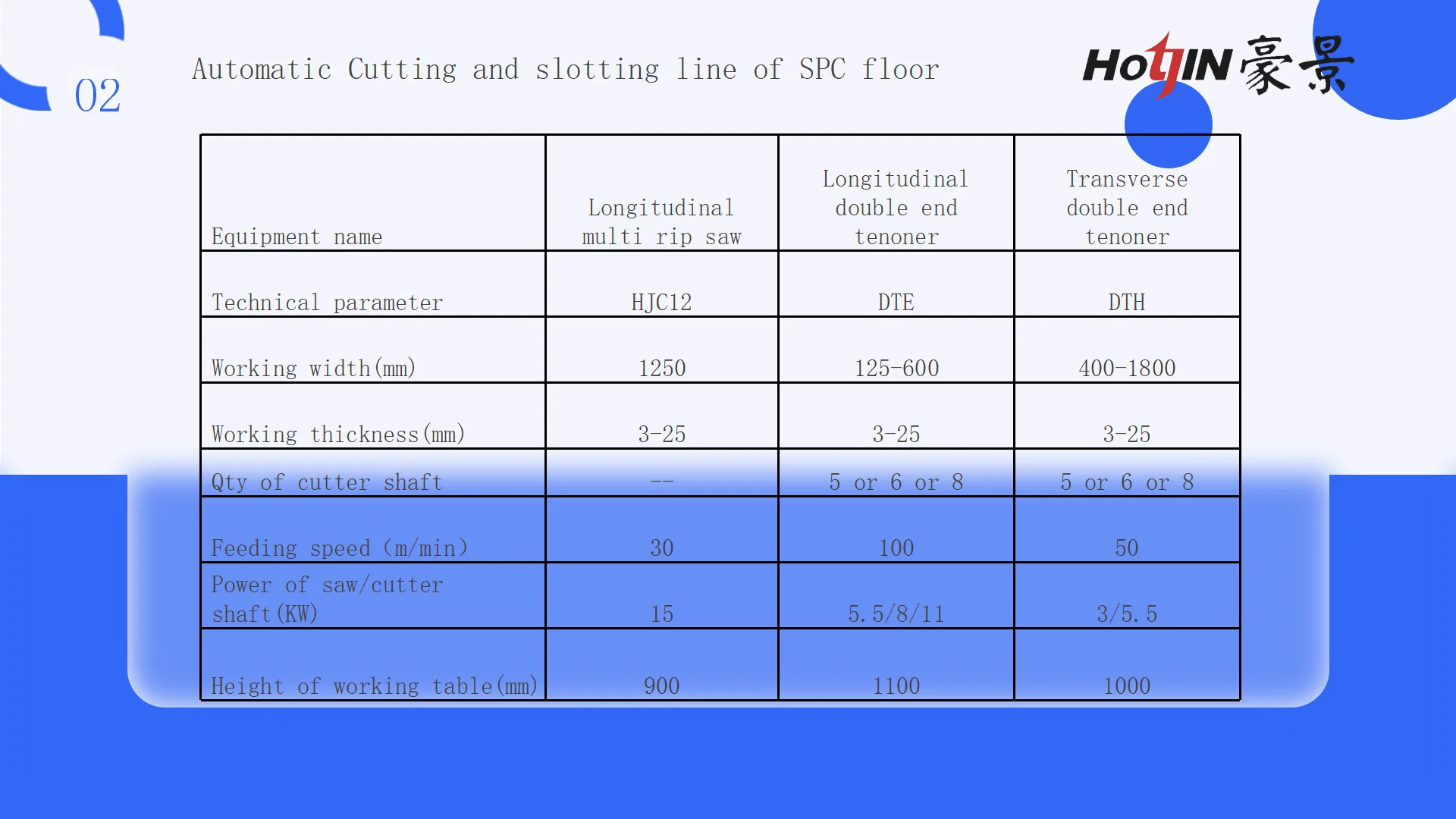

Technical parameters:



Equipment name
Longitudinal multi rip saw
Longitudinal double end tenoner
Transverse double end tenoner
Technical parameter
HJC12
DTE
DTH
Working width(mm)
1250
125-600
400-1800
Working thickness(mm)
3-25
3-25
3-25
Qty of cutter shaft
--
5 or 6 or 8
6 or 8
Feeding speed（m/min)
30
100
50
Power of saw shaft/cutter shaft(KW)
15
5.5/8/11
3/5.5
Height of working table(mm)
900
1100
1000


A．Electric control：Working voltage: 380V，50Hz
Control voltage: 220V，50Hz &24V (DC)

B．Equipment’s color：
Main body： RAL7035 greyish white
Lines of body： RAL5012 light blue
Warning color： RAL1016 LY.yellow
