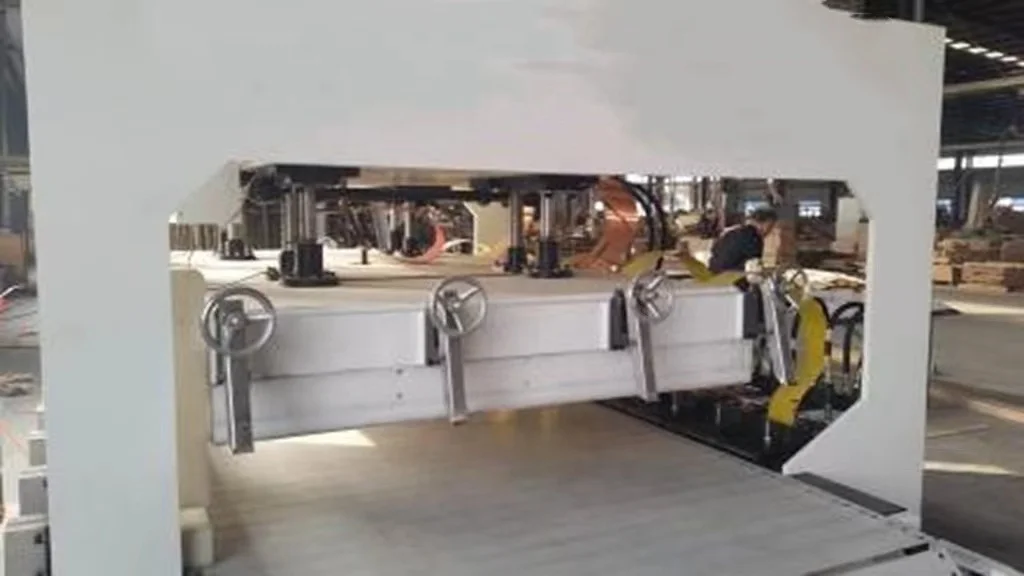

HF RF Automatic High Frequency Wood Panel Gluing Press Machine
- Category: >>>
- Supplier: Shandong STX Machinery Trade Co. Ltd.
Share on (1600638509801):
Product Overview
Description
Product Description
High Frequency Panel Board Wood Making Machines Wood Joint Machine
1.Hydraulic pipe fittings adopt German standard 24 degree cone seal structure; while it overcome the disadvantage of the conventional metric and sealing ring structure which is easy to leak and need to change the sealing ring.
2.Safety: the high frequency part installed under the host is easy to get electric shock accidents, especially the equipment maintenance, at the same time, it is extremely not convenient, and my company's high frequency part is equipped with a separate cabinet, safe and convenient to maintenance.
3.High frequency generator installs the high sensitive spark protective circuit; it is effective to protect board damaged.
4.Bug-killing and sterilization
2.Safety: the high frequency part installed under the host is easy to get electric shock accidents, especially the equipment maintenance, at the same time, it is extremely not convenient, and my company's high frequency part is equipped with a separate cabinet, safe and convenient to maintenance.
3.High frequency generator installs the high sensitive spark protective circuit; it is effective to protect board damaged.
4.Bug-killing and sterilization
Component standards：
1. Hydraulic system: adopts Taiwan Hydraulic system, good heat dissipation.
2. Hydraulic pipe jointer: adopts inch cone sealing structure, no using sealing ring ,which resolve the oil leaking by using sealing ring .
3.Oil pump: adopts Taiwan Hi-Low double pump system, it not only can guarantee oil cylinder to fast move under the low pressure state ,but also can make sure pressure up and down stably, and stable performace.
1. Hydraulic system: adopts Taiwan Hydraulic system, good heat dissipation.
2. Hydraulic pipe jointer: adopts inch cone sealing structure, no using sealing ring ,which resolve the oil leaking by using sealing ring .
3.Oil pump: adopts Taiwan Hi-Low double pump system, it not only can guarantee oil cylinder to fast move under the low pressure state ,but also can make sure pressure up and down stably, and stable performace.
4. Hydraulic accessories: adopts Taiwan
5.Seal: choose Taiwan HANSHENG fluorine aprons, 200 degrees of high temperature resistance, service life is 4-5 times as ordinary cyanide rubber sealing ring
Specification
Model | PB-45PZL-CM |
Workbench size(mm) | 1300 ×3200 |
Jointing thickness(mm) | 3-80 |

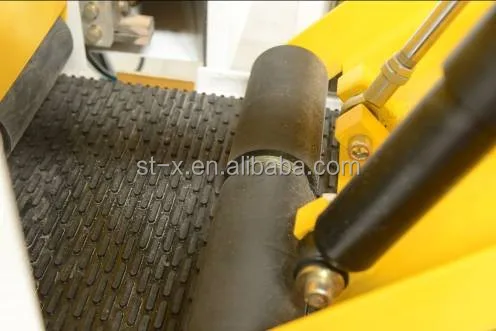

Feeding mode | Auto, crawler |
Up clinder pressure(t) | 20 |
Up cylinder size | Φ63×400 |
Up cylinder quantity（pcs.) | 4 |
Side cylinder pressure (t) | 44 |
Side cylinder size | Φ50×100 |
side cylinder quantity（pcs.) | 14 |
Hydraulic rated pressure(MPa) | 16 |
Total input power(KVA) | 30 |
High Frequency power(KW) | 40 |
Machine weight (kg) | 8000 |
Strong worktable
Worktable has special reinforced bar ,stable structure, is not easy to deformation after long-term using
Touch Screen
automatic fault alarming function
Inputting the processed wood texture and specifications.
Imported surface plate
The plate surface can effectively solve the difficult problem of cleaning glue, and can avoid wood fire caused by wood defects (such as boil scars, high water content) and even the problem of plate firing.
Wood saving reason
The upper pressure adopts vertical lifting mode, and added with rack and pinion guide pillar mechanism.
Wood saving reason
upper worktable with solid core structure
Wood saving reason
Rack with heavy structure, bottom, side plug, cylinder mounting surface of three parts with five-sided machine tool from one-time process, ensure working platform flatness and lateral plugging head and a working platform verticality.
Wood loosen structure
The machine is equipped with a loosening mechanism to prevent the jointed sheet from being sticked to the upper worktable, which affects the feeding of the back sheet. It also has the function of clearing glue.
Oil pressure adjustable independently
Hydraulic pressure control equips with the pressure sensor technology. Pressure setting is totally complete on the touch screen.Overcome pressure gauge and control pressure easy to malfunction by the electric contact pressure gauge.
Scanner
Scanning unit is the eyes of machine to tell the main system how length the matrial or where is the defect need to be cut
Heavy duty machine body
GB standard thick plate welded
Knots removal
Using a Marker pen
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
