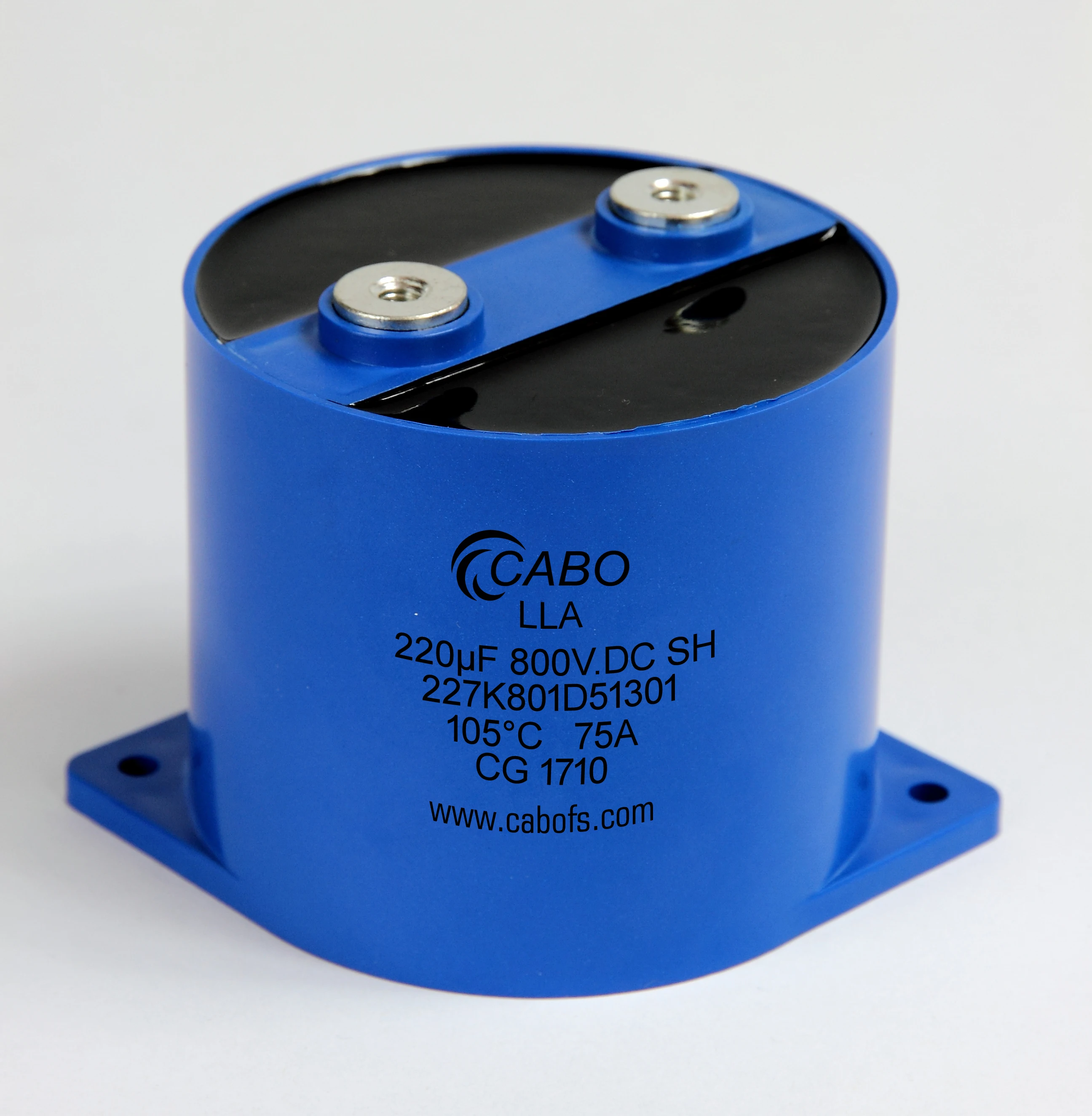

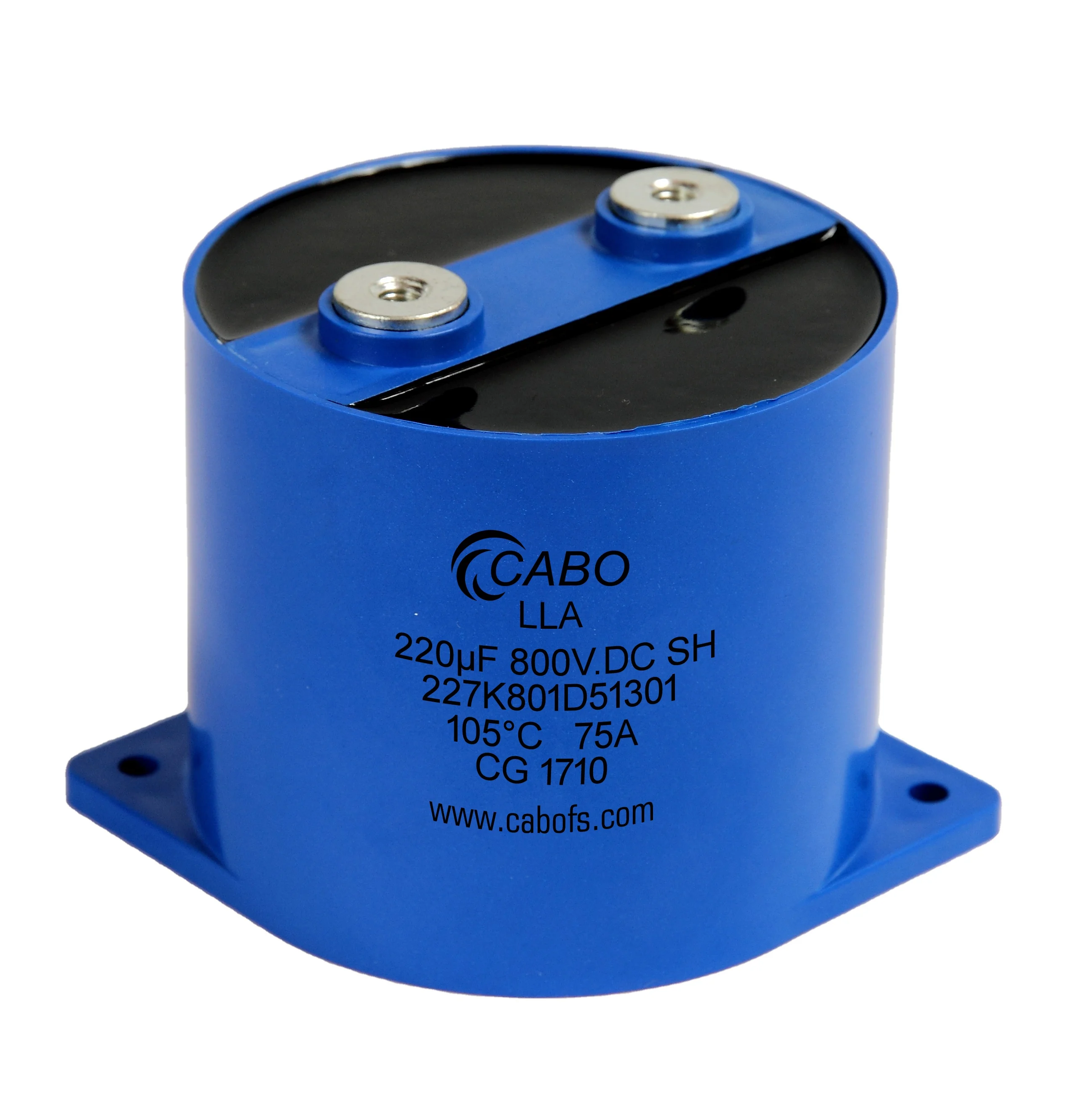

LA series dc link capacitor for solar power/car capacitors
- Category: >>>
- Supplier: CABO Electronics(Foshan) Ltd.
Share on (1600638524829):
Product Overview
Description
Electrical Parameter
Capacitance | 10~500μF |
Temperature | -40℃~+85℃ (case) |
Capacitance Tolerance | ±5%(J);±10% (K) |
Rated Voltage | 400~5000V.DC |
Test Voltage between terminals | 1.5Un 60s |
Max.Altitude | <4000m |
Insulation Resistance | R*C≥5000S(100VDC, 60S) |
Flame Resistance | UL 94V-0 |
Max torque of terminals | 6Nm |
Max torque of installation | 10Nm |
Failure | 100FIT |
Lifetime expectancy | ≥100000 hours（Un≤85℃） |
Product Description
>IEC 61071
>Dry type structure
>High over-voltage and over-current
>Low ESL
>Low ESR
>Self-healing
>Transition metal layer
>Aluminum resin infusion
>VARI
>Outer diameter reel
Typical Circuit
It can be used in :
Wind power,solar power,electric vehicle,frequency converter,switch power supply,plating power supply, UPS.
For dc link, energy storage and filter.

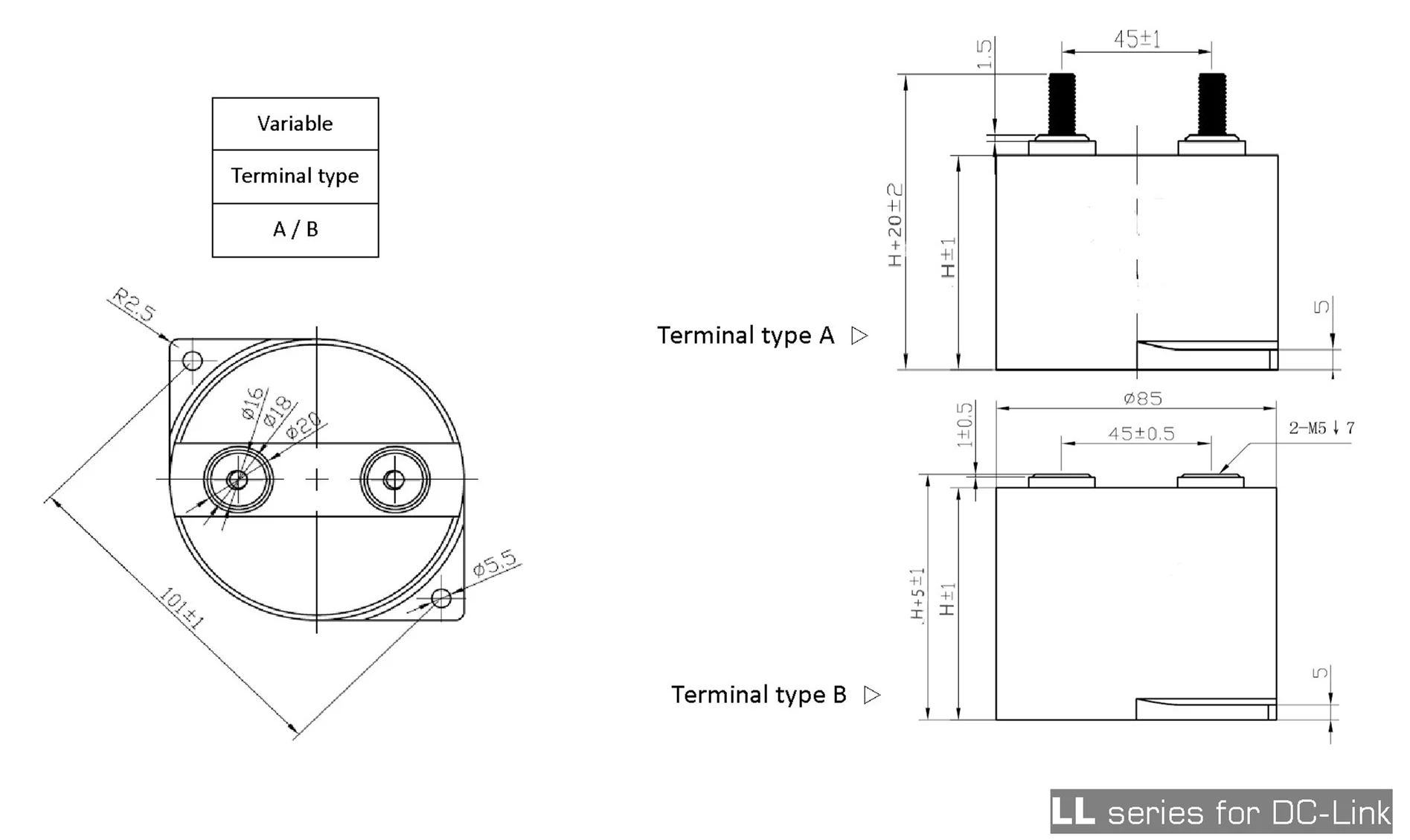

Outline Drawings
Related Products

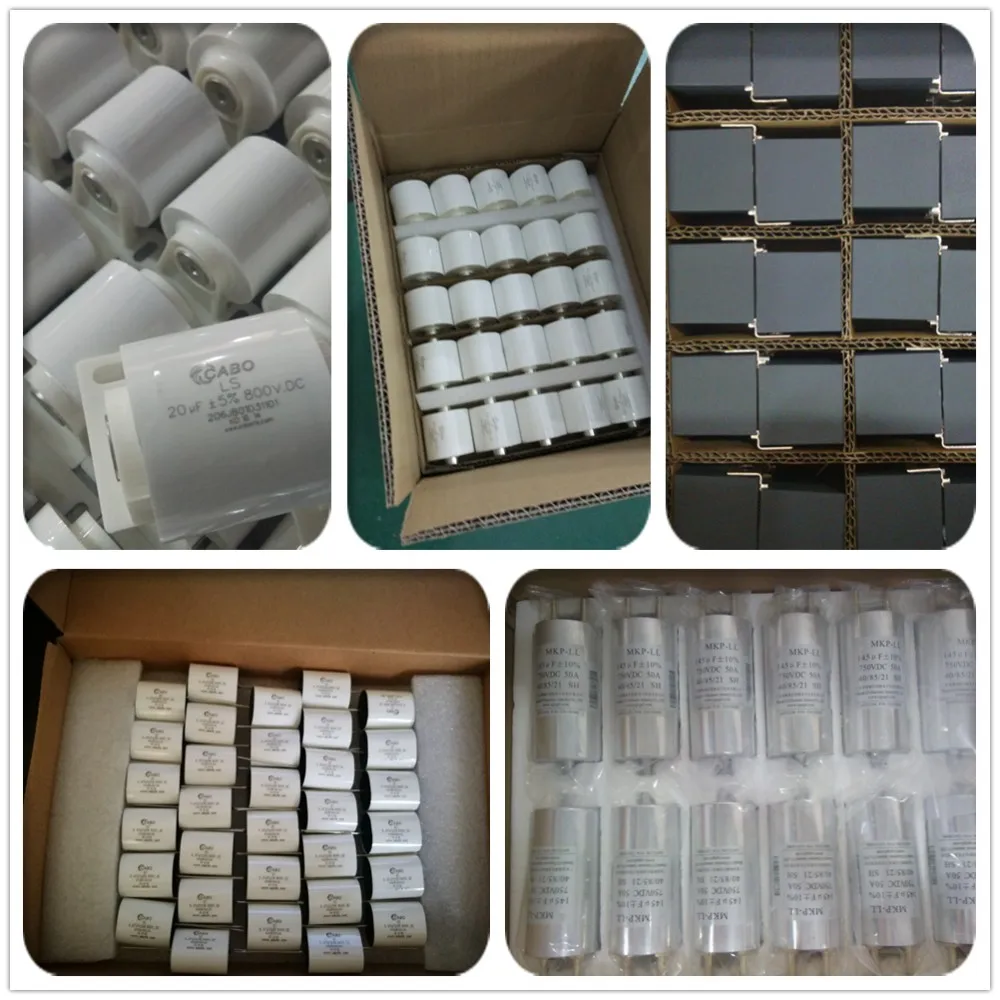

Packing & Delivery
Company Profile
CABO is a leading brand for high reliability film capacitors market in the world and provides products and solutions to meet the high reliability needs of industrial, military, medical and specialized applications worldwide.
As a well-known brand of China, CABO focus on High-End global markets and Hi-Rel request fields, providing customization services.With world-class design, testing and manufacturing facilities in China, enable the quick turn-around for shipping and delivery worldwide.
Our extensive custom design and development capabilities coupled with broad, standardized product offerings allow us to provide a competitive choose for power electronic requirements.
As a well-known brand of China, CABO focus on High-End global markets and Hi-Rel request fields, providing customization services.With world-class design, testing and manufacturing facilities in China, enable the quick turn-around for shipping and delivery worldwide.
Our extensive custom design and development capabilities coupled with broad, standardized product offerings allow us to provide a competitive choose for power electronic requirements.
