Price:$50.00 - $60.00

Quantity:


Product Overview

Description



Products Description

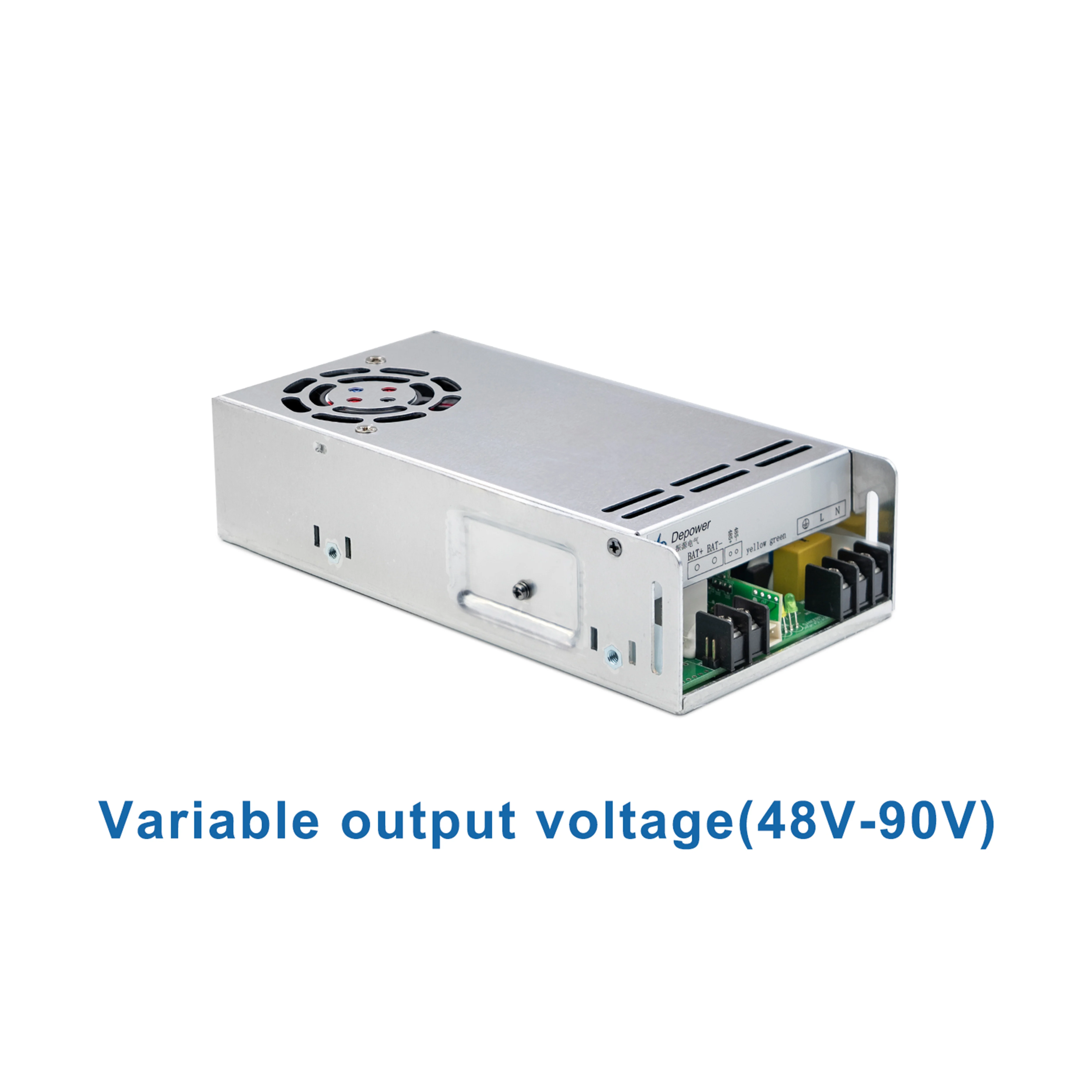

Variable Output Voltage(48V-90V) 1300W Battery Charger Model
Model
GC9015-750/1300/1600/1800-4890






Input
Voltage range
176～264 VAC
Frequency range
45～65Hz
Power Factor(Typ.)
≥0.98（Tested when the power is above half power）
Input current(Typ.)
3.75A/220VAC 6.56A/220VAC 8.08A/220VAC 9.09A/220VAC
Inrush current(Typ.)
50A/220VAC
Max. Efficiency(Typ.)
94%
Leakage current
<0.5mA/220VAC








Output
Battery type
Lithium Battery
Charging phase
constant current + constant voltage
Output voltage range
48V~90V
Max. output power
750W 1300W 1600W 1800W
Max. output current
10A 15A 20A 25A
Max. current ripple
500mAp-p
Start time
≤3S
Over voltage protection
Vset+2V
Short circuit
Yes
Over temperature
Yes

Communication
Communicaton mode
RS485
Communication description
Customer’s



Environment
Working Temp
–20～60℃
Working humidity
10%～90%RH non-condensing
Storage temp., humidity
–40～80℃ ， 10%～90%RH non-condensing
Vibration resistant
10～500HZ，2G 10minutes/cycle,X,Y,Z axis each 60 minutes







SAFETY & EMC
Safety standards
GB/T 4706
Withstand voltage
I/P-O/P：3KVAC I/P-FG：2KVAC O/P-FG：0.5KVAC
Isolation resistance
I/P-O/P，I/P-FG，O/P-FG：100Mohms/500VDC/25℃/70%RH
EMC emission
GB/T 9254 Class A；
EMC immunity
GB/T17618;
MTBF
>70K
Weight
1kg/226.5*114.7*50mm (L*W*H)
Dimensions
12pcs/13kg/423*255*270mm (L*W*H)

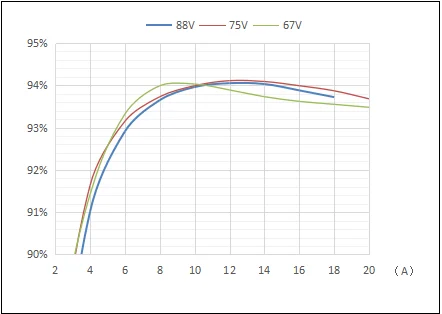

Charging Efficiency Curve

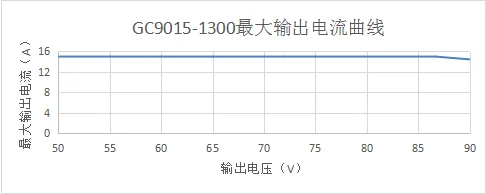

 Maximum Output Current Graph



Company Profile




Shenzhen Depowersupply Electrical Co., Ltd.
Shenzhen Depowersupply Electrical Co., Ltd. is a national high-tech enterprise integrating R&D, production and sales. We focus on low-speed vehicle chargers, lithium battery chargers, golf carts charger and etc., with a total investment of over 3.2 million US dollars and an annual output value of over 16 million US dollars. Depower is committed to providing customers with professional,reliable and cost-effective optimal products and system solutions. Driven by innovation, we have a high-quality, professional, R&D team, and have obtained a number of national patents. We adhere to customer demand-oriented, creating products with industry-leading technical levels and cost advantages to maximize our user value
















Certifications




FAQ


1. who are we?
We are a battery charger and solar charge controller manufacturer with more than 10 years experiences. Our products sell to Domestic Market(35.00%),Africa(20.00%),Southeast Asia(15.00%),Eastern Europe(10.00%),Northern Europe(5.00%),Mid East(5.00%),South America(5.00%),North America(5.00%). There are total about 100-150 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.
Two year warranty.

3.what can you buy from us?
solar charge controller, solar inventer, Solar off grid system, solar charger, Solar system, baterry charger

4. why should you buy from us not from other suppliers?
Focused on the development, production and sales of new energy products in the new energy field. Obatained ISO9001:2015 Quality management certification system, CE and RoHS certification, and many national patent.

5. what services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, Express Delivery.
Accepted Payment Currency: USD, CNY.
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union.
