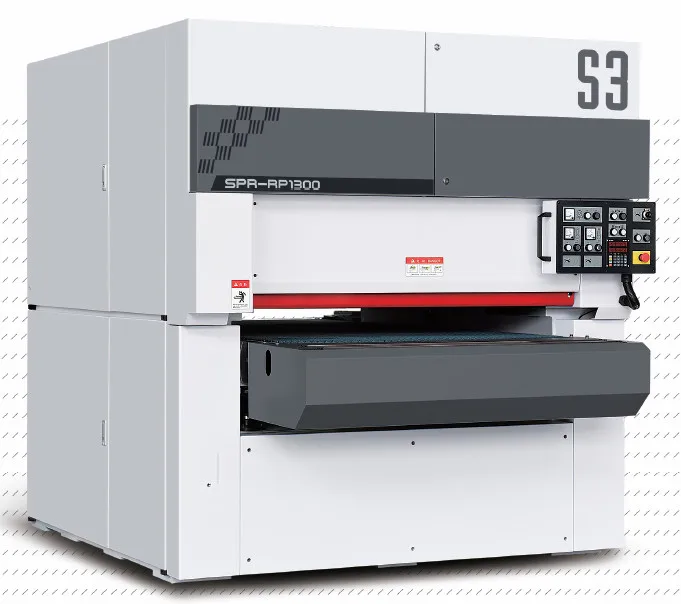

Automatic Plywood Solid Wood Wide Belt Planer Sander Machine with Spiral Cutter

Product Overview

Description

WT-KRC1300 Solid Wood Planing Sanding Machine Wide Belt Planer Sander



Description

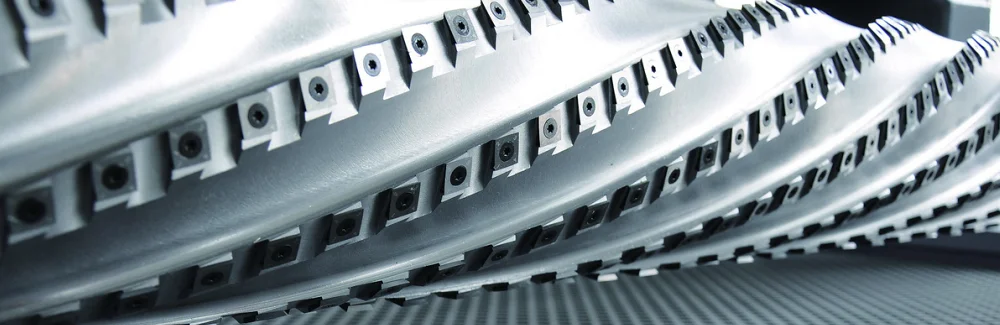

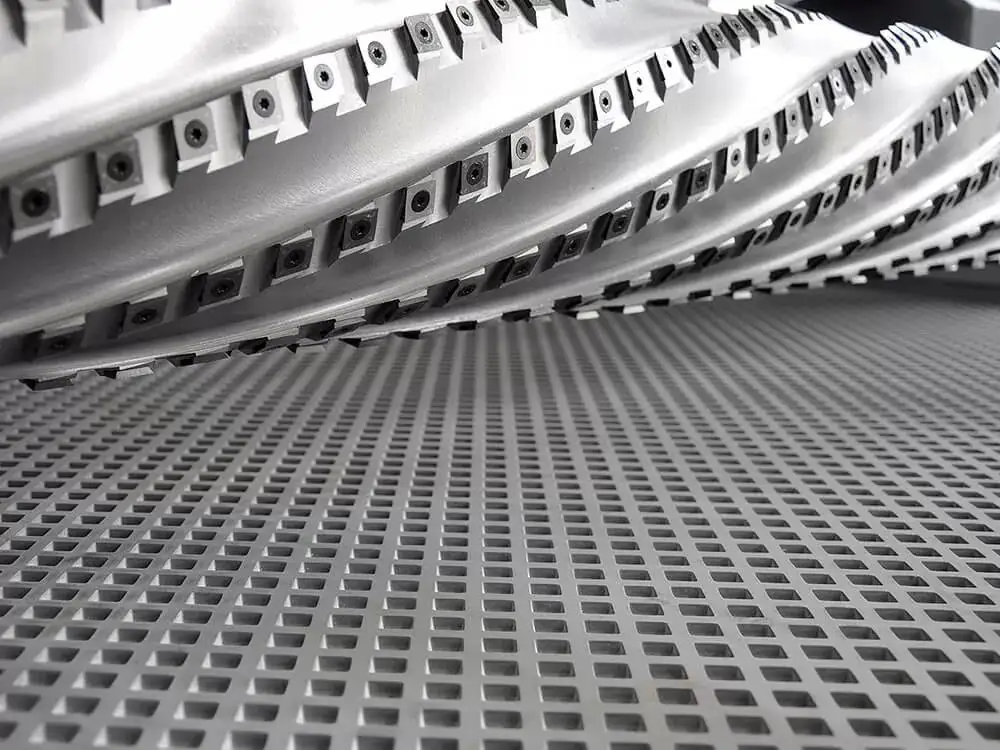

1. The cutter shaft is imported from Taiwan, with a diameter of 180mm and a combination of 9 rotary tool rest.

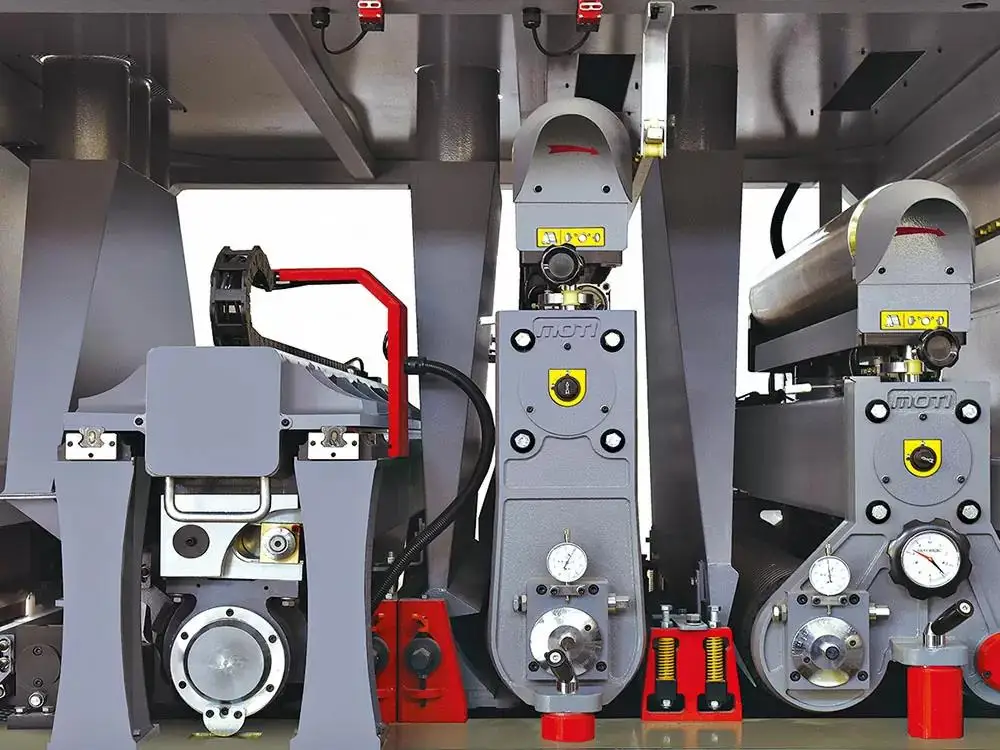

2. The second and third units adopts eccentric roller structure, which can realize the whole adjustment of both ends of the roller body at the same time (manual), without displacement error.

3. The circumference of the abrasive belt is 2620mm, which makes the heat dissipation of the sand belt and sand plate good, and effectively prolongs the service life of the sand belt.

4. Adding automatic edge finding compensation system to reduce the swing frequency of the sand belt to 4-6 times/min, so that the sand trail is straight instead of S-type, and improve the effect of the top coating.

5. The belt is equipped with an automatic rectifying system to prevent the belt from running off due to the bell mouth.

6. Equipped with sanding belt cleaning device, which can extend the service life of sand belt by 20-30%.

7. Equipped with conveyor belt cleaning system, which can effectively ensure the surface clean, save manual cleaning.

8. Equipped with the work piece surface cleaning system, which can save the cost of a surface cleaning aircraft





Technical Specifications



Model	WT KRC1300
Max. Working Width	1300mm
Min. Working Length	490mm
Working Thickness	10-150mm
Feeding Speed	4-20m/min
Total Motor Power	91kw
Motor for First Unit	37kw
Motor for Second Unit	22kw
Motor for Third Unit	22kw
Feeding Motor	4kw
Lifting Motor	0.75kw
Motor for Brush Roller	1.5kw
Abrasive Belt Size	1350*2620mm
Volume of Dust Collection Device	15000m3/h
Voltage	Customized
Overall Dimensions	2235*3050*2600mm
Net Weight	7200kgs





Features:

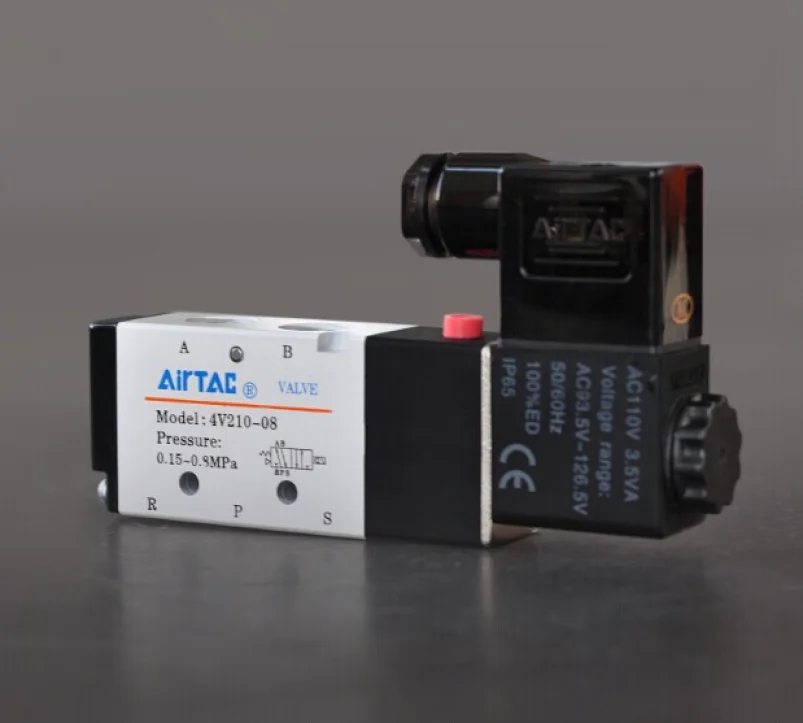

AIRTAC pneumatic control system: maintenance free, good qualtiy and more stable.

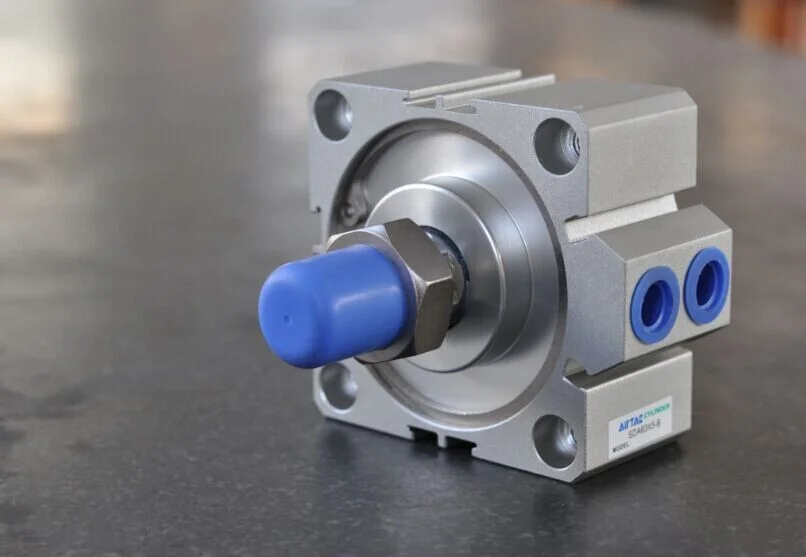

SMC pneumatic control system: include cylinder, magnetic valve, fittings, from Japan, maintenance free, good qualtiy and more stable.

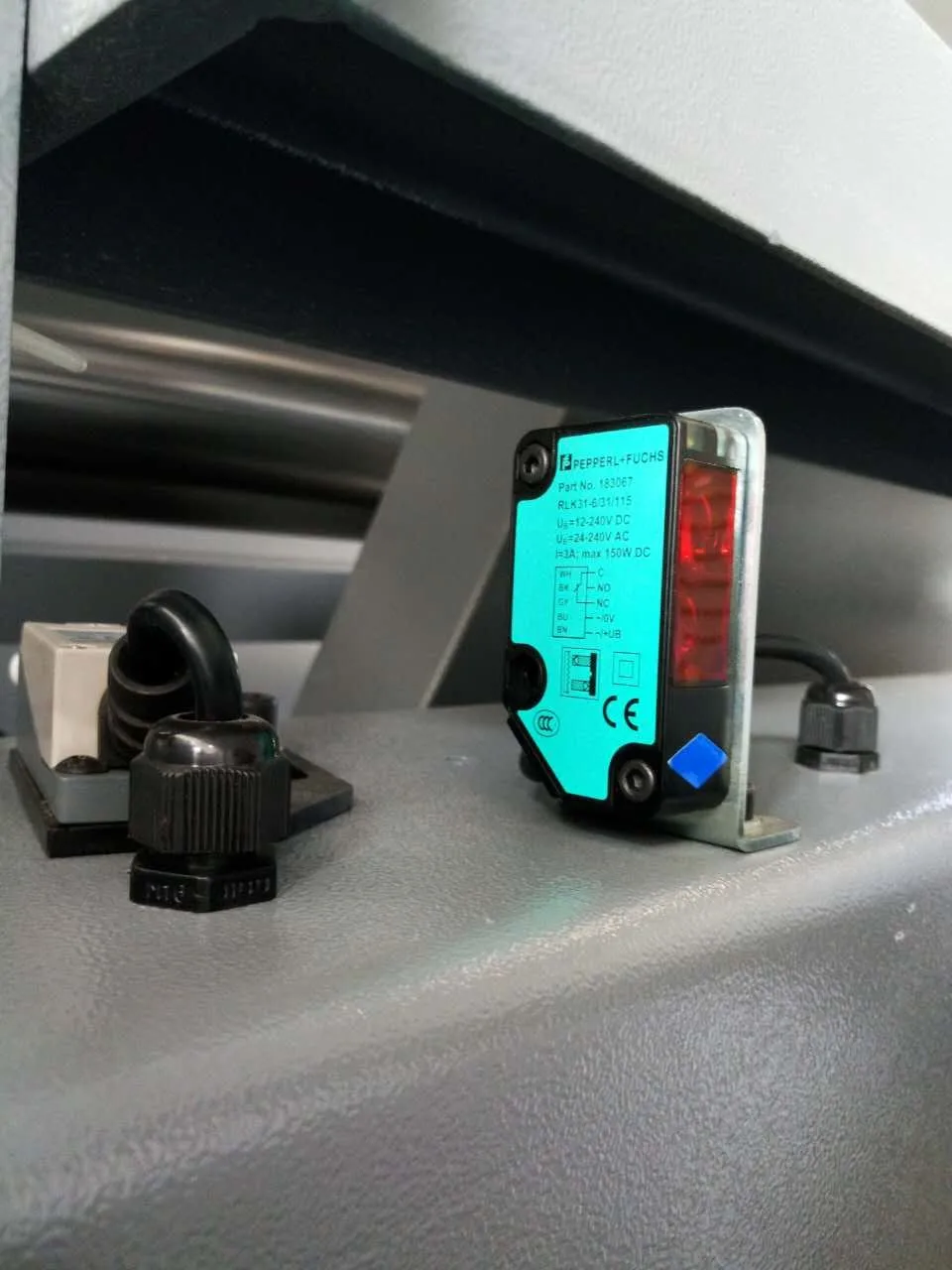

Omron limited switch,P+F photoelectric switch to control the abrasive belt

Brush roller is equipped at rear side cleaning work pieces well.

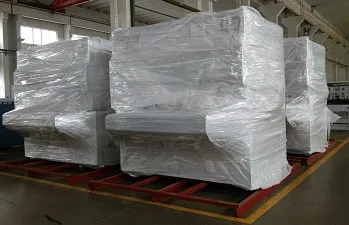

Packing: Iron pallet.
