Good Price RO Water Bottling Filling Plant Machine Equipment For Drinking Water
- Category: >>>
- Supplier: Zhangjiagang EQS Machinary Co. Ltd.
Share on (1600638615410):
Product Overview
Description
Product Description

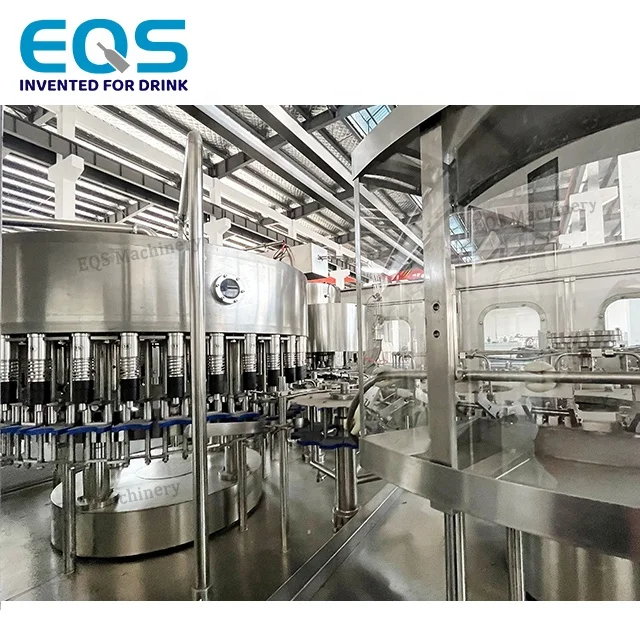

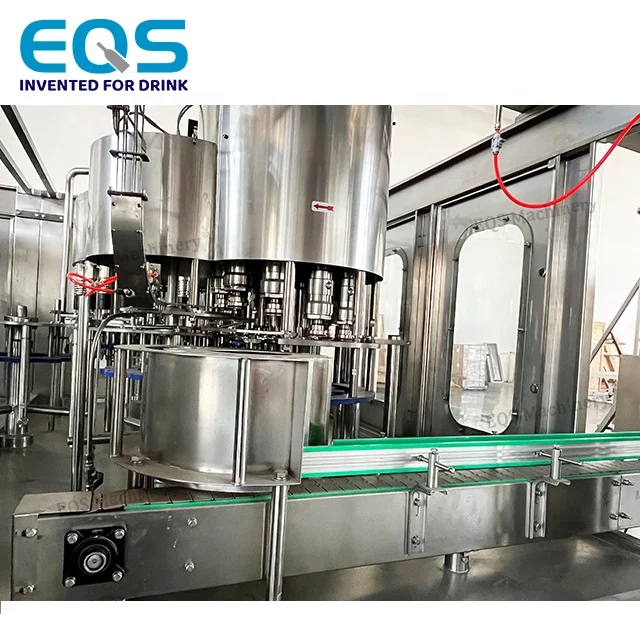

Good Price RO Water Bottling Filling Plant Machine Equipment For Drinking Water
Product Application
This water filling machine is used to produce polyester bottled mineral water, purified water, drinking water beverage machinery and other non-gas beverage machinery. This bottle water filling machine can finish all the process such as rinsing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
1. This water filling machine is for Plastic bottle (PET Bottle).
2. Its Capacity is 12000BPH for 500ML Bottle. (BPH - Bottles Per Hour)
3. This water filling machine can be used for purified water, mineral water, and other no-gas beverage filling under atmospherical pressure.
2. Its Capacity is 12000BPH for 500ML Bottle. (BPH - Bottles Per Hour)
3. This water filling machine can be used for purified water, mineral water, and other no-gas beverage filling under atmospherical pressure.

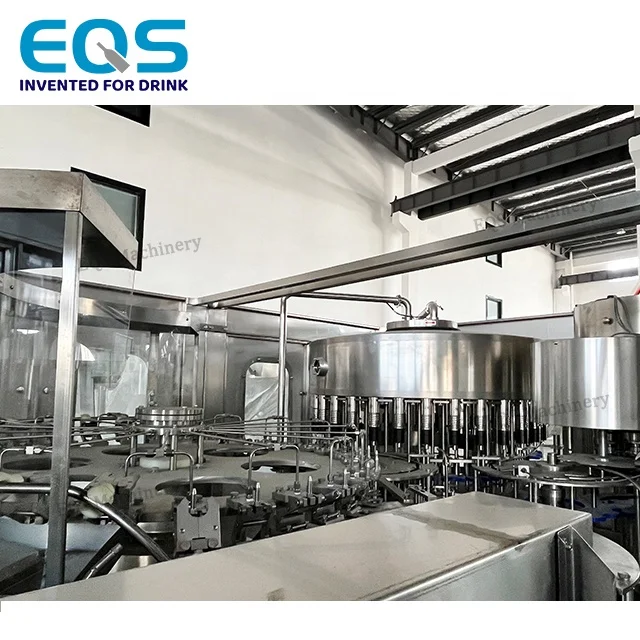

Rinsing Part of Water Filling Machine
Stainless Steel Rinsing Pipe.

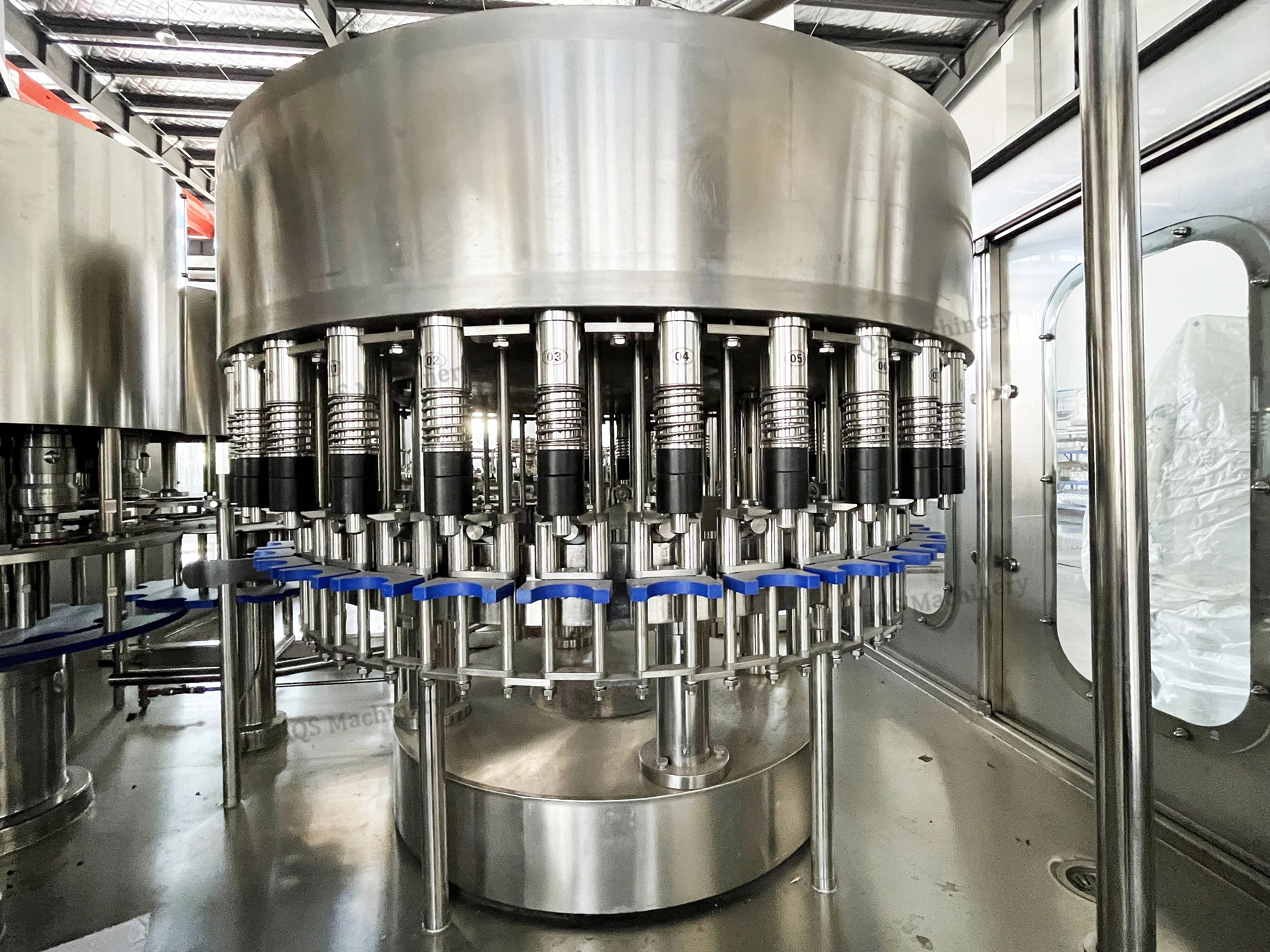

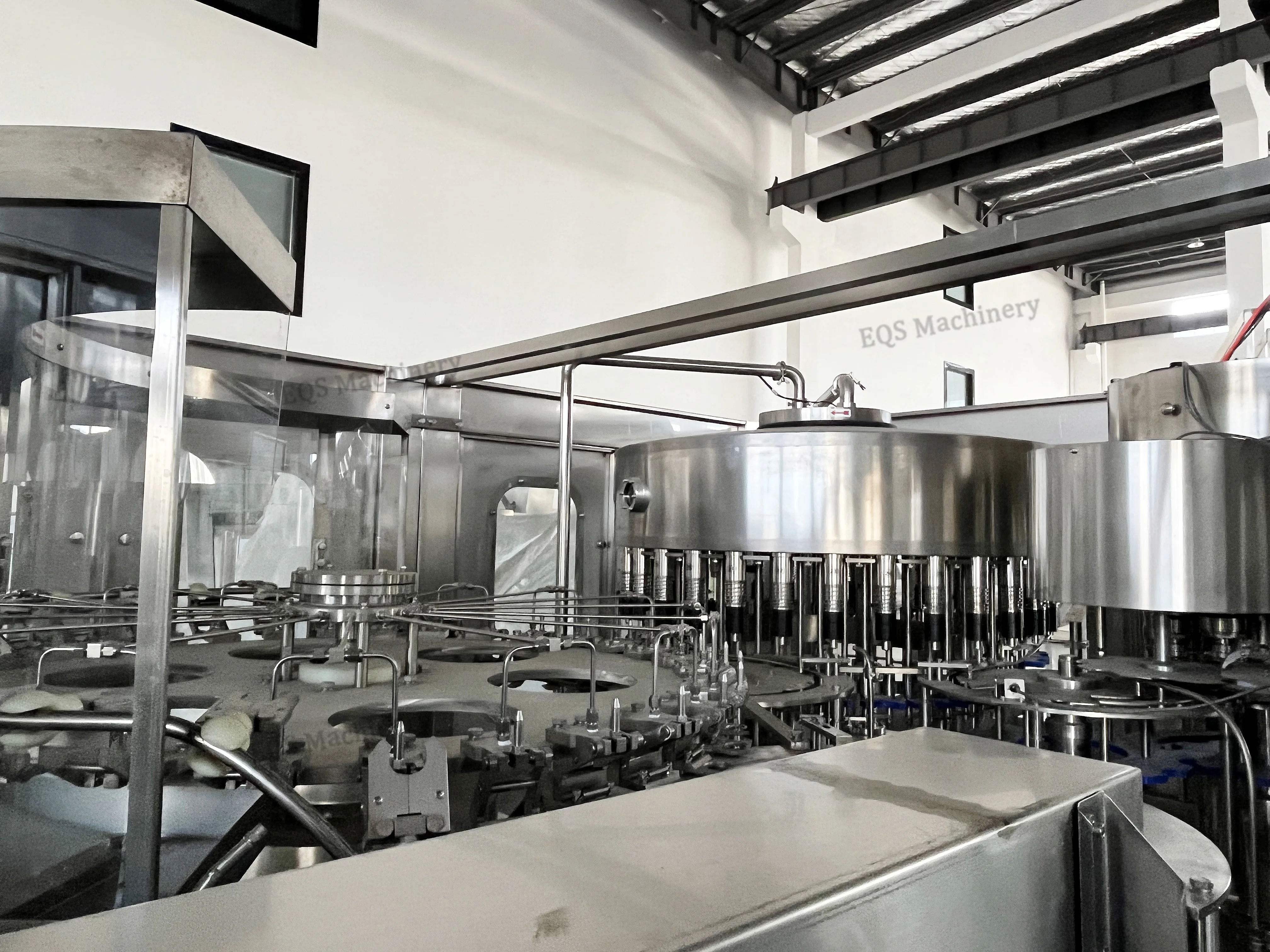

Filling Part of Water Filling Machine
High Speed Filling Valve can reach 200ml/s,made of SUS 304(for water filling) & excellent SUS316L(for hot filling and soft drinks
filling),equipped with specially designed liquid level modified unit to ensure the same level of each bottle.
filling),equipped with specially designed liquid level modified unit to ensure the same level of each bottle.

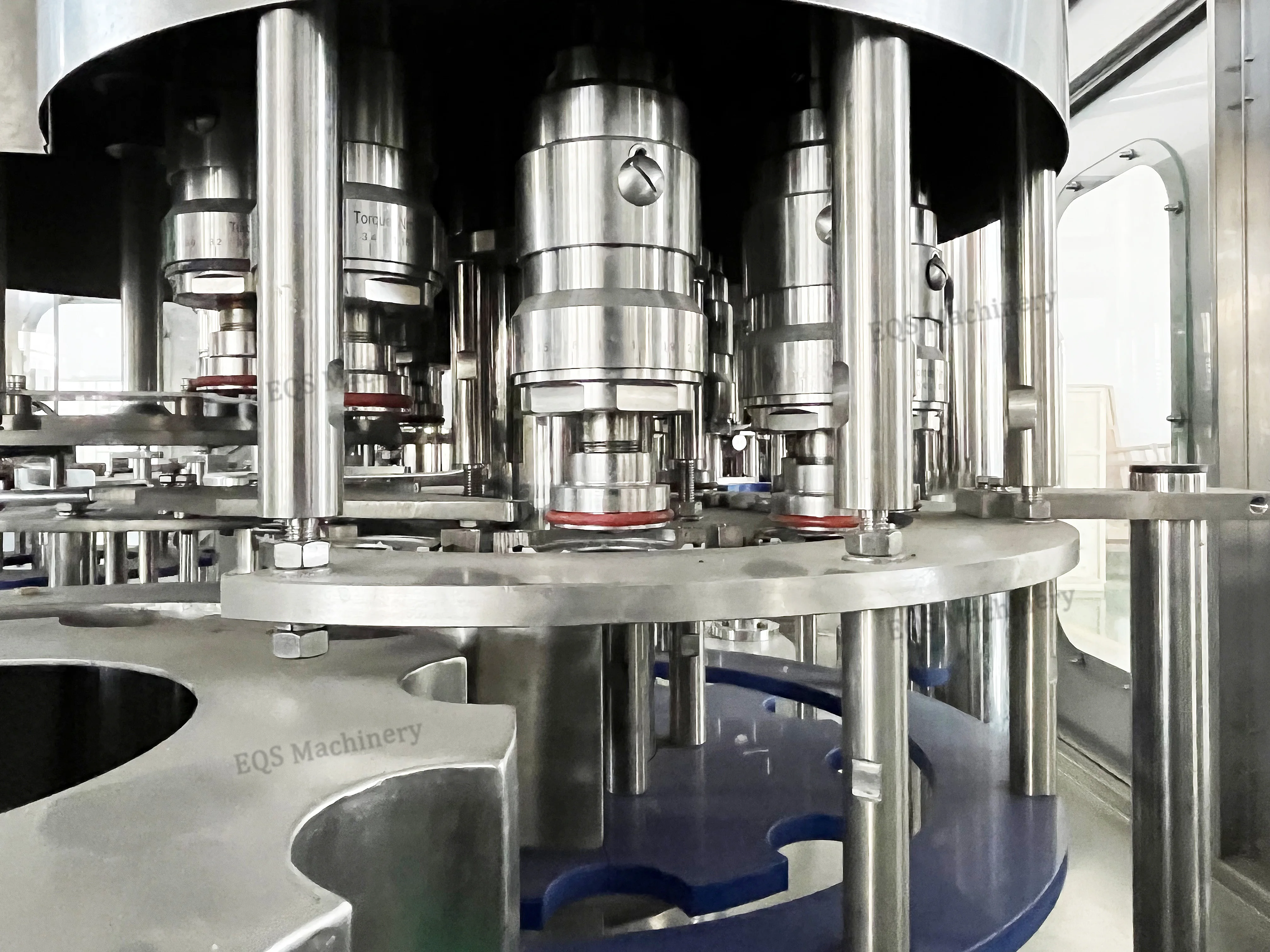

Capping Part of Water Filling Machine
With Special Design: With adjust the position accurately.

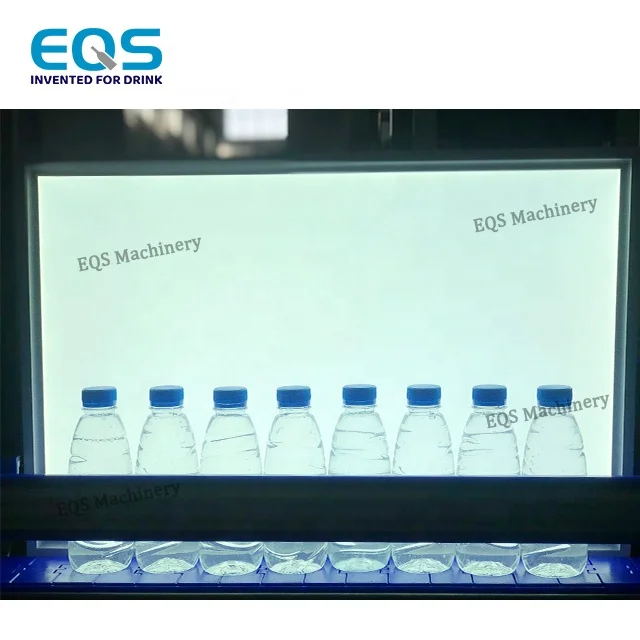

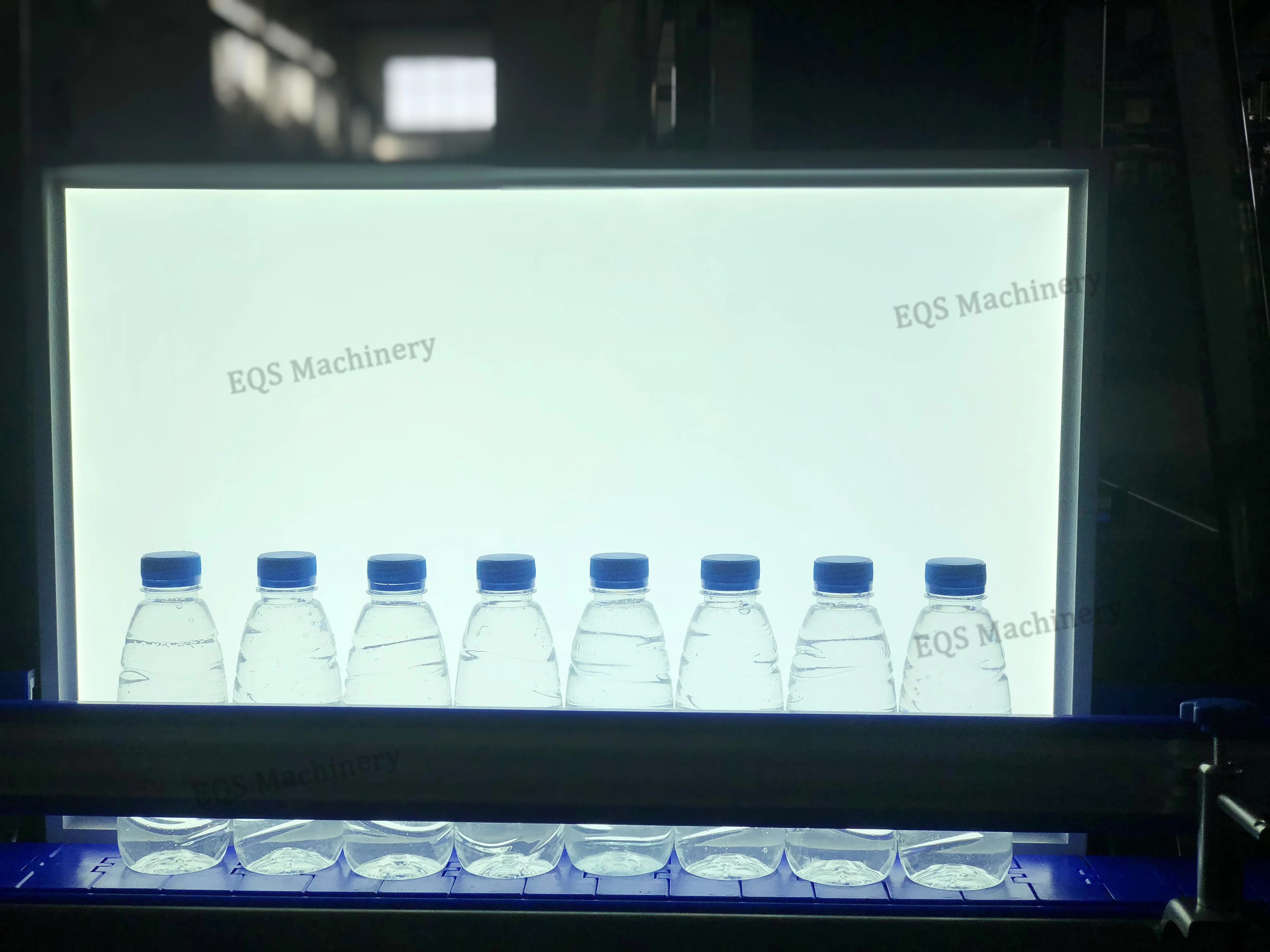

Light Check
Check for impurities.

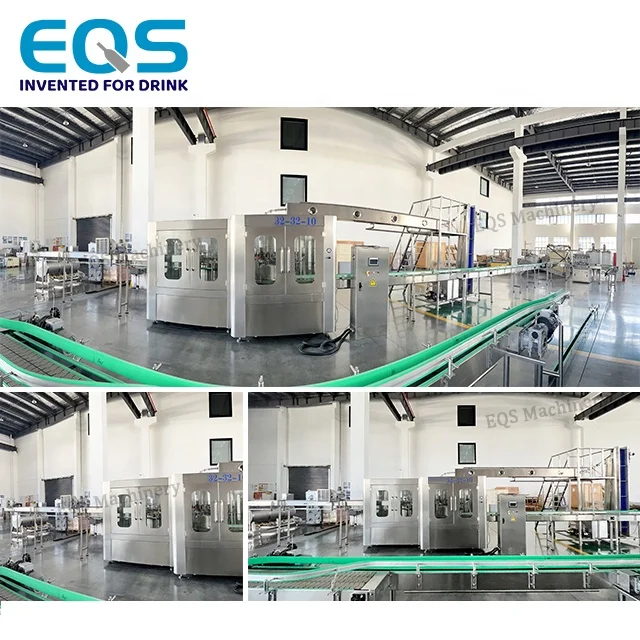

More Production Capacity for Choice
Technical Parameters | ||||||||||
Model | CGF14-12-4 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | |||||
Rinsing Heads | 14 | 18 | 24 | 32 | 40 | |||||
Filling Heads | 12 | 18 | 24 | 32 | 40 | |||||
Capping Heads | 4 | 6 | 8 | 10 | 12 | |||||
Capacity(BPH) | 4000 | 6000 | 10000 | 12000 | 18000 | |||||
Motor Power(KW) | 2.2 | 3.5 | 4.5 | 6.0 | 7.5 | |||||
Dimension(mm) | 2100*1500*2200 | 2300*1700*2400 | 2800*2200*2400 | 2900*2200*2500 | 3600*2700*28520 | |||||
Weight(KG) | 2000 | 2500 | 3500 | 5500 | 7500 | |||||

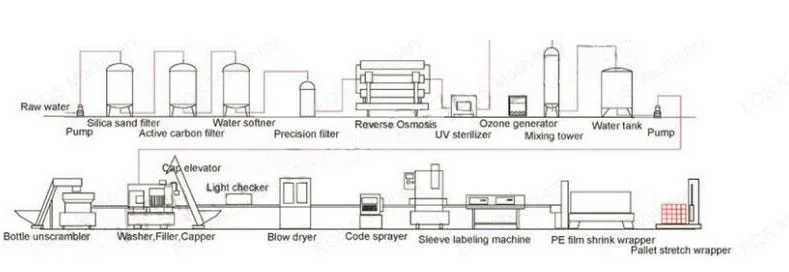

We Supply Turnkey Project Of Water Bottling Plant
Other Equipment of Production Line For Reference
Beer Bottle Dryer
Inkjet Printer
Laser printer
Self-adhesive Labeling Machine
Conveyor
Carton Packing Machine
More Details Of Material
* High level humanized customization service to customize the most suitable products and services for you individually according to your specific needs, budget and actual situation.
* Through more than ten years of experience in mechanical production and investigation of customer feedback, we constantly improve products, improve product details and improve machine quality in the spirit of ingenuity. Each unique design is designed to ensure the best user experience for customers.
* Absolute real material and unique design greatly increase the service life of the machine, ensure the stable output of the machine and long-term efficient working ability.
* Absolute real material and unique design greatly increase the service life of the machine, ensure the stable output of the machine and long-term efficient working ability.
About us
1.Factory
Our company is a public company in China with over 15 subsidiaries.And we are famous in the field of dairy, dairy, beverage,condiment, wine, daily chemicals. And we focus on providing the global customer with complete sets of intelligent equipment and turnkey solutions such as water treatment, pre-allocation, bottle blowing, filling, secondary packaging, robotic palletizing, intelligent equipment workshops, etc.
Cooperation Partner
Our equipment has been exported to abroad and domestic market. Such as Mengniu, MasterKong, Nongfu Spring, PANPAN, CoCa Cola, Yili, Comfort, Pepsi, Robust, Sanyuan, Tsingtao Beer, SnowBeer, RedBull, Jianlibao,C’setbon, Nestle Waters, Lotte, Malee, Safeguard, Kinsell, Perrier, Evian, Wahaha, New Hope, Hengshun,... who are all our cooperated partners.
Production & Processing
We have a strong technology technology resources development and production team, which has two lead engineers with twenty years of experience, fifteen senior electrical engineers, ten overseas installation engineers over 30 years, about hundreds assembly workers with 5-20 practical production experience.
2.Exhibition
We had attended the Germany Nuremberg Exhibition, Poland Warsaw Exhibition, Indonesia Packing Exhibition,...
3.Certification
Why Choose Us
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
* Design product layout
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to install and debug machinery overseas.
* 15 months quality guarantee.
* Engineers available to install and debug machinery overseas.
* 15 months quality guarantee.
Packaging
The normal package is wrapping shrink film first,after that wooden box(Size: L*W*H). We also can pack it according to customers special request.
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we supply the factory price with good quality,our Engineer Team with over 20 year's experience,welcome to visit!
Q2.How can I know your machine has good quality?
A2:We will send the video of testing the machine working condition for you before delivery,so you can send us your bottle samples for a trial.
Q3:What's your guarantee or the warranty of the quality if we buy your machines?
Q3:What's your guarantee or the warranty of the quality if we buy your machines?
A3: We offer you high quality machines with 15 months guarantee and supply life-long technical support.
Q4: When can I get my machine after I paid?
A4: The delivery time is based on the exact machine you confirmed.
A4: The delivery time is based on the exact machine you confirmed.
Q5: How can I install my machine when it arrives?
A5: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q6: How about the spare parts?
A6: After we deal down all the things, we will offer you a spare parts list for your reference.
