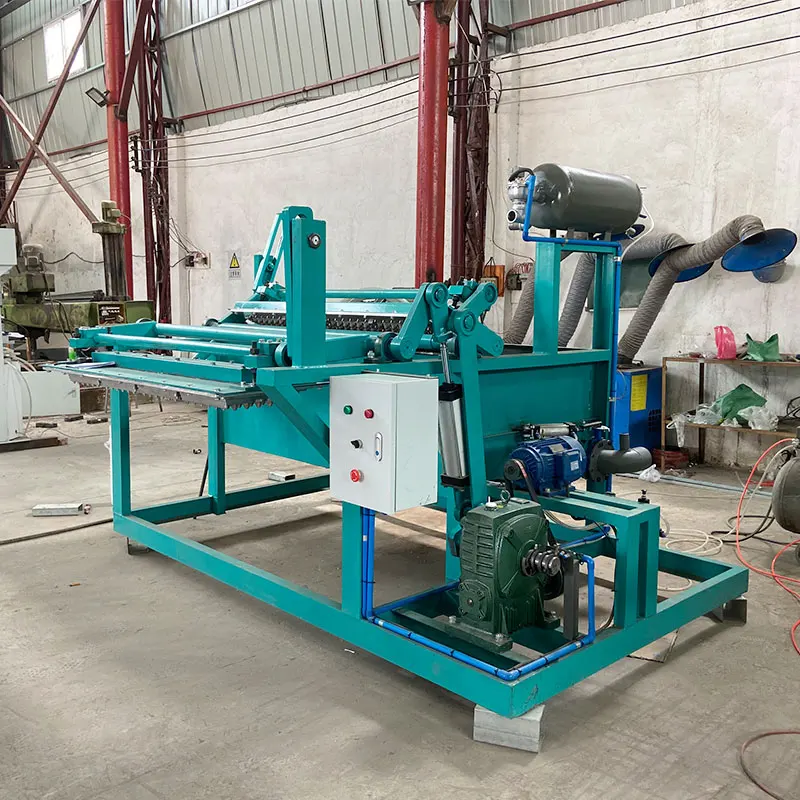

Young Bamboo waste paper recycle used egg tray machine/automatic paper pulp egg tray production line
- Category: >>>
- Supplier: Henan Young Bamboo Industrial Co. Ltd.
Share on (1600638630710):
Product Overview
Description
Products Description
Automatic egg box machine waste pulp paper recycle line egg tray making machine

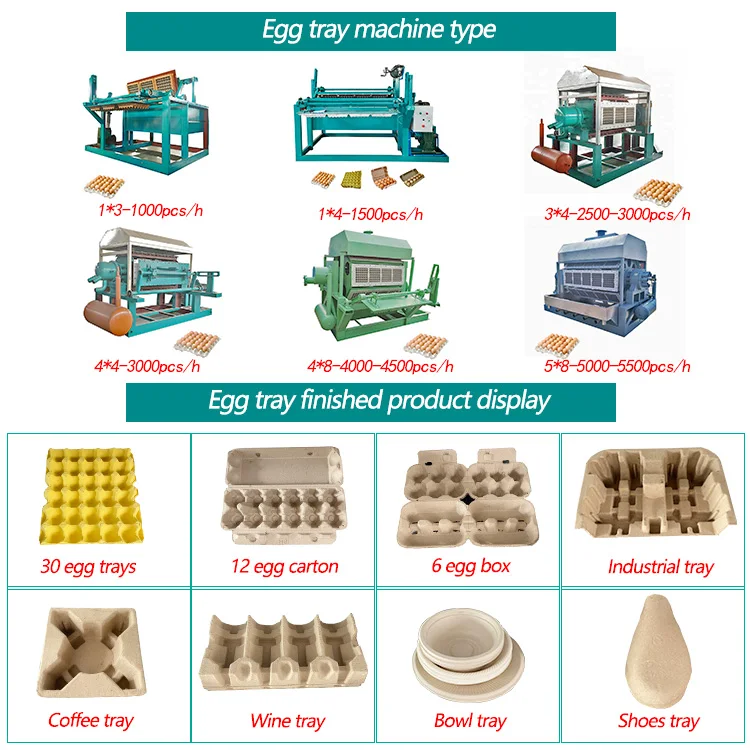

The pulp molding system can use all kinds of waste paper to produce high quality molded fibre products. Such as, egg trays, eggboxes, apple trays, meat portion trays, vegetable portion trays, fruit portion trays, strawberry punnets, kidney trays, wine
packs, can trays, seed pots, seed cubes, etc.
Product Paramenters
Machine Model | 1*3/1*4 | 3*4/4*4 | 4*8/5*8 | 5*12/6*8 |
Yield(p/h) | 1000-1500 | 2500-3000 | 4000-6000 | 6000-7000 |
Waste Paper(kg/h) | 80-120 | 160-240 | 320-400 | 480-560 |
Water(kg/h) | 160-240 | 320-480 | 600-750 | 900-1050 |
Electricity(kw/h) | 36-37 | 58-78 | 80-85 | 90-100 |
Workshop Area | 45-80 | 80-100 | 100-140 | 180-250 |
Drying Area | No need | 216 | 216-238 | 260-300 |
Note:1.More plates ,more less water use
2.Power means the main parts,not include dryer line
3.All fuel use proportion are calculated by 60%
4.single dryer line length 42-45 meter,double layer 22-25 meter,multi layer can save workshop area
2.Power means the main parts,not include dryer line
3.All fuel use proportion are calculated by 60%
4.single dryer line length 42-45 meter,double layer 22-25 meter,multi layer can save workshop area

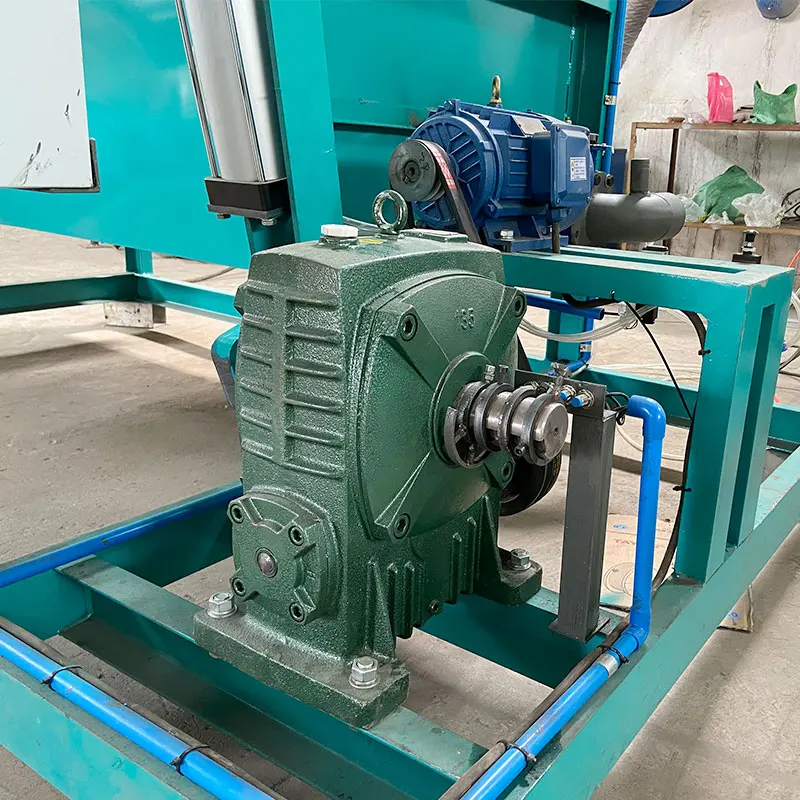

High precision servo motor drive,high efficiency and energy-saving drying line.
1,Use precision reducer servo motor forming and transferring to ensure smiith and fast operation.
2,Use absolute encoder to achieve accurate correction.
3,The use of bronze casting static and dynamic ring structure is more suitable for product dewatering process.
4,The use of mechanical structure to ensure that the mold close on both sides evenly.
5,Large capacity; Water content is low;Save the cost of drying.
1,Use precision reducer servo motor forming and transferring to ensure smiith and fast operation.
2,Use absolute encoder to achieve accurate correction.
3,The use of bronze casting static and dynamic ring structure is more suitable for product dewatering process.
4,The use of mechanical structure to ensure that the mold close on both sides evenly.
5,Large capacity; Water content is low;Save the cost of drying.
Feature Advantage
The raw materials are mainly from various pulp boards such as reed pulp, straw pulp, slurry, bamboo pulp and wood pulp, and waste paperboard, waste paper box paper, waste white paper, paper mill tail pulp waste, etc. Waste paper, widely sourced and easy to collect. The required operator is 5 people/class: 1 person in the pulping area, 1 person in the molding area, 2 people in the cart, and 1 person in the package.
1.Pulping system

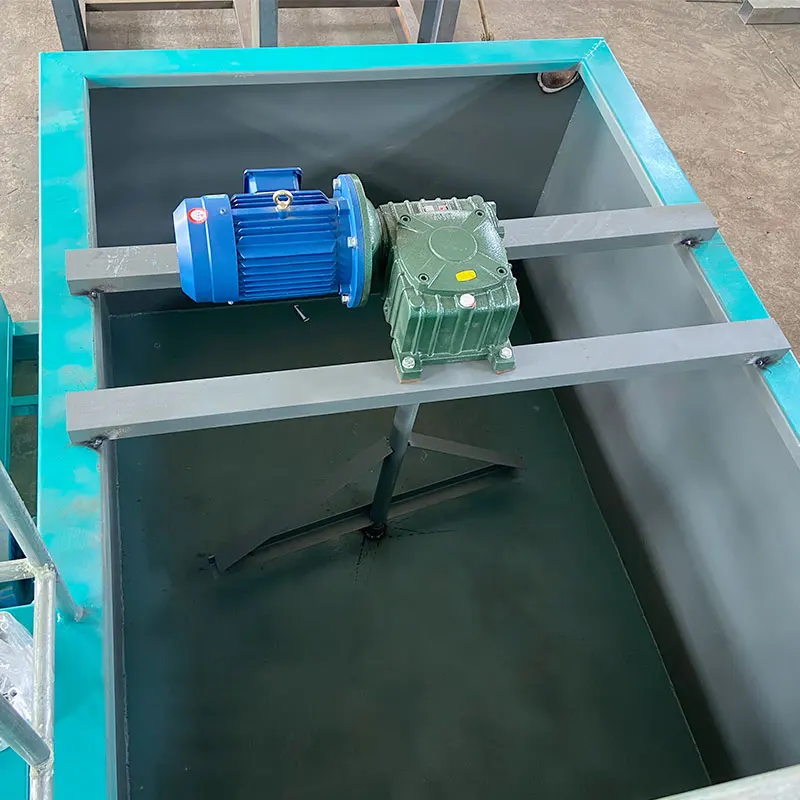

Put the raw material into the pulper and add an appropriate amount of water for a long time to stir the waste paper into pulp and store it in the storage tank.
2. Forming system
After the mold is adsorbed, the transfer mold is blown out by the positive pressure of the air compressor, and the molded product is blown from the molding die to the rotary mold, and is sent out by the transfer mold.
3. Drying system
(1) Natural drying method: The product is dried directly by weather and natural wind.
(2) Traditional drying: brick tunnel kiln, heat source can choose natural gas, diesel, coal, dry wood
(3) New multi-layer drying line: 6-layer metal drying line can save more than 30% energy
(3) New multi-layer drying line: 6-layer metal drying line can save more than 30% energy
4. Finished product auxiliary packaging
(1) Automatic stacking machine
(2) Baler
(3) Transfer conveyor
(2) Baler
(3) Transfer conveyor
Details Images
Company Profile
Henan Young Bamboo Industrial Co., Ltd. specializes in the production of household paper towel machines, toilet paper machines, napkin machines, facial tissue machines, egg tray machines and other paper machines and pulp molding equipment. The company covers an area of 10,000 square meters and has nearly 30 years of experience in R&D and export. We always adhere to the principle of quality first, meet customer needs as the purpose, continue technological innovation and development, and provide customers with the highest quality products, reasonable prices and comprehensive services. We welcome you to visit and cooperate at any time.

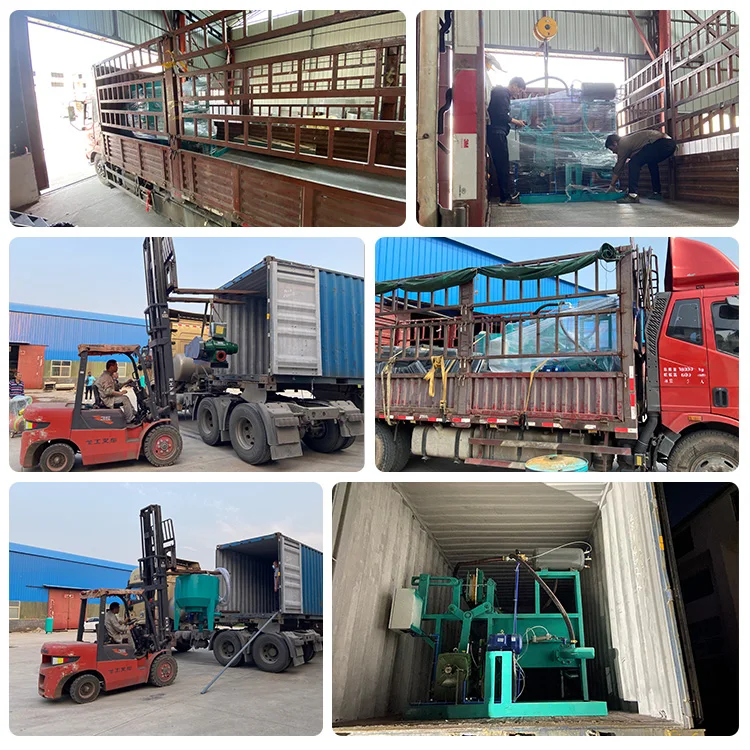

Shipping and Delivery
FAQ
Q:What is your production cycle?
A:Usually the delivery time is about 7 - 15days after the payment confirmed. It is also depend on the machines. If need to customize the machine as your requirement, the producing time is longer.
Q:What kinds of mould do you produce?
A:We produce all kinds of pulping mold, such as egg tray molds,egg box molds,fruit tray molds,coffee cup tray molds,wine tray molds, industrial package mold etc.
Q:How should I choose the model?
A:1. You could tell us your request for select our existing model or newly designed mould. Just 30 holes egg tray pulp mould, wehave more than 100 types.
2. Or you can send us pulping products (such as egg tray/egg box) ,we can design the mould.
Q:How to install the mold?
A:We have professional technician guidance to assist you with installation.
Q: What is your payment term?
A:After confirming the PI, you need pay 30% T/T deposit to start production, 70% balance before shipment.
A:Usually the delivery time is about 7 - 15days after the payment confirmed. It is also depend on the machines. If need to customize the machine as your requirement, the producing time is longer.
Q:What kinds of mould do you produce?
A:We produce all kinds of pulping mold, such as egg tray molds,egg box molds,fruit tray molds,coffee cup tray molds,wine tray molds, industrial package mold etc.
Q:How should I choose the model?
A:1. You could tell us your request for select our existing model or newly designed mould. Just 30 holes egg tray pulp mould, wehave more than 100 types.
2. Or you can send us pulping products (such as egg tray/egg box) ,we can design the mould.
Q:How to install the mold?
A:We have professional technician guidance to assist you with installation.
Q: What is your payment term?
A:After confirming the PI, you need pay 30% T/T deposit to start production, 70% balance before shipment.
