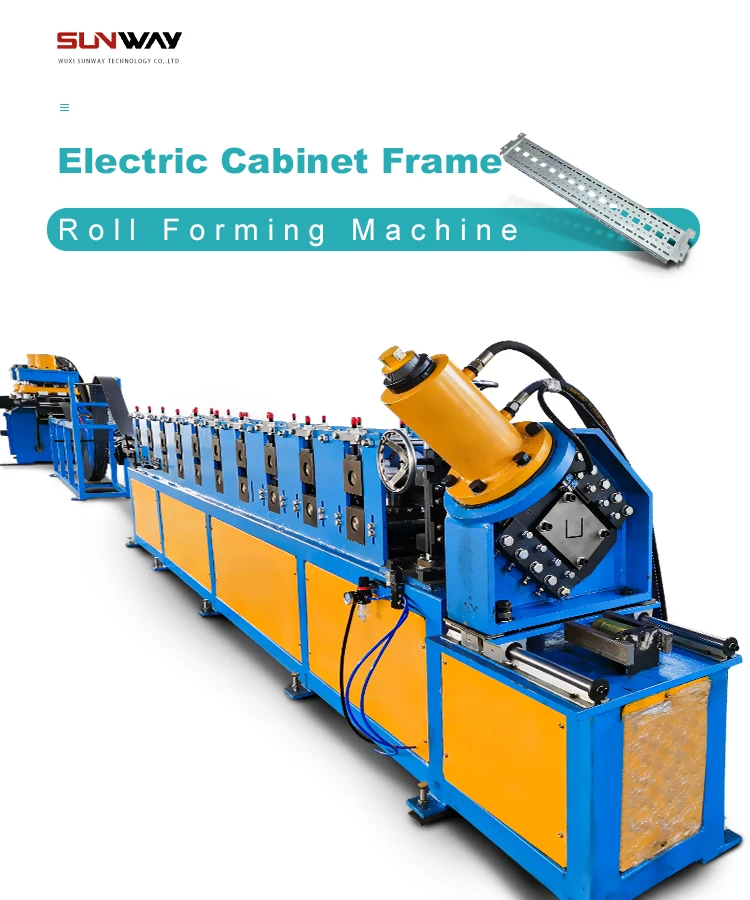

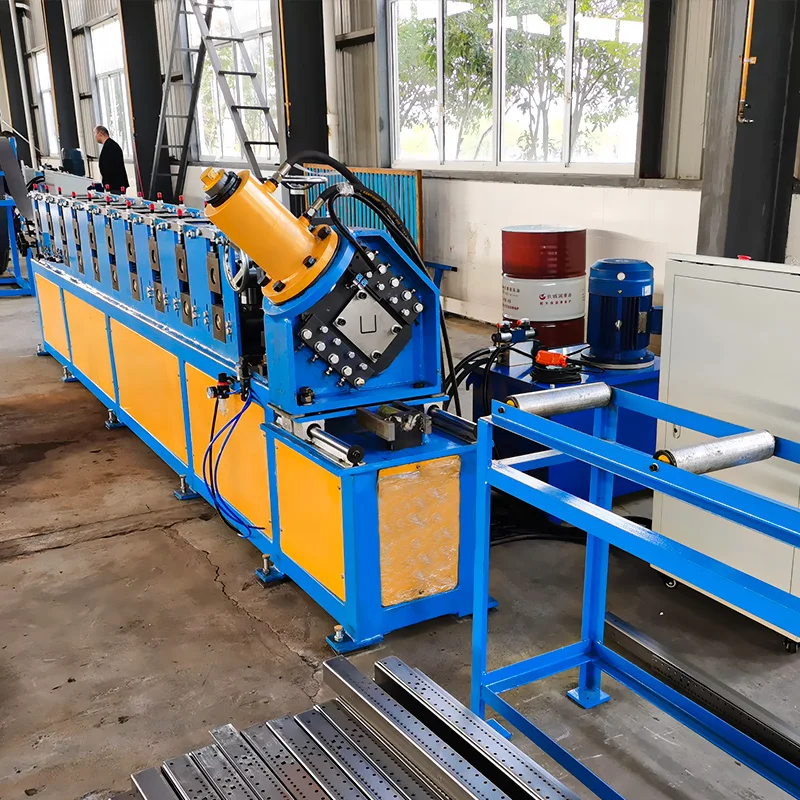

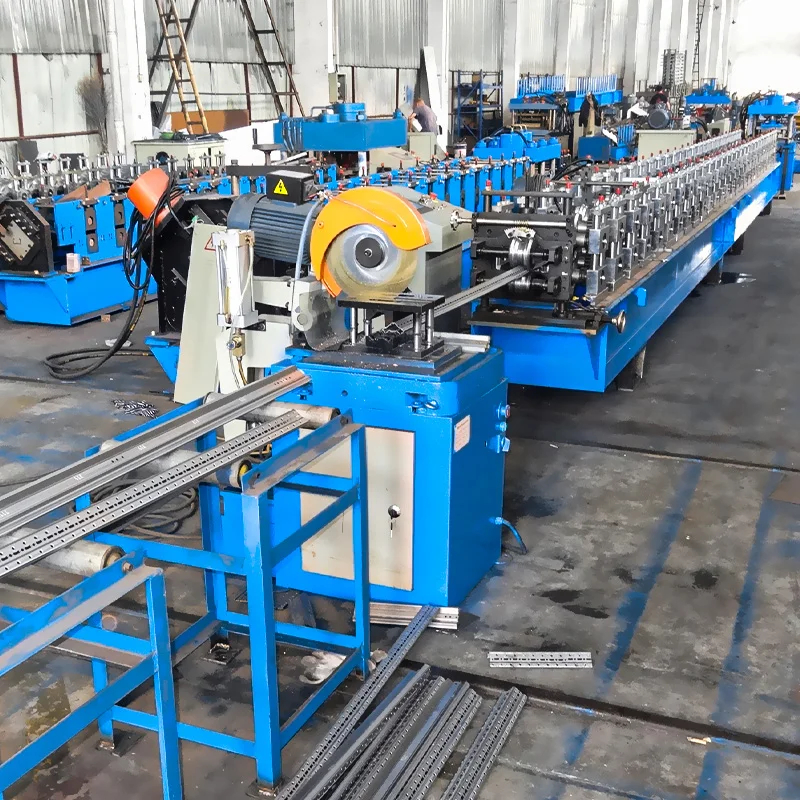

Customized Electrical Cabinet Frame Roll Forming Machine With Welding For Electric Cabinet Rack And Electronic Box Pole
- Category: >>>
- Supplier: Wuxi Sunway Machinery Co. Ltd.
Share on (1600638669372):
Product Overview
Description
Product Description

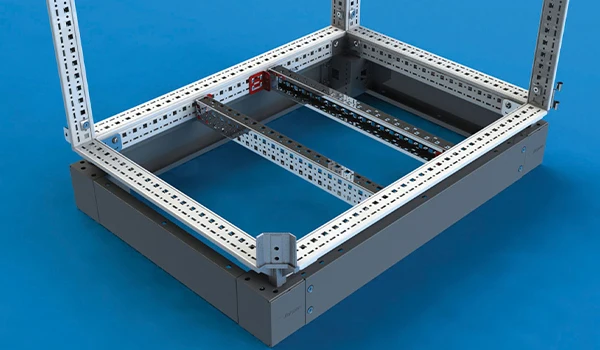

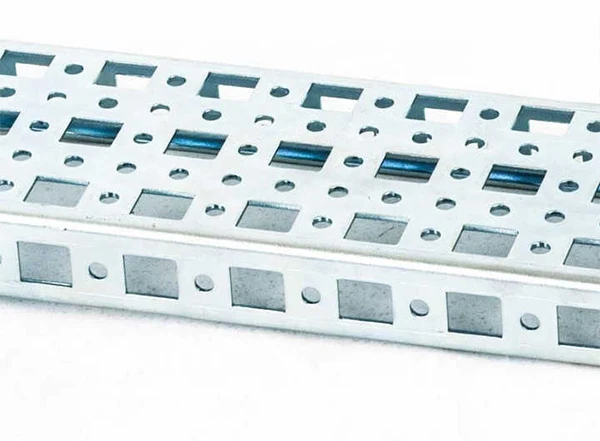

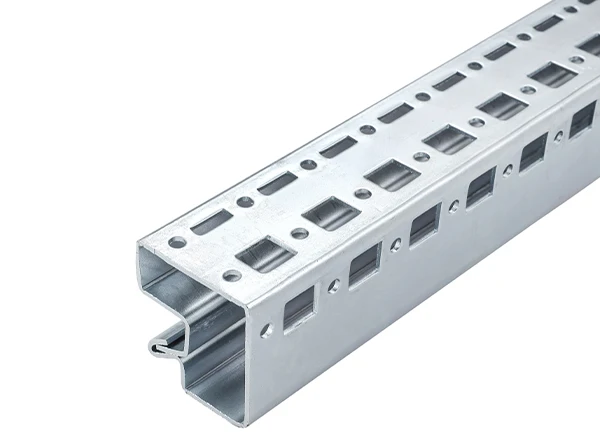

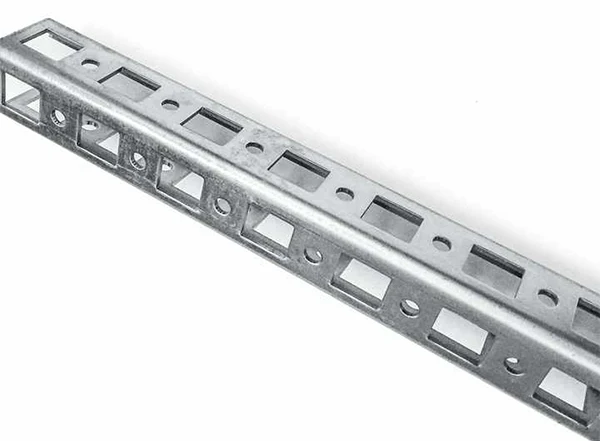

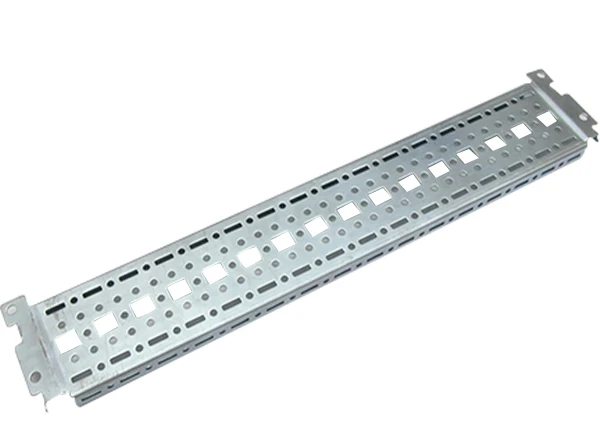

Electrical cabinet frame roll forming machine is used to produce various rack for the electrical cabinet such as 17 Side profiles, Side profiles, nine folding profiles, 9 13 16 Fold Metal Profile rittal baying enclosure etc. It is a column and provided with at least one sealing groove. The angular connector is designed in a three-dimensional coordinate shape. The groove is matched with the column and the sealing groove on the beam. The advantages are increased structural strength and improved cabinet protection which improve the replacement of electrical products and the safety of operators.

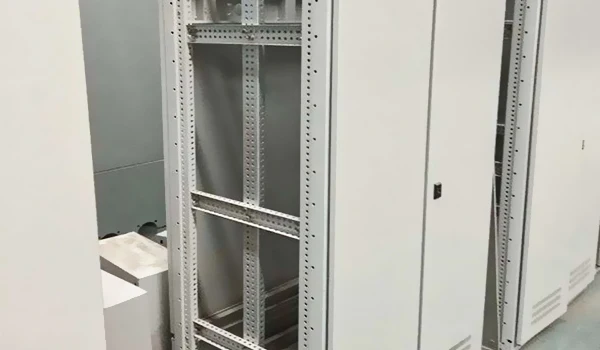

Automatic electric factory using cabinet frame roll forming machine with welding for electric cabinet rack, electronic box pole, metal case frame which using in switchgear system, low voltage panel building, control cabinet electrical instruments etc.
In Electrical & energy Industries, we are able to manufacture more related machines like Solar strut channel roll forming machine, DIN rail roll forming machine and Electrical Enclosure Box roll forming machine etc.
We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.
Automatic electric factory using cabinet frame roll forming machine with welding for electric cabinet rack, electronic box pole, metal case frame which using in switchgear system, low voltage panel building, control cabinet electrical instruments etc.
In Electrical & energy Industries, we are able to manufacture more related machines like Solar strut channel roll forming machine, DIN rail roll forming machine and Electrical Enclosure Box roll forming machine etc.
We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.

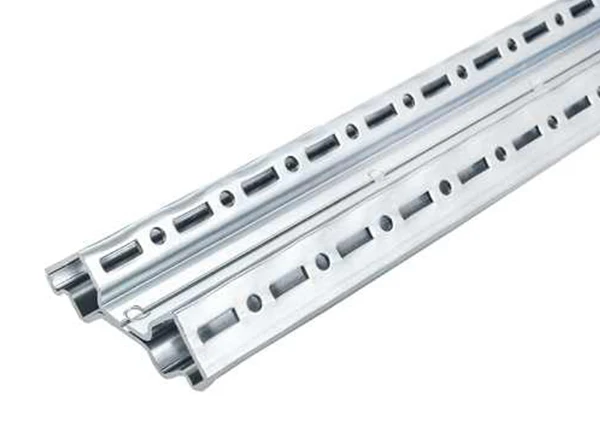

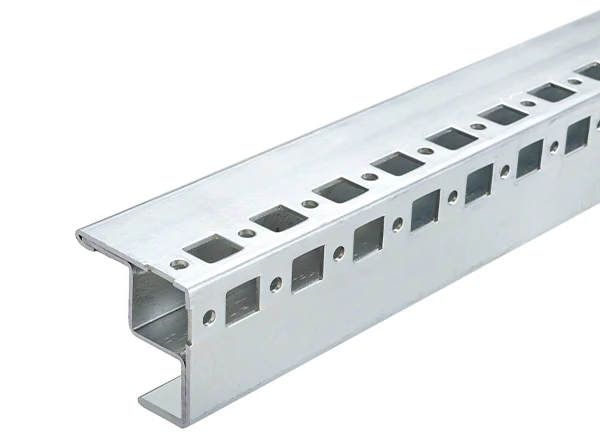

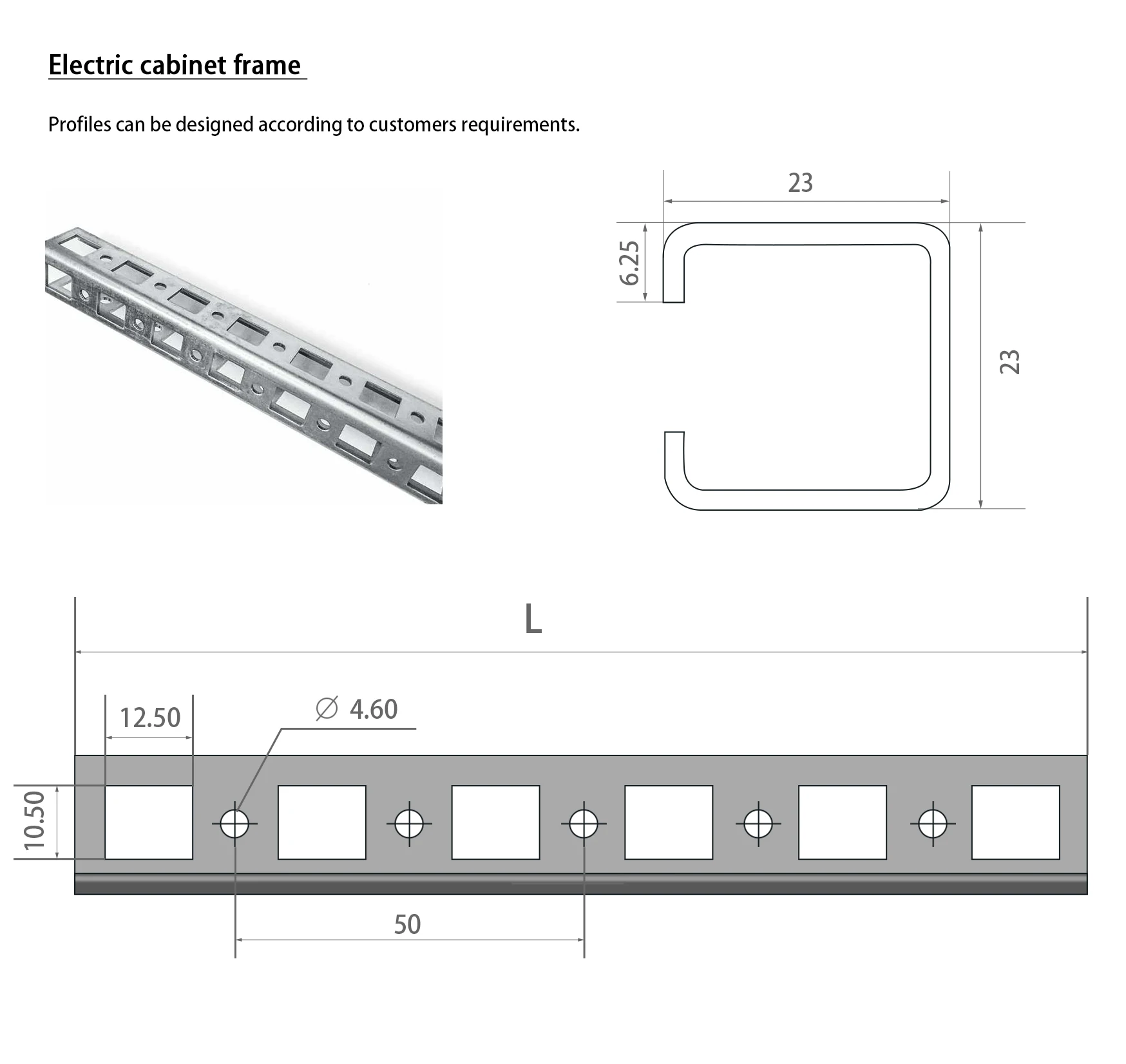

Profile Drawings

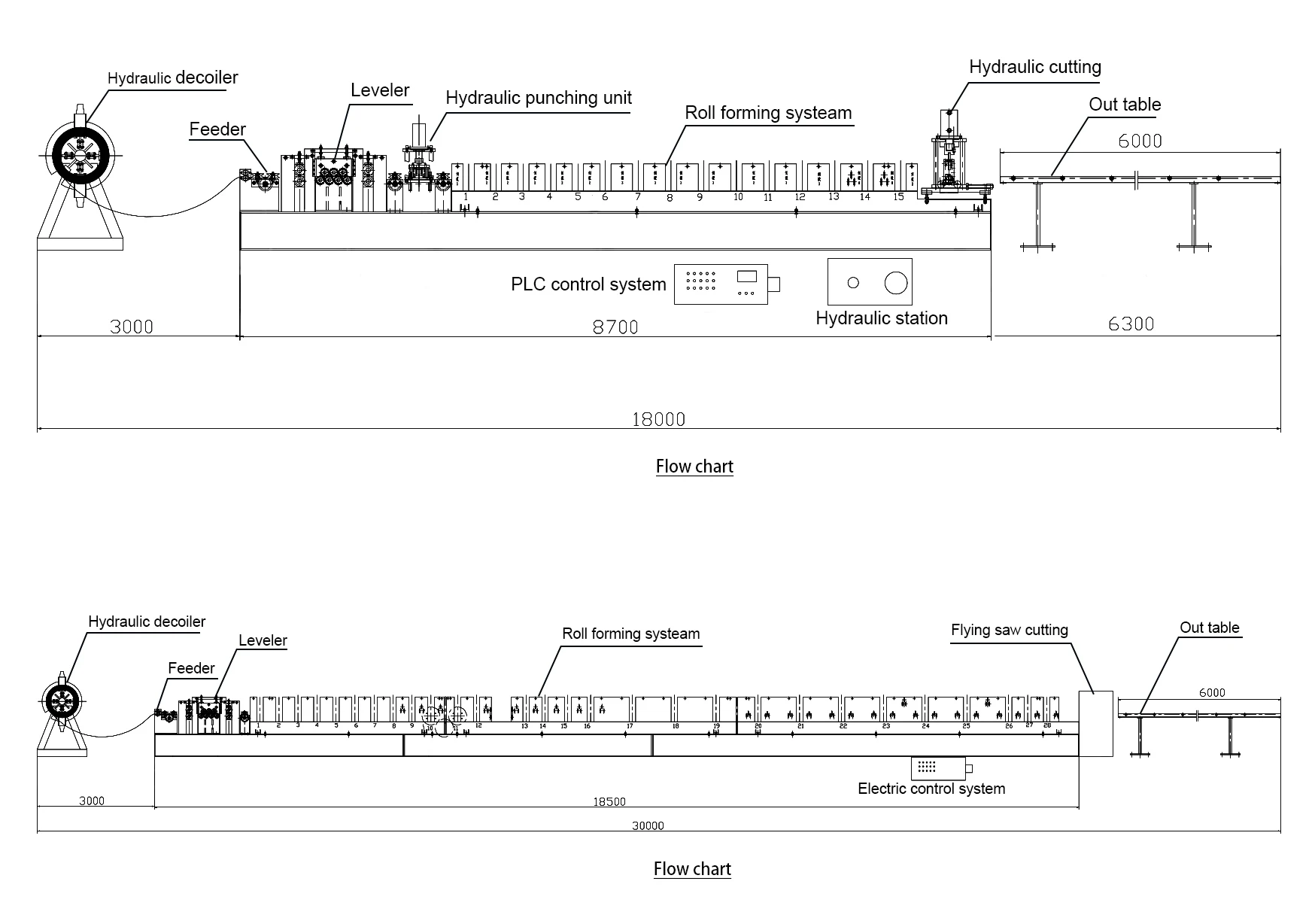

Production Line
Product Details
Hydraulic Decoiler

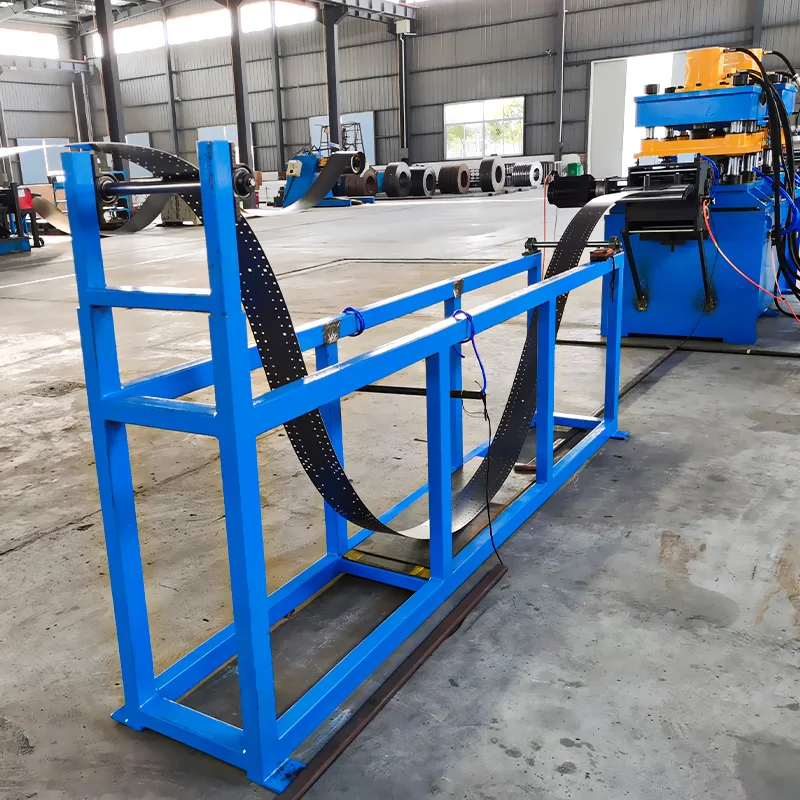

Leveller Unit

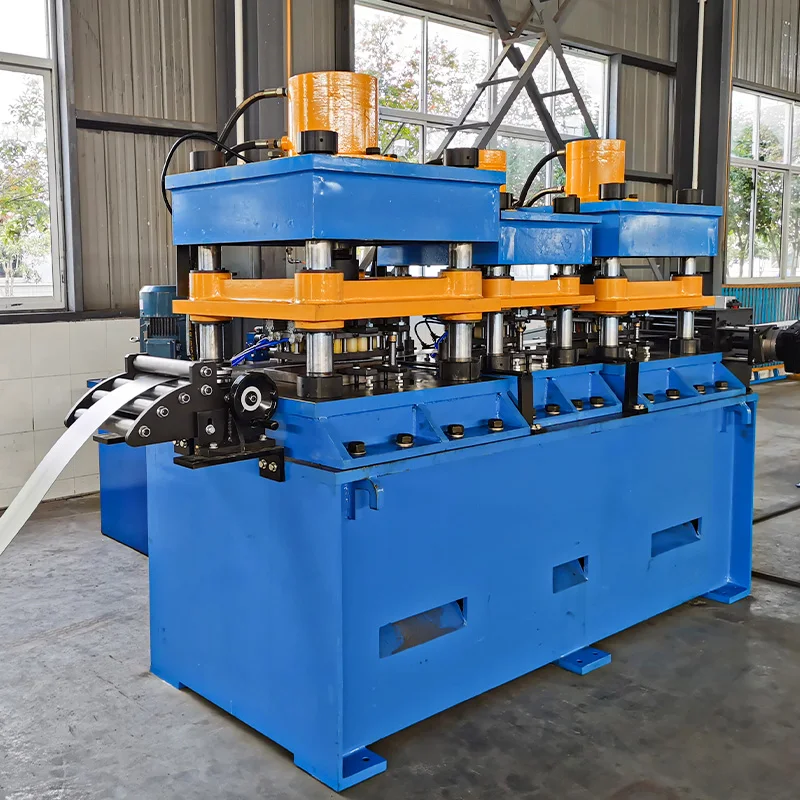

Hydraulic Punching Unit
Roll Forming Systeam

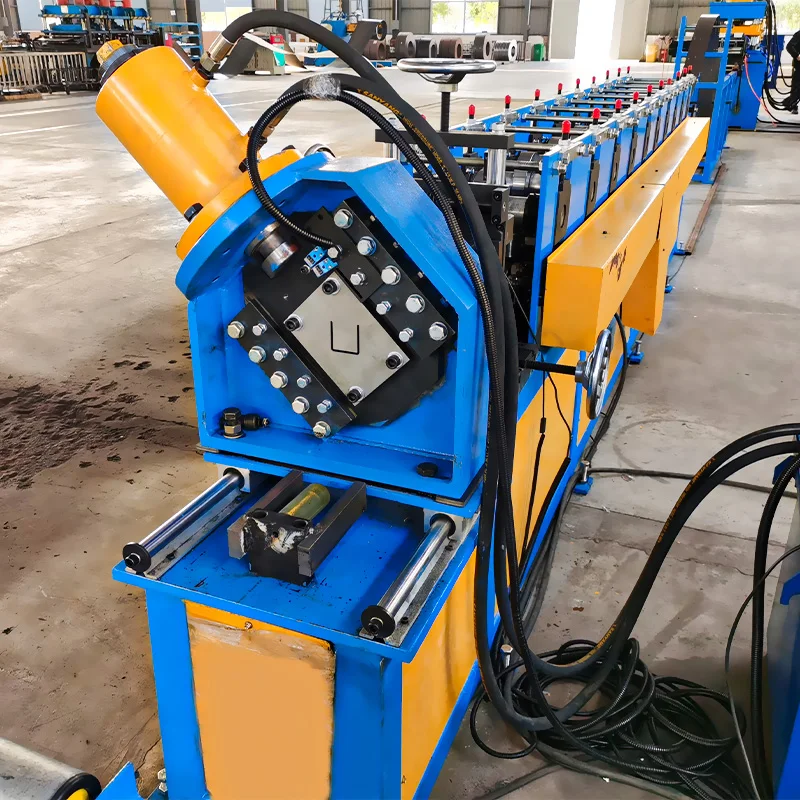

Hydraulic Cutting
Saw Cutting
Product Paramenters
Electrical Cabinet Frame Roll Forming Machine | ||||
Machinable Material | A) Galvanized Steel | Thickness(MM): 1.0-2.0 or as per customer | ||
B) Stainless Steel | ||||
Yield Strength | 250 - 550 Mpa | |||
Tensil Stress | G250 Mpa-G550 Mpa | |||
Decoiler | Manual Decoiler | * Hydraulic Decoiler (Optional) | ||
Punching System | Hydraulic Punching Station | * Punching Press (Optional) | ||
Forming Station | More than 30 Stands | * According To Your Profile Drawings | ||
Driving System | Chain Drive | * Gearbox Drive (Optional) | ||
Machine Structure | Wall Panel Station | * Cast Iron (Optional) | ||
Forming Speed | 5-15 (M/MIN) | * Or According To Your Profile Drawings | ||
Rollers’ Material | GCr 15 | * Cr12 (Optional) | ||
Cutting System | Hydraulic Cutting | * Saw Cutting (Optional) | ||
Frequency Changer Brand | Yaskawa | * Siemens (Optional) | ||
PLC Brand | Panasonic | * Siemens (Optional) | ||
Power Supply | 380V 50Hz 3ph | * Or According To Your Requirment | ||
Machine Color | Industrial Blue | * Or According To Your Requirment | ||

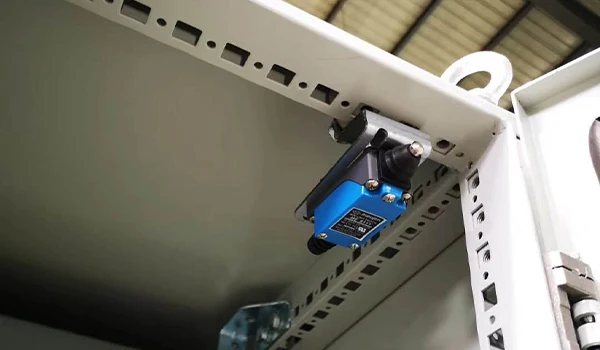

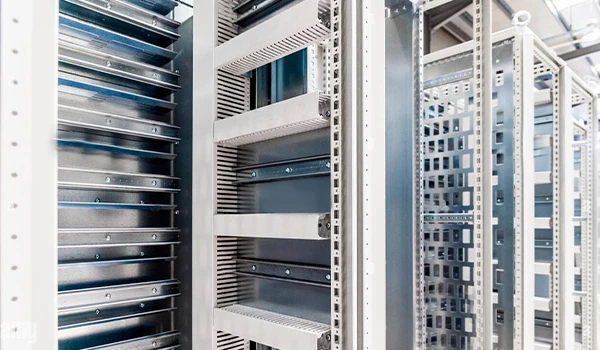

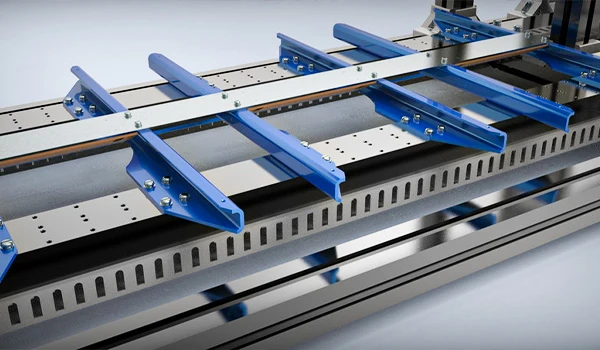

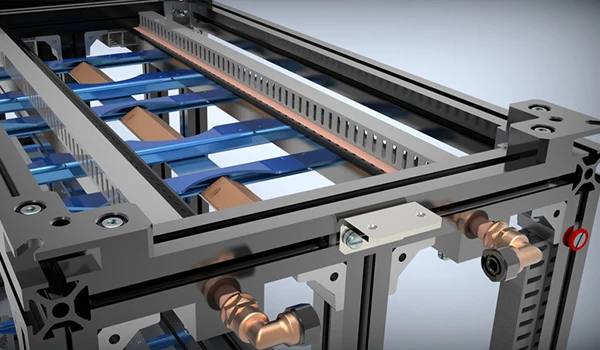

Application
HOW DOES SUNWAY MACHINERY MAKE INSTALLATION DURING COVID-19?
The installation of roll forming machine online during COVID-19 is for free!
Hereby SUNWAY will explain how we do the installation of our roll forming machine.
Third, when you receive the equipment, we will build a whatsapp or wechat group, our boss, engineer who design the machine, technician who assembly and calibrate machine and sales all will be in the group to support you in any doubt.
Fourth, we send you a manual in English so that you understand all the meanings of the buttons and how to start the machine.
Finally, SUNWAY has professional oversea engineer who can go to your place to install the machine and train your workers
especially in Middle East and Africa. The engineer can speak English, Arabic.
SUNWAY offers the best quality and the best service for our clients, especially in this situation. You don’t have to wait until
the COVID pass. You can produce the profiles right away with our machines.
First, we adjust the machine in our plant, we will ask which size you are going to produce first, we put the machine in the size it is going to produce and adjust all the correct parameters before the shipment, so you do not need to change anything when you got this machine.
Second, when we disassemble the machine for debug, we take videos so that you know how to connect them. It will show how to connect the cables and tubes, put the oils, put together the physical structures etc.
Third, when you receive the equipment, we will build a whatsapp or wechat group, our boss, engineer who design the machine, technician who assembly and calibrate machine and sales all will be in the group to support you in any doubt.
Fourth, we send you a manual in English so that you understand all the meanings of the buttons and how to start the machine.
Finally, SUNWAY has professional oversea engineer who can go to your place to install the machine and train your workers
especially in Middle East and Africa. The engineer can speak English, Arabic.
We have had many successes installing more complex machines in the years since COVID-19. For example
1) CZ automatic exchangeable roll forming machine installed successfully in UAE, Senegal, Cango
2) Roofing sheet roll forming machine installed successfully in Qatar, Bangladesh, Philippines, Turkey, UAE, etc.
3) PU sandwich panel production line installed successfully in Qatar
4) Slitting line installed successfully in Paraguay
5) Cut to length line installed successfully in Turkey.
SUNWAY offers the best quality and the best service for our clients, especially in this situation. You don’t have to wait until
the COVID pass. You can produce the profiles right away with our machines.
Company Profile
WUXI SUNWAY MACHINERY CO.,LTD is a professional manufacturer and exporter that are concerned with the design, development and production of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on. It has gained a global sales network.
Our machines feature beautiful appearance, long service life, good performance, simple operation, reasonable price, good quality and so on. Strong technical resources are the most stable guarantee for our products' quality. Our company is specialized in manufacturing different kinds of cold roll forming machines, such as color steel sheet forming machines for roof & wall, C and Z purling machines for steel structure, steel profiles forming machines for professional applications, slitting machines for processing raw material, especially in manufacturing Solar Mounting Bracket Machines which are widely used in Photovoltaic field.
SUNWAY always adhere to Dedication, Unity, Innovation, Win-win situation, as spirit of enterprise. In accordance with High Quality Assurance and Valued Credibility, we provide customers high qualified and reliable products with complete after-sales service. Our company is looking forward to establishing successful and long-term business relationships with all clients around the world in the near future.
FAQ
Q: Are you a manufacturer or trading company?
A:We are factory with professional production team and service consciousness just for exporting various types of laser machine.
Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
Q: What's your payment terms?
A: 30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBABA’s Gold supplier with BV assessment and CE certificate.
Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers’ specifications, using famous brand components.
Q: How to visit our company?
A: Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
A:We are factory with professional production team and service consciousness just for exporting various types of laser machine.
Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
Q: What's your payment terms?
A: 30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBABA’s Gold supplier with BV assessment and CE certificate.
Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers’ specifications, using famous brand components.
Q: How to visit our company?
A: Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
