HIKVISON Color vu Acu sense Two Way Audio Light and Audible Warning 4MP 8MP 4K Turret Eyeball Security Camera
- Category: >>>
- Supplier: Shenzhen Hailan Shike Electronics Co. Ltd.
Share on (1600638677336):
Product Overview
Description
VR
OEM All Hikvsion, Dahua and Uniview products ! If you are Wholesalers/ Contractors/ Retailers/ Installers，please click here contact us to get more discount. Thanks!
Main Functions
Specifications

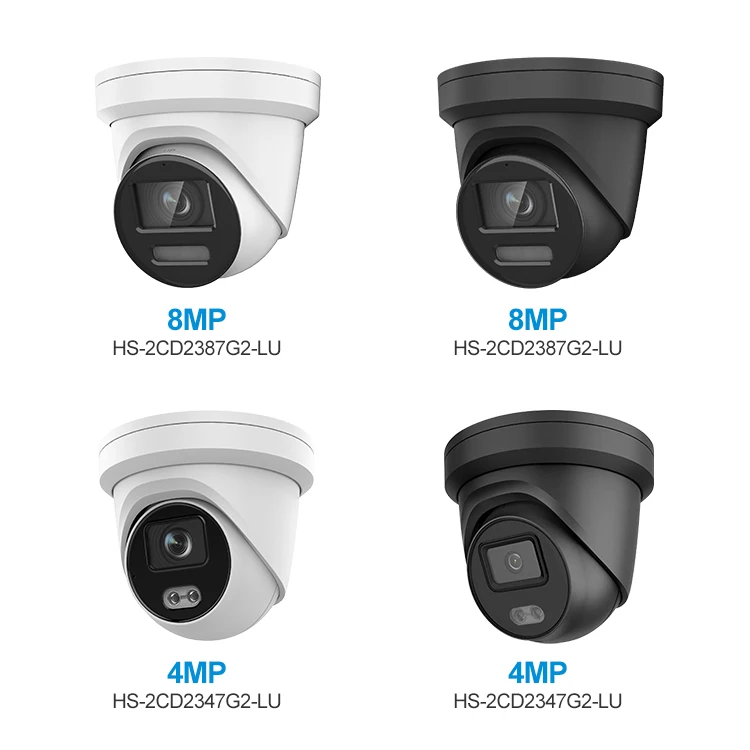

DS-2CD2387G2-LU Specification | ||
Camera | ||
Image Sensor | 1/1.2″ Progressive Scan CMOS | |

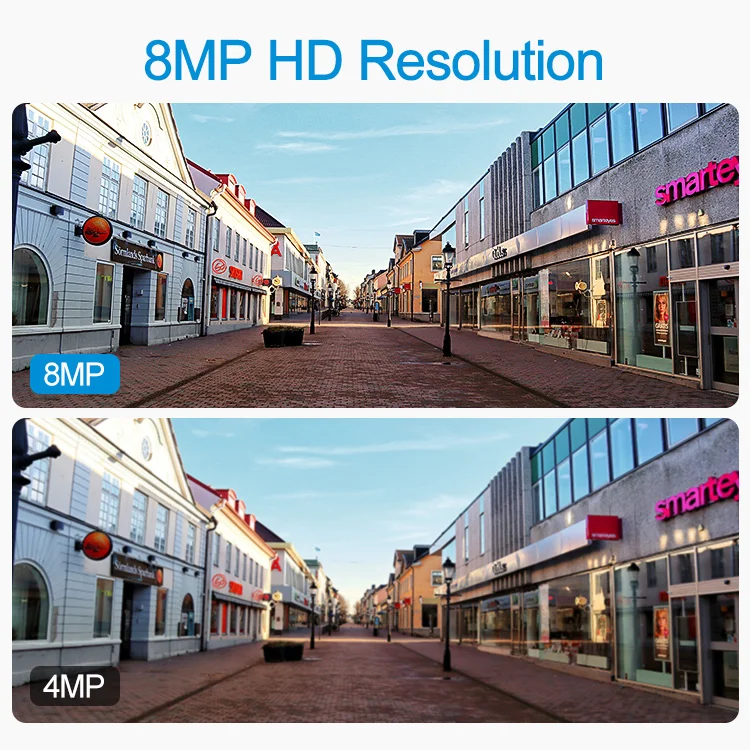

Max. Resolution | 3840 × 2160 | |
Min. Illumination | Color：0.0005 Lux @ (F1.0, AGC ON) | |
Shutter Speed | 1/3 s to 1/100,000 s | |
Day & Night | 24/7 Color imaging | |
Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° | |
Lens | ||
Lens Type | Fixed focal lens, 2.8 and 4 mm optional | |

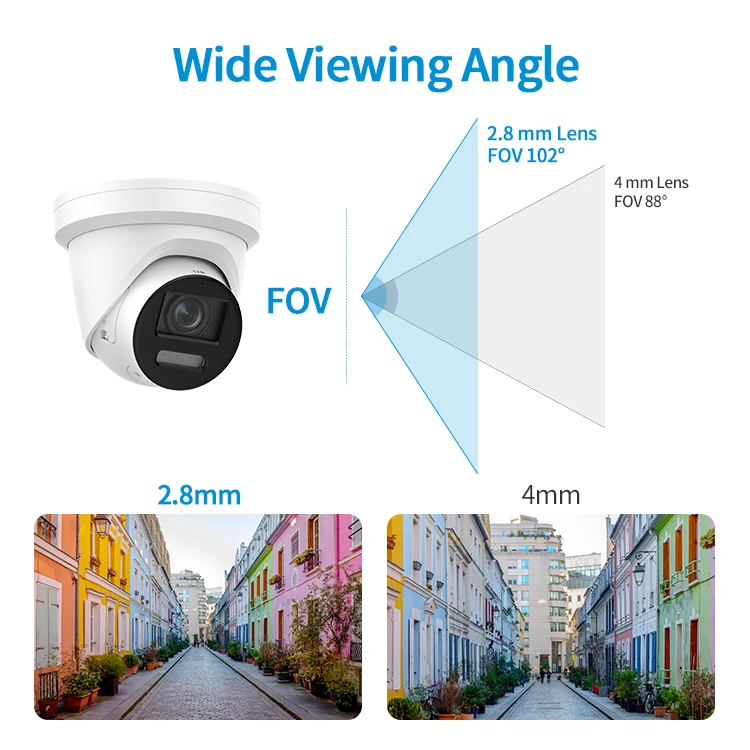

Focal Length & FOV | 2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124° 4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104° | |
Lens Mount | M16 | |
Iris Type | Fixed | |
Aperture | F1.0 | |
Depth of Field | 2.8 mm: 3.1 m to ∞ 4 mm: 3.6 m to ∞ | |
DORI | ||
DORI | 2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m 4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m | |
Illuminator | ||
Supplement Light Type | White Light | |
Supplement Light Range | Up to 30 m | |
Smart Supplement Light | Yes | |
Video | ||
Main Stream | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800 ,2688 × 1520, 1920 × 1080, 1280 × 720) | |
Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) | |
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | ||
60 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360) | ||
Video Compression | Main stream: H.265/H.264/H.264+/H.265+ | |
Sub-stream: H.265/H.264/MJPEG | ||
Third stream: H.265/H.264 | ||
Video Bit Rate | 32 Kbps to 16 Mbps | |
H.264 Type | Baseline Profile/Main Profile/High Profile | |
H.265 Type | Main Profile | |
Bit Rate Control | CBR/VBR | |
Scalable Video Coding (SVC) | H.264 and H.265 encoding | |
Region of Interest (ROI) | 1 fixed region for main stream and sub-stream | |
Audio | ||
Environment Noise Filtering | -U: Yes | |
Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz | |
Audio Compression | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC | |
Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) | |
Network | ||
Simultaneous Live View | Up to 6 channels | |
API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP | |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS,PPPoE, SNMP | |
User/Host | Up to 32 users. 3 user levels: administrator, operator and user | |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface | ||
Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) | |
Client | iVMS-4200, Hik-Connect, Hik-Central | |
Web Browser | Plug-in required live view: IE 10, IE 11 | |
Plug-in free live view : Chrome 57.0+, Firefox 52.0+ | ||
Local service: Chrome 57.0+, Firefox 52.0+ | ||
Image | ||
Wide Dynamic Range (WDR) | 130 dB | |
Privacy Mask | 8 programmable polygon privacy masks, mask color or mosaic configurable | |
Day/Night Switch | Day, Night, Auto, Schedule | |
Image Enhancement | BLC, HLC, 3D DNR | |
Image Parameters Switch | Yes | |
Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser | |
Interface | ||
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |

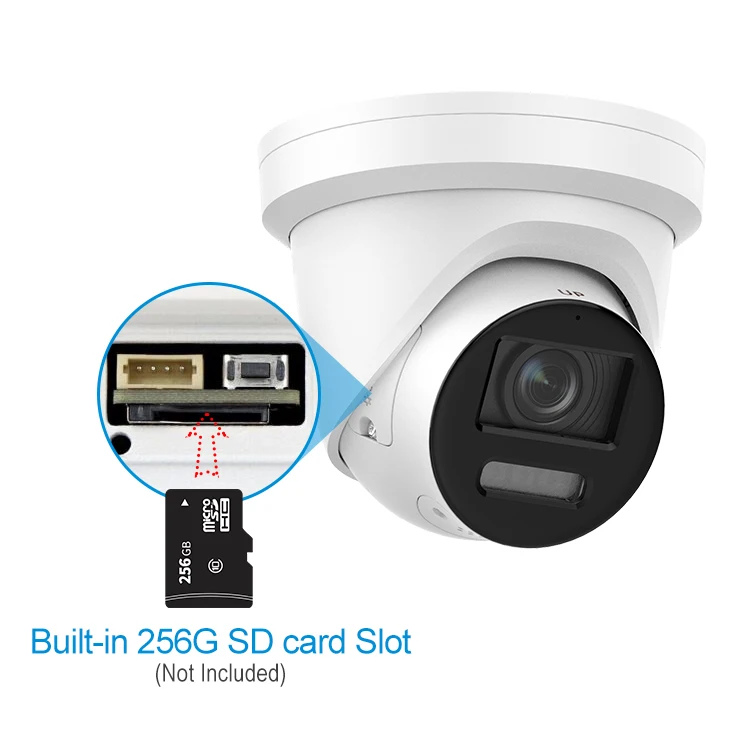

On-Board Storage | Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB | |
Built-in Microphone | -LU: Yes | |
Event | ||
Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception(network disconnected, IP address conflict, illegal login, HDD full, HDD error) | |
Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)) Scene change detection | |
Linkage | Upload toNAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email | |
Deep Learning Function | ||
Face Capture | Yes | |
General | ||
-L: 12 VDC, 0.42 A, max. 5 W PoE: 802.3af, 36 V to 57 V, 0.17 A to 0.11 A, max. 6.0 W -LU: 12 VDC, 0.46 A, max. 5.5 W PoE: 802.3af, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W | ||
Material | Cover: metal, main body: metal | |
Dimension | Ø138.3 mm × 120.1 mm (Ø5.4" × 4.7") | |
Package Dimension | 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9") | |
Weight | Approx. 870 g (1.9 lb.) | |
With Package Weight | Approx. 1160 g (2.6 lb.) | |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | |
Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | |
33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch,Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian | ||
General Function | Anti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter | |
Software Reset | Yes | |
Hot Products
Company Profile
Shenzhen HaiLan ShiKe Electronics Co.,Ltd, established in 2015, is a young, creative and energetic company . We have two own brands Hitosino and Valucam,with a strong focus on service, as well as a commitment to providing innovative, high quality and
competitively priced products .Product including Oem Hk / Da hua /Uniview CCTV Cameras, IP Video Solutions, and Digital Recording Surveillance Systems ,SSD hard disk and so on. We are pleasure that can provide high quality product for you,Looking forward to work with you.
competitively priced products .Product including Oem Hk / Da hua /Uniview CCTV Cameras, IP Video Solutions, and Digital Recording Surveillance Systems ,SSD hard disk and so on. We are pleasure that can provide high quality product for you,Looking forward to work with you.
Certifications
Product Showcase
FAQ
1.How can we confirm the products are genuine HV and DH English version?
HV and DH softwares can be downloaded from their official website, and only original products are fully compatible with the softwares.
2.Can you provide OEM service? Is there MOQ?
OEM is preferred, and in most cases, no MOQ is required.3、What payment method can your company provide ?
We accept Alibaba Trade Assurance Orders payment, via TT (Bank transfer), Western Union,Paypal and so on.
4.How is your after-sales service?
Most of our sales engineers and technicians have won HV HCSA certificate. And thanks to manufacturers' support, all issues can be solved timely and properly.5. Can I install the IP camera by myself?
Of course,the camera is flexible installated.And there is a user manual within box,you can contact us in need.
6.Do you provide drop shipping service?
We will provide as many shipping options as possible, including DHL, UPS, TNT, FedEx and EMS, Airfreight and by Sea, and we also have third-party warehouse in US and AU, timely shipment can be arranged.
Any more information, please contact us via monitech.en.alibaba.com we will provide more product information to you, Hope we will server to you. Thanks your support.
