used plastics, rubber, tire, plastics to fuel pyrolysis equipment
- Category: >>>
- Supplier: Henan Lanning Technology Co. Ltd.
Share on (1600638701098):
Product Overview
Description
used plastics, rubber, tire, plastics to fuel pyrolysis equipment
Product Description

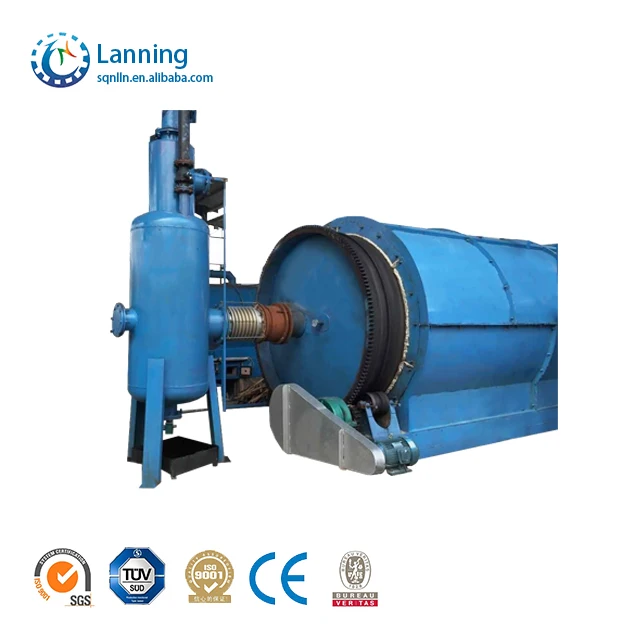

The real picture of plant
Features and advantages
1. PLC automatic control system
2. Full-vacuum processing enviroment
3. Automatic rolling machine makes the circle perfect.
4. Rigorous test system to guarantee the quality of the product and it's accessories.
5. Non pollution, ZTE series desulfurization device.
6. Humanity design, automatic carbon black discharging system, time-saving and labour-saving.
Some available raw materials and oil output rate
| used rubber to fuel oil pyrolysis equipment used tire and rubber to oil recycling plant |
advantage service

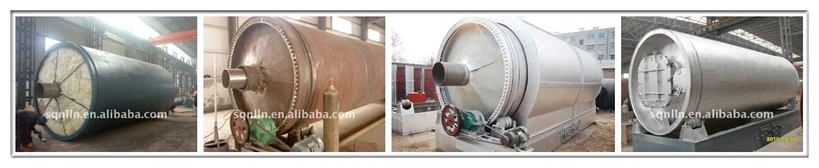

Reactor:
1. The gear can be seperated from reactor, instead of welding on reactor. So it will not be destroyed by cycling heating.and very easily to be re-placed
2. The reactor is supported in a centre line by rollers. It will remain stable while running.
3. Auto-welding, both inside and outside.
4. Made by special boiler plate Q245R/ Q345R. Security and long service life.
5. Made by rock wool insulation board. Save fuel and ensure heating effect.
Auto-feeder(optional device):
1. 50 ton hydraulic pressure help feeding more raw materials.
2. The diameter is 1.4m. It can feed all kinds of raw materials, including plastic, packages of plastic, truck tire, car tire, or tire pieces after cutting.
3. Save labor, save time.
4. After finishing production it can feed raw material instead of waiting the reactor to be cooled.
Catalyst chamber:
1. Improve the oil yield and oil quality.
2. Impurity of oil gas will be collected here.
3. Reduce the speed of oil gas so that it will be better cooled.
Oil separator:
1. Water from raw material will be separated here.
2. Water sealing design prevent tempering. Ensure saftety.
3. Heavy oil will be collected here.
Cooling system :
1. Coil pipe cooling system : there are 22 pipes lied in the water pond,each pipe 6 meters long, oil gas can be cooled in larger area and longer time,thus get higher oil yield .
2. Vertical condensrs : we supply 4 cndensors, each has 44 pipes inside the condensors. Save land and looks more neat and beautiful.
Anti-back fire device:
1. Little residual gas can not be cooled. It will recycle these gas to furnace burned to heat the reactor.
2. Water sealing disign will prevent tempering. Ensure safety.
Double dust removal device:
1. Dispose of flue gas caused by heating reactor using coal, wood, oil or natual gas.
2. Environment protection.
Safety system:
Finished Products

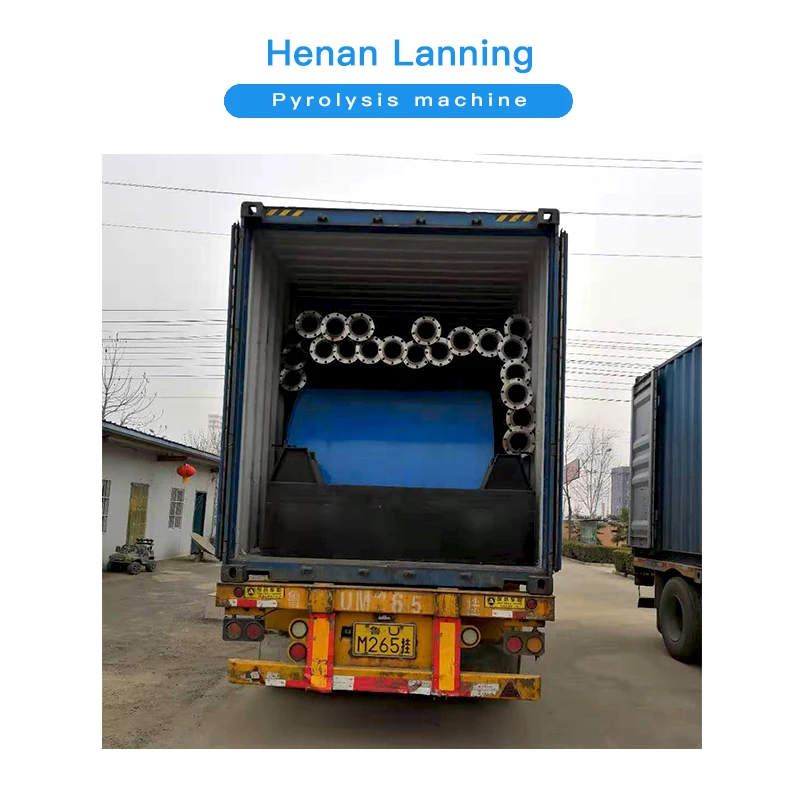

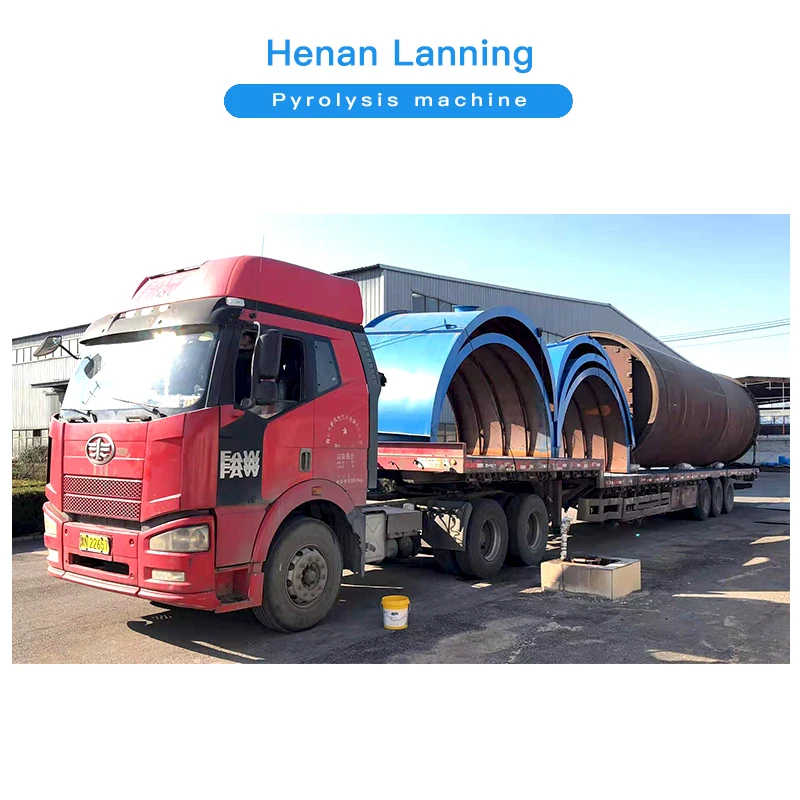

Delivery & install

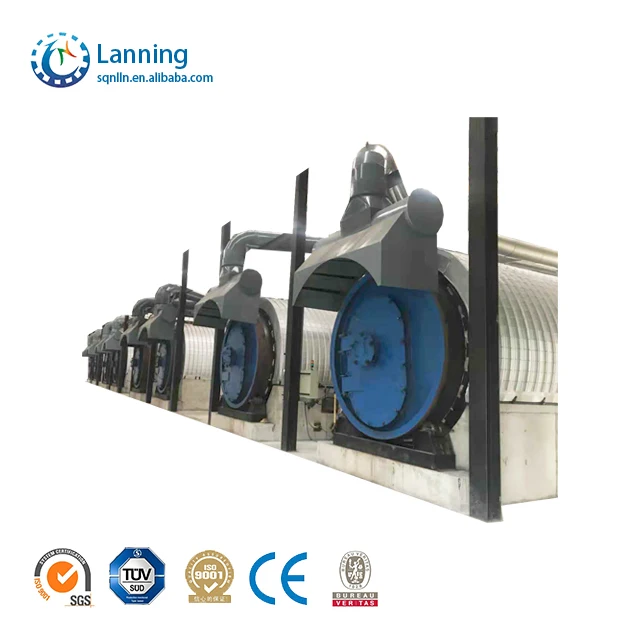

Successfull Installation
Company Information
1) History:
Founded in 2006 with Ningling Lanning Technology Co.,LTD.
Renamed in 2017 by Henan Lanning Technology Co.,LTD
2) Location:
Located in Ningling county, Shangqiu city, Henan province, China.
3) Main Products:
Tyre/ Plastic Pyrolysis machine;
Oil distillation machine;
Carbon black make pellet machine;
4) Certification:
ISO 9001
CE (International exports to the European Union certification)
BV (French authority certification)
TUV (Germany authority certification)
FAQ
- What is the Warranty period given by you for the whole plant and machinery?
We guarantee the complete machine for one year since installation. If during the first
year, there is any problem caused by the machine quality (Except personal factor
damage and quick wear -part), we take responsibility.
- Total machinery will fit in how many containers?
That will depend on which model will you choose. For LN5,
(5 capacity/per day), two 40 feet high containers are ok. But for one larger than LN5,
for example,LN-10, one 40 feet high container and one 40 feet FLAT RACK will be required.
- When will we receive the foundation drawings?
After signing the contract, we will send the foundation drawing to you OR make a design
according to your workshop size .
- How much is your installation time?
About one month including installing the machine, testing the machine, and training your
workers until everything runs smoothly.
- How much civil work will be involved?
Only two. One is the foundation for the reactor base, the other is the water cooling pool
if you choose the coil pipe cooling system.
