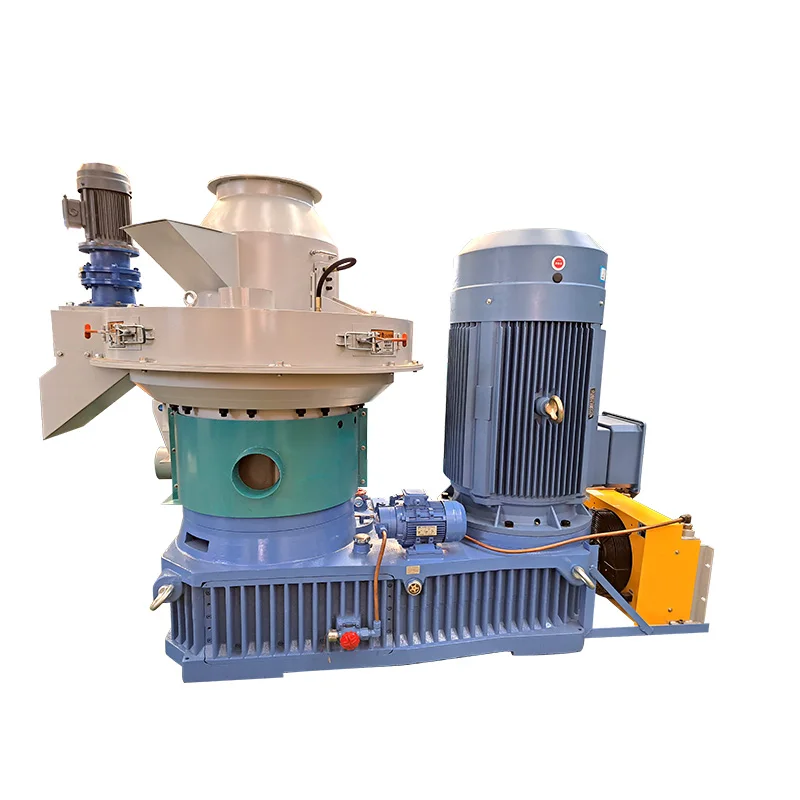

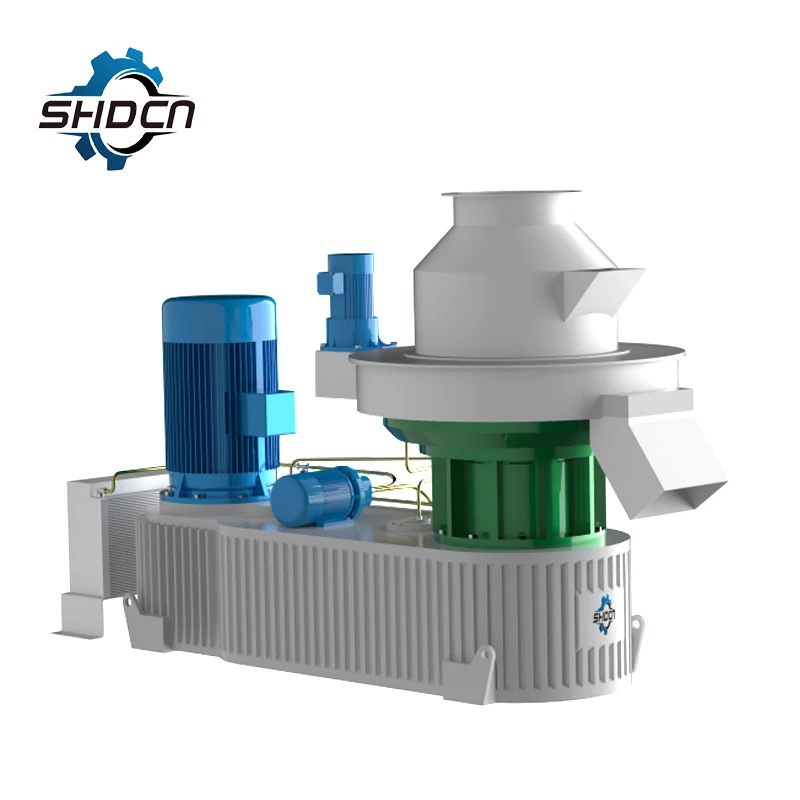

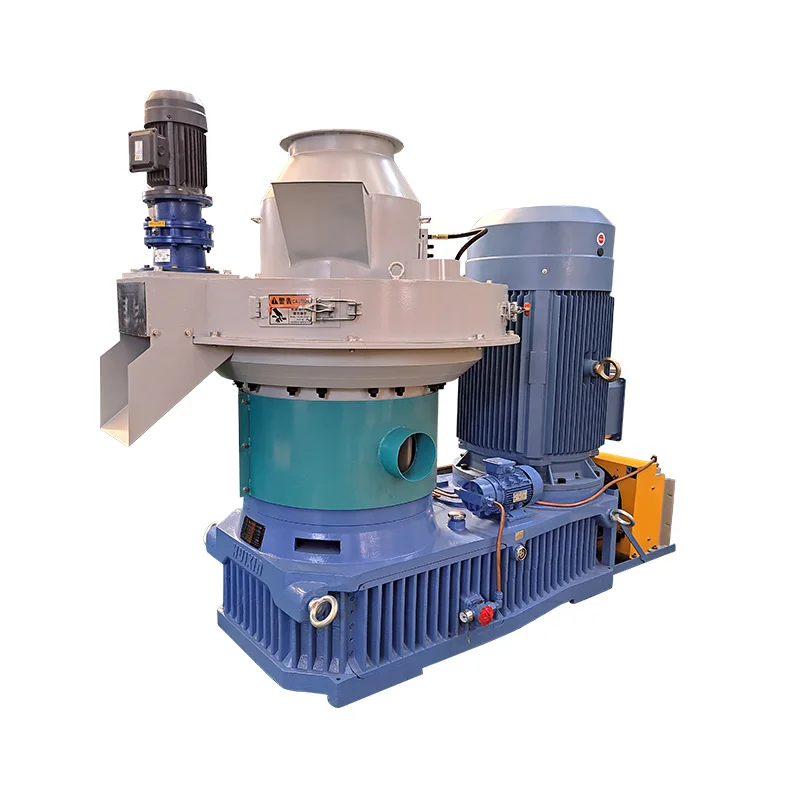

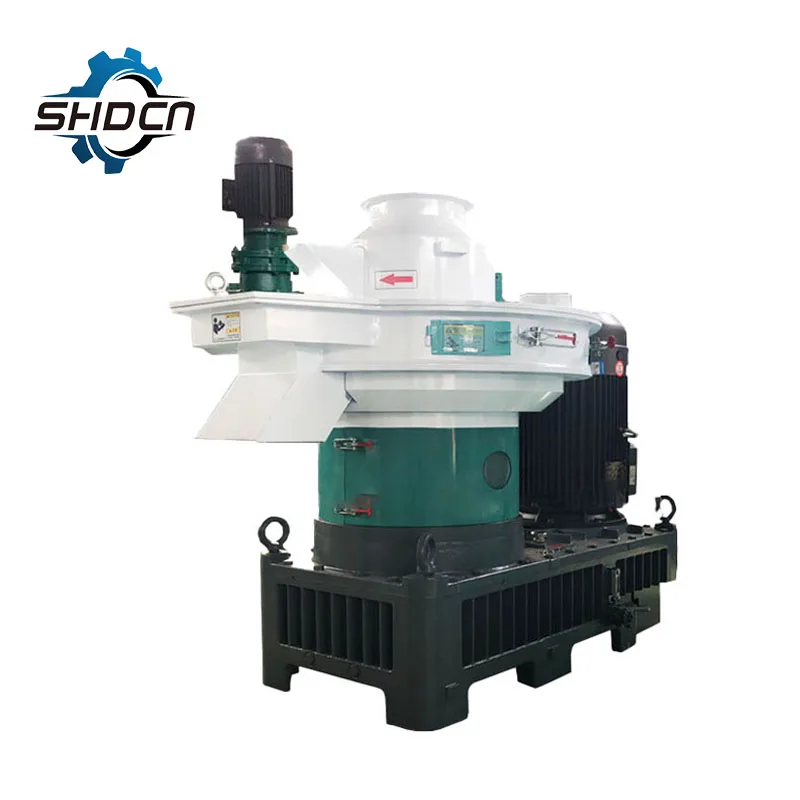

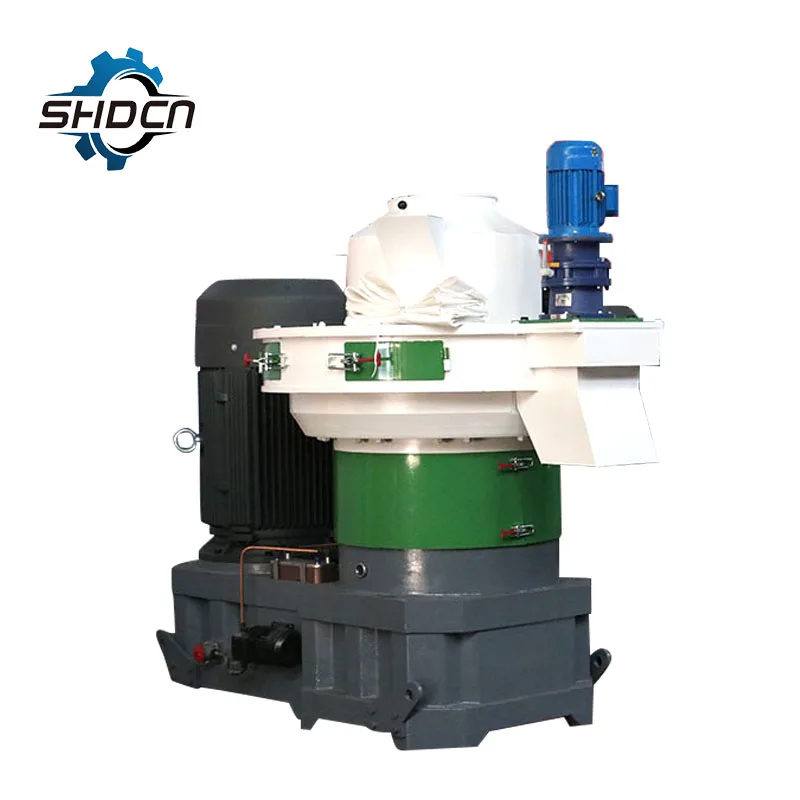

Complete Wood Pellet Production line with Various Capacities Wooden Pellets Making Machine
- Category: >>>
- Supplier: Jinan Shanghangda Machinery Co. Ltd.
Share on (1600638754665):
Product Overview
Description

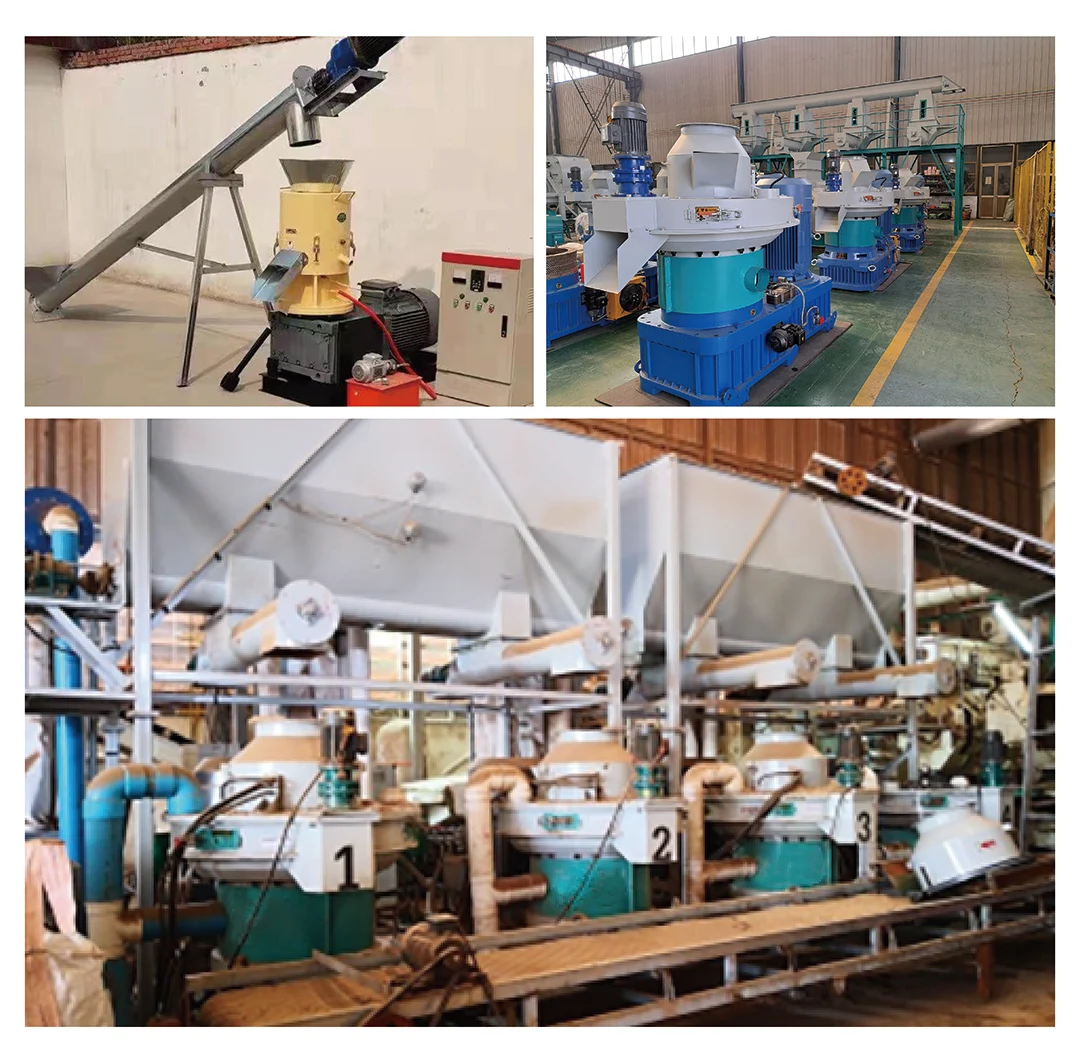

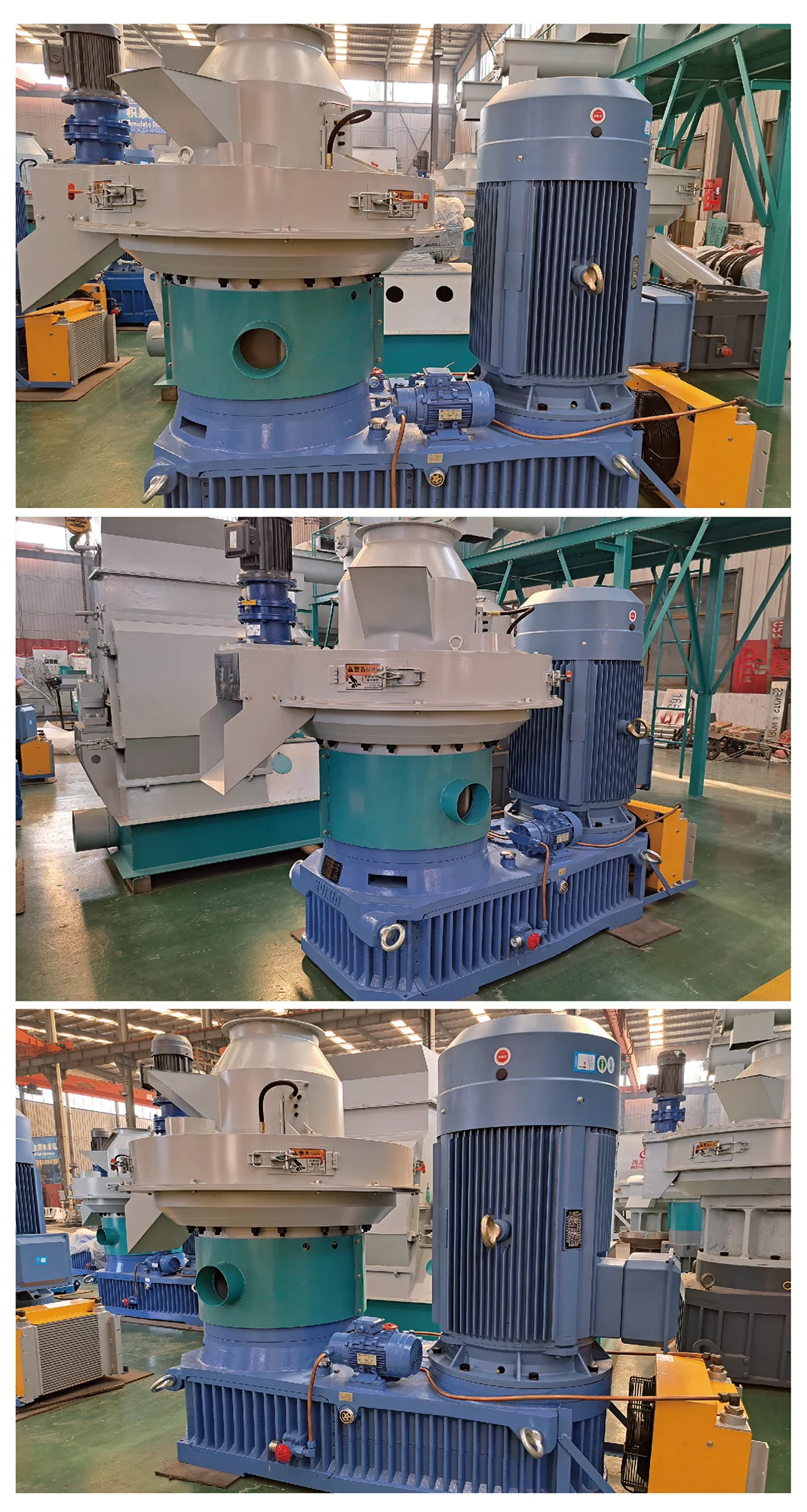

Wood Pellet Machine Display
Wood pellet machine Description
The biomass pellet production line is a device that recycles wood chips, corn stover, wood shavings,and waste materials from lumber mills. Pellet fuel has the characteristics of high burning value, high density, green environmental protection, and convenient transportation. Pellets after molding is 1/8 of the volume of the raw material, the density is 0.8-1.5, and the
calorific value can reach 3400~6000 kcal. The biomass pellet machine is a new type of bioenergy equipment, it effectively treats various waste materials and is a good choice for turning waste into treasure.
calorific value can reach 3400~6000 kcal. The biomass pellet machine is a new type of bioenergy equipment, it effectively treats various waste materials and is a good choice for turning waste into treasure.

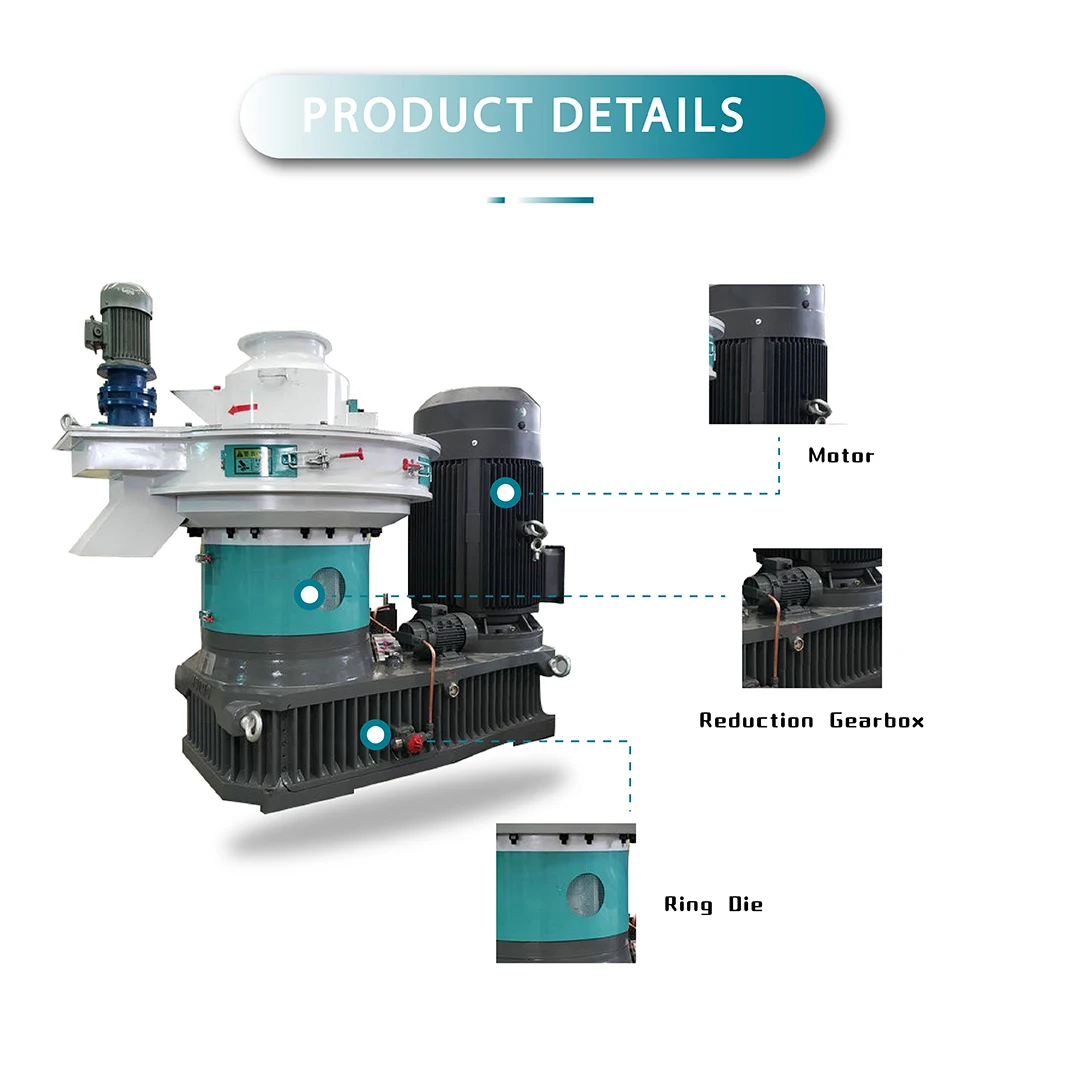

Structure of biomass pellet machine
The granulator is mainly composed of spiral feeder, mixing and mixing space, adjusting system, particle forming area, particle sending, steel body body, dynamic transmission and lubrication system, and the main components are the main motor, transmission mechanism, spindle, ring die, press roll, scraper, cutter assembly and fuselage and door.
Raw material for pellet machine
Vertical ring mold wood pellet machine is suitable for pressing difficult bonding, forming difficult materials. Such as: poplar,jujube, according to the tree, branches, tree rods, bark, palm silk, sawdust and other wood waste; Various crops straw rice husk, sunflower seed shell, peanut shell, coffee shell, coconut shell and other varieties of melon and fruit shell.

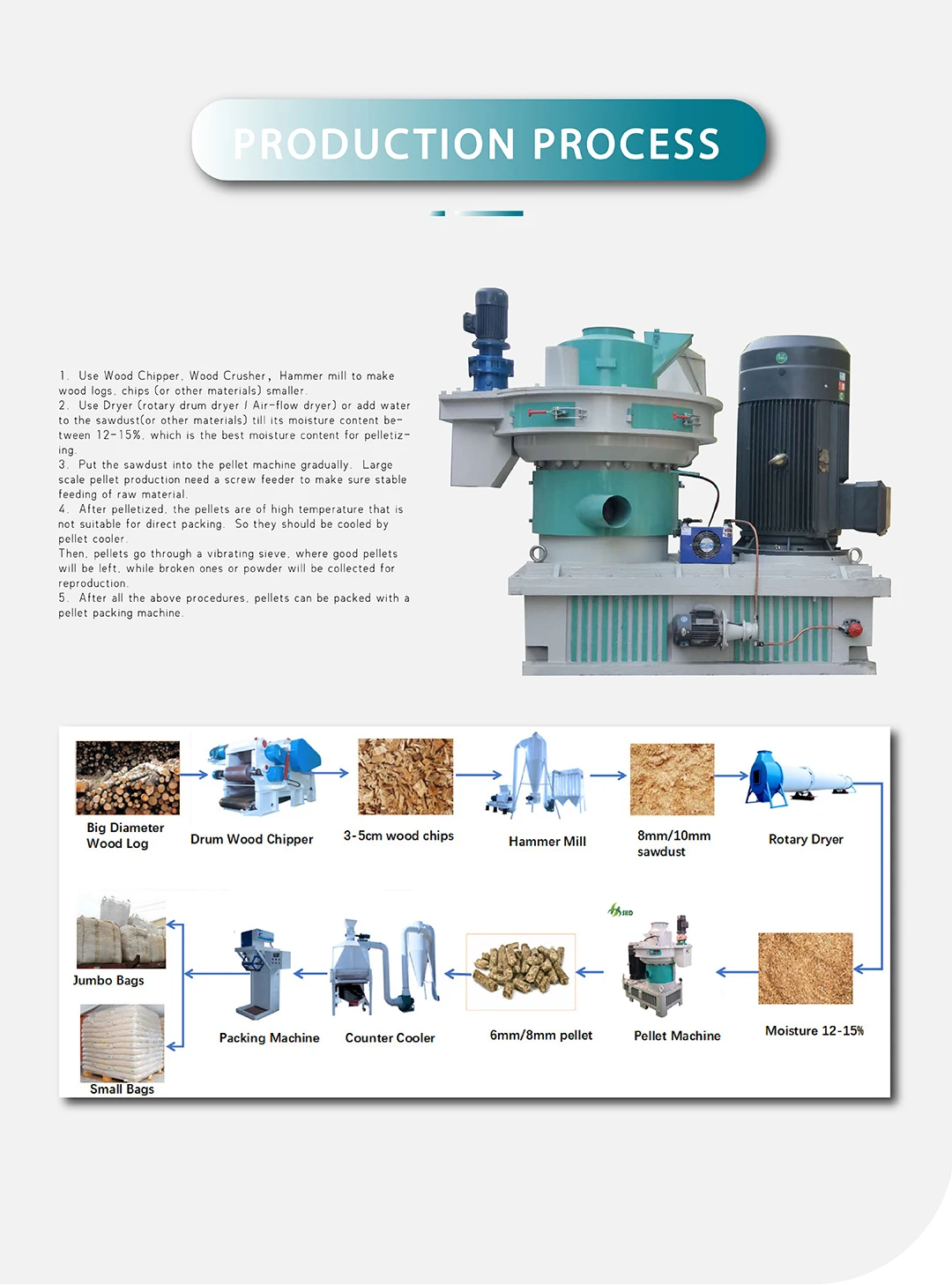

Production Process
1. Use Wood Chipper. Wood Crusher, Hammer mill to make wood logs, chips (or other materials) smaller.
2. Use Dryer Crotary drum dryer I Air-flow dryer) or add water to the sawdustlor other materials) till its moisture content between 12-15%. which is the best moisture content for pelletizing
3. Put the sawdust into the pellet machine gradually. Large scale pellet production need a
screw feeder to make sure stable feeding of raw material.
4 After pelletized. the pellets are of high temperature that is not suitable for direct packing So they should be cooled by pellet coolerThen, pellets go through a vibrating sieve, where good
pellets will be left, while broken ones or powder will be collected for reproduction.
5. After all the above procedures. pellets can be packed with a pellet packing machine.
3. Put the sawdust into the pellet machine gradually. Large scale pellet production need a
screw feeder to make sure stable feeding of raw material.
4 After pelletized. the pellets are of high temperature that is not suitable for direct packing So they should be cooled by pellet coolerThen, pellets go through a vibrating sieve, where good
pellets will be left, while broken ones or powder will be collected for reproduction.
5. After all the above procedures. pellets can be packed with a pellet packing machine.
Wood Pellet Specifications
Model | Capacity(kg/h) | Pellet diameter(mm) | Power(kw) | Weight(t) | Size(mm) |
SHD250 | 0.2-0.3 | 4-6mm | 15 | 0.5 | 1400*600*1000 |
SHD400 | 0.4-0.5 | 4.5-10mm | 37 | 4.3 | 2300*1100*1900 |
SHD560 | 1-1.5 | 4-12mm | 90/132 | 6.1 | 2600*1300*2300 |
SHD760 | 2-2.5 | 4-12mm | 160 | 7.5 | 2900*1300*2400 |
SHD850 | 2.5-3.5 | 4-12mm | 200 | 14.5 | 3300*1400*3100 |

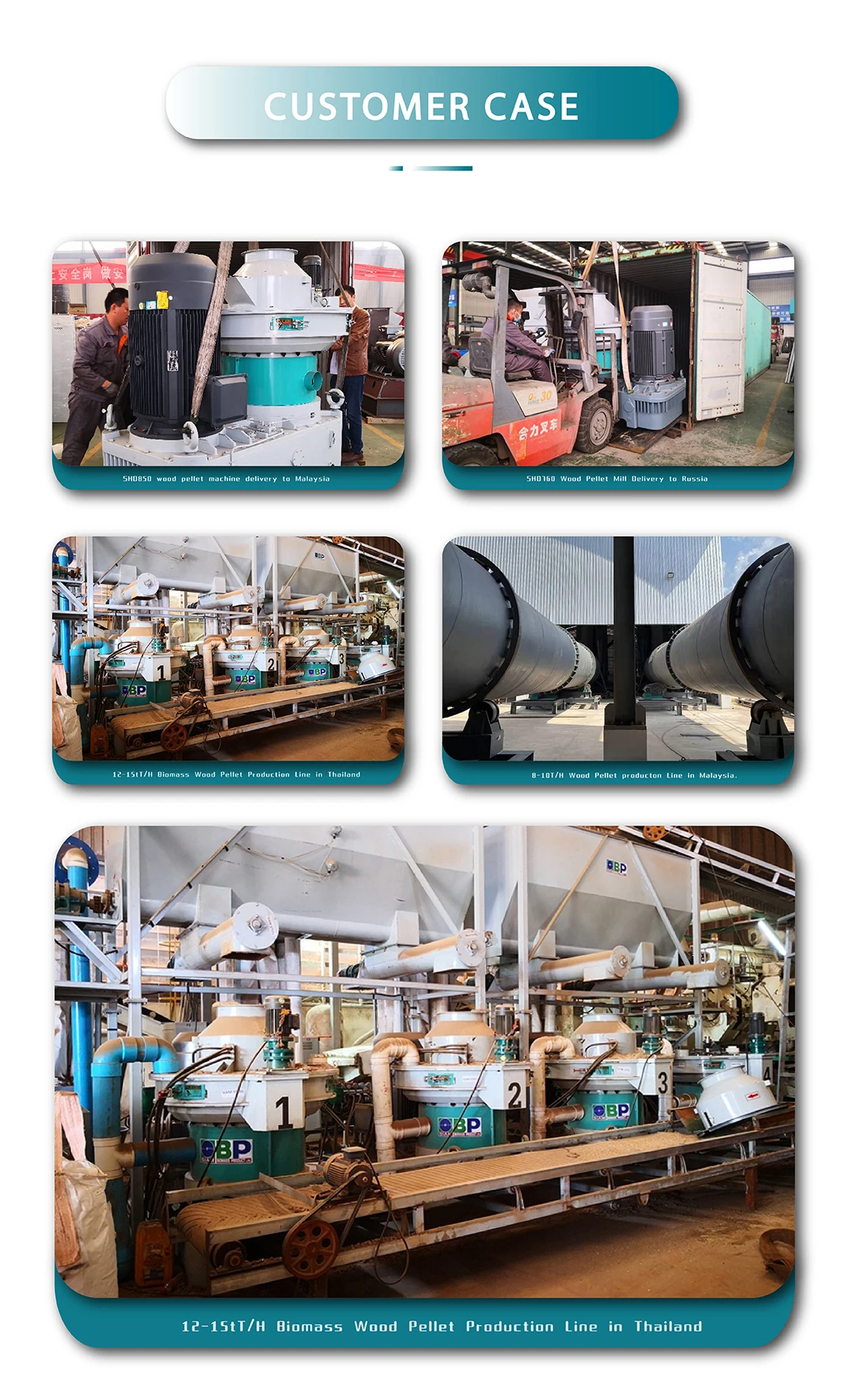

Client Feedback
Company Profile
SHANGHANGDA machinery manufacturing Co., LTD is one of the first Chinese companies to initiate its own research capabilities in biomass pellet technology. Due to a lack of experience in biomass pelletization, most Chinese companies are completely dependant on outdated technology derived from machinery designed to produce grain feed. Disadvantages of these machines include high speeds of rotation, low output, low pellet density, high mechanical losses, and high manufacturing costs. Some of these problems persist within the industry in China to the present day.
After eight years of repeated testing and discussions, the group successfully adjusted the machine's main structure, greatly improved the ring die and compression roller, and made considerable gains in the machine's lubrication and transmission systems, thereby greatly enhancing its durability and efficiency in the pelletization processes. With these improvements as a basis, the group then developed a complete biomass pellet plant which is able to process sawdust, wood chips, straw and other biomass materials into pellet fuel. Pellets produced by the company's newly engineered plant are denser, more uniform in length, more lustrous and have fewer flaws. Its technical specifications comply with international standard
All of these factors have given SHANGHANGDA Biofuel Tech an advantage in China's biomass pellet processing industry, particularly in terms of mechanical research, manufacturing, the crafting of accessories, and in conveying. he group now has large mold forging workshops, China's most advanced ring die vacuum quenching furnace and a complete production chain consisting of several auxiliary equipment manufacturers. Coinciding with these developments, SHANGHANGDA Biofuel Tech has assembled a first-rate team to help inexperienced clients in the field achieve independent production. The group also helps clients design their production lines specifically to their required output, raw material usage, and site conditions with our complete service package of project assessment, installation, training and maintenance.
In the face of the fierce competition, SHANGHANGDA Biofuel Tech is determined to build a biomass machinery manufacturing enterprise influential both domestically and internationally. The company will ensure its success through scientific and technical innovation, securing its place in the market via impeccable quality.
After eight years of repeated testing and discussions, the group successfully adjusted the machine's main structure, greatly improved the ring die and compression roller, and made considerable gains in the machine's lubrication and transmission systems, thereby greatly enhancing its durability and efficiency in the pelletization processes. With these improvements as a basis, the group then developed a complete biomass pellet plant which is able to process sawdust, wood chips, straw and other biomass materials into pellet fuel. Pellets produced by the company's newly engineered plant are denser, more uniform in length, more lustrous and have fewer flaws. Its technical specifications comply with international standard
All of these factors have given SHANGHANGDA Biofuel Tech an advantage in China's biomass pellet processing industry, particularly in terms of mechanical research, manufacturing, the crafting of accessories, and in conveying. he group now has large mold forging workshops, China's most advanced ring die vacuum quenching furnace and a complete production chain consisting of several auxiliary equipment manufacturers. Coinciding with these developments, SHANGHANGDA Biofuel Tech has assembled a first-rate team to help inexperienced clients in the field achieve independent production. The group also helps clients design their production lines specifically to their required output, raw material usage, and site conditions with our complete service package of project assessment, installation, training and maintenance.
In the face of the fierce competition, SHANGHANGDA Biofuel Tech is determined to build a biomass machinery manufacturing enterprise influential both domestically and internationally. The company will ensure its success through scientific and technical innovation, securing its place in the market via impeccable quality.
Operation Precautions
1. Please read the contents of this manual carefully before use, and operate in strict accordance with the operating procedures and sequences.
2. The water requirement of the forming machine: the water content of corn straw, wheat straw and straw can be formed between 10%-30%, preferably between 15%-20%. When the moisture content of peanut husk and rice husk is between 12% and 14%, the molding
effect is good.
3. Do not run idly if there is no material in the hopper. If there is a stuffy machine (no material) phenomenon due to the moisture of the raw material exceeding 30%, the machine should be shut down in time, the wet material in the hopper should be cleared, and then the raw materials that meet the requirements can be added for normal production.
4. When you hear the abnormal noise of the machine, stop the machine immediately for inspection, and it is strictly forbidden to remove the hopper
2. The water requirement of the forming machine: the water content of corn straw, wheat straw and straw can be formed between 10%-30%, preferably between 15%-20%. When the moisture content of peanut husk and rice husk is between 12% and 14%, the molding
effect is good.
3. Do not run idly if there is no material in the hopper. If there is a stuffy machine (no material) phenomenon due to the moisture of the raw material exceeding 30%, the machine should be shut down in time, the wet material in the hopper should be cleared, and then the raw materials that meet the requirements can be added for normal production.
4. When you hear the abnormal noise of the machine, stop the machine immediately for inspection, and it is strictly forbidden to remove the hopper
