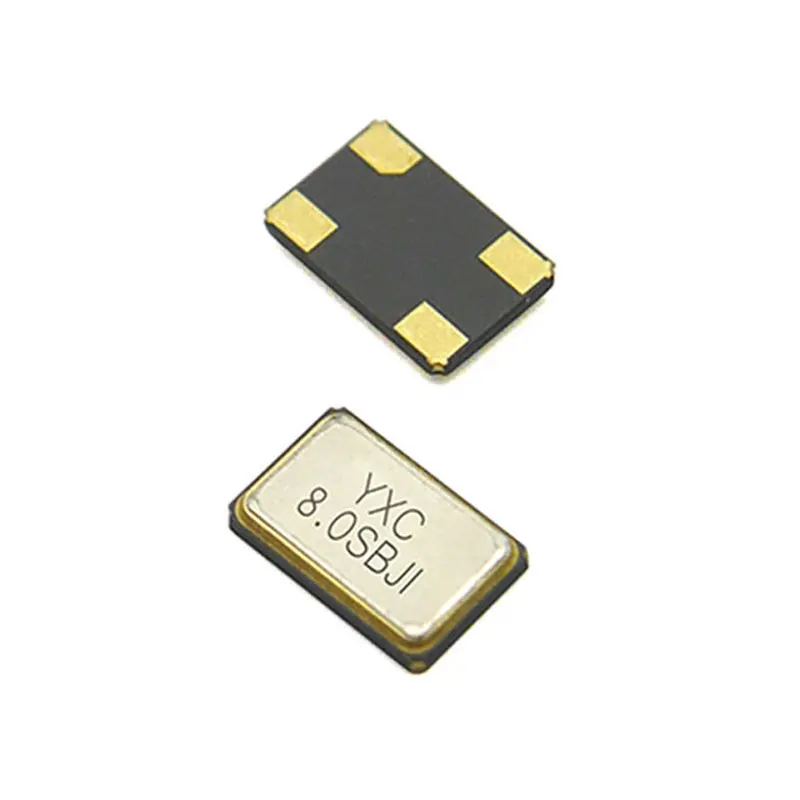

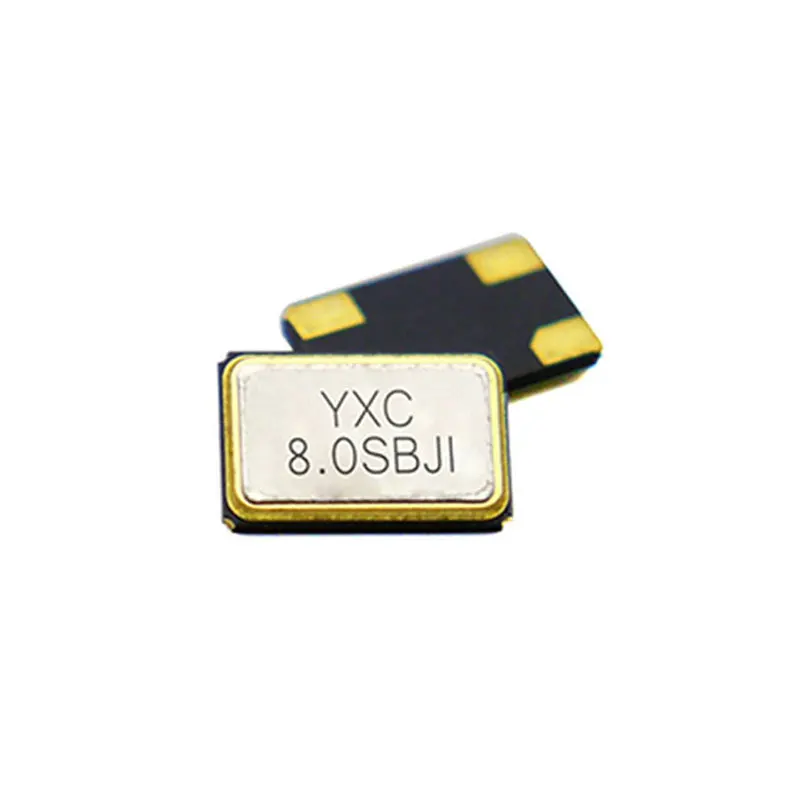

5032 SMD Xtal 10PPM 20pF 8 MHz 8.000MHz Quartz Crystal Oscillator 8MHz
- Category: >>>
- Supplier: Yqm Electronics Intl Limited
Share on (1600638778657):
Product Overview
Description
Specifications

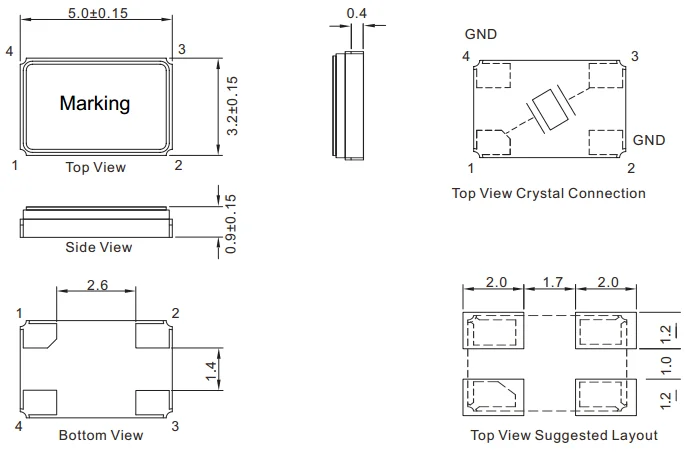

External Dimensions
Electrical Specifications
Item / Type | YSX531SL |
Nominal Frequency Range | 8 to 54 MHz |
Dimensions | 5.0 x 3.2 x 0.9 mm |
Vibration Mode | AT Fundamental |
Load Capacitance | 10pF, 20pF, or specify |
Frequency Tolerance (at 25 ℃) | ±10 ppm, ± 20 ppm, or specify |
Frequency Versus Temperature Characteristics | ± 20 ppm, or specify |
Operating Temperature | - 20 ~ + 70 ℃ , - 40 ~ + 85 ℃, or specify |
Storage Temperature | -55 ~ +125 ℃, or specify |
Shunt Capacitance | 5 pF Max. |
Level of Drive | 1 ~ 200 μW (100μW typical) |
Frequency Aging (at 25 ℃) | ± 3 ppm / year Max. |
Insulation Resistance | More Than 500MΩ at DC 100V |
REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.
