Edoo E5 32 Factory Direct Wholesale Oem Embedded 2d Barcode Scanner Module Kiosk Barcode Scan Engine
- Category: >>>
- Supplier: Shenzhen Edoo IOT Technology Co. Ltd.
Share on (1600638859112):
Product Overview
Description
Core Technology
Adopt the self-developed core decoding technology, with excellent decoding capabilities for 1D/2D.
Adopt the self-developed core decoding technology, with excellent decoding capabilities for 1D/2D.
Snappy On-Screen Barcode Capture
The engine excels at reading on-screen barcodes even when the screen is covered with protective film or set to its lowest brightness level.
Clear Aiming Mode
Even in bright sunlight, it can provide clear laser cross aiming to ensure accurate barcode scanning.
Even in bright sunlight, it can provide clear laser cross aiming to ensure accurate barcode scanning.
Support 5V Power Supply
Support 5V power supply，to meet the supply voltage is 5V application.
Multiple Interfaces
To provide USB or TTL-232 or RS-232(need customization) interface, to meet different interface requests.
To provide USB or TTL-232 or RS-232(need customization) interface, to meet different interface requests.

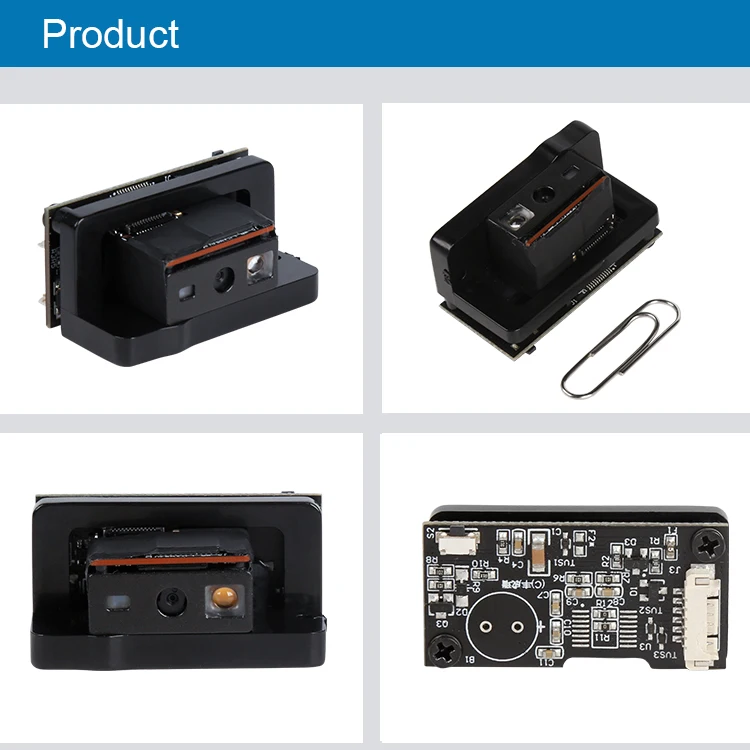

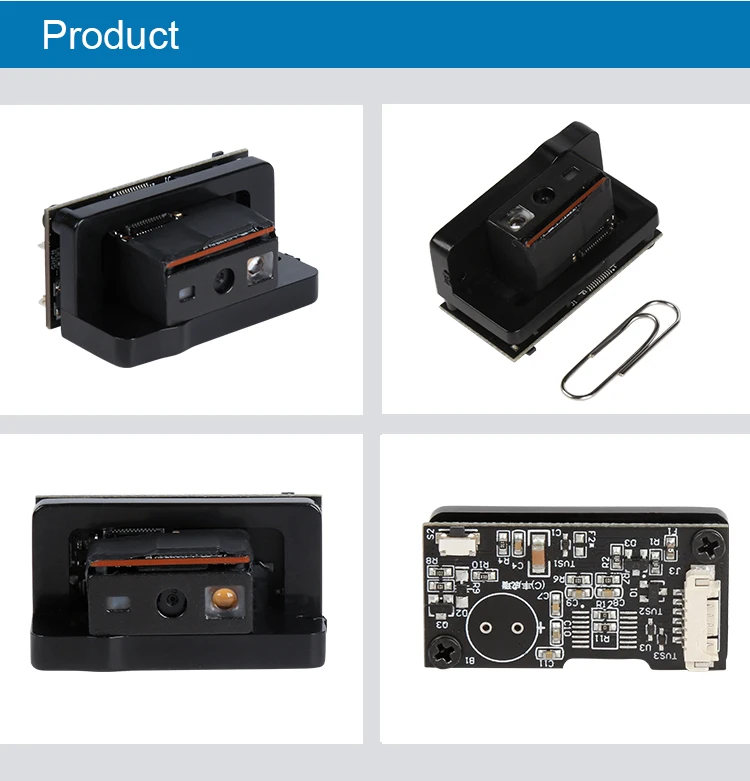

Split Design
Separate engine and interface board design, can be used according to the need to remove the bracket.
Separate engine and interface board design, can be used according to the need to remove the bracket.

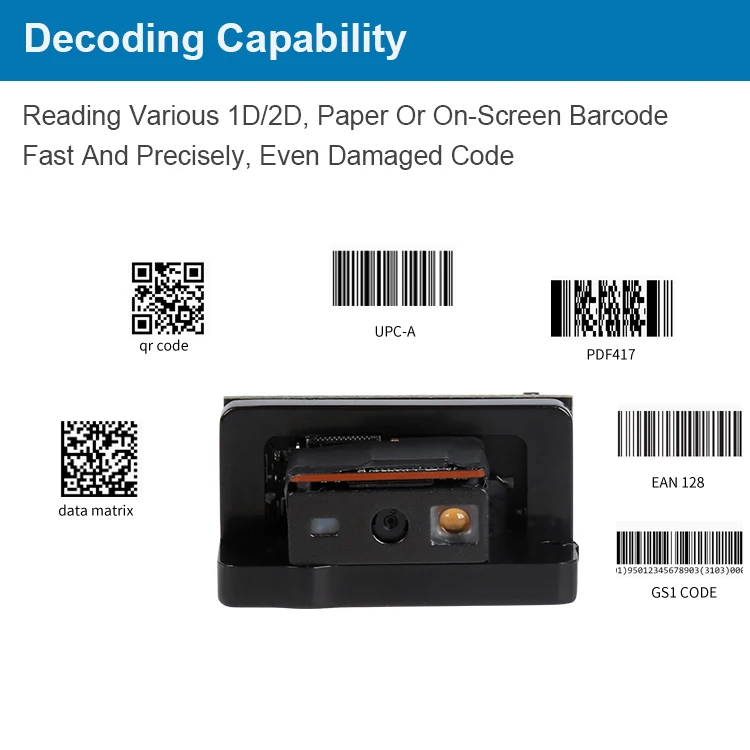

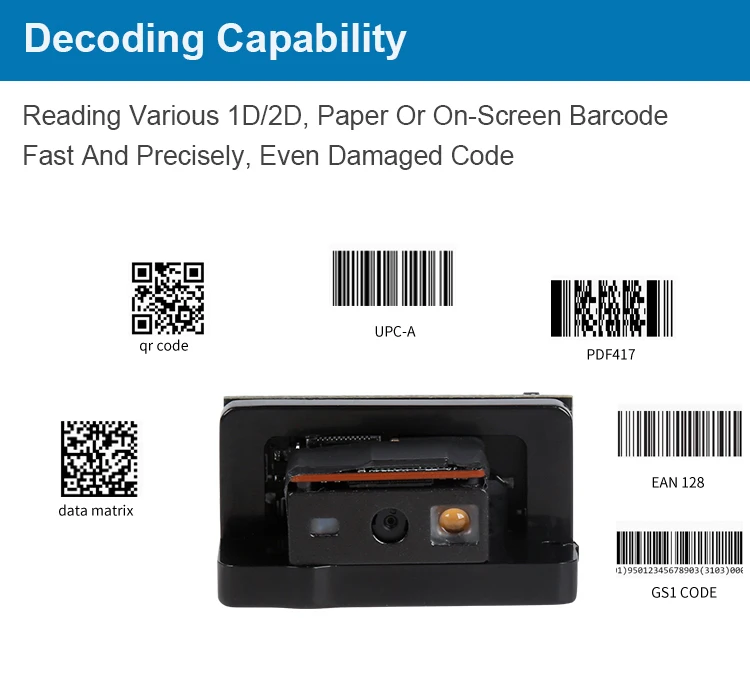

Excellent 1D/2D Barcode Reading Capability
Adopt the self-developed core decoding technology, can fastly read large amount of various filmed on-screen 1D/2D barcode.
Application Scenarios:
It’s widely used in PDA, Tablet, AFC, toll gate, access control, express delivery cabinet, ticket verification device, customer service center, and other self-service terminals (kiosks)

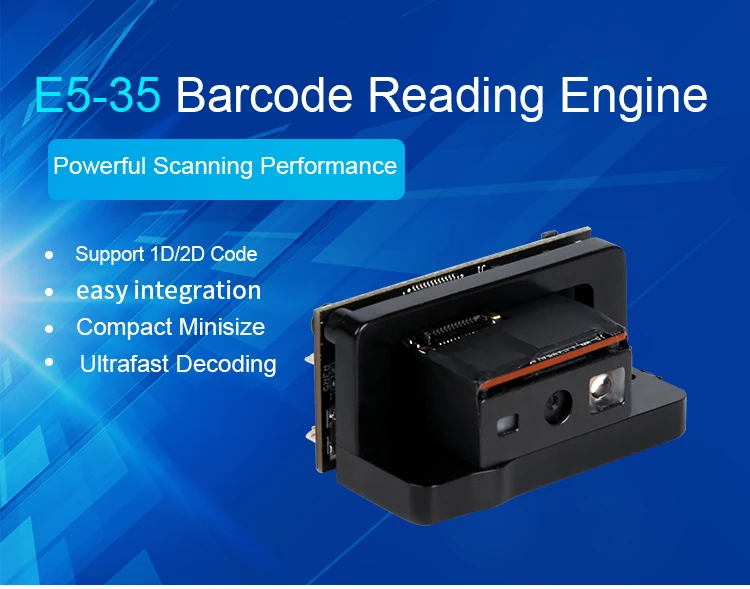

E5-35/Barcode Scan Engine
Performance | Image Sensor | 1280×800 CMOS | |
Illumination Aiming | Warm white LED Red laser 650nm | ||
Symbologies | 2D | PDF417, QR Code, Data Matrix,Hanxin Code, Micro PDF417, GM Code，Micro QR, Code One, etc. | |
1D | Code 11, Code 128, Code 39, GS1 128(UCC/EAN-128), AMI 128, Codabar, ISBT 128, Code 93, UPCA, UPCE, Coupon, GS1 Composite, EAN13, EAN8, ISSN, ISBN, Interleaved 2/5, Matrix 2/5, ITF14, ITF6, Industrial 2/5, Standard 2/5, China Post 25, MSI Plessey, Plessey, GS1 Databar(RSS), Code 49, Code 16K, etc. | ||
Resolution * | ≥3mil | ||
Typical Depth of View* | EAN-13 (13mil) | 70mm~500mm | |
PDF417 (6.7mil) | 70mm~225mm | ||
Code39 (5mil) | 90mm~265mm | ||
Data Matrix (10mil) | 65mm~215mm | ||
QR Code (15mil) | 40mm~295mm | ||
Symbol Contrast* | ≥25% | ||
Scan Sensitivity** | Skew±60°，Pitch±60°，Tilt 360° | ||
Field Angle | Horizontal 42°，Vertical 28° | ||
Mechanical/ Electrical | Interface | TTL-232，USB（HID-KBW，Virtual Serial Interface），RS-232（Need Customization） | |

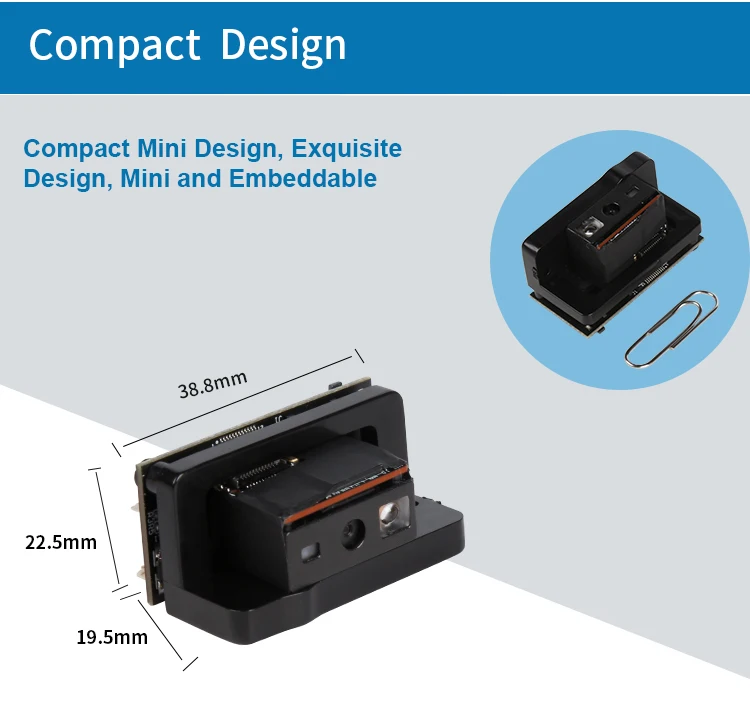

Size(mm) | 38.8(W)×22.5(D)×19.5(H)（Max） | ||
Weight | 9g | ||
Operation Voltage | 5.0 VDC±5% | ||
Current@5.0 VDC | Operation | 182mA | |
Sleeping | 80mA | ||
Environmental | Operation Temperature | -20℃~+60℃ | |
Storage Temperature | -40℃~+70℃ | ||
Operation Humidity | 5%~95%（Non-condensing） | ||
Ambient Light | 0~100,000LUX | ||
Certification | FCC Part15 Class B，CE EMC Class B，ROHS | ||
Accessory | Cable | USB Cable | 1m USB cable |
RS232 Cable | 2m RS232 cable（including 0.5m USB power supply cable) |
