Good Quality Factory Directly integrated type sodium hypolchlorite generator
- Category: >>>
- Supplier: Fujian Hada Intelligence Technology Co. Ltd.
Share on (1600638868345):
Product Overview
Description
Product Description

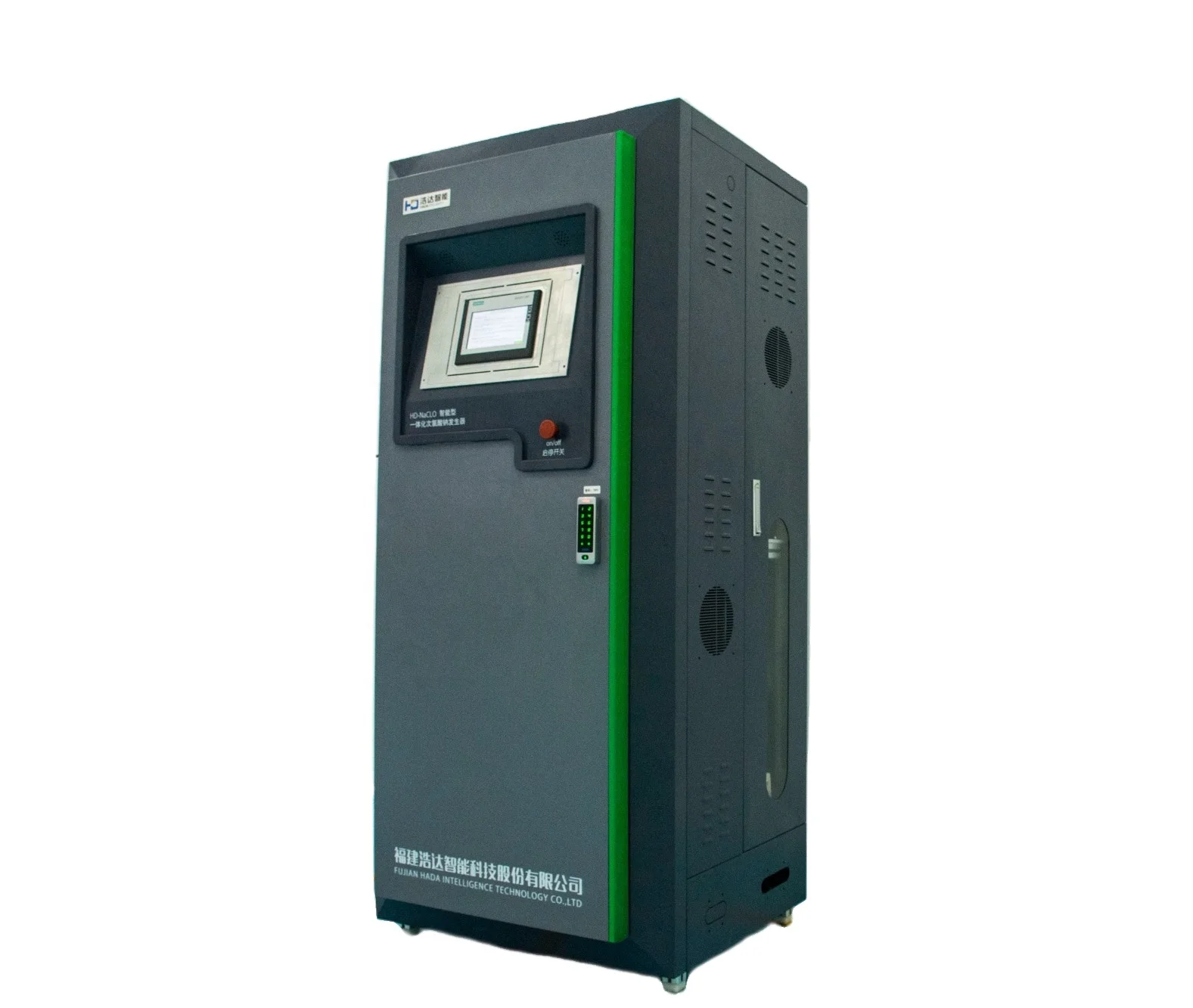

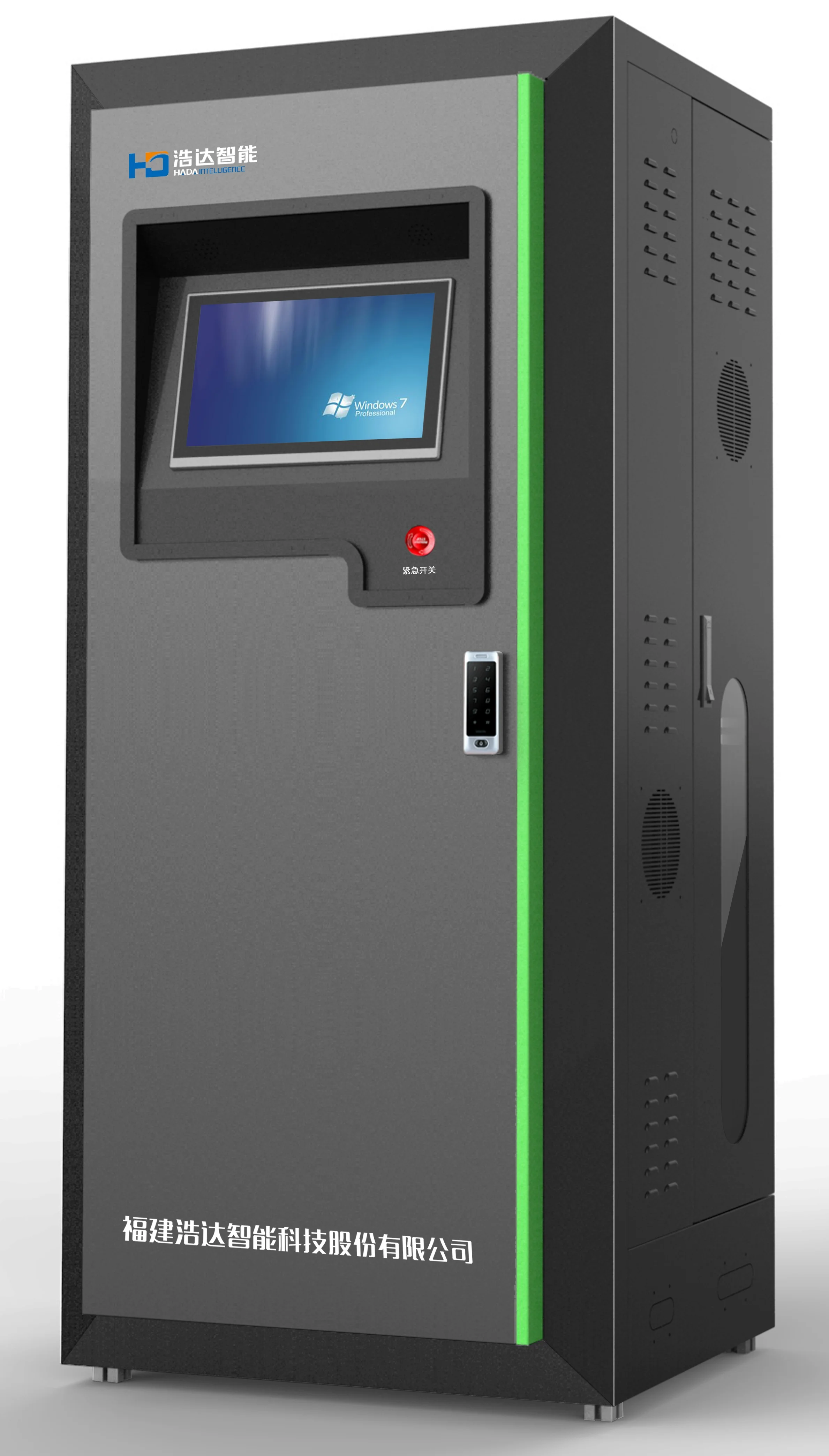

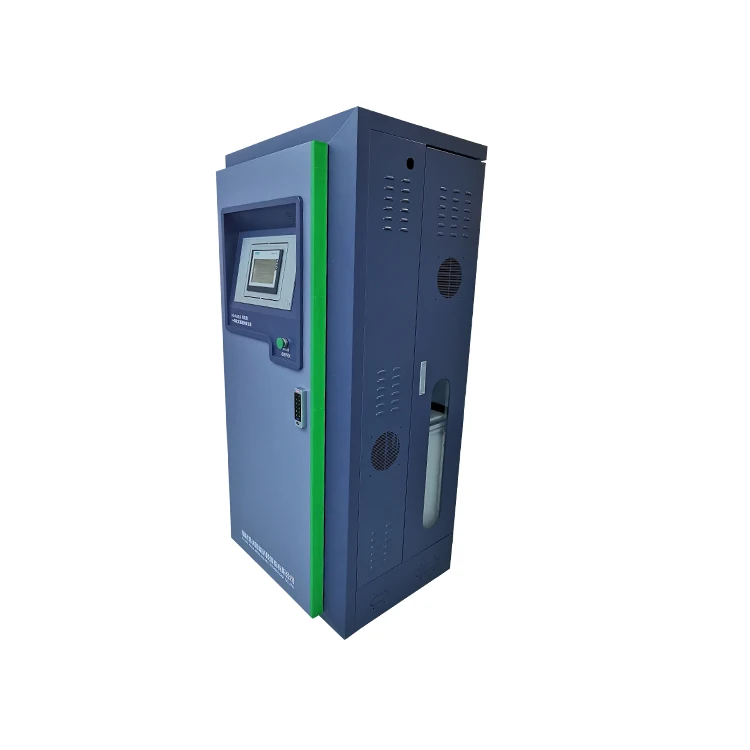

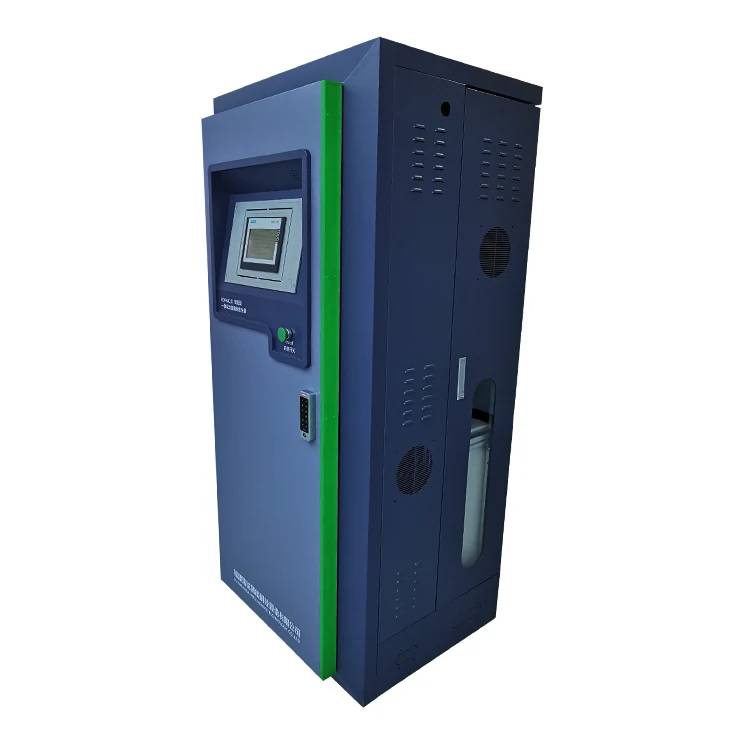

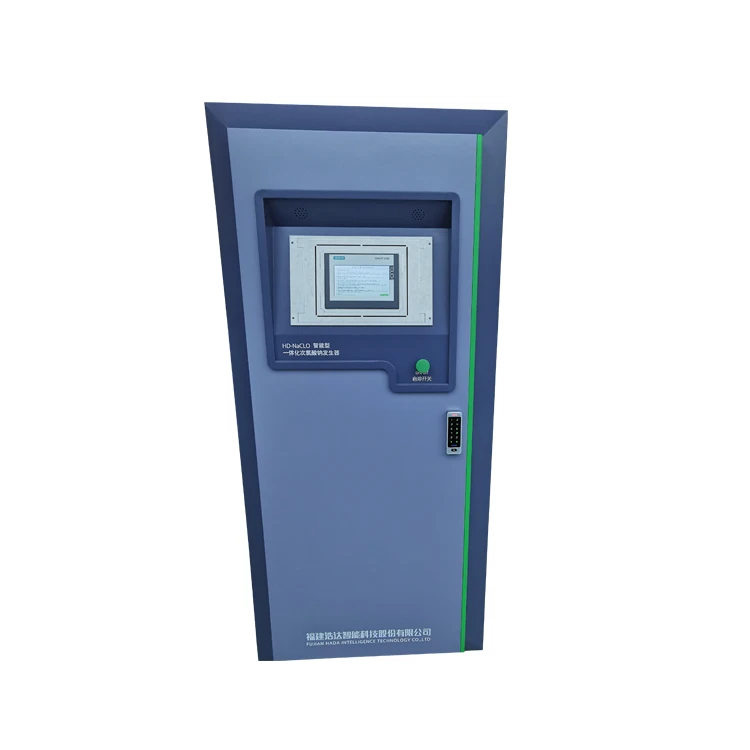

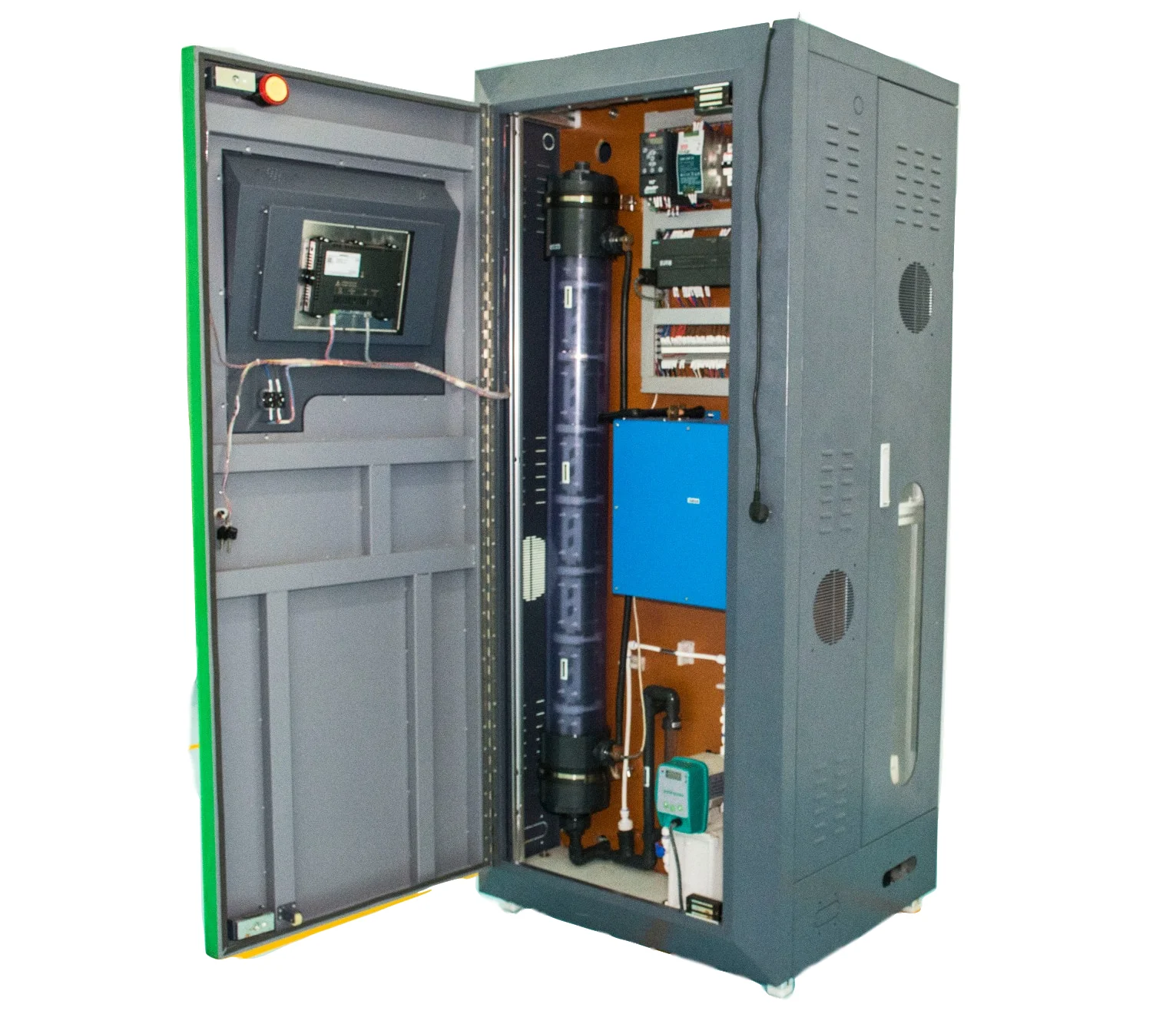

HD-Smart Integrated Type Sodium Hypochlorite Generator
Application
1. Chlorine disinfection of urban secondary water supply
2. Water disinfection in small water plant in towns and cities
3. Water disinfection in small sewage treatment plant
4. Disinfection and sterilization during the food&beverage processing
Process Principle: ![]()
Main technical indicators (Only suitable for HADA's machine)
Salt water concentration: 2.5%~3%
Power consumption: < 4KW/Kg.Cl2
Salt consumption:<3.5Kg/Kg.Cl2 (If sea water, no need salt)
Effective chlorine concentration : 5000-8000ppm
(1000~2000ppm for seawater system)
Working mode: Fully automatic
Anode coating life : >5 years
Cathode life : >20 years
Machine life: >15 years
Salt water concentration: 2.5%~3%
Power consumption: < 4KW/Kg.Cl2
Salt consumption:<3.5Kg/Kg.Cl2 (If sea water, no need salt)
Effective chlorine concentration : 5000-8000ppm
(1000~2000ppm for seawater system)
Working mode: Fully automatic
Anode coating life : >5 years
Cathode life : >20 years
Machine life: >15 years

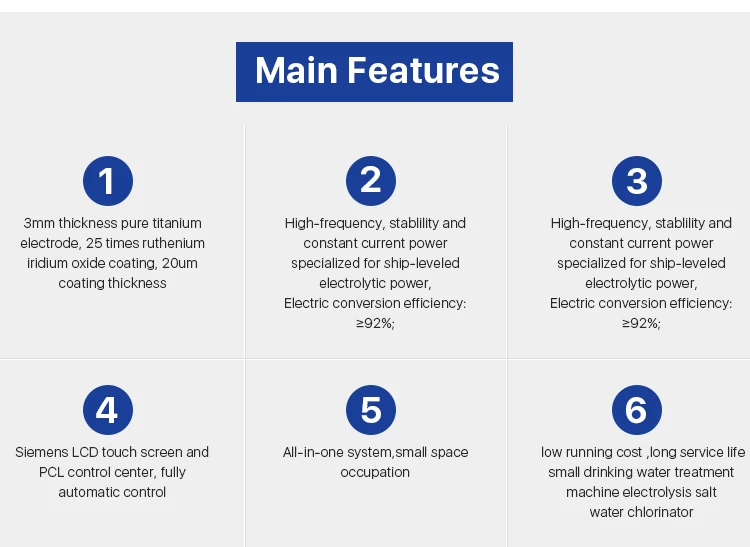

Our Advantages
Patented Nanocrystalline TitaniumAnode Coating Formulation and Coating Process Patented Composite Anode Structure
Low Salt Consumption Low Power Consumption Long Service Life Integrated Intelligent Convenientfor Operation Use food grade citric
acid for pickling. Safe and Stable
Low Salt Consumption Low Power Consumption Long Service Life Integrated Intelligent Convenientfor Operation Use food grade citric
acid for pickling. Safe and Stable
Product Paramenters
Model | Power | Capacity(g/Hr) | Rated Power | Active Chlorine(ppm) |
HDT-100-NaClO | AC220V/50Hz | >=100 | 1.5 | 5000~7000 |
HDT-200-NaClO | AC220V/50Hz | >=200 | 2 | 5000~7000 |
HDT-300-NaClO | AC380V/50Hz | >=300 | 2.5 | 5000~7000 |
HDT-500-NaClO | AC380V/50Hz | >=500 | 3 | 5000~7000 |
