KI12021 12S 4 Axis column Engraving Machine CNC Router wood turning lathe for legs of table/chairs/staircase
- Category: >>>
- Supplier: Foshan Holyiso Machinery Co. Ltd.
Share on (1600638876730):
Product Overview
Description
Products Description

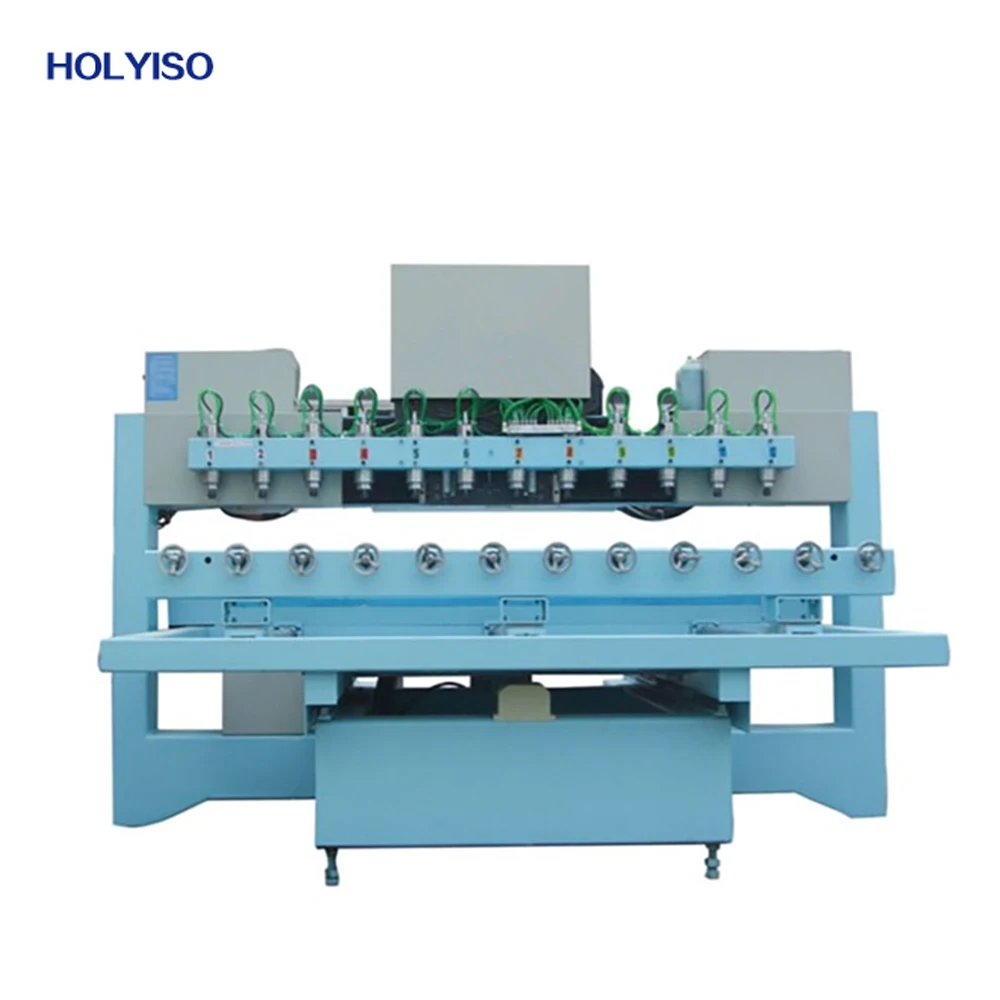

KI12021-12S 4 Axis CNC Router

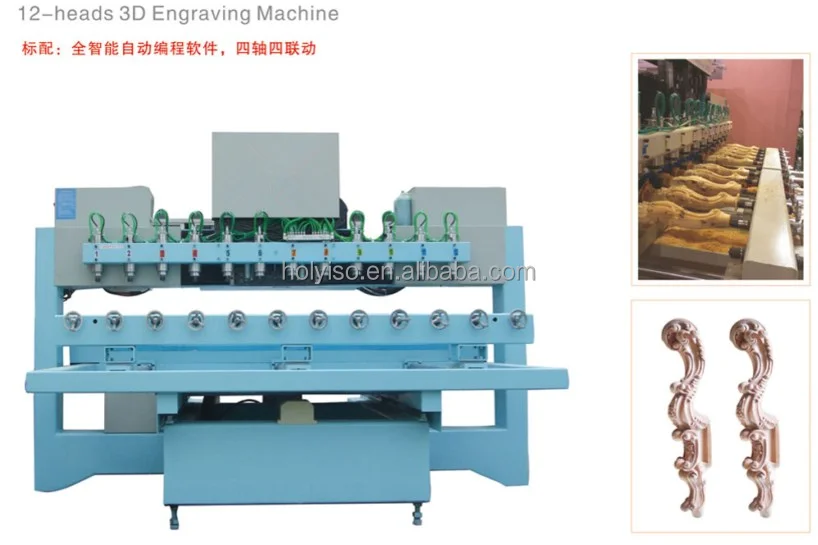

12-heads 3D Engraving Machine
Performance: 1.The bed lathe is made of heavy duty structure, analyzed and designed with FEA, relieving stress, so the working table is more stable.
2.Three linear bearing to drive the Y shaft, which improve speed and more stable, it can cut repeatedly. Moreover, the Y shaft can move with higher resolution and more stable.
3.X,Y,Z Axis Line Rails and+ Ball Screw Transmitting. Higher Resolution and Speed, more powerful cutting that can save the cost and improve the efficiency in heavy cutting. We use PMI Square Rails and Ball Screw
4.The Y axis can move and the machine can do 4Axis work with the A axis(Rotary axis).
5.With High speed spindles that can do mass production work, highly save the time and improve the efficiency in working.
6. The Max. Processing speed can reach 15000mm/min, Max. traveling speed can reach 20000mm/min.
Application:
This column Engraving Machine is the best choice for processing column wood materials, rosewood, legs of table, chairs, staircase, sculpture of Buddha, the stature of people.....
Model | KI12021-12S 4 Axis CNC Router(12 Spindles) |
X,Y ,Z Processing Size | 210mmΧ1200mmΧ12(Length *Diameter) |
X,Z Processing resolution | ±0.05/210mm |
X,Z Reposition Resolution | ±0.05mm |
X、Y、Z Control Resolution Ratio | 0.0001mm |
Rotary Axis Reposition Resolution | 4〃 |
Engraving Cylinder Length | 1200mm |
Max. Processing Weight of each | 100KG |
Max. Engraving Speed | 20000mm/min |
Engraving Cylinder diameter | ≦210mm(12 Pieces work) |
Structure | Heavy Duty Steel Tube Structure, Steel Gantry, |
Spindle Power | 12Spindles(2.2KW Water Cooling Spindle) |
Spindle Rotating Speed | 8000- 24000rpm |
Motors | Servo Motors and Drivers |
Running Speed | 1m/min---35m/min |
Voltage | 380V，50HZ |
Bits | ER32，Ф3.175mm---Ф8mm； |
Control System | 4 Axis Original Ncstudio System( Original Software) |
Software | Type3/Artcam/Ucancam/Caxa/Mastercam/UG/wentai/JD |
Format | G code |
Transmitting System | Taiwan AMT high-precision Zero clearance square compound Sliding Linear Guide rail Pair ,Taiwan PMI Ball screw |
Weight | 2500KG |
Package Size | 3360mm*2000mm*2200mm(X *Y*Z) |
Surroundings | Temperature: 0-45℃; humidity:30%-75% |
Details Images

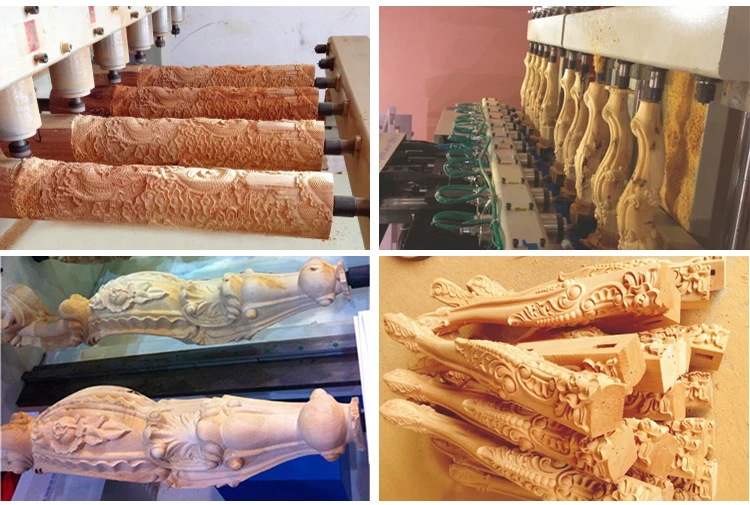

Finish Product
Related Products
Packing&Shiping
1.Delivery:
We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the
product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
