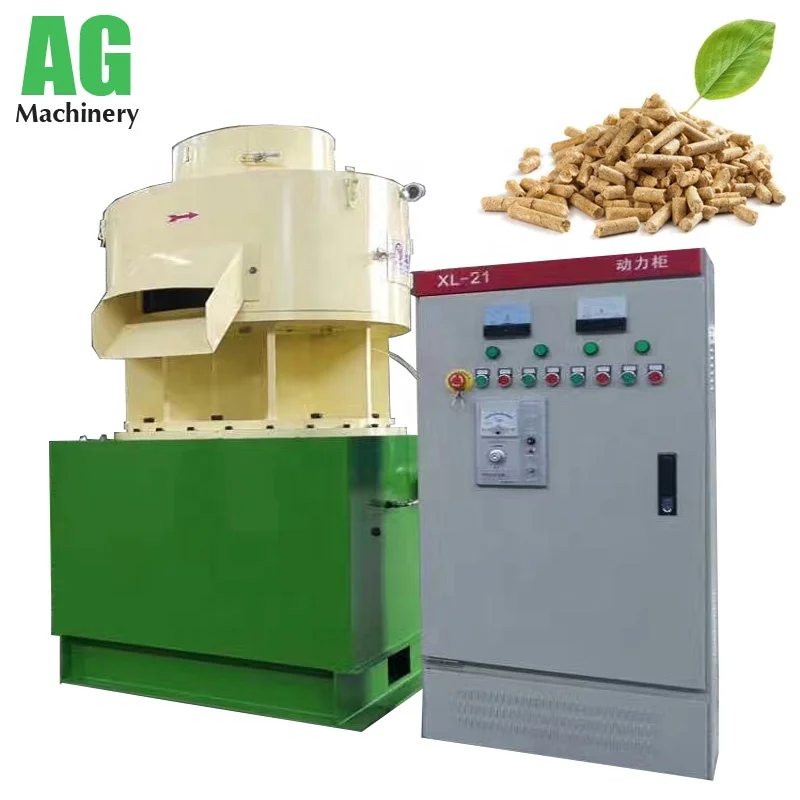

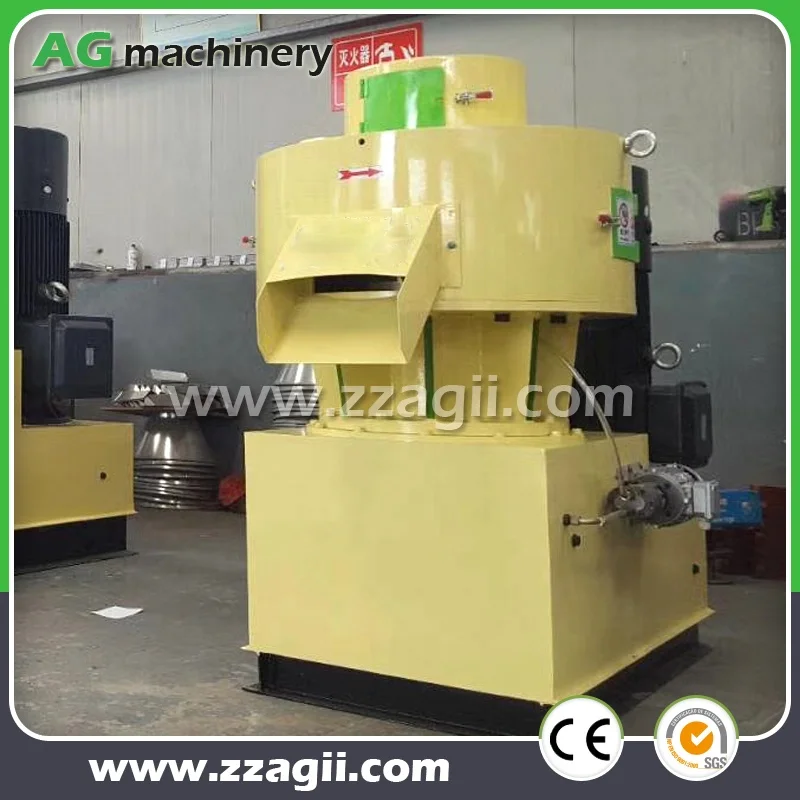

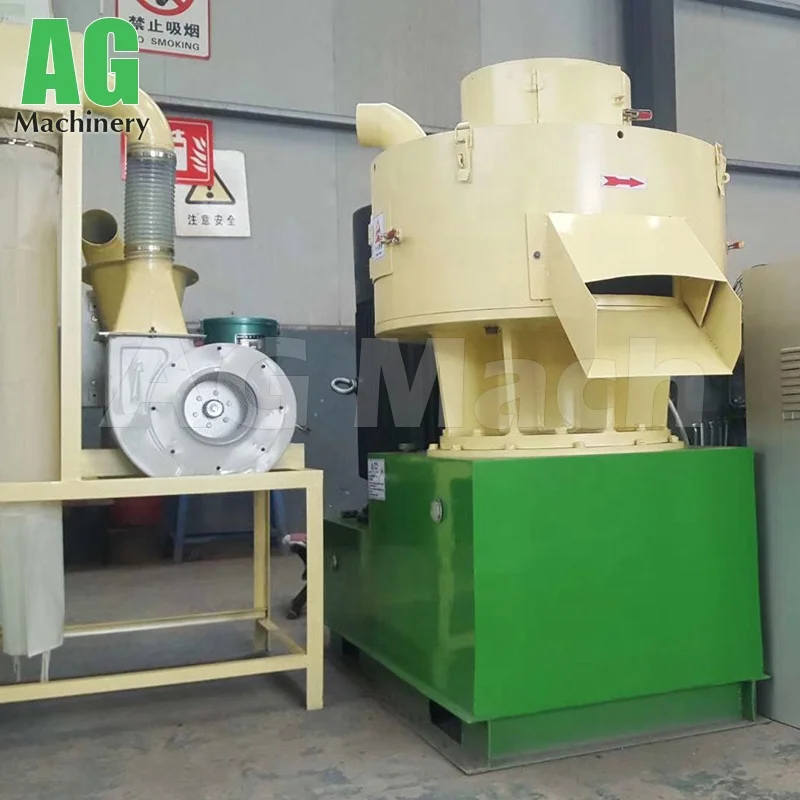

Ring Die Sawdust Biomass Wood Pellet Machine Wood Granulator
- Category: >>>
- Supplier: Zhengzhou AG Machinery & Equipment Co. Ltd.
Share on (1600638932149):
Product Overview
Description

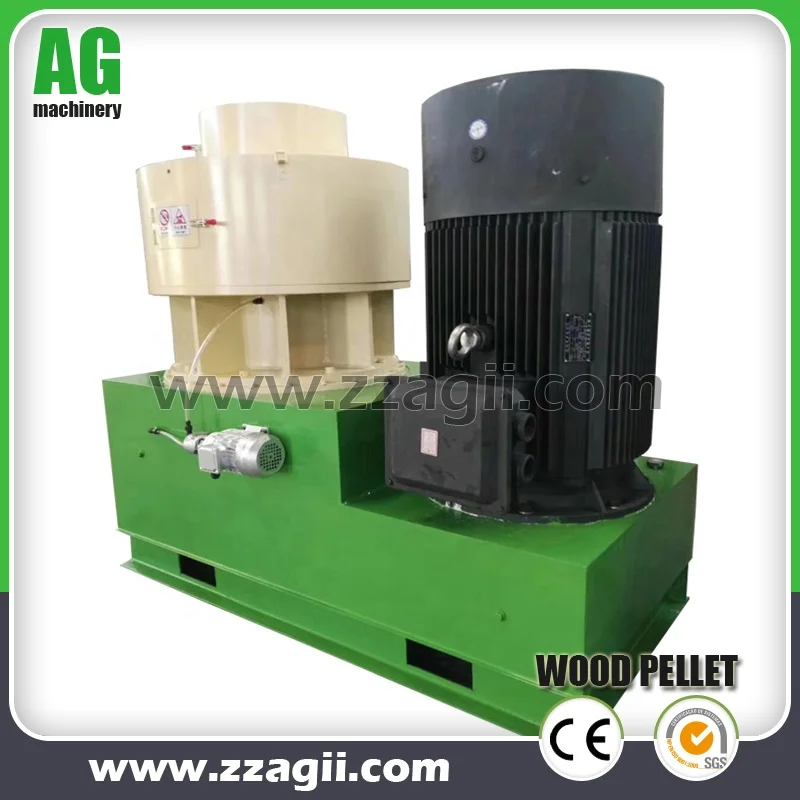

Ring Die Sawdust Biomass Wood Pellet Machine Wood Granulator
Product Description
Introduction:

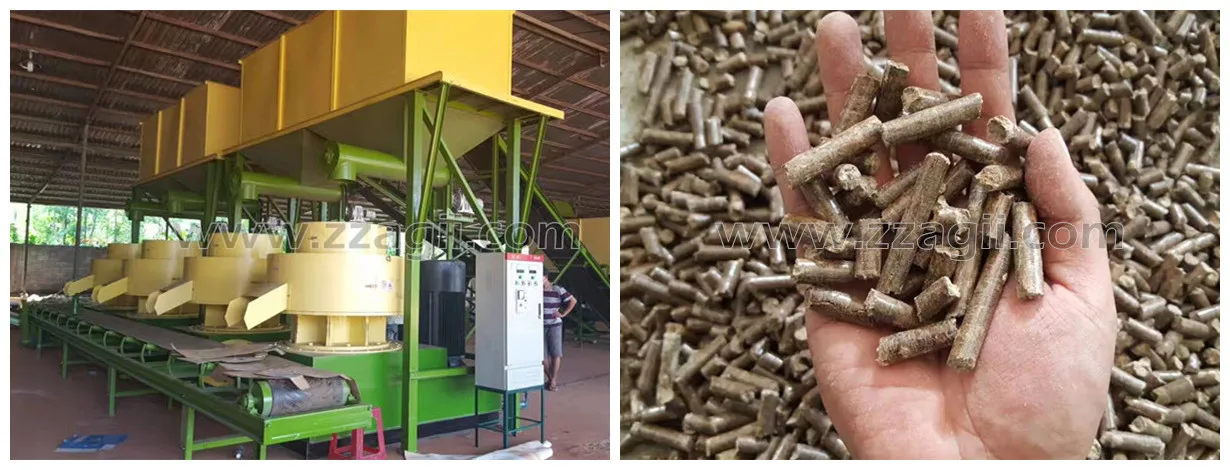

This type of vertical ring die 1000kg/h wood pellet mill machine is widely used in the biomass-energy fuels plant, power plant, wood processing plant, fertilizer plant, chemical plant etc. It is the ideal pressing shaping pelletizing equipment with low investment and high profit.
Specification:
Model | Inner Dia of Ring die | Power (Kw) | Capacity (ton/hour) | Dimension (m) | Weight (Kg) |
450 MX | 450mm | 55 kw | 0.8-1.0T | 1.4*0.75*1.55 | 2800 |
550 MX | 550mm | 90 kw | 1.5-2T | 1.9*0.95*1.8 | 4500 |
800 MX | 800mm | 132 kw | 2-3T | 2.5*1.35*2.1 | 7000 |
1000 MX | 1000mm | 160 kw | 3-4T | 2.65*1.45*2.1 | 8500 |

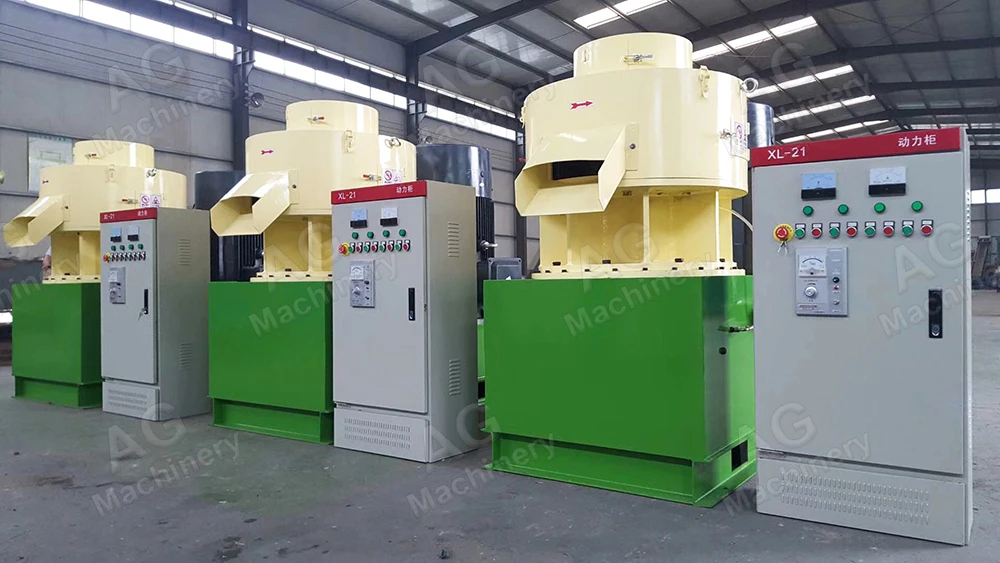

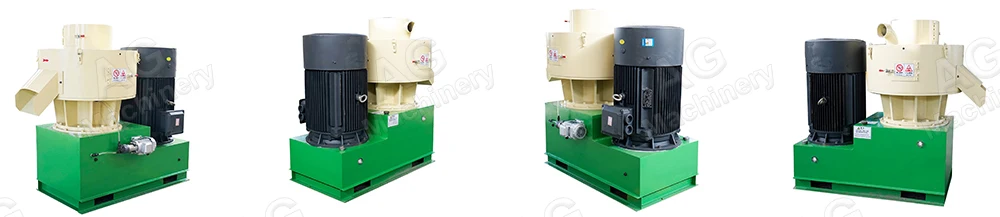

Detailed Photos
FEATURES
1.Gearbox: Driving with high-precision gears, Automatic Lubricant pump system keep the gearbox working stability and warranty period.

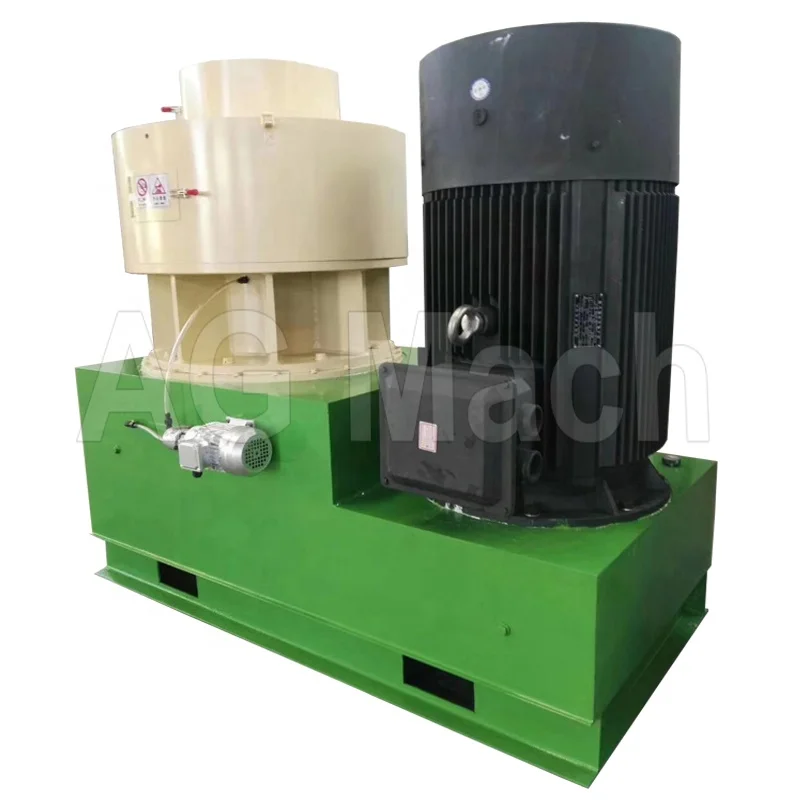

2.Vertical motor: the most characteristic is mounting hole with output shaft as the center, Equidistant distribution around, More powerful and stability of machine working.
3.Blower system: Located in one side of work bin, Free control the working time, The main function is dedusting and discharge steam.
4.Working parts: Ring-die and rollers materials are alloy steel, Heat treatment made by ourselves, Hardness more than 52,In this hardness can assure the pelleting quality and warranty time, Working manner is from inside to outside press, Centrifugal force and extrusion pressure together, Produced more capacity, At the same time assure hardness and density, The special design is 4 rollers working, Increase press rate then increase capacity, Ring-die is “vertical double-deck” structure, It can use one mould with same hole size for working life increased, Moreover it can use one mould with different hole size for saving the money for another size mould.
2.Vertical motor: the most characteristic is mounting hole with output shaft as the center, Equidistant distribution around, More powerful and stability of machine working.
3.Blower system: Located in one side of work bin, Free control the working time, The main function is dedusting and discharge steam.
4.Working parts: Ring-die and rollers materials are alloy steel, Heat treatment made by ourselves, Hardness more than 52,In this hardness can assure the pelleting quality and warranty time, Working manner is from inside to outside press, Centrifugal force and extrusion pressure together, Produced more capacity, At the same time assure hardness and density, The special design is 4 rollers working, Increase press rate then increase capacity, Ring-die is “vertical double-deck” structure, It can use one mould with same hole size for working life increased, Moreover it can use one mould with different hole size for saving the money for another size mould.

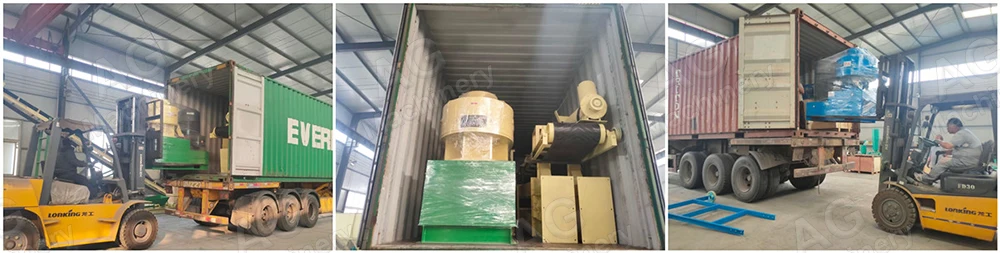

Packing & Delivery
Wooden Case
FAQ
1. who are we?
We are based in Henan, China, start from 2016,sell to Southeast Asia(25.00%),Eastern Europe(16.00%),Eastern Asia(10.00%),Africa(10.00%),Northern Europe(10.00%),South America(10.00%),Western Europe(8.00%),Southern Europe(6.00%),North America(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Food Machinery,Feed Machinery,Biomass Machinery,Sawmills,Packaging Machine
4. why should you buy from us not from other suppliers?
Zhengzhou AG Machinery & Equipment Co., Ltd is a high technology enterprise specialized in technology application, production and marketing in the field of Feed Machinery, Food Processing Machinery, Biomass Machinery and Woodworking Machinery.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
We are based in Henan, China, start from 2016,sell to Southeast Asia(25.00%),Eastern Europe(16.00%),Eastern Asia(10.00%),Africa(10.00%),Northern Europe(10.00%),South America(10.00%),Western Europe(8.00%),Southern Europe(6.00%),North America(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Food Machinery,Feed Machinery,Biomass Machinery,Sawmills,Packaging Machine
4. why should you buy from us not from other suppliers?
Zhengzhou AG Machinery & Equipment Co., Ltd is a high technology enterprise specialized in technology application, production and marketing in the field of Feed Machinery, Food Processing Machinery, Biomass Machinery and Woodworking Machinery.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
