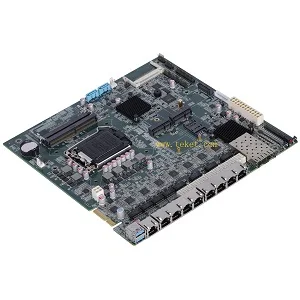

Router PfSense Server Multi network Port Firewall Motherboard QM110LE 8LAN 2SFP LGA 1151 Socket Core i3/i5/i7 2*DDR4

Product Overview

Description

Teket Innovation was founded in 2003 in Beijing, China. Nearly 20 years of experience in embedded industrial motherboards, industrial computer, mini pc, pc chassis, atx power supplies module, ram, ssd and lcd panel kits.

Intel,VIA,Asus,Asrock,Gigabyte,MSI and TEKET embedded motherboard Intel,Zotac,ASUS,MSI and TEKET mini pc AUO,BOE industrial panel touchscreen and LVDS/eDP cable PC chassis, power supply module, RAM and SSD support Our main target customers are system integrators and equipment manufacturers. We can provide total solution for you to build space and energy saving embedded computer systems such as industrial computing,kiosks,digital signage,advertising machine,network security,router,thin client, ATM,NAS,OPS and HTPC etc.





Router PfSense Server Multi-network Port Firewall Motherboard QM110LE 8LAN 2SFP LGA 1151 Socket Core i3/i5/i7 2*DDR4
Multi-network Port Motherboard QM110LE 8LAN 2SFP LGA1151 2*DDR4 Skylake Core LGA1151,i3-6100,i3-6300,i5-6400,i5-6500,i7-6700
Multi-network Port Motherboard QM110LE 8LAN 2SFP LGA1151 2*DDR4 Kaby lake Core LGA1151,i3-7100,i3-7300,i5-7500,i7-7700

Motherboard Specification:
Model QM110LE
Separate Processor
Support Intel 1151 Socket processors:
Skylake Core i3/i5/i7 Processors:I3-6100,I3-6300,I5-6400,I5-6500,I7-6700,etc.
Kaby lake Core i3/i5/i7 Processors:I3-7100,I3-7300,I5-7500,I7-7700,etc.
Processor Quantity
Only support 1 piece processor on the motherboard.
Memory
2*DDR4 Memory channel,up to 32GB RAM.
Network Card
8*Intel i210-AT Gigabit Network card;
2*Intel i350-AM2 Gigabit Optical network card.
Audio
Not Applicable
Graphics Card
Integrated Intel HD Graphics 530/630 on CPU,
support 4K,1080P,H264,3D play.
Display
1*VGA pin
Hard Disk(Storage)
2*SATA3.0 , 1*MSATA3.0 , 1*M.2 , 1*CF
Power Supply
24 pins ATX power
Heat Sink
Standard 115X heat sink;Thin,cool,mute fan.
Form Factor
ATX,248*248mm(L*W)
I/O Interfaces
2*USB3.0 , 1*RJ45-COM , 8*LAN , 2*optical , 1*Power , 1*Restart
Built-in Pins
1*VGA , 6*USB , 1*COM , 1*LPT , 1*LAN-LED , 2*FAN , 1*SIM Card slot
Expansion Bus
1*Mini-PCIE slots,support WIFI,4G,BT,GPS,MSATA;
1*PCIEX4.
Operating System
Win XP , Win7(32bit,64bit) , Win 8.1 , Win 10 , Linux.
System Monitor
/ Watch dog
Support CPU temperature monitor, fan speed,system temperature.
BIOS
AMI BIOS;
Support read only,power on,timing switch,remote switch,intelligently identify devices.
Operating Environment
Working temperature :-10℃~60℃
Relative humidity:5%~95%,non-condensation.
Fitted Chassis
2U chassis U108
Options
3G/4G/WIFI/BT module,Cable,RAM,SSD,HDD,etc.

Order Information
QM110LE H110,LGA1151,8*INTEL i211,VGA,mSATA,mini PCIe,1*VGA,2*COM,8*USB,Optical fiber module(optional)
QM110LEO H110,LGA1151,8*INTEL i211,VGA,mSATA,mini PCIe,1*VGA,2*COM,8*USB,Optical fiber module

1U series firewall appliance



Order Information 1U-QM110LE 1U-QM110LEO
