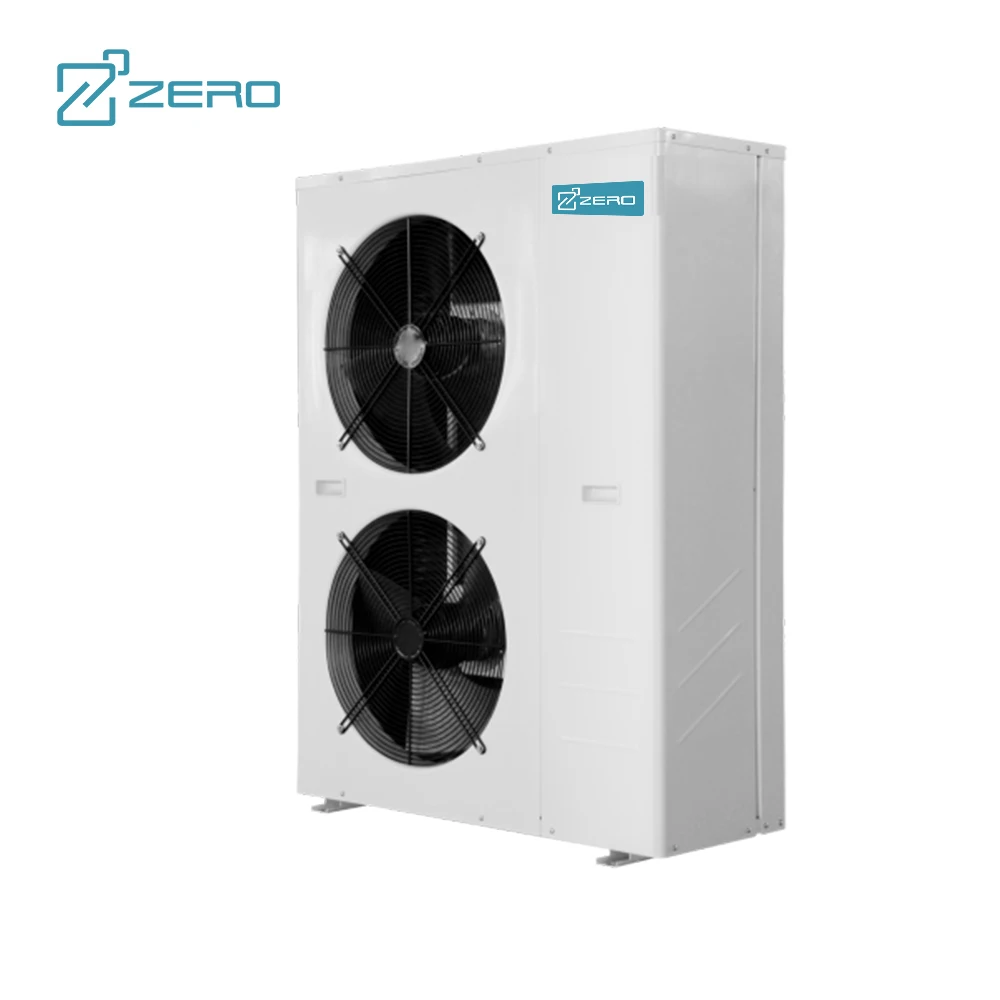

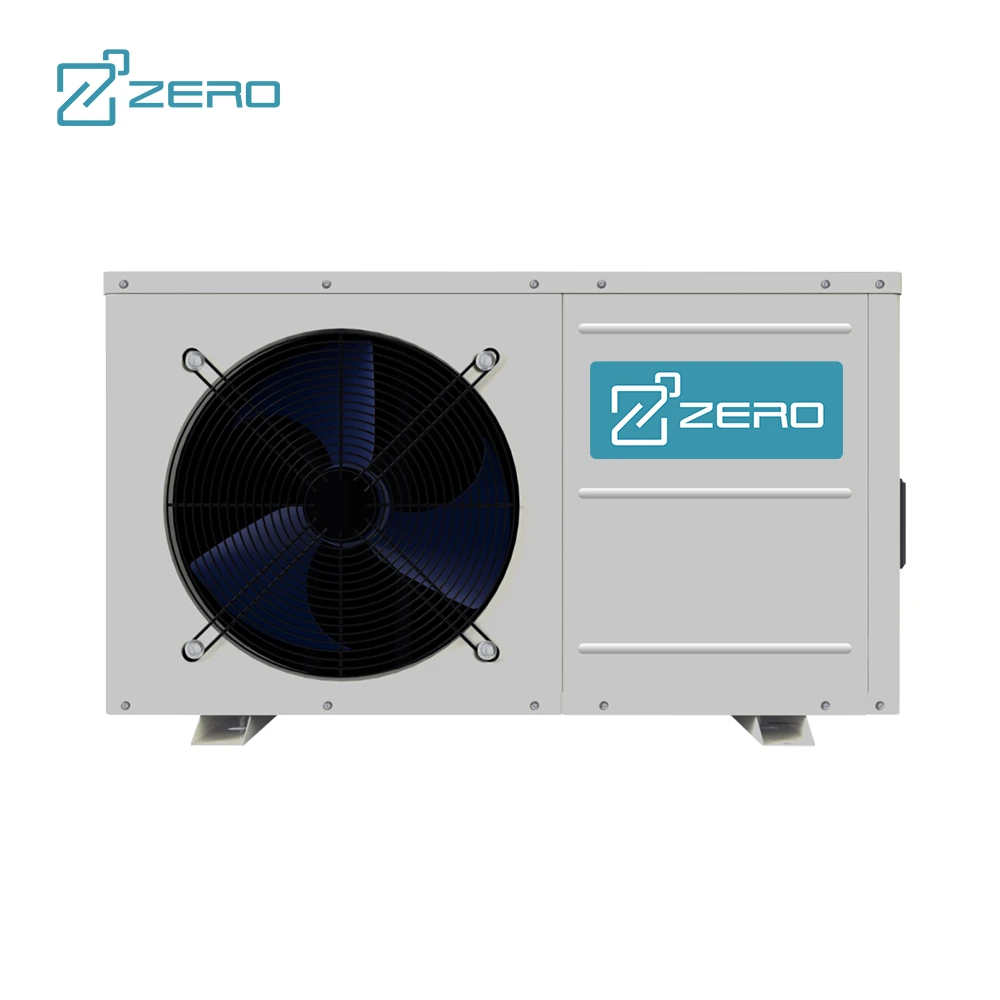

R410A Residential Hydronic Air To Water Hot Water System Air Source Heat Pump Hydronic Home Hybrid Heat Pump Water Heaters

Product Overview

Description

Features:

R410A refrigerant, environmental friendly.

Higher water temperature output up to 60°C.

Tube in shell heat ex-changer, Hi-COP & safety.

With disinfection function (tank with electric heater).

High pressure protection..Defrost automatically.

MODBUS communication..Full automatically operation.

Through different installation, the system can be used for cooling, heating and providing sanitary hot water.



Application:

Technical Data:



Model No.	RS-004TA1	RS-006TA1	RS-008TA1	TS-010TA1	RS-012TA1	RS-018TA1
Power Supply	220~240V/1/50Hz					380~415V/3/50Hz
Heating Capacity at Air 20℃/15℃, Water Temperature from 15℃ to 55℃
Heating Capacity(kW)	3.6	5.4	7.6	10.8	13.2	18.8
Power Input(kW)	0.86	1.26	1.81	2.54	3.17	4.56
COP	4.18	4.29	4.20	4.25	4.16	4.12
Max Power Input(kW)	1.45	2.01	2.75	3.02	4.51	6.02
Max Current(A)	6.5	9.0	12.0	15.2	23.0	11.0
Rated Hot Water(L/h)	80	120	165	230	285	400
Refrigerant	R410a
Expansion Valve	Electronic
Air Flow Direction	Horizontal
Water Pump inside	Yes	Yes	Yes	Yes	Yes	No
Water Pressure Drop (kPa)	35	35	40	45	45	45
Net Dimensions(L*W*H)(mm)	936*385*550	936*385*550	1011*420*614	986*420*798	986*420*798	1000*375*1320
Package Dimensions(L*W*H)(mm)	1030*445*592	1030*445*592	1105*480*657	1158*560*1017	1158*560*1017	1070*445*1440
Working temperature rang (℃)	-15~43	-15~43	-15~43	-15~43	-15~43	-15~43
Noise (dB(A))	47	49	52	52	53	54
Net Weight (kg)	50	54	68	68	85	149
Water connection(mm)	20	20	20	20	20	25



FAQ:

1.Can you provide drawing design service?
Yes, we have professional HVAC engineering team to design your project and optimize solutions, we can also provide professional HVAC drawings.

2.What is your delivery time?
For the standard unit, about 35-40days.

3.Do you have technical support?
We have professional technical team to answer technical question at 24x7.
When the goods arrived, we can also guide the installation and commissioning by online video or phone call.
If needed we can also send out a project engineer to your country at a fair cost.

4.Would you help me to manage the transportation to my country?
Yes, our professional logistic team will help you to arrange cost effective shipping service to get you fast shipment with less cost.Usually we recommend full container shipment 20GP, 40GP, 40HQ.

5.How can I trust your company?
We are one of the best professional HVAC solution suppliers in China with more than 10 years experience, also we are authorized agent for some reputed brands such as Dunham-Bush(a USA brand with 126 years) and TICA Climate (a Carrier holding company), you can verify us by any means, if needed we can also provide business references around your region as credibility testimonial materials.
