Roller glass coating machine
US $30000

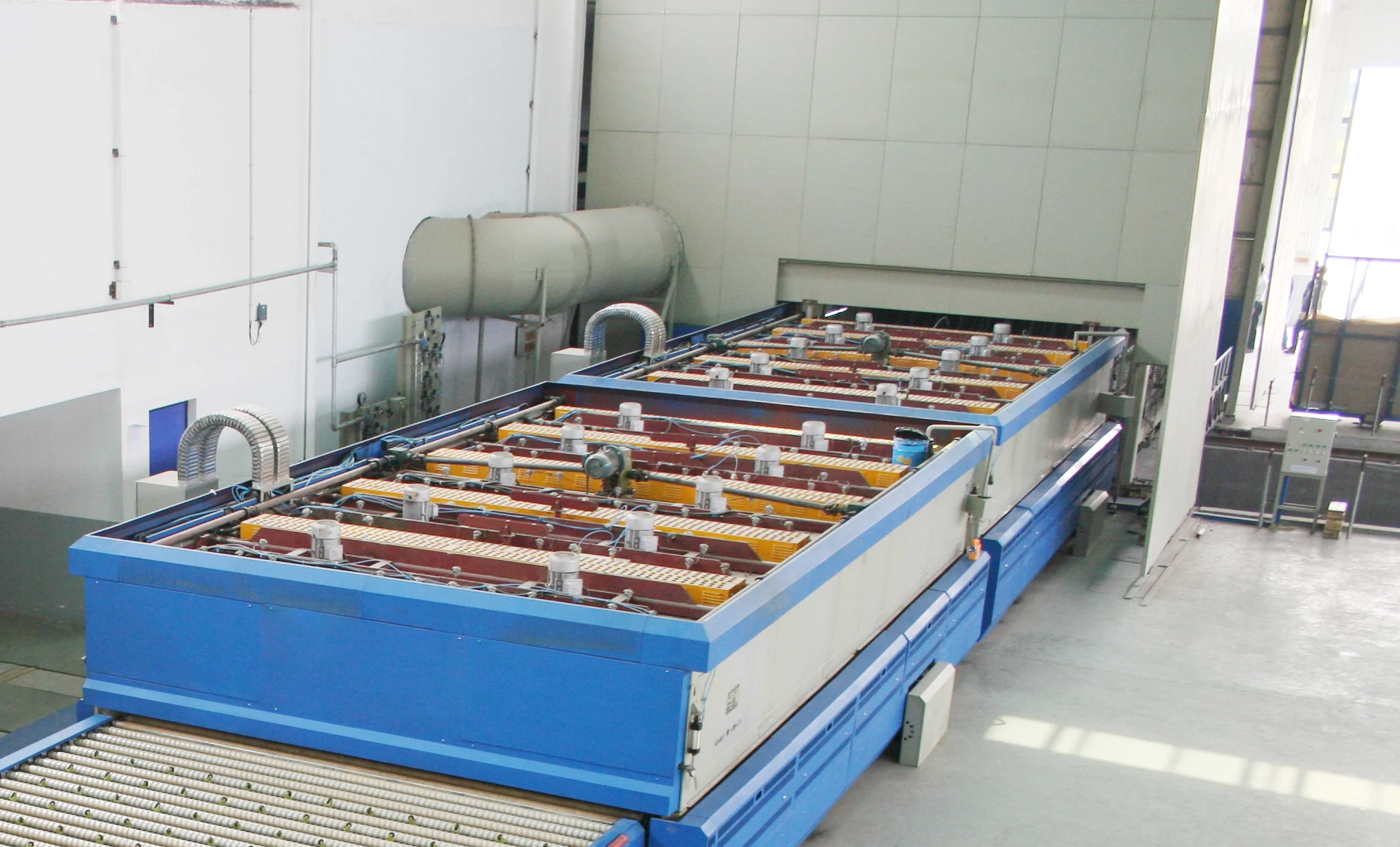

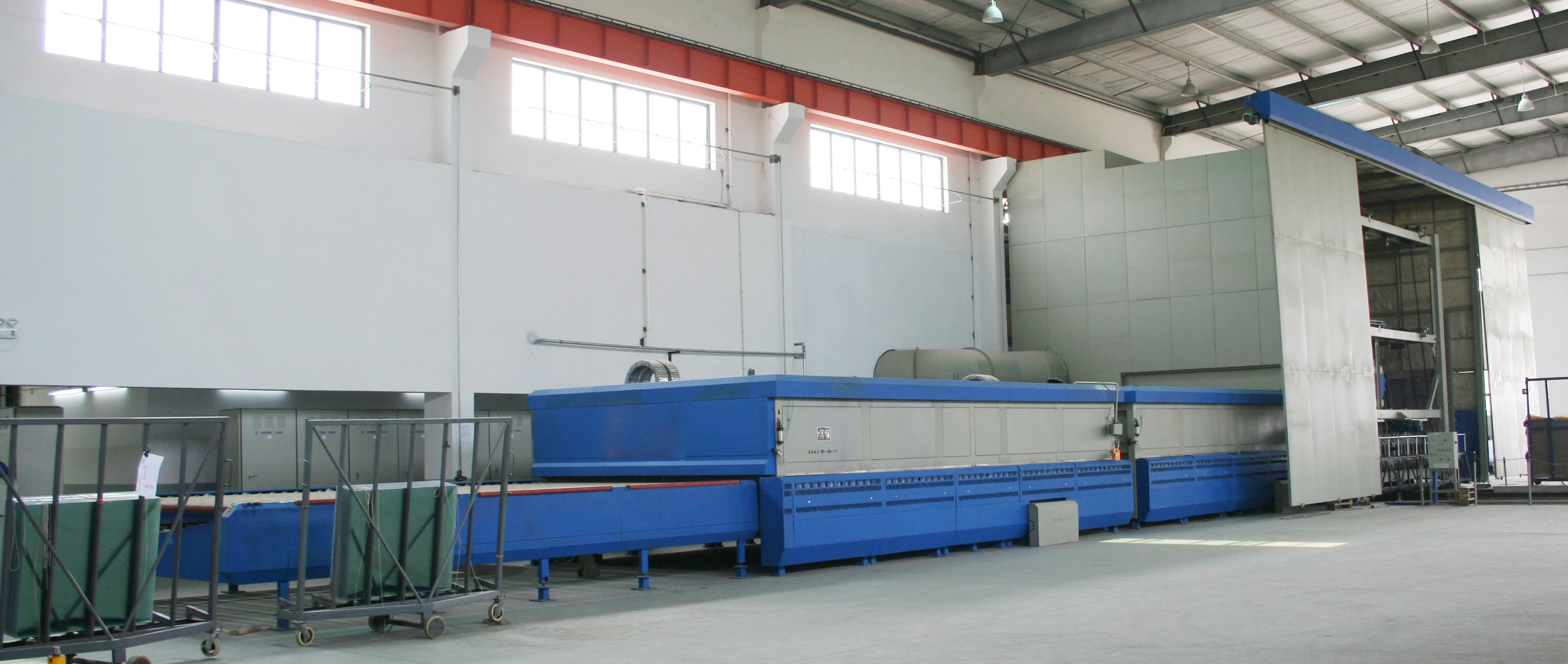

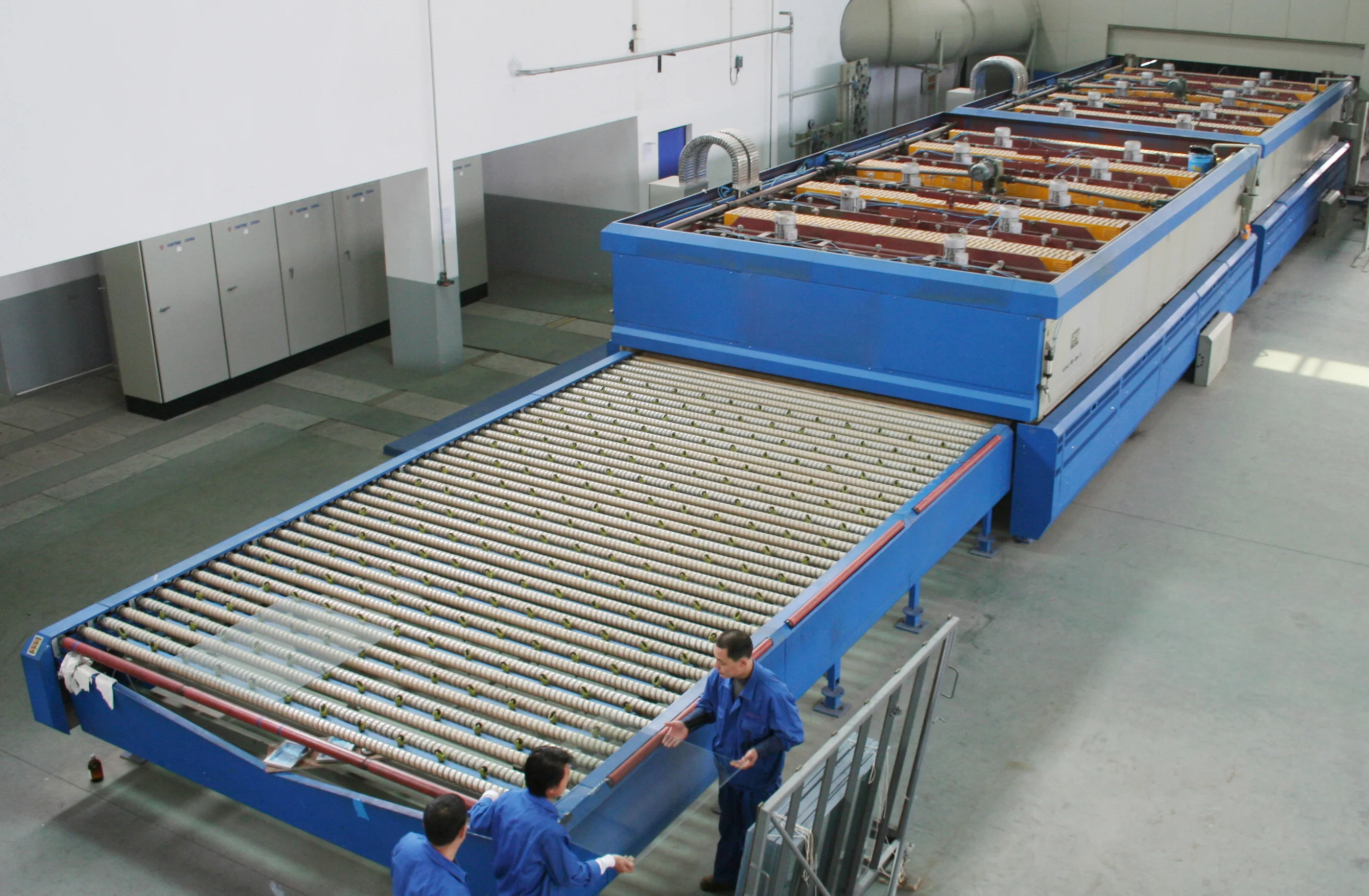

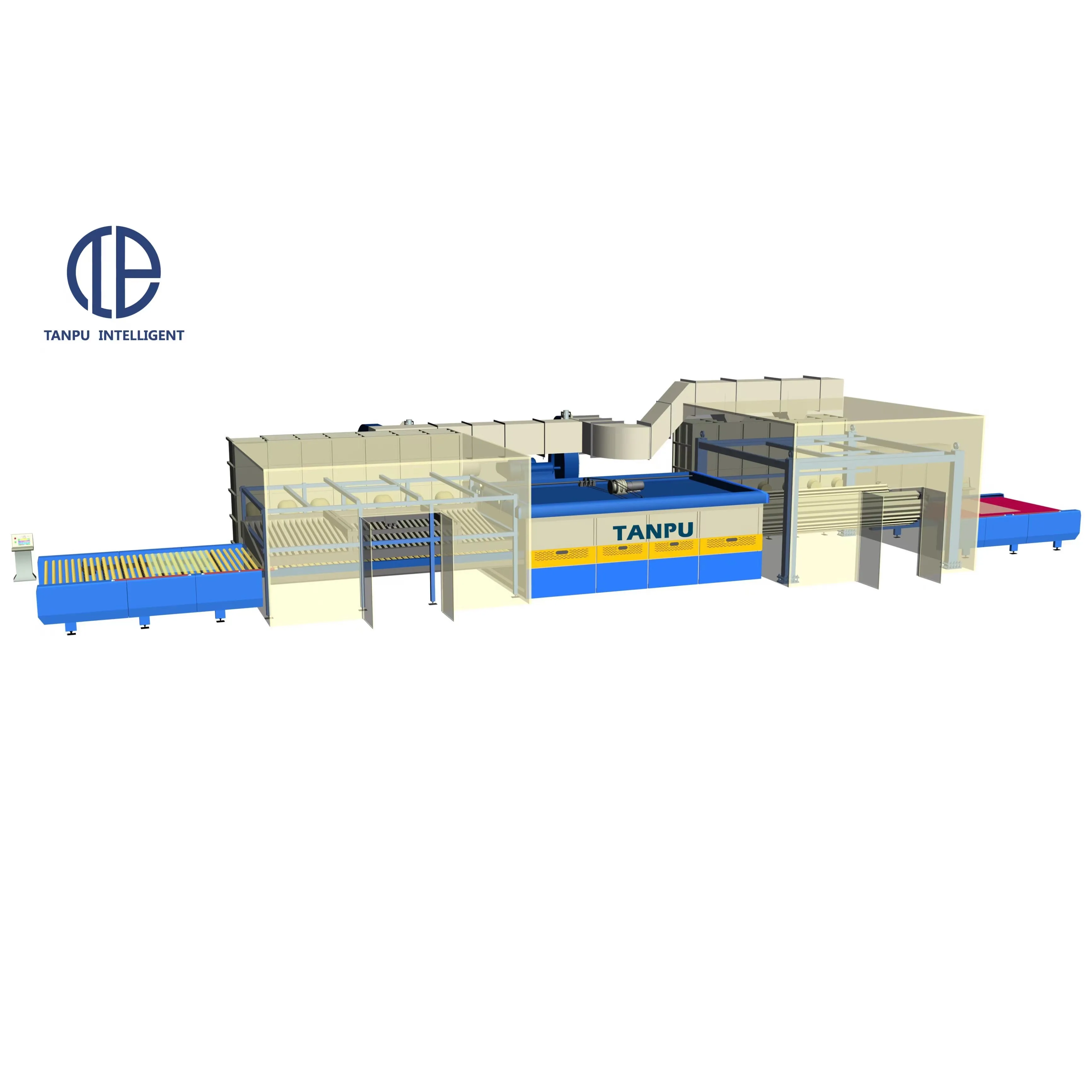

TANPU JetConvection Low E 4 19mm china building and window flat glass tempering furnace machine tempering machine
- Category: Glass Production Machinery >>>
- Supplier: FOSHAN,TANPU,INTELLIGENT,TECHNOLOGY,CO.,LTD
Share on:
Product Overview
Description
Products Description

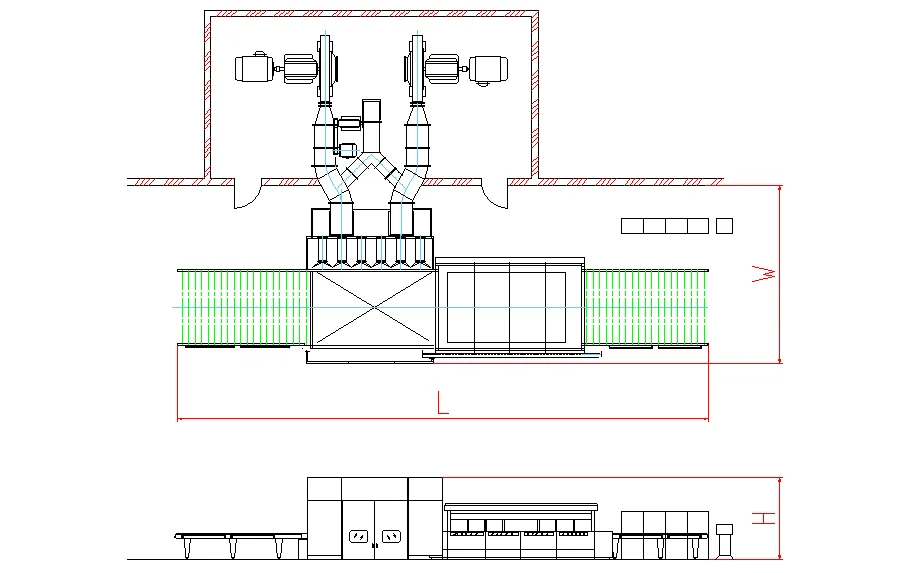

PG series flat tempering machine technical parameters | ||||||||||
Model No. | Max pendulum area (mm) | Min glass size (mm) | Glass Thickness (mm) | Installed power | ||||||
Heating & transmission (kw) | Fan (kw) | |||||||||
ATG1206 | 1220*610 | 150*80 | 4-19 | 70 | 37 | |||||
ATG2110 | 2200*1220 | 200*100 | 4-19 | 160 | 125 | |||||
ATG2212 | 2200*1220 | 200*100 | 4-19 | 200 | 147 | |||||
ATG2415 | 2440*1530 | 240*100 | 4-19 | 270 | 215 | |||||
ATG3015 | 3050*1500 | 240*100 | 4-19 | 330 | 250 | |||||
ATG3018 | 3000*1800 | 300*100 | 4-19 | 390 | 350 | |||||
ATG3621 | 3660*2100 | 300*100 | 4-19 | 540 | 257 | |||||
ATG3624 | 3660*2440 | 300*100 | 4-19 | 620 | 295 | |||||
ATG4224 | 4200*2440 | 300*100 | 4-19 | 700 | 305 | |||||
ATG5024 | 5000*2440 | 300*100 | 4-19 | 830 | 325 | |||||
ATG6024 | 6000*2440 | 300*100 | 4-19 | 990 | 325 | |||||
ATG6030 | 6000*3000 | 350*150 | 4-19 | 1220 | 430 | |||||
ATG8030 | 8000*3000 | 350*150 | 4-19 | 1620 | 450 | |||||
ATG6033 | 6000*3300 | 450*150 | 4-19 | 1340 | 430 | |||||
Welcome to customize
We have a very professional engineering design team.
According to your needs, we can customize the exclusive flat tempering machine, including logo, size, machine parts and so on
The application of glass
Glass Tempering Oven Toughening Plant Machine Furnace Product Application: Ordinary float laminated glass, tempered laminated glass, curved laminated glass, color laminated glass, LED glass, dimming glass, bulletproof glass, multilayer laminated glass, wired glass, door glass, crystal just strengthen the portrait door glass, appliance panel glass, glass bead, crystal photo studio backdrop and video wall of glass, tea table surface glass, partition screen frameless painting and personalized photo glass, etc.
Features:
1. The use of wind circulating heating mode and temperature equilibrium improve the quality of the products.
2. PLC variable frequency control system ensures the temperature control precision and the default multi section temperature control, according to the different processes can be arbitrary choice of temperature section number.
3. High yield and low energy consumption made this machine is the ideal choice for sheet plant.
Recommend Products

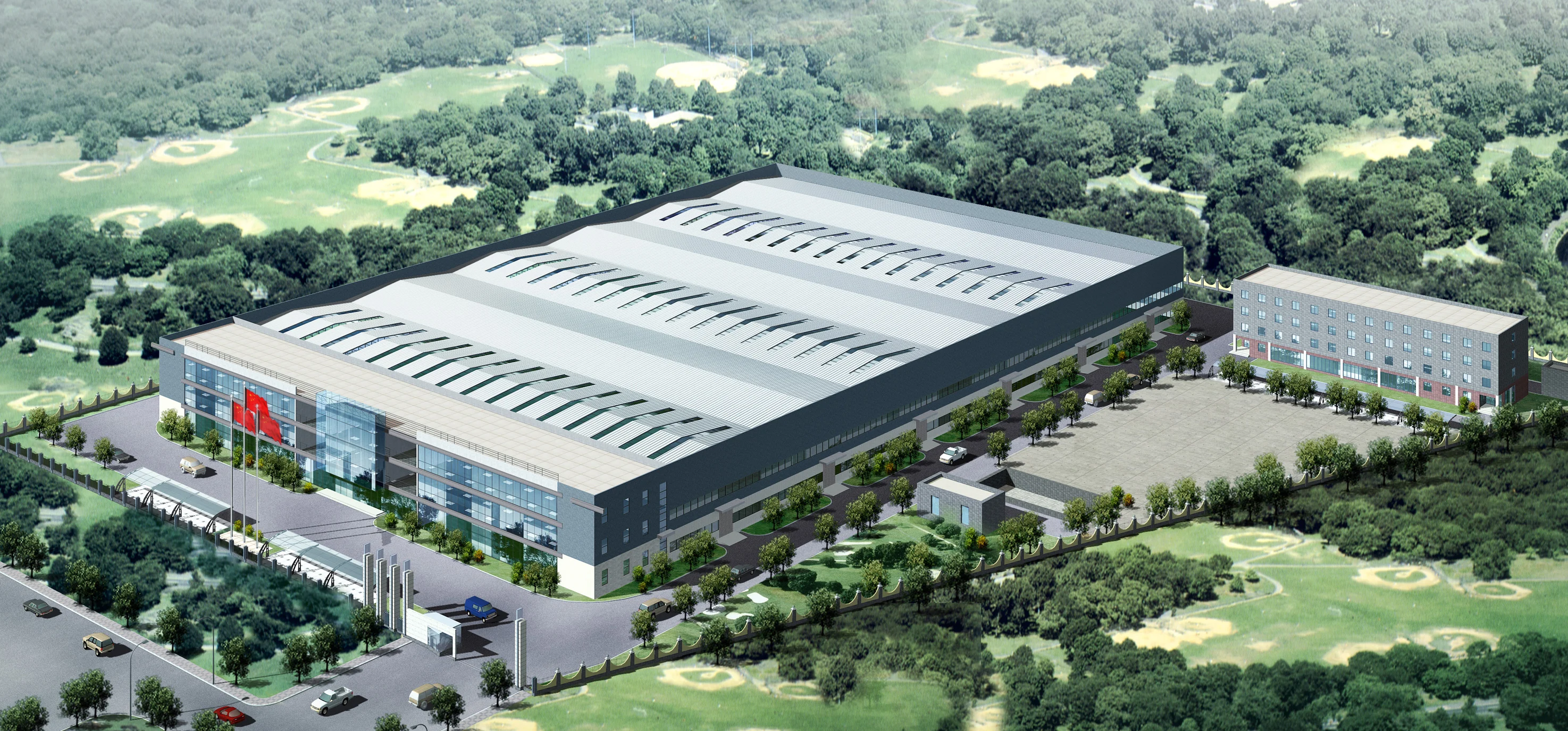

Company Profile
FOSHAN TANPU INTELLIGENT TECHNOLOGY CO.,LTD
TANPU INTELLIGENT is a design and fabrication oriented company for Flat Glass Deep processing field. The capability of glass technology cover full range of glass machines. Our Knockout Product include: Glass Tempering Machine, Glass Cutting Machine, Glass Double Edging Machine, CNC Glass Working Center, Glass corner processing Machine, Automatic CNC Drilling Machine.
As time goes by, we can precisely locate the customer need, redefining product standard and process standard in the glass sector. TANPU INTELLIGENT copperates with small and medium-sized companies, and with large international groups, for which we design and make complete glass production solution. Our uncompetitive edge is highlighted by the technology we created and by the variety of solutions that ensure we meet every inquiry by creating automated and integrated system.
Hot sale country
TANPU INTELLIGENT has cooperated with more than 30 countries and has a large number of project cases, welcome to contact us.
Exhibition
Certifications
Packing&Delivery
Product Service
FAQ
1. who are we?
TANPU INTELLIGENT is a design and fabrication oriented company for Flat Glass Deep processing technology. We are based on
Guangdong, China,start from 2015, sell to Eastern Europe(30.00%), South America(20.00%), Southeast Asia (20.00%), North
America(10.00%), Mid East(10.00%), Southern Europe(10.00%). There are total about 5-10 people in our office.
2. When can we arrange shipment?
We usually arrange shipment within 30 days after getting deposit, but customized machines should be between 60~100 days.
3. How to provide after-sale service?
Free warranty for one years. Provide remote services and video guidance.
4. what operating language is the machine?
Standard English, can also be changed as required.
5. How to operate the machine?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us for engineer
dispatching.
6. How can I contact you?
You can contact us directly on Ali International platform or add WA:008613703234074 or [email protected].
7. Can l have a sample?
Yes, we can provide you with samples, but you need to pay the price of individual samples.
